240Z front lighting circuit diagram

Posted October 8, 200420 yr

comment_97724

Wiring and control of the headlamps, tail, brake, parking, directionals and side markers.

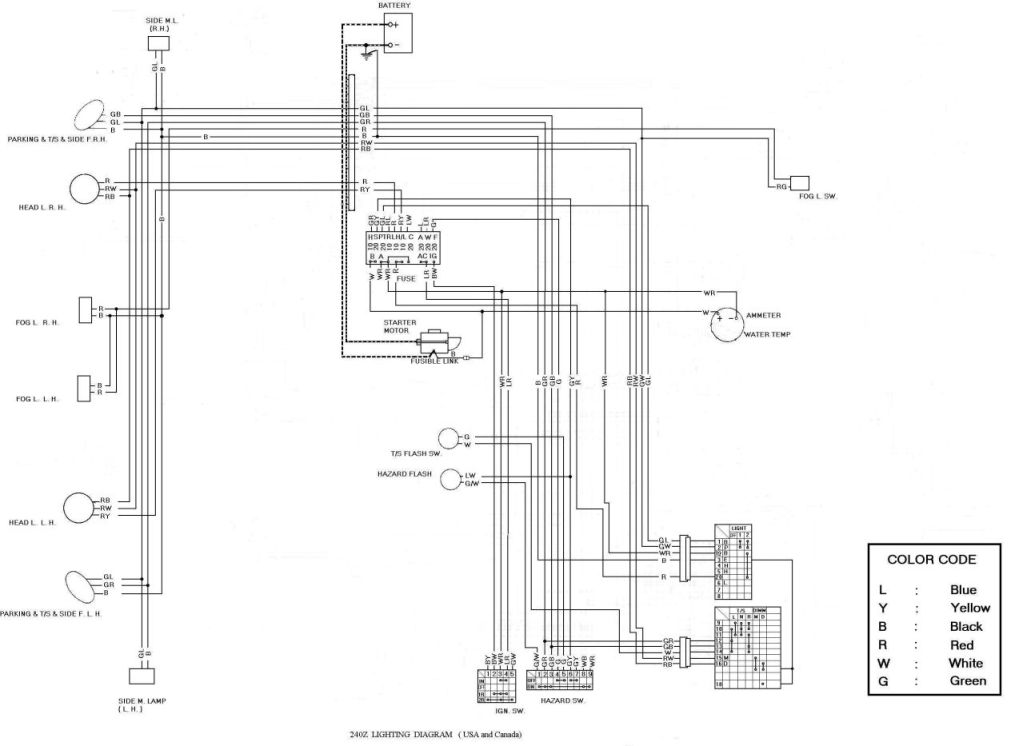

1 diagram for front and 1 for the rear.

Note: for USA and Canada.

Link to comment

https://www.classiczcars.com/forums/topic/13565-240z-front-lighting-circuit-diagram/

Share on other sites

October 8, 200420 yr

comment_97725

Where?????

Link to comment

https://www.classiczcars.com/forums/topic/13565-240z-front-lighting-circuit-diagram/#findComment-97725

Share on other sites

October 8, 200420 yr

comment_97727

Didn't you just post this last month?

which, btw, that post was just edited today????

http://www.classiczcars.com/forums/showthread.php?t=14921

Dazed and confused,

Wayne

Link to comment

https://www.classiczcars.com/forums/topic/13565-240z-front-lighting-circuit-diagram/#findComment-97727

Share on other sites
