Can someone with the CD Microfiche do me a favor and look up a part number. I recently ordered a grommet and I fear I received the wrong one. I need the part number for the rubber grommet that goes around the engine bay wireing harness. The grommet sits in the firewall below the battery tray.

Thanks.

I've looked through my parts manual and couldn't find any mention of it at all. Not in the body or the electrical sections. If it ends up the wrong one I might have one from a stripped out parts car. I'd need the diameter to match it up. There's a great hardware store a few miles from my house that carries all those little things like rubber grommets in sizes up to 3 inches in diameter. You might want to check in your area too. Look in the electrical section if you can't find it in the hardware area. Good luck.

TRY 24250-N4500 I'ts for a 280z but its the same part.

JZM

Thanks guys,

The part I got was 24250-E4100. And it is just a plain looking grommet. The old one that I had has a "sleeve extension" almost like a turtle neck looking extension coming from the grommet.

Ed

Like many parts on 72's; it has probably been superceded to another grommet that fits the hole in the firewall but is not identical to the original.

Ed, Do you have a good picture of the one you got? For reference. The grommet on my car has seen better days.

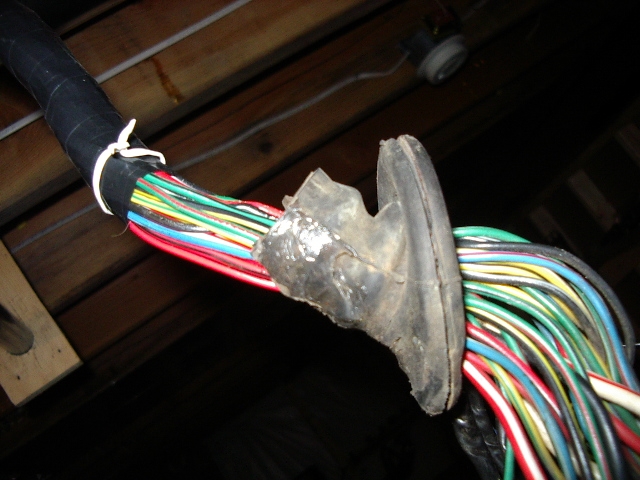

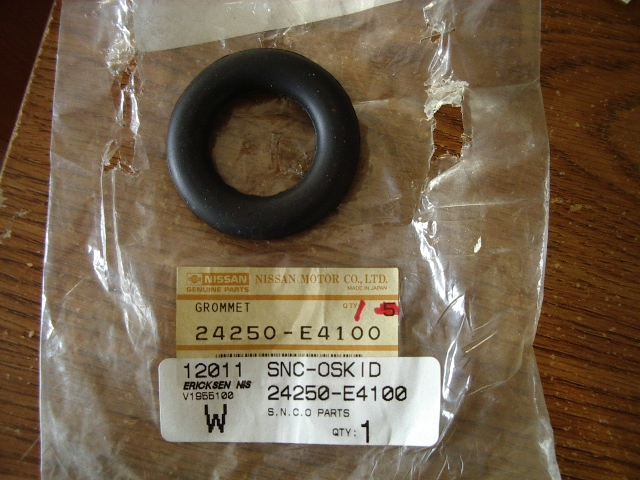

Here go some pictures. The first one is the original still on the wireing harness. I don't want to damage it by trying to remove it in case I can't find a replacement. The second picture is what they sent me. It matches the grommet that goes inside the car on the right rear corner, by the tail light.

Ed. Part 24250-e4100 Is The Correct Part #. The Part Has Changed In Looks.

Sometimes You'll Get Lucky And Get The Old Style. I've Got Some Good Used

Ones In Stock.i Gave You The Part # 24250-n4500 Because It's Closer To The Original One.the Inside Diameter Is Slightly Larger.but It Works And Looks

Stock.it Seals Up Better If You Use A Thicker Wire Wrap On The Harness.

Jzm

Related question:

Is the hole in the firewall the same diameter for a late 280Z as it is for an early 240Z (for the main wire harness coming through low near the battery)? The reason I ask is that on my 240Z restoration, that area has been previously "restored" (read: hacked), so I don't trust the hole diameter, and I have a decent battery tray and firewall section from a 280Z to replace it with. But I haven't researched yet what might be different....

Thanks.

No. the hole diameter is not the same.the 280z is larger.but if your thinking of useing a 280z fire wall chunk it does'nt matter.sometimes its just easier to go to the local hard

ware store and match something up.

JZM

No. the hole diameter is not the same.the 280z is larger.but if your thinking of useing a 280z fire wall chunk it does'nt matter.sometimes its just easier to go to the local hard

ware store and match something up.

JZM

Ah, I expected as much but I couldn't prove it with anything I have available. So thanks for the info, and I'll deal with the different size when I get to it....

Here go some pictures. The first one is the original still on the wireing harness. I don't want to damage it by trying to remove it in case I can't find a replacement. The second picture is what they sent me. It matches the grommet that goes inside the car on the right rear corner, by the tail light.

Thanks for the pics. Wow, Significant differences. Seems like the "new" one would allow a lot of air through the firewall. Let us know how you eventually address the grommet issue.

I think the new one as shown in the pics is more for protection of the wiring harness as it passes over the metal of the body. The old one is for sealing purposes.

I dont believe they are interchangable. The newer one is as seen in the rear hatch area (remove your inner plastic trim panels).

FWIW

Joseph

Well I'm not having much luck finding a grommet. The search continues....
