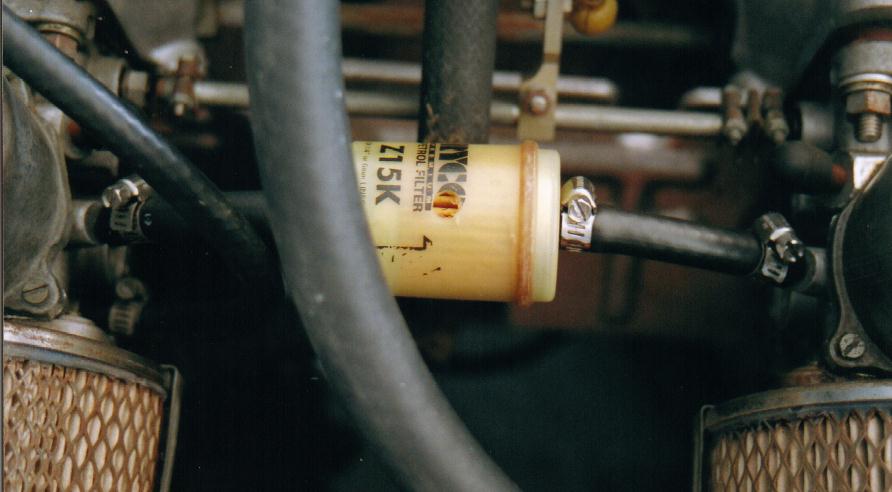

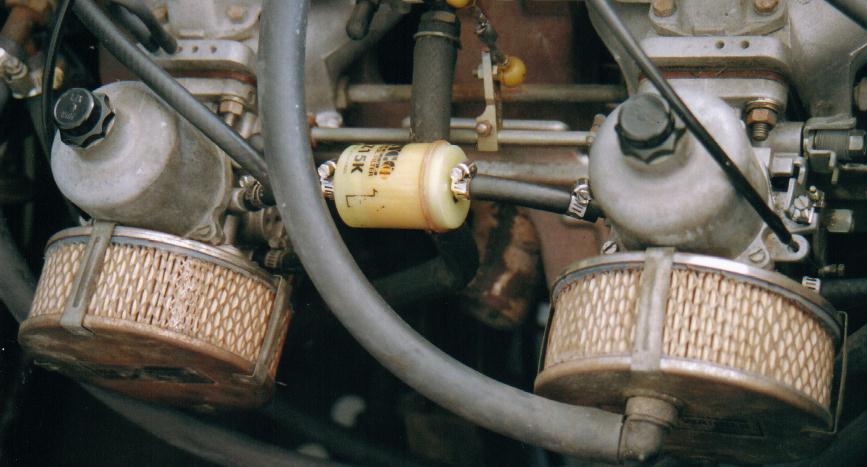

Posted February 21, 200520 yr comment_113606 This is mainly for Gavin's benefit but I thought others might like to see how the previous owner of "Precious" set up the carbies. I have to admit, she ran well until there was a blockage,fuel ran up into the hose, overflowed the filter,(Check the hole in the filter to allow the passage of air), and poured down onto the manifold. Fortunately the engine wasn't up to full operating temperature at the time. I've since bought a pair of 240 carbies so you can understand why I've been in the hunt for an air box. Rick. Link to comment https://www.classiczcars.com/forums/topic/15060-hows-this-for-a-carby-set-up/ Share on other sites More sharing options...
February 21, 200520 yr comment_113607 Here is what my carbs look like, I have dual weber 32/35 dgv-5a, they need rebuilt though. Link to comment https://www.classiczcars.com/forums/topic/15060-hows-this-for-a-carby-set-up/#findComment-113607 Share on other sites More sharing options...
February 21, 200520 yr comment_113608 ^^that first carb setup is..... interesting?? Link to comment https://www.classiczcars.com/forums/topic/15060-hows-this-for-a-carby-set-up/#findComment-113608 Share on other sites More sharing options...
February 21, 200520 yr comment_113611 Rick,why don't you use/modify the air cleaner setup from the old carbies?[what make are they anyway]?MOM Link to comment https://www.classiczcars.com/forums/topic/15060-hows-this-for-a-carby-set-up/#findComment-113611 Share on other sites More sharing options...
February 21, 200520 yr comment_113638 at previous owner of Precious, what a well thought through mod. Not Link to comment https://www.classiczcars.com/forums/topic/15060-hows-this-for-a-carby-set-up/#findComment-113638 Share on other sites More sharing options...
February 21, 200520 yr comment_113643 That's trully shocking! Link to comment https://www.classiczcars.com/forums/topic/15060-hows-this-for-a-carby-set-up/#findComment-113643 Share on other sites More sharing options...
February 21, 200520 yr comment_113644 Hey Rick yeah I don't know why they set it up this way seems all backwards and dangerous as you found out.What have they done with the stock fuel rail set up did they toss it out?Looks like you could use those air filters would they bolt up? That way at least you could get your 240z carbs on and remove that fuel filter from where it is.Then you can hunt for a 240z airbox.Also try advertising on ozdat.com under wanted items you never know your luck! Link to comment https://www.classiczcars.com/forums/topic/15060-hows-this-for-a-carby-set-up/#findComment-113644 Share on other sites More sharing options...
February 21, 200520 yr comment_113681 What your seeing is a home-made replacement for the float bowls. Notice there are no float bowls for either carb? The fuel line fills the filter which acts as a shared bowl for the two carbs, Crazy? yes! Creative? Hell Yes! Link to comment https://www.classiczcars.com/forums/topic/15060-hows-this-for-a-carby-set-up/#findComment-113681 Share on other sites More sharing options...
February 21, 200520 yr comment_113682 Now that I look at it again.... I may have got that wrong, That is, Is that the fuel inlet this device is connected to? or a vent? Link to comment https://www.classiczcars.com/forums/topic/15060-hows-this-for-a-carby-set-up/#findComment-113682 Share on other sites More sharing options...
February 22, 200520 yr comment_113743 Probably those much detested concentric float carbs, the big ugly ones, not the SU type. Rick, if you still have a carb related problem, give those carbs the flick Link to comment https://www.classiczcars.com/forums/topic/15060-hows-this-for-a-carby-set-up/#findComment-113743 Share on other sites More sharing options...
February 22, 200520 yr Author comment_113767 Hey Victor,Take a closer look at the fuel filter mate. Notice the hole drilled into it ????Richard,Those carbies ARE getting the flick. I have a set of 240 carbies on manifold, ready to go on. Just waiting to get an air box.Gavin,Using those air filters was my first thought mate. No such luck.Rick. Link to comment https://www.classiczcars.com/forums/topic/15060-hows-this-for-a-carby-set-up/#findComment-113767 Share on other sites More sharing options...
