Starter wireing, need help


Ed

Recommended Posts

I need some help wireing my starter solenoid. I think I've got some of the connections wrong. From the solenoid there are two large copper bolts and one spade connector. I can't figure out how to correctly wire the two copper bolts.

I need to connect the positive battery cable. The fusable link. And the wire that goes into the starter armature.

What goes where?


Link to comment
Share on other sites

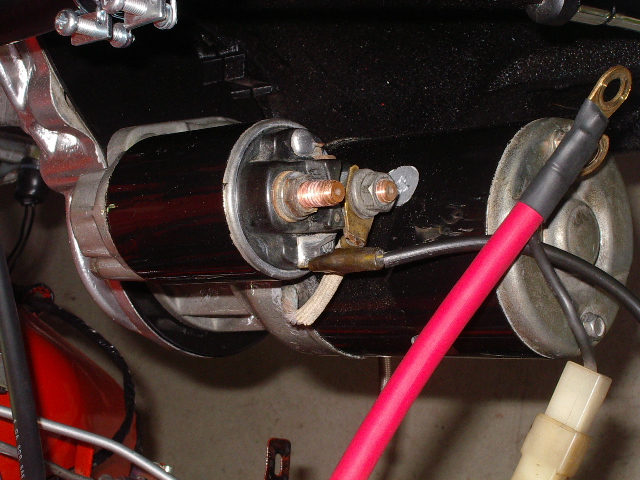

The Positive battery cable and the smaller wire ( with inline conector ) mounts on the bare stud shown closest to you in the picture. The wire

that is already bolted on is in the correct spot.

- Jeff
