last son kal-el Posted August 15, 2006 Share #1 Posted August 15, 2006 This is my second question in this forum. Last one was answered quickly and pointed me in the right direction. I'm hopig for the same. The following gauges do not work. Fuel, Oil Pressure, Temperature. Volt/Charge and clock work fine. Where do I start. Let me state that I recently purchased a new Haynes manual and I would need a 100 power magnifying glass to read the wiring diagram. Any starting points? Fuel light will come on when I'm low. Link to comment Share on other sites More sharing options...

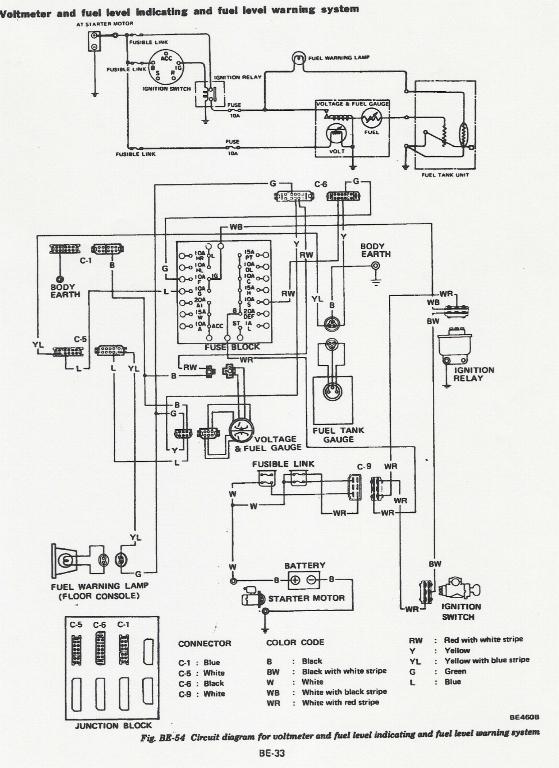

sblake01 Posted August 15, 2006 Share #2 Posted August 15, 2006 I've not experinced that problem but maybe these two scans will help. I'd look at those fuses and fusible links first. Link to comment Share on other sites More sharing options...
BARACU Posted August 15, 2006 Share #3 Posted August 15, 2006 I recently bought one of these color wiring diagrams. I wish they had them for the 280z years ago. Well worth the $28! ALhttp://cgi.ebay.com/ebaymotors/Datsun-280Z-1978-HUGE-COLOR-Wiring-Diagram-11-x-17-x-3_W0QQitemZ320017435042QQihZ011QQcategoryZ34229QQssPageNameZWDVWQQrdZ1QQcmdZViewItem Link to comment Share on other sites More sharing options...
COZY Z COLE Posted August 15, 2006 Share #4 Posted August 15, 2006 After checking the fuses, the water temperature, oil pressure, and fuel guages, and the turn signal lamp all are connected to the ignition relay. If these all fail at the same time replace the ignition relay.LARRY Link to comment Share on other sites More sharing options...
last son kal-el Posted August 16, 2006 Author Share #5 Posted August 16, 2006 O.K. I'm a novice when it comes to wiring. I looked in engine compartment I think I've found the relay area, shouldn't the fusible links be attached to the cover. If so I do not see mine in that location. I've found 2 connectors, but I think it's for the fuel injection. When I disconnected 1 of the them the car would not start. Does anyone have a picture of the exact location for the fusible links? Link to comment Share on other sites More sharing options...
sblake01 Posted August 16, 2006 Share #6 Posted August 16, 2006 Under the two white plastic covers, attached to the relay box located between the battery and the strut tower. Link to comment Share on other sites More sharing options...

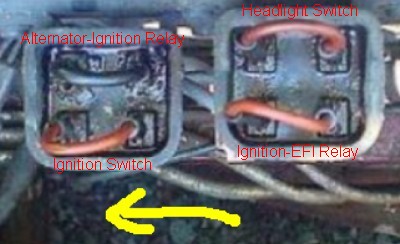

last son kal-el Posted August 17, 2006 Author Share #7 Posted August 17, 2006 Well, I've found the fusible links. They were under the relay cover, not attached to it. Is it standard to have these items crimped together, in a loop? Or should there be a way to remove link if bad? By the way while looking for the fusible links I found my heater/defroster vacuum line disconnected. All is well now with that issue. But I still have a problem with the gauges. So the battle continues.... Link to comment Share on other sites More sharing options...
