Evening everyone

How is the weekend going so far?

I have made a little progress on my 1975 280Z /Ferrari 250 GTO kit like I drove her around the yard at work and she is absolutely nuts.If you read my post the other night about Started first time in fifteen years, you will know how stoked I am.

So now I would like to do some proper wiring.

I have downloaded the wireing Diagram for my year of manufacture

I have downloaded the Atlantic Z Alternater upgrade and printed it.

Today I purchased an Internally Regulated alternater and I was trying to make a little progress, but all I could get was frustrated.

The colours in my wiring harness don't seem to match their close

There seems to be an awful lot of electical stuff missing from this car.

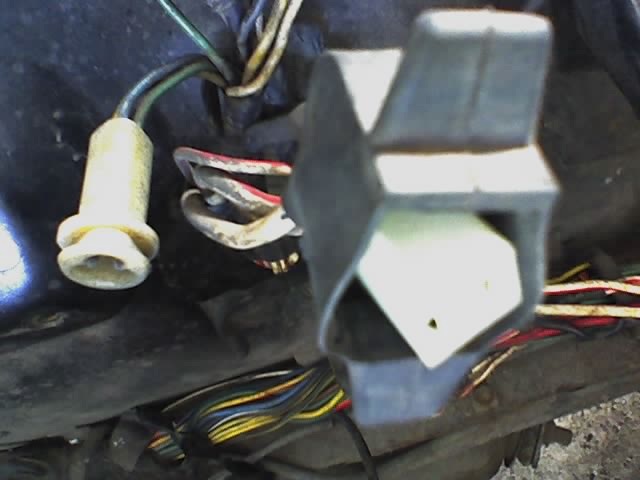

This white two part connecter has no where to go(see picture ), from refering to the digram I beleive it clips to the shunt. What is a shunt? Anybody have a picture? Has any body got any high quality pics of the first few circuits showing wire colours as one leaves the battery and moves along the passenger side fender

Sorry I can't be of help . The picture is too fuzzy and I cannot tell the location where it is in the engine bay . The white thing looks like one half of a inline fuse holder. Don't have a clue what the gray box is . Sorry Gary

From the wiring diagram I have, IF two of the three wires that appear to be going to the same connector are White and two White/Red, then yes it does connect to the "Shunt".

Other than it also connects to your fusible links, hard to say what it is.

Unfortunately, the other connector is harder yet to determine. Can't tell what color wires are going to it.

You need to take a picture that's not so close, it's next to impossible to see any detail since it's so blurry.

E

After looking at my diagrams (75 Z) for a little bit I would say that the two part (White) 3 pin connector goes to the (Compressor Relay - I.E. - For cars with A/C) I'm looking up the wire colors I see in the picture (Blue, Yellow, Green) and the only connector that fits the bill is the compressor relay connector. It's in the right area also...within 6-8 inches of the shunt connector.

webdawg1

Hi, You mentioned that you downloaded the wiring diagram. I have a 1975 datsun 280z for which I need the wiring diagram.. Can you please tell me where you downloaded the wiring diagram from.? Please. I really appreciate it.

Thank You.

Old Thread

1975 wiring diagram

http://www.atlanticz.ca/zclub/techtips/wiringdiagrams/75_280z_wiring.pdf

Awesome! Thanks so much..
