The heater control panel in a '73 240Z is backlit.

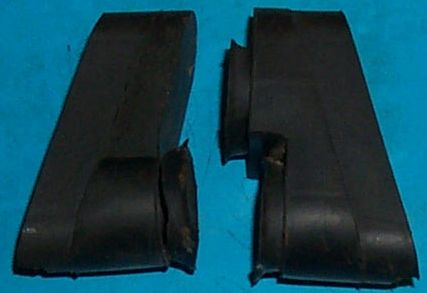

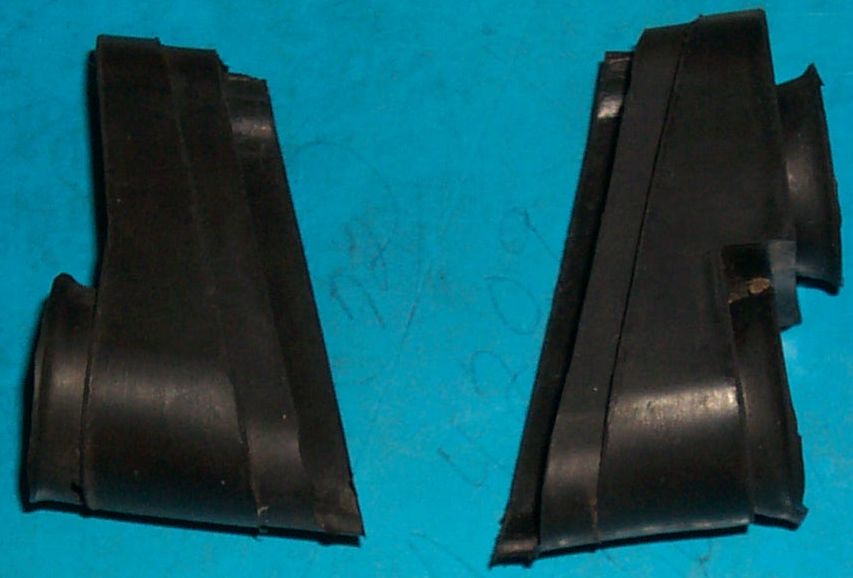

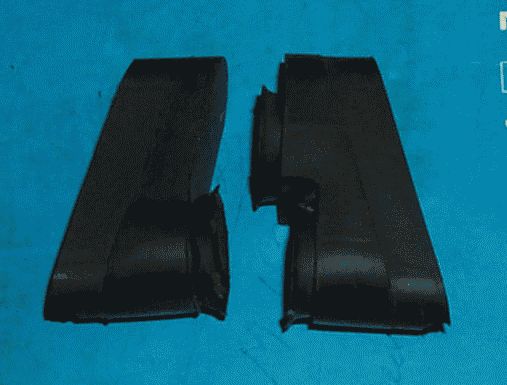

The green tinted portion of the hcp is lit on each side by a light bulb. There are two rubber surrounds that keep the light from the bulbs from illuminating the inside and underneath of the dash. The two I have taken out are pretty well dryrotted, and I have been searching for the part numbers for them for several days. I was able to find one, but not the other. I have been through the club fische, the 260/240 USA/Canada parts manual, and Nissan FAST. The dealer has told me (incorrectly) that these parts were not from a 240Z.

Any help would be greatly appreciated.

I will take and post some pics tomorrow-dead batteries...

Will

Are you talking about the part of the harness that holds the light bulbs that get inserted into the hcp? If so are you looking for the complete harness? I have an extra one, but it is not in good shape at all. I have had to replace it, because the previous owner cut ALL of the harnesses up.

I got a 73 heater panel in a box with a radio I ordered once, and I remember seeing them. Maybe they were a part that came only with the panel or harness.

I may have packed it for the move, but if its still in the garage ill have a look today and see if they are there.

Zak

Zak

Hey Will--

I've got pix of the completely assembled lighted HCP, as well as individual shots of the boots but the site won't let me upload them currently!?

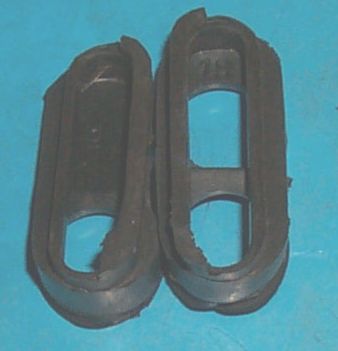

The boots have #'s inside them. The drivers side has the number"18" inside it.

The passenger side has the number "4" inside it.

There are no other numbers or text.

I'm attempting a thread about reconditioned rubber parts. If I can get pics uploaded there please review it for further info.

Jim D.

"Zup"

Jim, You have exactly what I am talking about-mine have the same numbers.

Zac, I have not found part numbner for a heater control panel avaiable as an assembled unit, but I purchased the controls and the panel new old stock from the dealer, and the "boots" in question were not included.

Will

ANyone?

Will

Will, I have all interior parts in a storage unit boxed up for the move. I'll have to have a look after I get it all moved to the new house.

Zak

Thanks Zack!

Will
