Alex 240Z Posted August 25, 2007 Share #1 Posted August 25, 2007 Not sure which side is up when installing the new MSA Radiator Shroud and any tips to making the job easier !!!! Does the thin piece go on top like this with the larger well go on bottom as shown Link to comment Share on other sites More sharing options...
DeesZ Posted August 25, 2007 Share #2 Posted August 25, 2007 I think the picture you posted has it upside down... you should find the fan a bit off center towards the right (with the extra space, if you will, on the left, and the narrow on the right). It's getting late here where I am... am I correct, folks? Link to comment Share on other sites More sharing options...
Alex 240Z Posted August 25, 2007 Author Share #3 Posted August 25, 2007 The first picture shows the part of the shroud the would face the fan . Here is the reverse side picture Doew the thin part face the top of the radiator ??? Link to comment Share on other sites More sharing options...
DeesZ Posted August 25, 2007 Share #4 Posted August 25, 2007 Thick/wider at the top.... thin at the bottom. At least on my '72 that's the way it is. Where are the bolt holes on that? Link to comment Share on other sites More sharing options...
Alex 240Z Posted August 25, 2007 Author Share #5 Posted August 25, 2007 I will have to drill the holes myself the MSA kit comes just the way you see it !!! That is the way it came in the box today !! I guess you use the same four bolts that hold the radiator in ??? Thanks for the help DeesZ !!! Link to comment Share on other sites More sharing options...
DeesZ Posted August 25, 2007 Share #6 Posted August 25, 2007 No, not the same four holes... Your radiator should have eight mounting points... four on the front where it bolts to the car, and four on the rear (side where the hoses mount) that are a bit more closely spaced together. Those last four are where the shroud will mount to the radiator... Check to see if you can tell what I mean. If not, I'll try to get a pix or two for you later... I have both a radiator and a shroud sitting loose in the garage right now... (actually about three rads! ... need one?) Link to comment Share on other sites More sharing options...
a7dz Posted August 25, 2007 Share #7 Posted August 25, 2007 The wide part of the shroud goes on the left (drivers) side. The fan is offset to the right. Link to comment Share on other sites More sharing options...

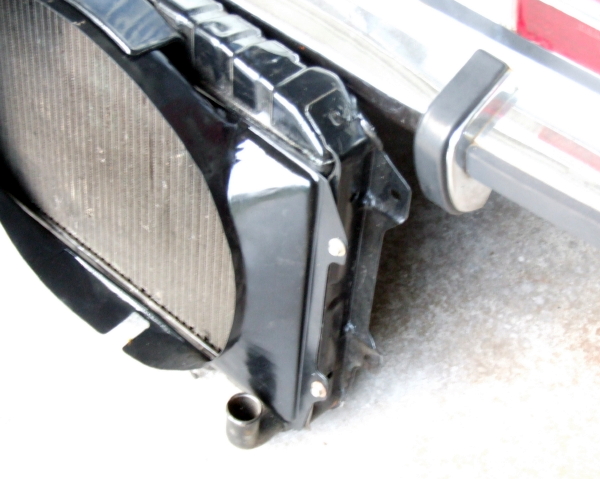

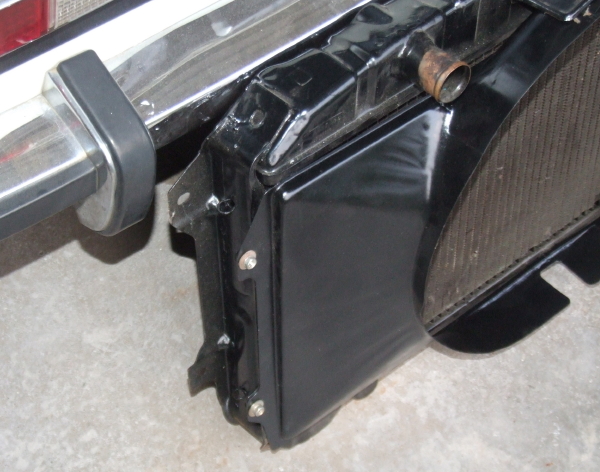

DeesZ Posted August 26, 2007 Share #8 Posted August 26, 2007 This should explain.... Link to comment Share on other sites More sharing options...
AZ-240z Posted August 26, 2007 Share #9 Posted August 26, 2007 John,Is this shroud the fiberglass shroud? The reason I ask is I installed one on my 240Z which has a plastic fan and I found a problem that might be wise to be aware of. I don't mean to be an alarmist, but I found out that at highway speeds the air load on the shroud is sufficient to caused it to flex enough to make contact with the plastic fan blades at the top of the shroud. When you complete your install, I would recommend that you check for any flex of the shroud and adequate clearance between the top inside of the shroud and the fan blades. I haven't heard of this problem from anyone else so it may have just been an anomaly with my install. I wouldn't feel right though if I didn't mention my experience with this. I am sure your install will work perfectly. Dan Link to comment Share on other sites More sharing options...
Alex 240Z Posted August 26, 2007 Author Share #10 Posted August 26, 2007 It is the plastic radiator shroud from MSA !!!! Thanks for the heads up !!!! AZ-240Z and DeesZ excellent pictures !!!! Thanks for the help !!! Thought this would be quick job seems a little more complicated now !!!! Trying to get the car ready for Daytona Z-FEST Link to comment Share on other sites More sharing options...
ta240 Posted August 26, 2007 Share #11 Posted August 26, 2007 I had one years ago from MSA that would suck into the fan too. I wound up strapping it to the support infront of the radiator to keep it from getting pulled back. Mine was a bit warped when I got it so I thought that was the cause. Link to comment Share on other sites More sharing options...
DeesZ Posted August 26, 2007 Share #12 Posted August 26, 2007 The one I have shown in the pictures is metal, so I'm not expecting any major amount of flex. The point about flexing is a good one, although, and I'm glad it was offered... I was thinking about a non-metal one for another Z that should have one.... It's amazing what the shrouds do for cooling (at least in my experience). The belly splash pans tend to help as well. Link to comment Share on other sites More sharing options...
