Posted January 24, 200817 yr comment_235275 Hey i going to work on the underside of the car and the floors of the 240z. I need to reconstruct alot... I need to now some sizes, as made in red on photo. And how the underside is welded? ( red/blue ) is it welded to the underside? Thanks in advance. Link to comment https://www.classiczcars.com/forums/topic/26873-need-measurment-sizes-and-photos/ Share on other sites More sharing options...
January 28, 200817 yr Author comment_235642 Can somebody sent me pictures of the underside please? I need to know how it was connected etc Link to comment https://www.classiczcars.com/forums/topic/26873-need-measurment-sizes-and-photos/#findComment-235642 Share on other sites More sharing options...
January 29, 200817 yr comment_235668 Bart,I would bet, if you do a little research in the forum and photo archives you will find information concerning your request!Tom Link to comment https://www.classiczcars.com/forums/topic/26873-need-measurment-sizes-and-photos/#findComment-235668 Share on other sites More sharing options...
January 30, 200817 yr Author comment_235794 Okay i will look.Thanks, Tom Link to comment https://www.classiczcars.com/forums/topic/26873-need-measurment-sizes-and-photos/#findComment-235794 Share on other sites More sharing options...
January 30, 200817 yr comment_235816 Interesting "spook" on the car in the photo. Do you have any other photos of it from the front? Anyone know where it came from? Link to comment https://www.classiczcars.com/forums/topic/26873-need-measurment-sizes-and-photos/#findComment-235816 Share on other sites More sharing options...
January 30, 200817 yr comment_235818 spoiler looks like the factory Nissan OEM part.... Link to comment https://www.classiczcars.com/forums/topic/26873-need-measurment-sizes-and-photos/#findComment-235818 Share on other sites More sharing options...

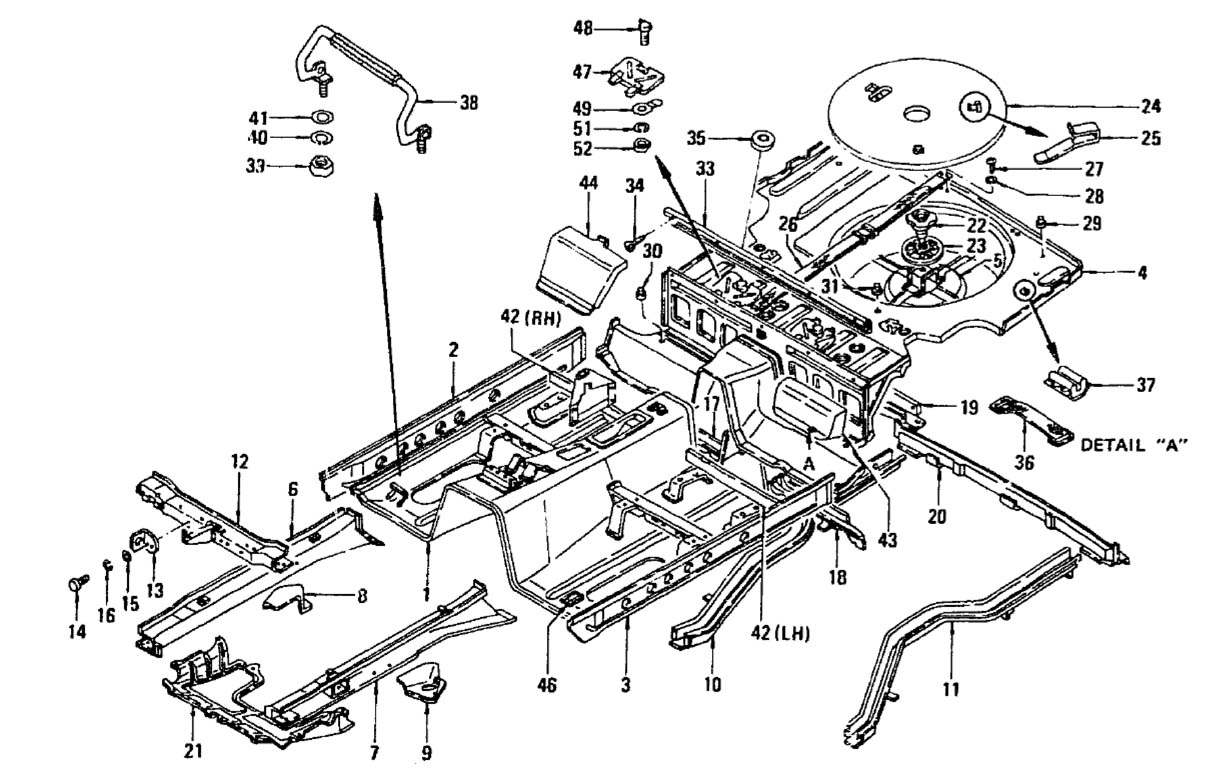

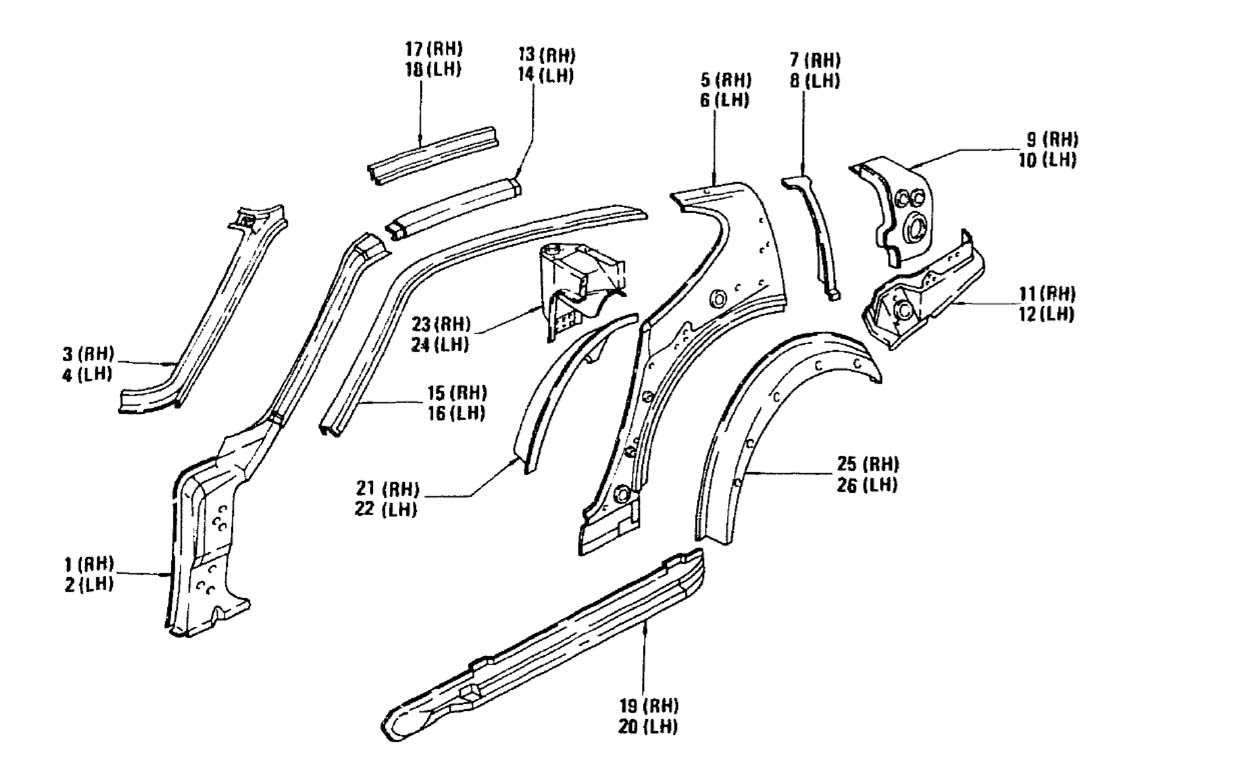

January 30, 200817 yr comment_235821 That is the rocker panel - it is two pieces - and inner and outter It is welded to the floorpan, as well as the front fire wall See Item #19, 20 and #2 #3.. You used to be able to get them from TABCO or Mill Supply FWIW, Carl B. Link to comment https://www.classiczcars.com/forums/topic/26873-need-measurment-sizes-and-photos/#findComment-235821 Share on other sites More sharing options...
January 30, 200817 yr Author comment_235850 Hey thank you very much for the information!About the car above, i don't know where it's from found it on google. Link to comment https://www.classiczcars.com/forums/topic/26873-need-measurment-sizes-and-photos/#findComment-235850 Share on other sites More sharing options...
January 31, 200817 yr comment_235876 Bart here are a couple of places to check. Charley Osborne at Zedd Findings datsunzparts.com is vary helpful and has the parts . Another is baddogparts.com They also have the sheet metal parts that I think you need or at least Charley Osborne will have the measurements you are looking for. I have use his floor pans and found them to be first rate. Gary Link to comment https://www.classiczcars.com/forums/topic/26873-need-measurment-sizes-and-photos/#findComment-235876 Share on other sites More sharing options...
May 6, 200816 yr comment_246470 Hi Carl,I was wondering where the two diagrams you sent are from. Very useful as I try to manage all the names for the various bits of my 1971 240Z that need 'adjusting"!Thanks,Mitch Link to comment https://www.classiczcars.com/forums/topic/26873-need-measurment-sizes-and-photos/#findComment-246470 Share on other sites More sharing options...
May 6, 200816 yr comment_246484 Hi Carl,I was wondering where the two diagrams you sent are from. Very useful as I try to manage all the names for the various bits of my 1971 240Z that need 'adjusting"!Thanks,MitchMitch,Factory service manual (or FSM). Very useful.Look at carfiche.com for 76 & 77. Otherwise look on E-bay. They pop up from time to time.Where in Ontario? Link to comment https://www.classiczcars.com/forums/topic/26873-need-measurment-sizes-and-photos/#findComment-246484 Share on other sites More sharing options...
May 7, 200816 yr comment_246563 Hi Carl,Thanks for the info. Much appreciated.I see that you are in Rigaud. I am just north of Toronto.I am trying to restore a 1971 240Z. I bought it when I was living in Montreal, where I grew up. I am the third owner: bought it from my best friend in 1977, drove it for 3 years. During my first year of ownership I had the driver and passenger side floor worked on...did not know much then but it looks like the body shop just put sheet metal on top of it, pop riveted it down then slathered on undercoating really thick! Botch job!!). Anyway it stopped me from getting sprayed in the face with road water every time I hit a puddle!!In 1980 I lost a heater hose and cracked the head. I tore down the engine, changed the bearings and got a new head from a scrap yard. Buttoned it up and drove it for the summer, then went out of the country for school. So I put it away in 1980 and there it sat. Moved to Toronto in 1994 and brought it with me, but just now finding the time to looking at restoring it.Did the prep and engine started and runs just fine, but the body...oh the body! Floors bad but not horrible, driver's side fender and rear wheel well has some rust perf, but the rocker panel under the door is gone, though the door sill part is pretty good...go figure! Not sure of the exact names for the parts (and that's why I asked for parts manual pdf sources), but behind the exterior part of the rocker panel (#19 and 20), I see the remains of a horizontal member which runs under the door that has approx 2" round holes punched in it. It's #2 and #3 in the drawings you attached. Is this the inner rocker? This is badly corroded and needs replacing (i.e. not much of it is left), but I am not sure how one goes about it. Do you know if this is terminal? What I really need is some advice on how big a job this is. The name of a 240Z body guy in my neck of the woods would be great!I know that the answer about whether its worth it is a really personal one and it usually comes down to "it depends", but I am just looking for an idea of how big an undertaking changing #3 an #19 is. Also worried about screwing up the geometry of the car.Sorry to hijack this thread and thanks for your help....Mitch Link to comment https://www.classiczcars.com/forums/topic/26873-need-measurment-sizes-and-photos/#findComment-246563 Share on other sites More sharing options...
