240Z Wire Diagram

[carguyinok]

So I have been looking for a good wire diagram for my 72 240Z. This is the diagram that keeps popping up and its useless. Nothing on this one makes any sense.

I am working on my coil and points. I am not getting any power when I have the key on. Plus when I put the key on start I get no power on the starter wire. All I am looking to do is run a jumper power wire so I can get spark and hear this motor run. I have a remote starter switch for the starter.

With what this diagram shows I should be able to take the Black\white at the resistor and run pos 12 volts at that point. Now if I do that I get the coil acting like a short with the wire getting warm and starting ta smoke if left hooked up.

I had thought I should be able to run a hot wire to the resistor. Then from the resistor to the POS. on the coil. With the NEG side of the coil going to the dis.

What am I doing wrong here????

This is driving me nuts!!!! I need this car running!!!! please help.

http://www.zeroyon.com/techfiles/1970240zwiringdiagram.gif

[Zs-ondabrain]

Hopefully, one of these will help.

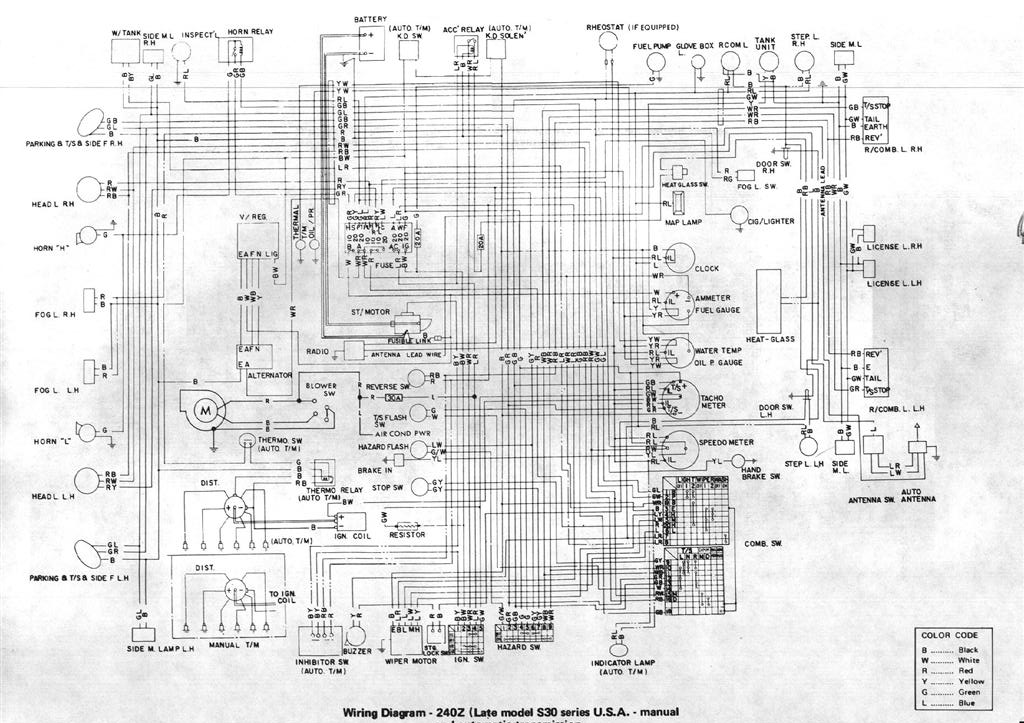

first one is a 70' and the 3rd is a Later 240Z diagram.

Dave

70_240z_wiring.pdf

full automotive Wiring_Diagram_240Z.zip

[carguyinok]

Thank you so much!!!!! Yes this is just what I needed. Now I can trace things back and know what I am looking for.
