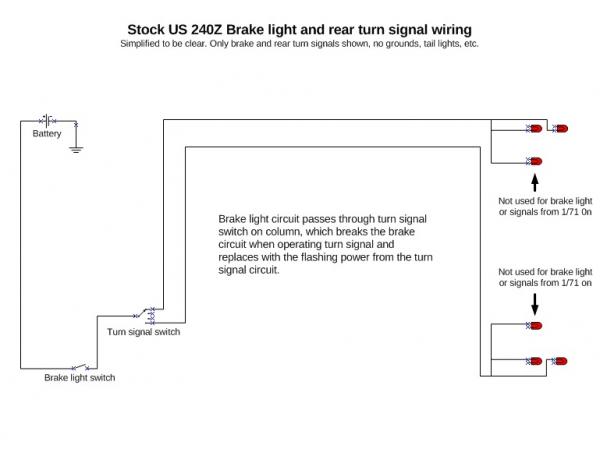

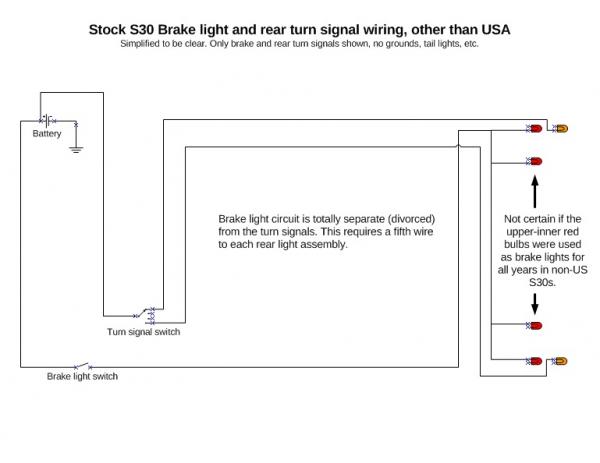

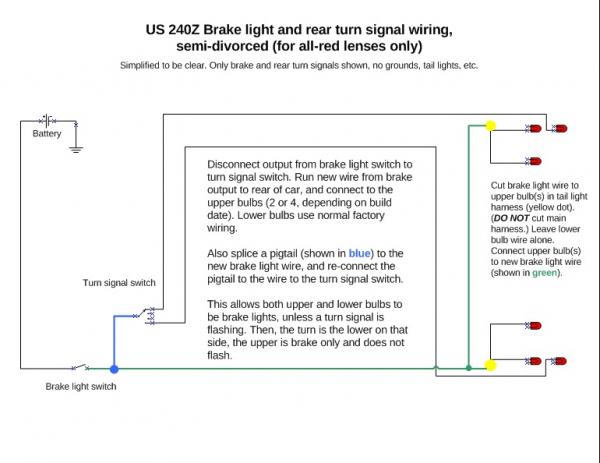

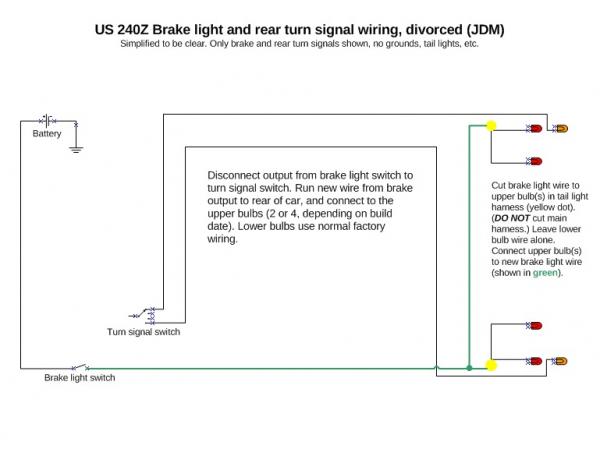

Posted June 16, 200915 yr comment_286933 After it came up in a recent thread regarding JDM 240Z tail lights, I was asked if I could document and post the wiring changes needed to use JDM/Euro (amber bottom) tail lights in a US 240Z. Here it is, in amplified form. First lets define the US rear lighting, which is different than what Nissan used for the rest of the world. Here is a picture to illustrate which bulbs do what: And for comparison, most of the rest of the world got lights configured like this: The issue has always been that if you install the JDM lenses (amber bottom) with US wiring, you have both red and amber lights as both brake and flashers. Not optimal, to say the least. So what to do? Get a bit creative with wiring. DISCLAIMER: Unlike every other mod I've done to my car, especially in the wiring, this mod requires you to cut and splice one or two wires (number depends on build date) in each tail light wiring harness (not the main harness, the small ones with the bulbs in it.) I did this on a spare pair of light harnesses, but if you don't have any spares, you'll need to hack up the ones your car came with. You have been warned. Next, here is a diagram of the stock US 240Z brake/rear turn wiring. This diagram is VERY simple, I've left out many details to promote clarity of purpose. I'm only showing the most pertinent items here. Again, for comparison, here is the stock JDM schematic: So to make the US cars work like the JDM cars, you need to do a couple of things. First, snip the combined brake/flasher wires for all of the upper bulbs. They should be Green/Black on the right side of the car, and Green/Red on the left. A Series 1 car will have these wires to all four of the upper bulbs, but a later (1/71-on) 240Z will only have these wires to the outer bulbs, not the inner ones. IMPORTANT: Do not cut the wire going to the lower, single filament bulb. You need to leave that one connected to the terminal in the wiring connector. Make certain that the cut ends from the connector are well insulated. Then attach a terminal to the snipped ends that you will use later. Run a new wire from the front of the car near the steering column all the way to the rear of the car. This wire will be your new brake light circuit. At the front, disconnect the brake light output wire where it goes up to the turn signal switch and connect your new wire to the output wire of the brake light switch. (Two wires on the brake light switch, one is hot all the time. connect the new wire to the other one.) Don't plug anything into the wire going up to the turn signal switch. At the rear, this new wire needs to connect to the snipped wires on both sides of the car. Do that, and you're done. Here's another simple diagram to illustrate: This wiring mod does not require amber lenses, you can still do it with all-red if you prefer this style of lighting, or just to be a touch different. (Side note: 260 and 280Zs all came wired this way, even though we still just got all-red lenses.) And now for something extra. The US cars got integrated (a.k.a. married) brake and turn signals. This was the norm for most American cars of that time. Cars from other countries generally got separate (a.k.a. divorced) brake and turn signal circuits. That was the norm in the rest of the world. But these days, many cars—both import and American—are coming with all-red rear lights, with a hybrid (or semi-divorced) system. These cars generally have two (or sometimes more) red bulbs on each side of the car. In this system, at least one of those lights per side is the brake light only, and the other functions as an integrated brake/turn light. The advantage to this is that you have the maximum number of brake lights for warning following drivers. If you are simply stopping, all four light as brake lights. If you are slowing for a left turn, you have three brake and one flasher. Some examples are many newer Ford products, or the latest generation VW Jetta, among others. The 240Z lights are well suited for this, and is the way I did my car as a safety measure. The later (1/71-on) 240Zs are especially good candidates for this, as they don't have as many brake lights in use as the Series 1 cars do. As with the stock US wiring, since the lower portion is often a brake light, this works properly only with all-red lenses. The wiring for this mod is essentially the same as the JDM-mod, with one addition. At the front end of the new wire for the brake lights, tap a pigtail into the new wire and connect it to the wire from the turn signal switch that used to connect directly to the brake switch. Like so: That's it. The floor is open for comments... Link to comment https://www.classiczcars.com/forums/topic/32228-modify-us-240z-rear-turn-signal-wiring-jdm-style/ Share on other sites More sharing options...
May 13, 201014 yr comment_319492 I don't mean to take over Arnie's thread great info by the way. I just wanted to point out for those that missed it ( I know I did) on cars that have the one light socket with 3 wires (green w/white, green, and black) you will need a second one for the inside light as well or this won't work properly. Once again this helped a lot. Link to comment https://www.classiczcars.com/forums/topic/32228-modify-us-240z-rear-turn-signal-wiring-jdm-style/#findComment-319492 Share on other sites More sharing options...
May 13, 201014 yr comment_319520 Bar none the best write up I have seen on this topic!!! Thank you Arne, I'll certainly be using your documentation when I make the switch to the JDM tail lights on my Series I. Link to comment https://www.classiczcars.com/forums/topic/32228-modify-us-240z-rear-turn-signal-wiring-jdm-style/#findComment-319520 Share on other sites More sharing options...
May 13, 201014 yr Author comment_319583 It's probably worth mentioning now that the new repro JDM lights sold by esprist and MSA include JDM tail light harnesses as well. These harnesses will allow the change without snipping wires, but the JDM harnesses will not connect to the USA-spec body harness, so so a bunch of jumper wires will be necessary. If anyone gets a set of these and needs help with getting them wired, post here or send me a PM and I'll walk you through it. Link to comment https://www.classiczcars.com/forums/topic/32228-modify-us-240z-rear-turn-signal-wiring-jdm-style/#findComment-319583 Share on other sites More sharing options...
August 16, 20159 yr comment_475858 Does anyone have the pictures for this guide or can link me to another guide with pictures? Need to get my tail lights wires eu style.. Link to comment https://www.classiczcars.com/forums/topic/32228-modify-us-240z-rear-turn-signal-wiring-jdm-style/#findComment-475858 Share on other sites More sharing options...
November 8, 20159 yr comment_480765 Does anyone have the pictures for this guide or can link me to another guide with pictures? Need to get my tail lights wires eu style.. I could really use these photos too! Link to comment https://www.classiczcars.com/forums/topic/32228-modify-us-240z-rear-turn-signal-wiring-jdm-style/#findComment-480765 Share on other sites More sharing options...
November 18, 20168 yr comment_506656 @Arne, is there a chance you can update the photos in this article? Â I may have them on the site, but, the links were lost in the move a few years ago. Link to comment https://www.classiczcars.com/forums/topic/32228-modify-us-240z-rear-turn-signal-wiring-jdm-style/#findComment-506656 Share on other sites More sharing options...
November 18, 20168 yr Author comment_506658 @Mike - I don't know if I still have those images myself. Let me dig around a bit. Link to comment https://www.classiczcars.com/forums/topic/32228-modify-us-240z-rear-turn-signal-wiring-jdm-style/#findComment-506658 Share on other sites More sharing options...
November 18, 20168 yr comment_506659 Thanks @Arne. Â It looks like the links were broken before we made the move to the new site. Â Here's the link to the old site showing the article. Â I'm wondering if you had them uploaded to your user gallery and those were deleted at one point. Â http://legacy.classiczcars.com/forums/content.php?r=145-Modify-US-240Z-rear-turn-signal-wiring-(JDM-style) You can also check your old gallery here: Â http://legacy.classiczcars.com/photopost/u8596-arne.html Edit: Â AHA! Â I may have found the images. Â Check this link: Â http://legacy.classiczcars.com/forums/members/arne-albums.html Link to comment https://www.classiczcars.com/forums/topic/32228-modify-us-240z-rear-turn-signal-wiring-jdm-style/#findComment-506659 Share on other sites More sharing options...
November 18, 20168 yr Author comment_506661 Good find, @Mike . I had found the wiring diagrams and re-attached them here, but hadn't found the supporting pictures. I'll pull those over to this doc and insert them as well. Link to comment https://www.classiczcars.com/forums/topic/32228-modify-us-240z-rear-turn-signal-wiring-jdm-style/#findComment-506661 Share on other sites More sharing options...
November 18, 20168 yr comment_506663 25 minutes ago, Arne said: Good find, @Mike . I had found the wiring diagrams and re-attached them here, but hadn't found the supporting pictures. I'll pull those over to this doc and insert them as well. Great!!  Thanks Arne! Link to comment https://www.classiczcars.com/forums/topic/32228-modify-us-240z-rear-turn-signal-wiring-jdm-style/#findComment-506663 Share on other sites More sharing options...
