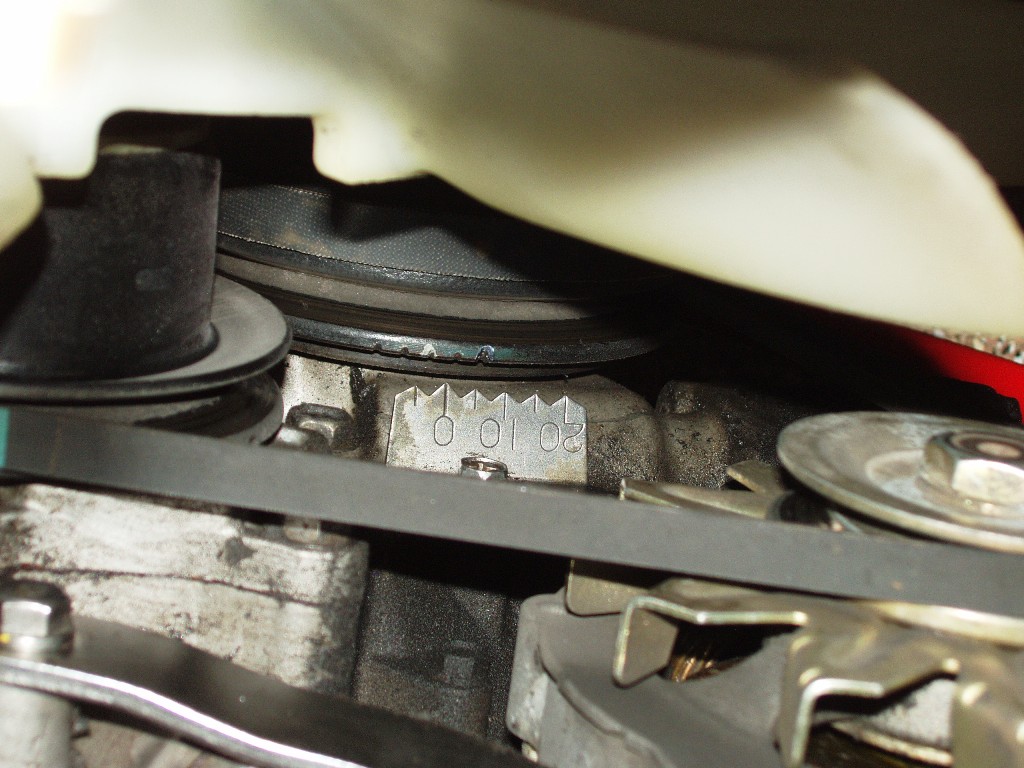

I want to make sure I am following the correct timing marks. As you can see from the picture, I have multiple notches on both the indicator and the pulley. I want to make sure the correct notch on the pulley is highlighted (center mark) to set the timing. Thoughts?


Link to comment
https://www.classiczcars.com/forums/topic/36237-multiple-timing-marks/
Share on other sites


Remove Ads

You've got mismatched pointer and pulley. Early motors had five marks on the pulley and a single pointer. Later cars used a single mark on the pulley and the multiple-mark indicator.

Best thing to do now (IMO) would be to find true TDC (0°) by watching the #1 piston through the plug hole, and confirm which marks line up at TDC.

Following Arne's advice, TDC is aligned with the farthest right mark on the pulley (see pic). I have highlighted it in white for easy viewing going forward, though not in this old pic.


Edited by duffman
