Hi,

My local Nissan dealer can only order newer part numbers. I need the 4 flange bolts and nuts on each side of an early R180 differential from a Jan 71 240z.

The bolts are somewhat unique and have a quadrant shaved off for clearing the round plate that protects the seal.

Would anyone happen to have a part number?

Thanks!

Phil,

Try looking here. The picture isn't too good, but you might be able to find it.

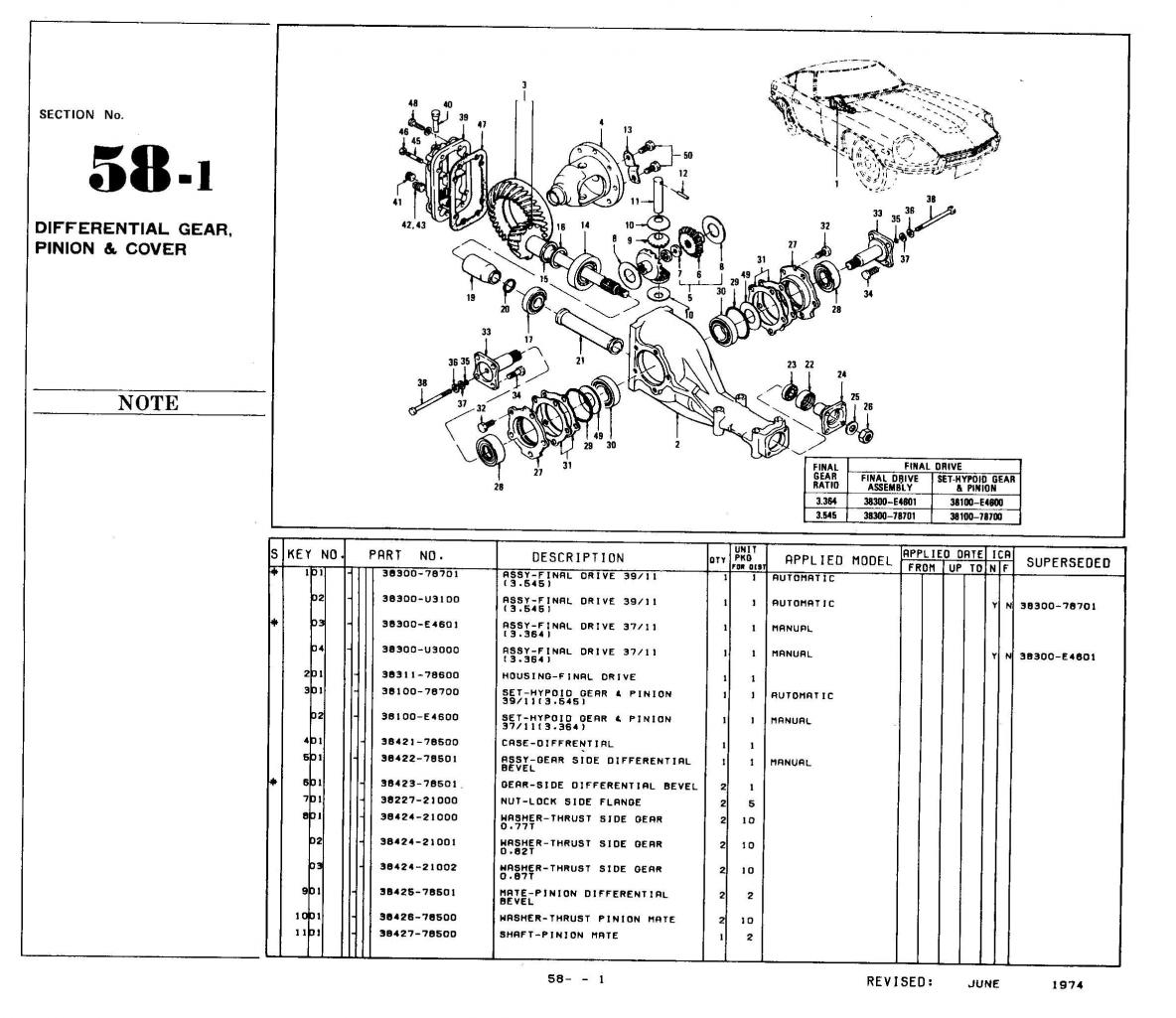

Of course, I just remembered that I have the parts catalog. This scan should work better:

Edited May 20, 201113 yr by SteveJ

I get 38226-21000 for both the halfshaft and driveshaft bolts for a R180. Not sure if that is a good number anymore.

Thanks, I got

Differential to 1/2 shaft

part (34) bolt 38228-21000 here: http://carfiche.com/fiche009/s30/5/g15.gif

Differential to drive shaft

part (2) bolt 01111-00051 here: http://carfiche.com/fiche009/s30/5/g06.gif

part (3) nut 01223-00041

Drive shaft to hub

part (19) bolt 39628-E4100 here: http://carfiche.com/fiche009/s30/5/i16.gif

however my local dealer typically can not use these numbers. Is there an on-line cross reference anywhere?

I bought a Nissan parts tool CD but it only went back to '83.

just searched the part number and got this

Looks like a new bag and new part number

Dang Hybrid Z doesn't allow external links to photos... great Z community spirit.... NOT

Edited May 20, 201113 yr by Blue
HyrbidZ.org sucks

How many do you need? I probably have some left over from my parts cars.

Thanks! I should be able to get locally now that it seems to be a current part number

You are kind!
