77 280z head removal [step-by-step photos]


Recommended Posts

\

1 post-7641-14150815038674_thumb.jpg

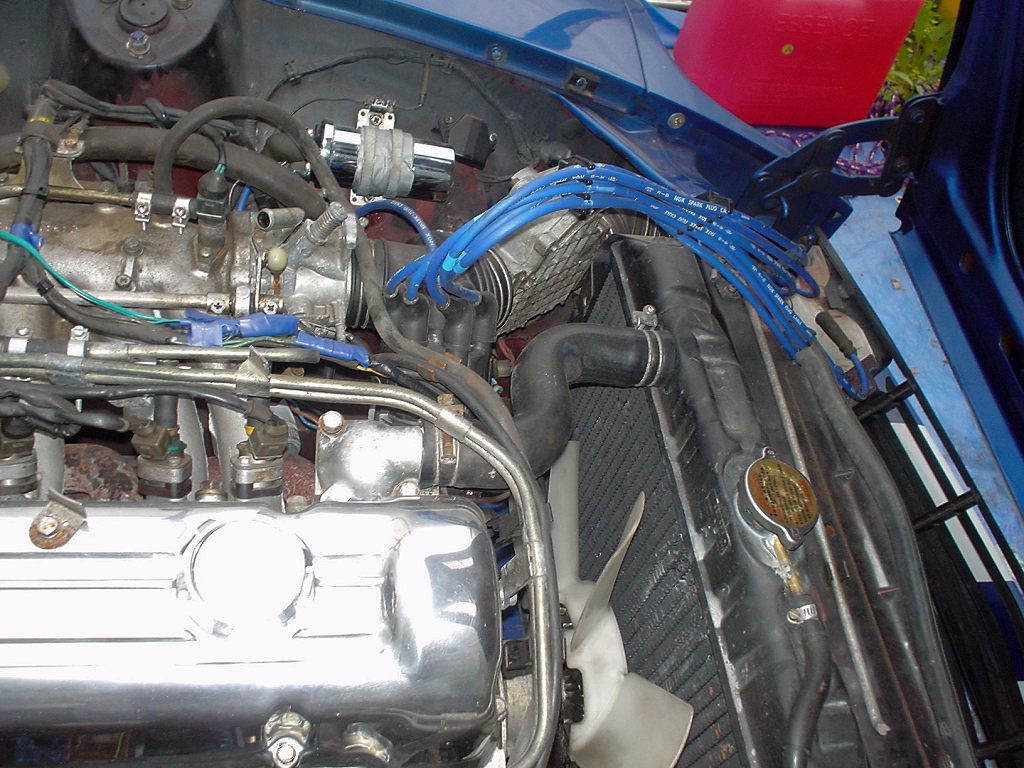

Disconnect spark plug wires and fold back out of the way.

2 post-7641-14150815039589_thumb.jpg

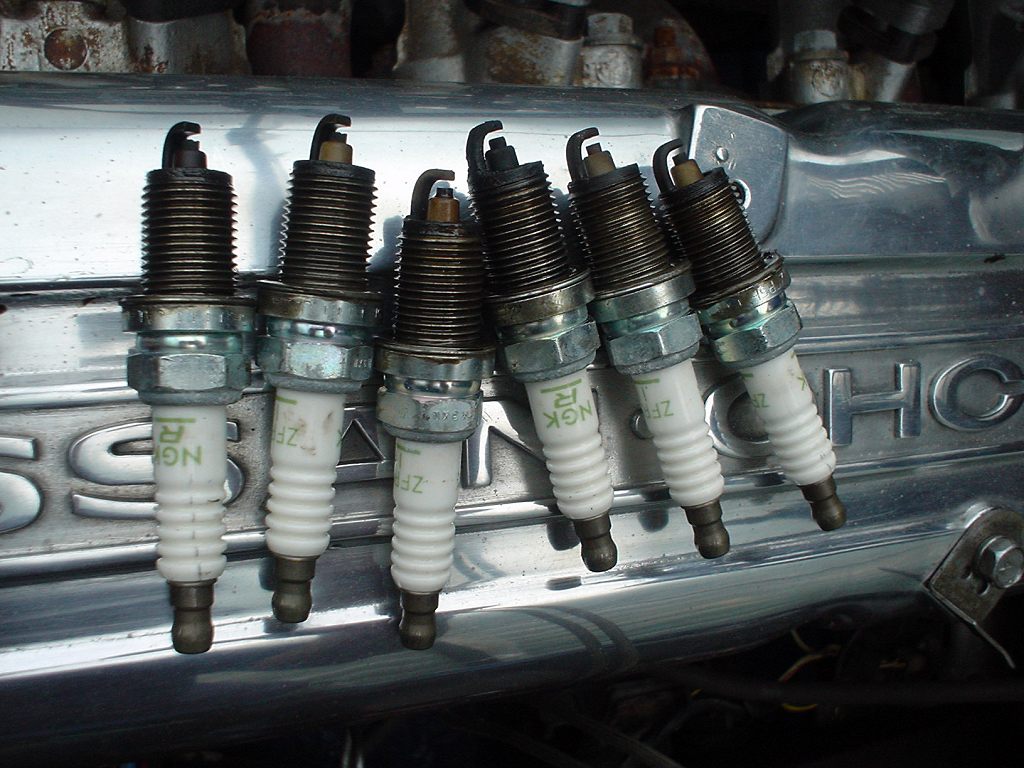

Remove spark plugs.

3 post-7641-14150815042627_thumb.jpg

Disconnect fuel lines (send and return) at fuel rail near front of the head.

Observe all high pressure fuel safety precautions.

4 post-7641-14150815041405_thumb.jpg

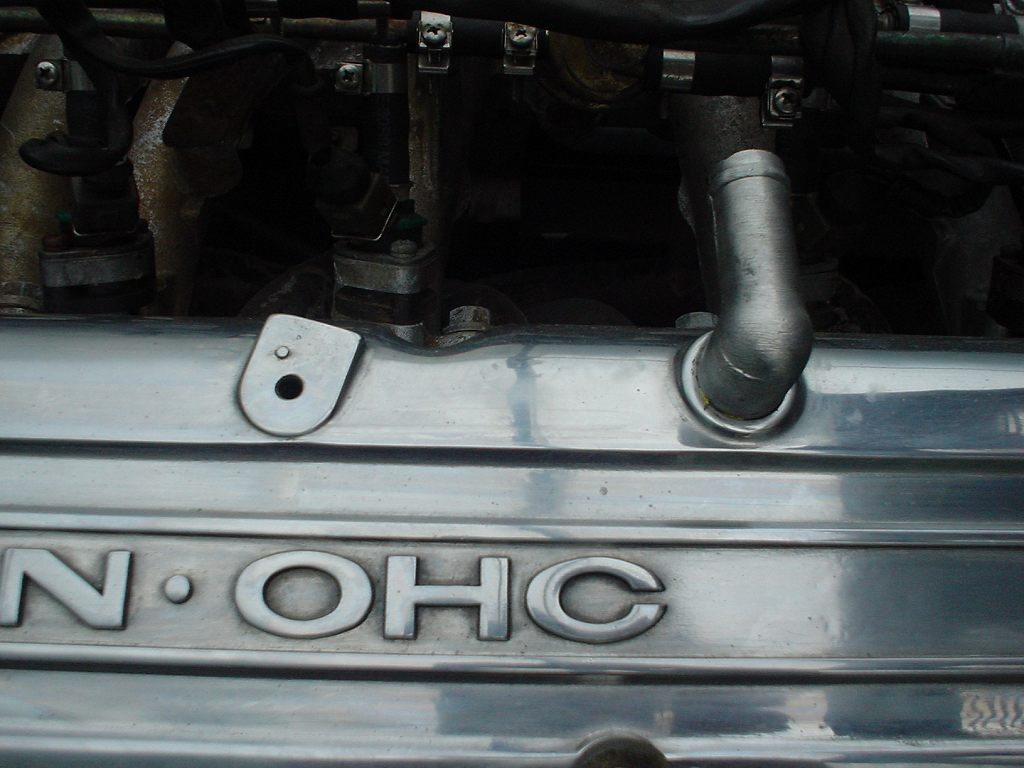

Disconnect valve cover vent hose.

5 post-7641-14150815041844_thumb.jpg

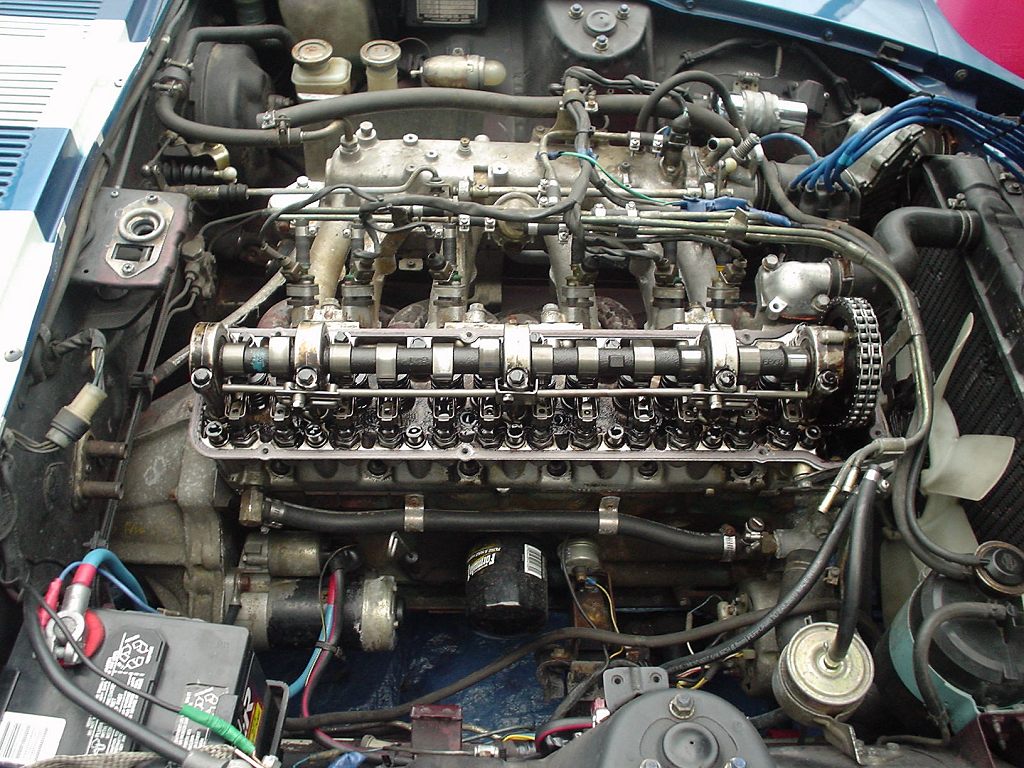

Remove valve cover.

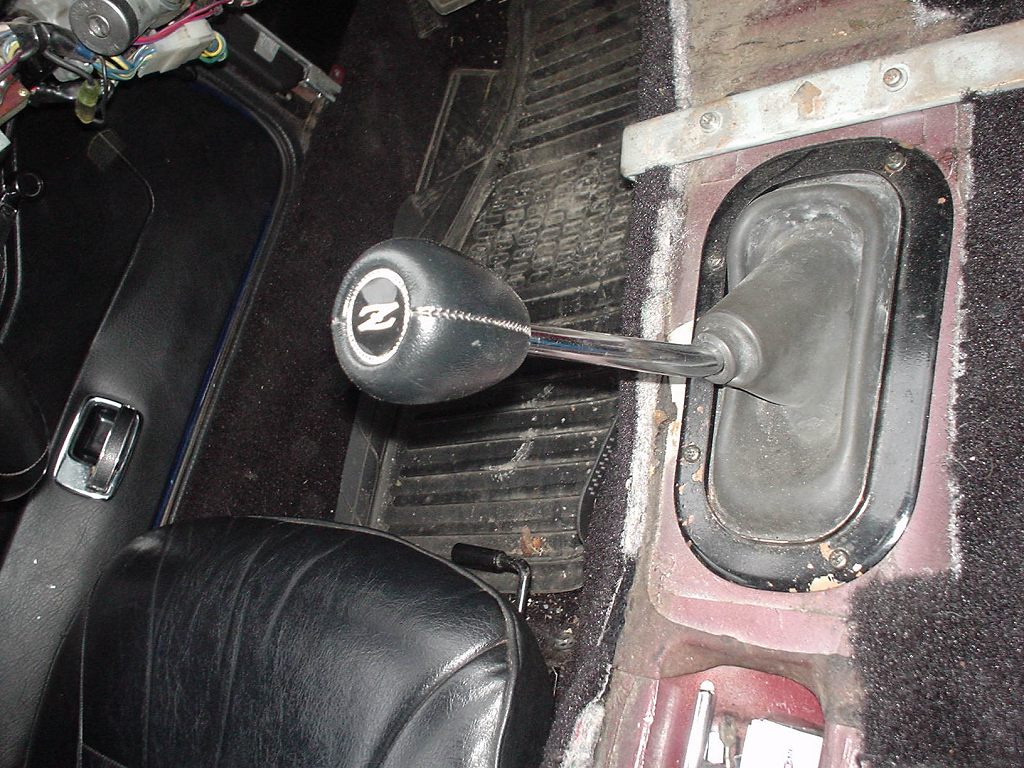

6 post-7641-14150815040947_thumb.jpg

Put transmission in neutral.

7 post-7641-14150815043112_thumb.jpg

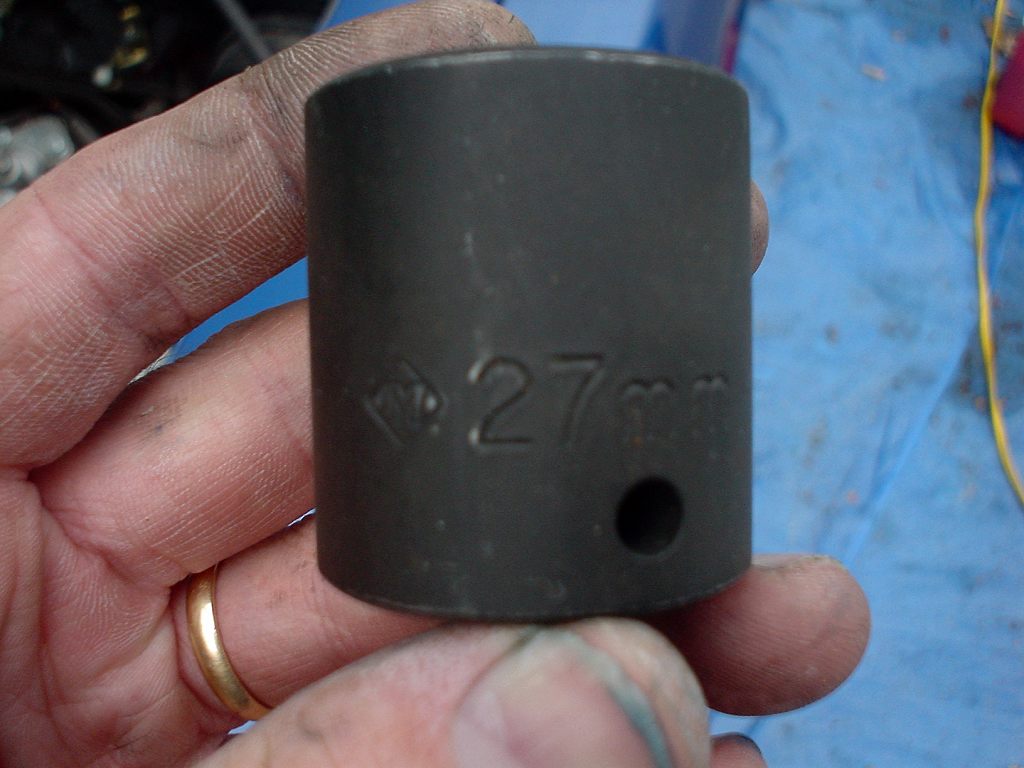

Use short 27mm socket to turn engine at crank. (when viewed from standing in front of car, turn crank clock wise)

8 post-7641-14150815040044_thumb.jpg

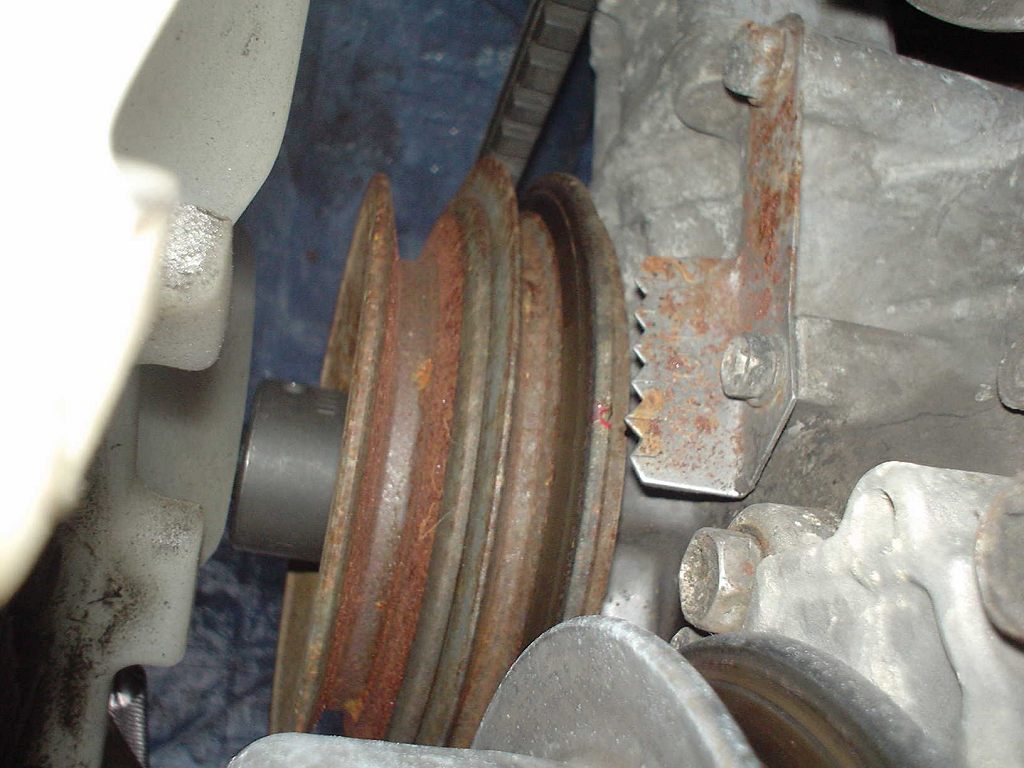

Turn until timing mark on damper is lined up with "0" mark on timing gauge. This is top dead centre *

9 post-7641-14150815040485_thumb.jpg

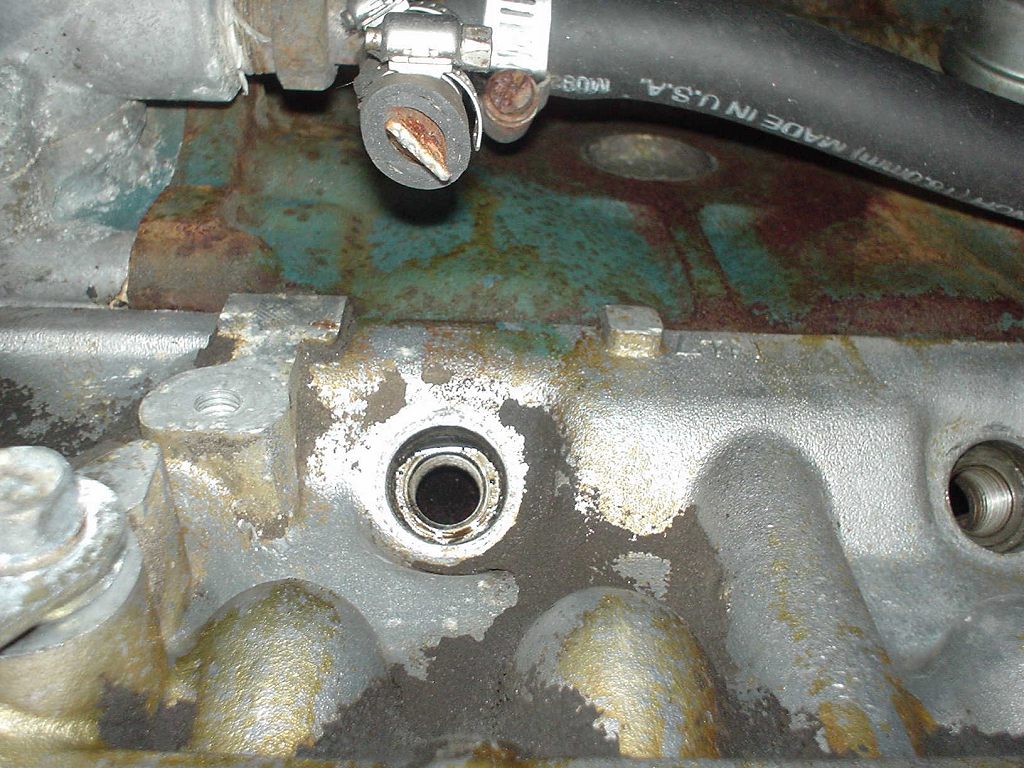

In cylinder #1 at front on engine, the piston top should now be visible through spark plug hole (flashlight or pokey screw diver can verify)

10 post-7641-14150815039136_thumb.jpg

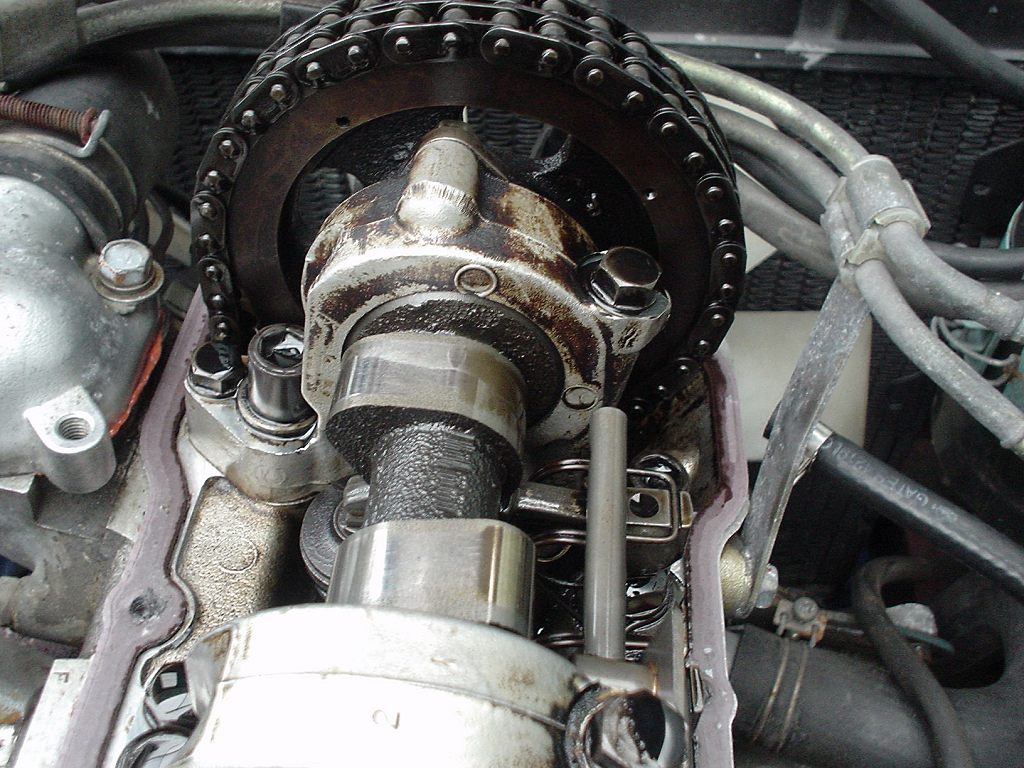

Since the piston #1 can be at its highest position two times in the 4 cycles of the engine, we need to make sure the head's cam and piston is at the top of the compression stroke rather than at the top of the exhaust stroke. An easy way to tell is by looking at the cam lobes for cylinder 1. They should both be upward.

Edited by Blue
Link to comment
Share on other sites


11 post-7641-14150815043555_thumb.jpg

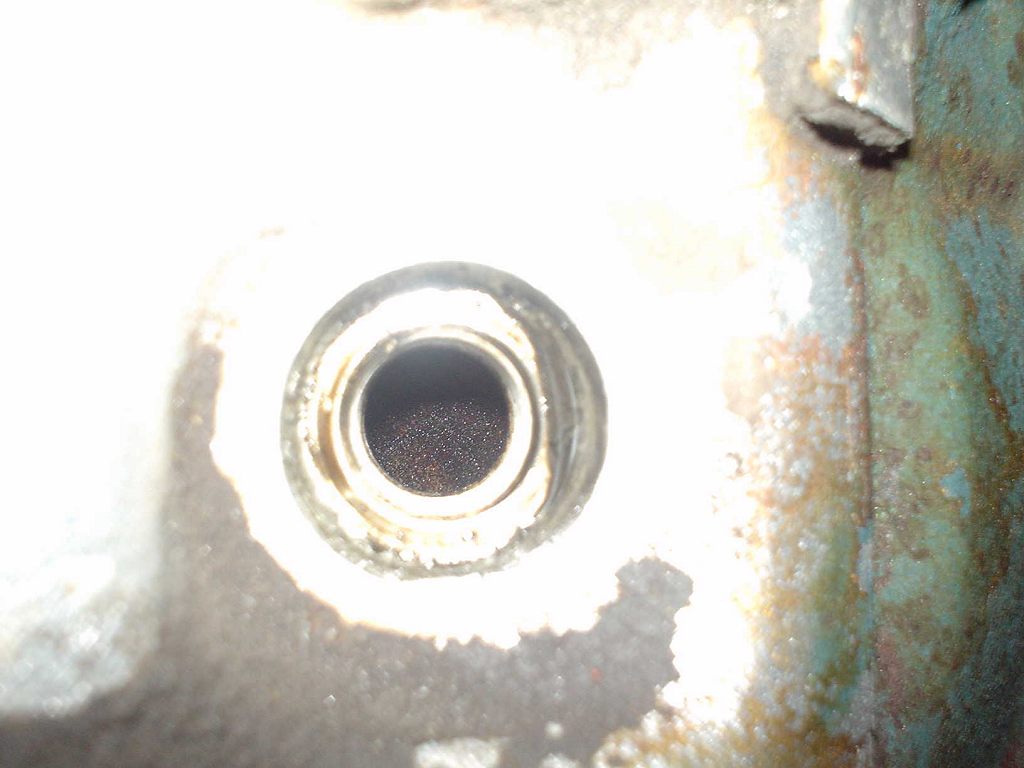

Piston #1 is at TDC.

12 post-7641-14150815044504_thumb.jpg

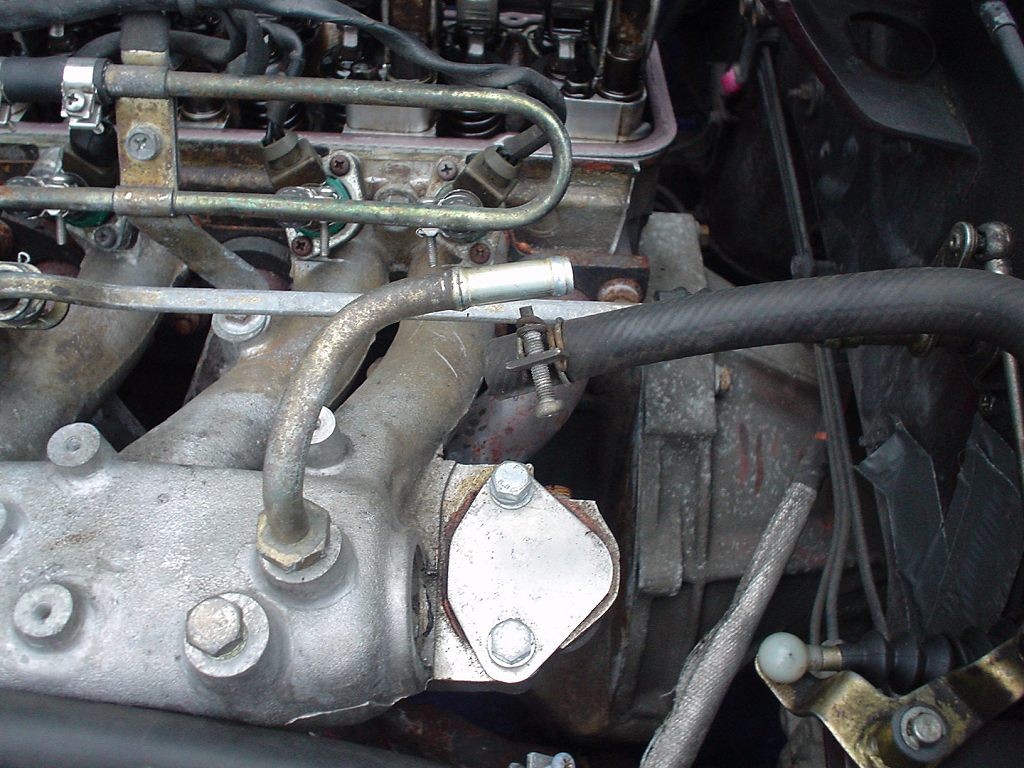

Disconnect vacuum hose to brake booster.

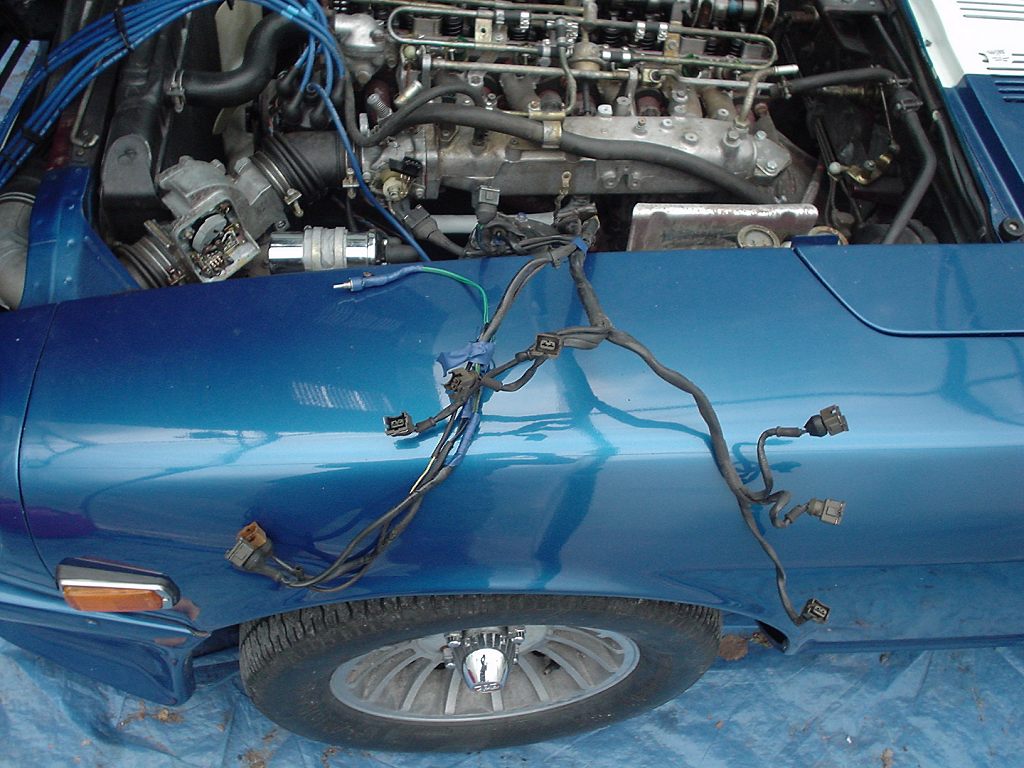

13 post-7641-14150815047076_thumb.jpg

Disconnect wiring harness to intake (fuel injectors, throttle valve switch, ground, sensors, etc.) and fold back out of the way.

14 post-7641-14150815046188_thumb.jpg

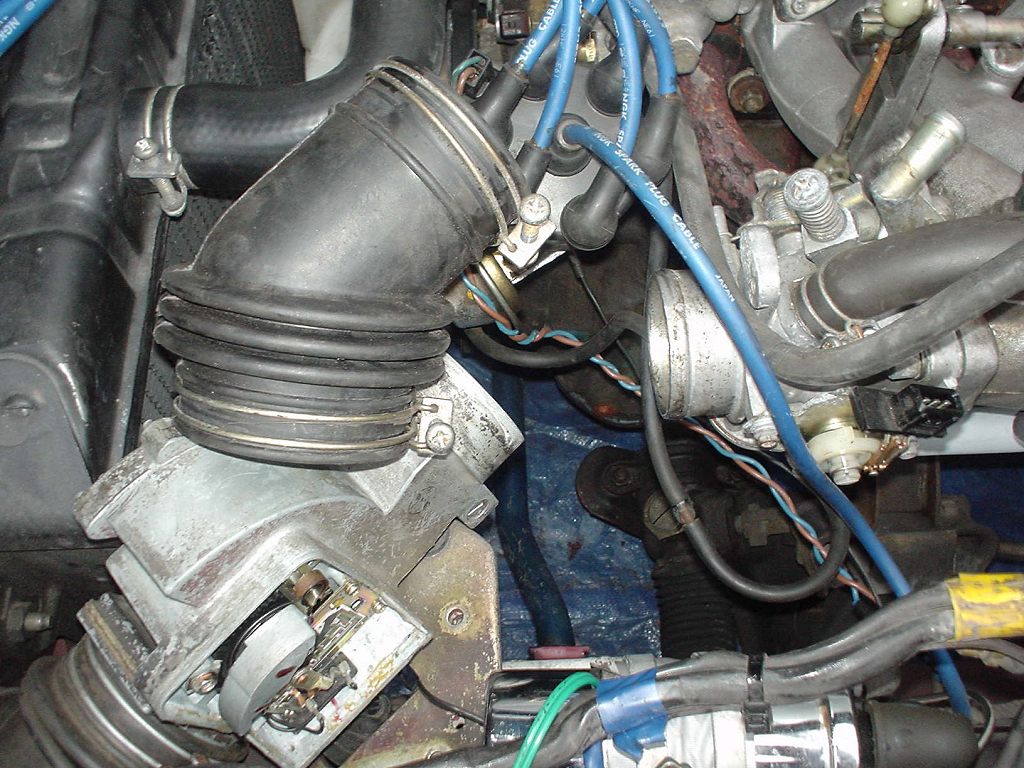

Disconnect ducting to throttle valve.

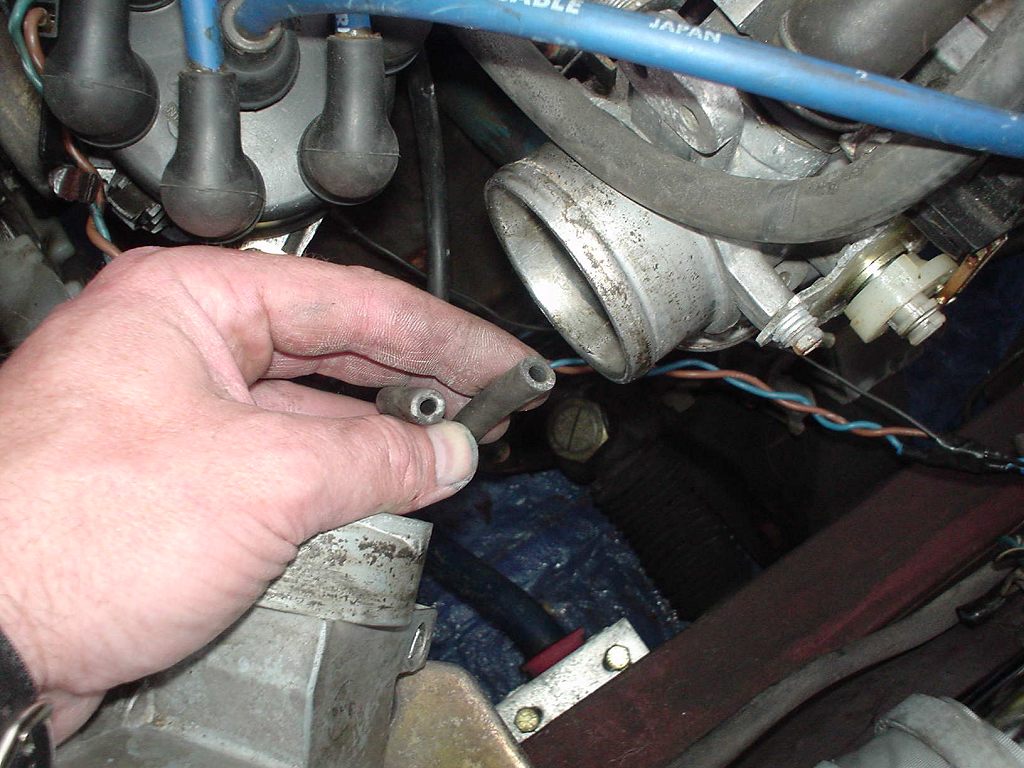

15 post-7641-14150815046641_thumb.jpg

Disconnect vacuum lines to throttle valve.

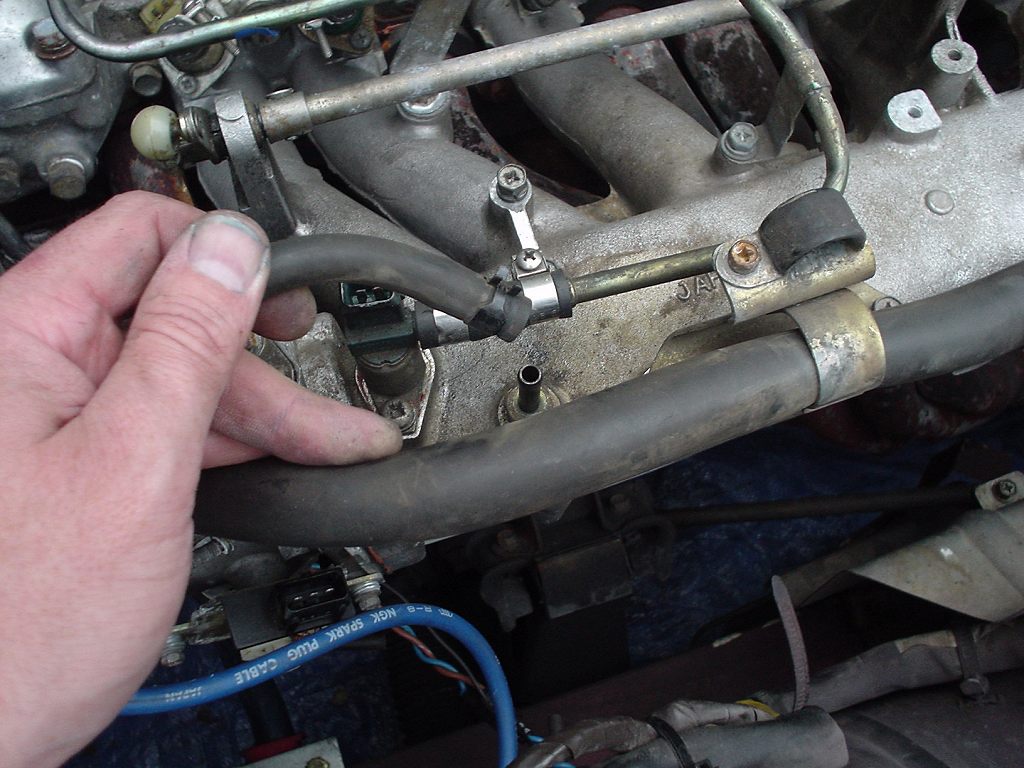

16 post-7641-14150815045392_thumb.jpg

Disconnect vacuum lines to intake.

17 post-7641-14150815047944_thumb.jpg

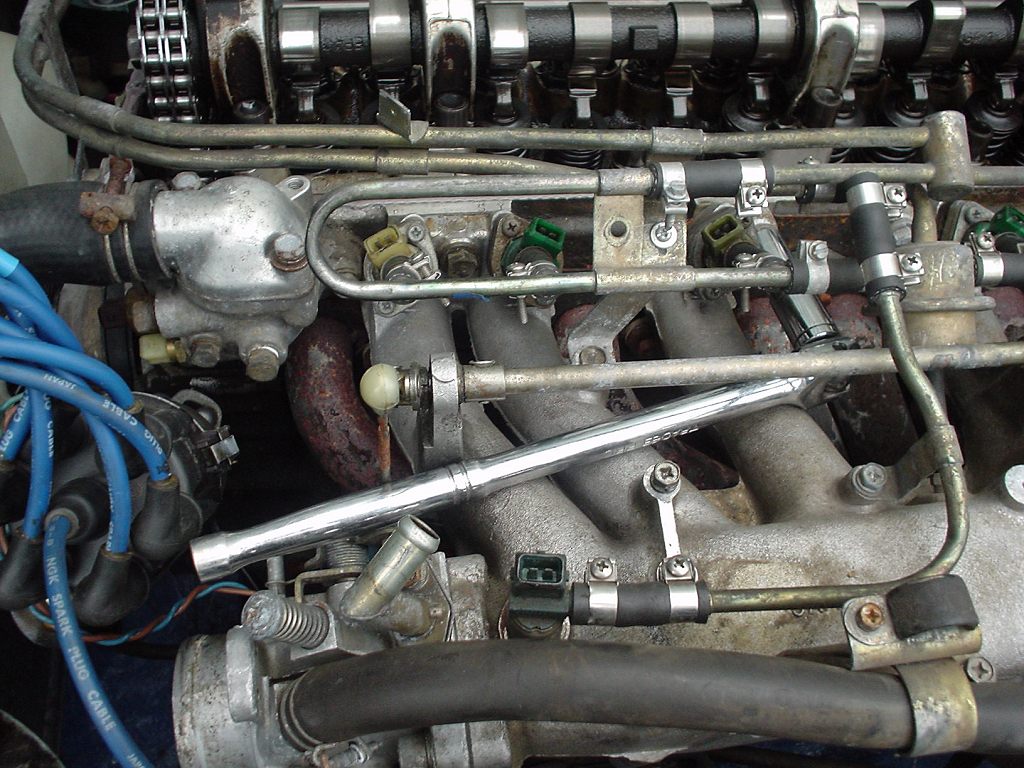

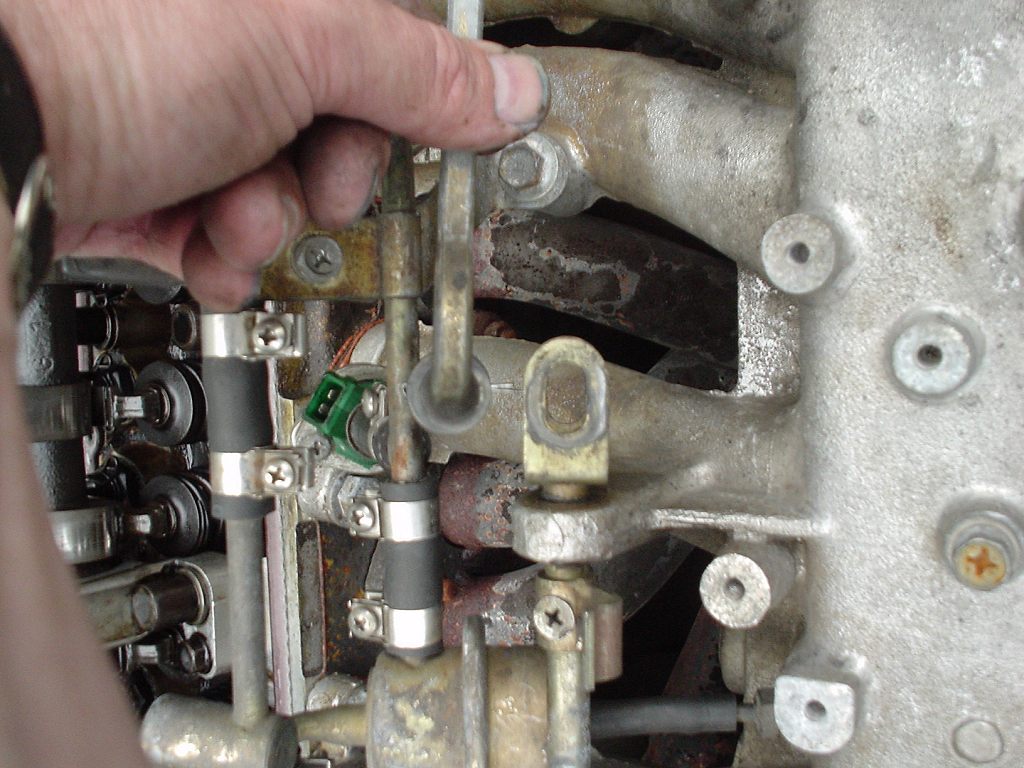

Disconnect throttle linkage.

18 post-7641-14150815044945_thumb.jpg

Remove 4 upper bolts holding intake to head.

19 post-7641-14150815047576_thumb.jpg

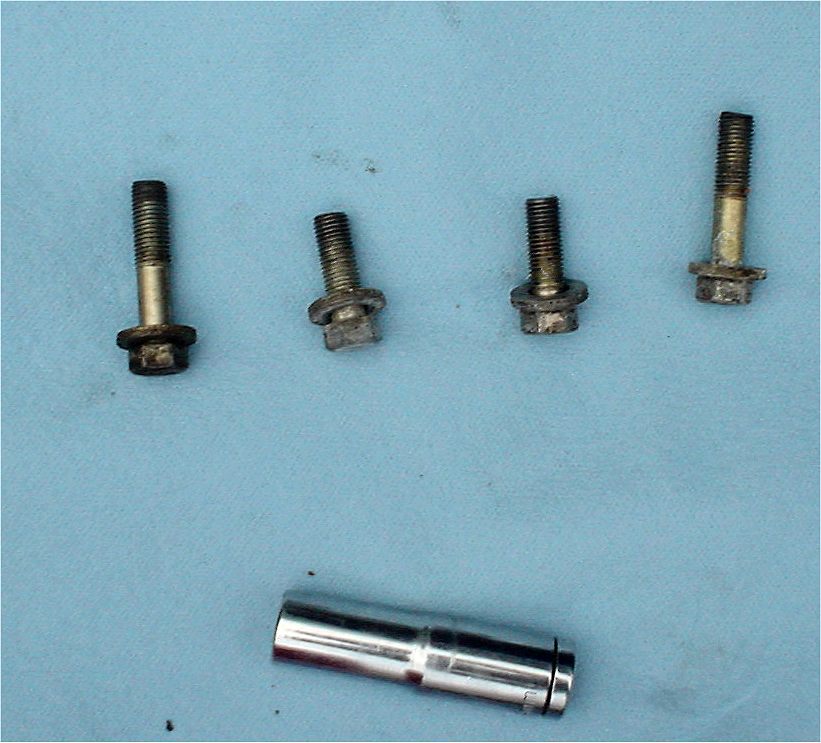

Upper intake bolts and size differences.

20 post-7641-14150815044063_thumb.jpg

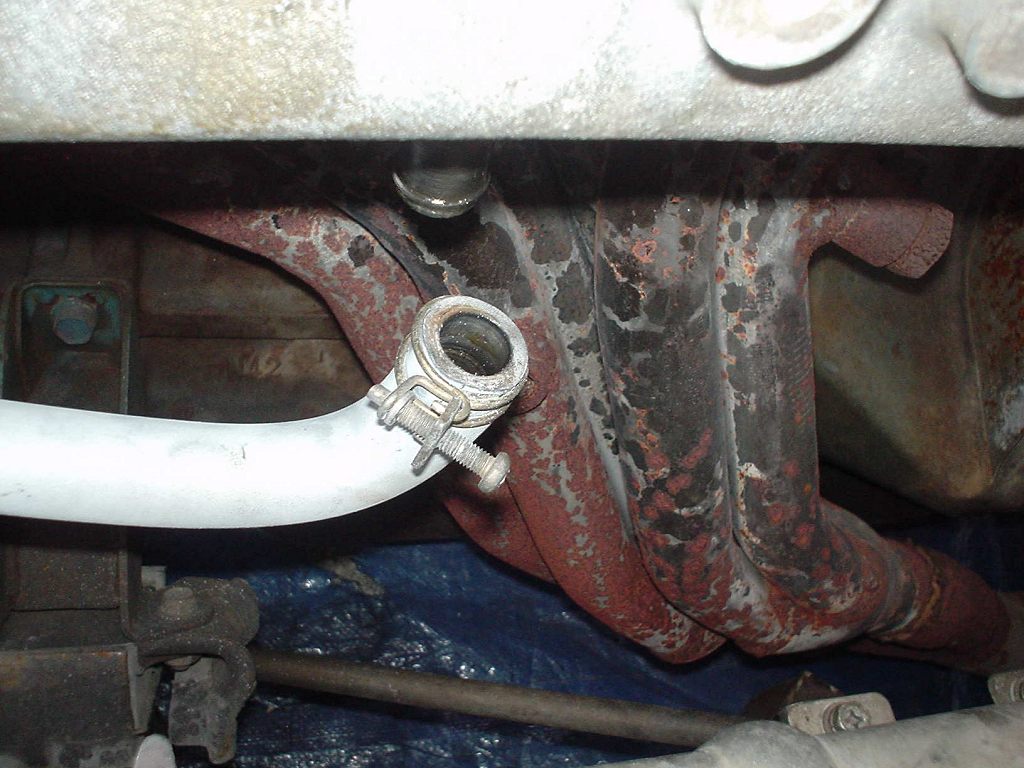

Disconnect PCV hose to intake (under manifold).

Link to comment
Share on other sites

21 post-7641-14150815048381_thumb.jpg

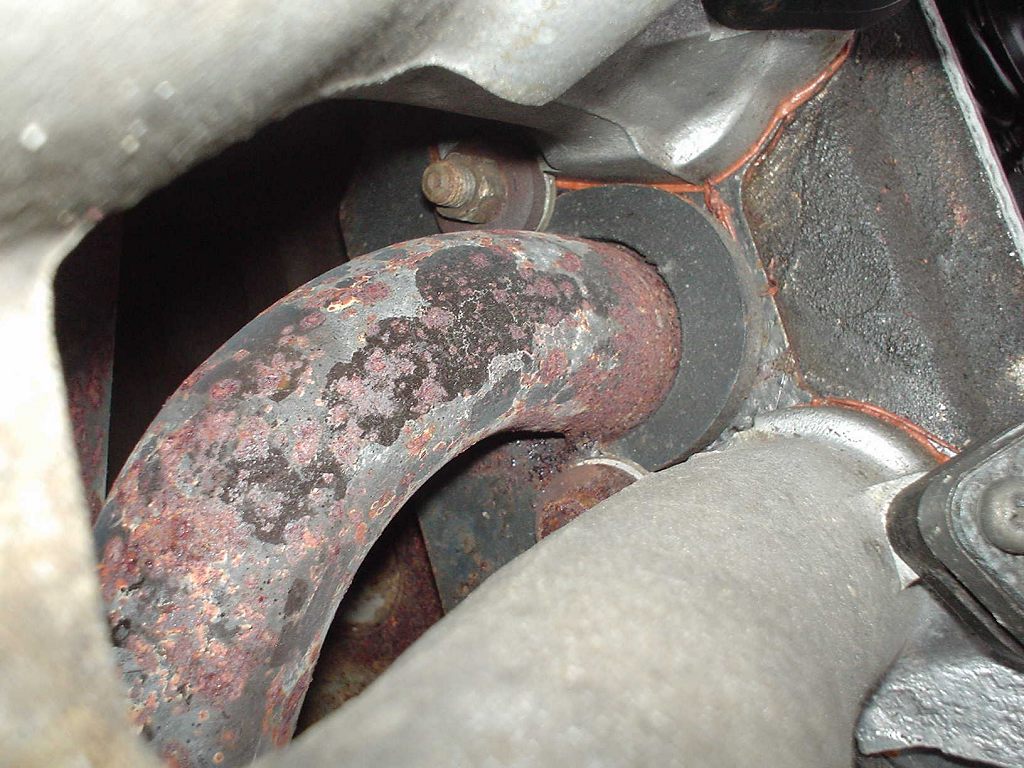

Underneath intake manifold are nuts and washers that secure both the intake and exhaust manifold. Remove these common nuts and washers. My Z has a header so it looks different from stock in these photos. Prepping the hardware with penetrating oil the day before helps ensure that nothing breaks. You can wrap your arms around the manifolds and attack these nuts from underneath with just small hand tools.

22 post-7641-1415081504975_thumb.jpg

2nd verse same as the first

23 post-7641-14150815052047_thumb.jpg

ditto

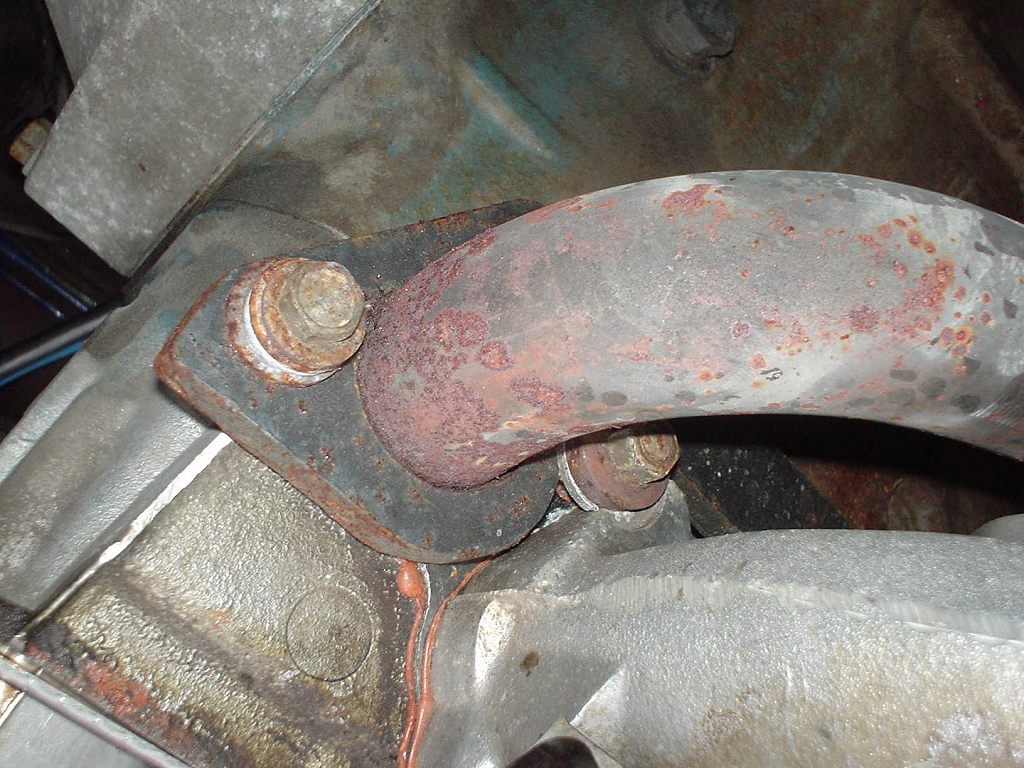

24 post-7641-14150815051134_thumb.jpg

This is intake runner #6. The photo is 180degrees rotated. Don't drink and document.

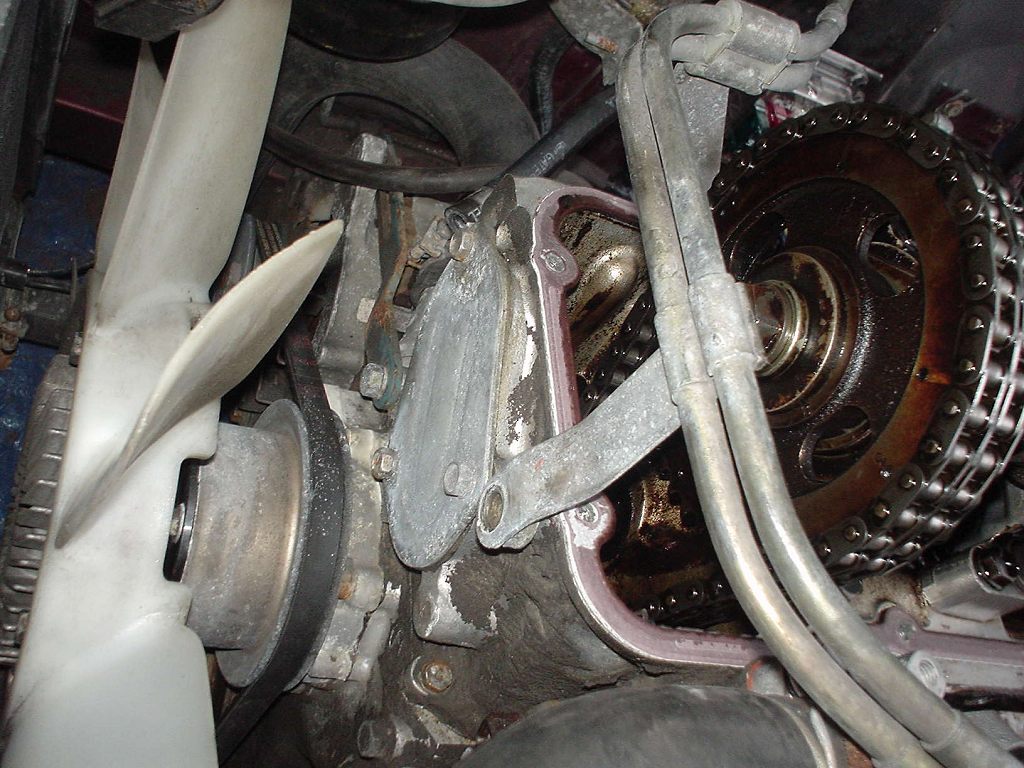

25 post-7641-141508150516_thumb.jpg

Disconnect fuel rail from head at front of head.

26 post-7641-14150815050669_thumb.jpg

Disconnect fuel rail from head at front passenger side of head.

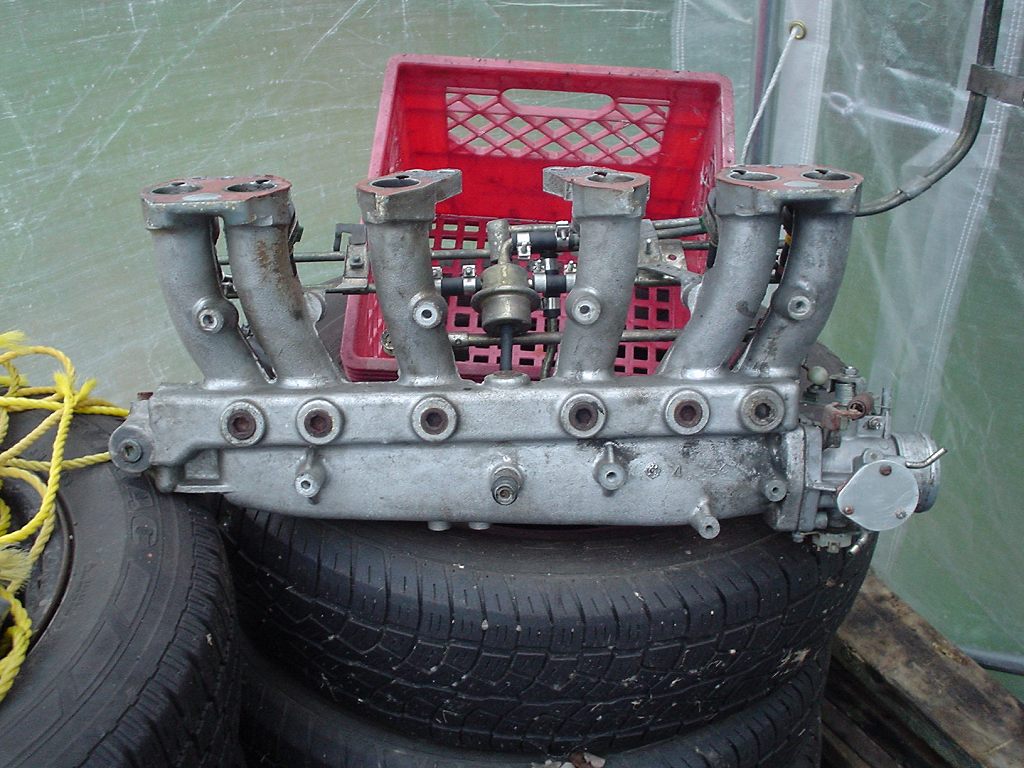

27 post-7641-14150815052488_thumb.jpg

Double check that nothing will snag then pull off the intake manifold

28 post-7641-14150815050198_thumb.jpg

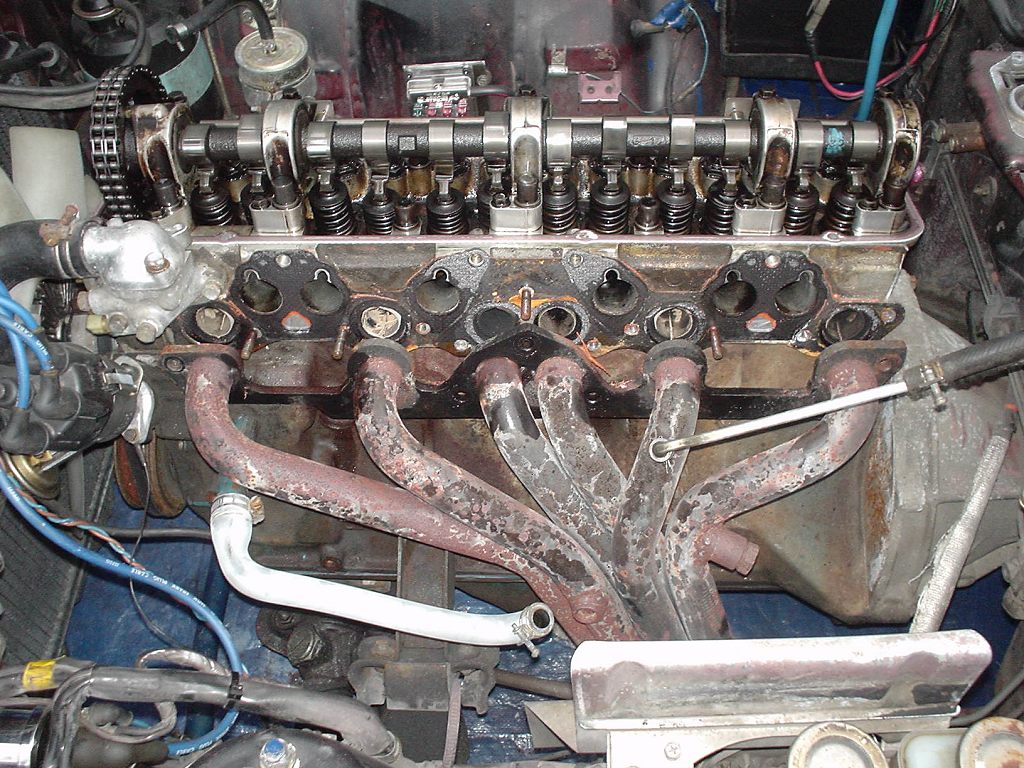

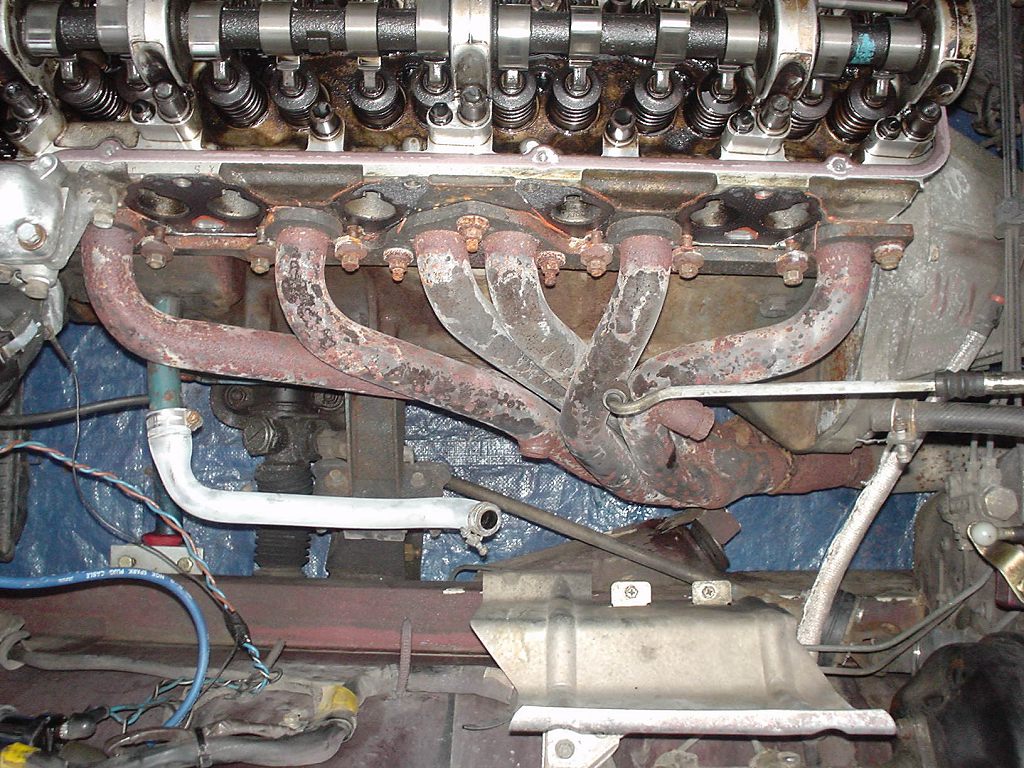

Loosen nuts and remove exhaust manifold.

29 post-7641-14150815048835_thumb.jpg

Loosen nuts and remove exhaust manifold.

30 post-7641-1415081504929_thumb.jpg

Loosen nuts and remove exhaust manifold.

Link to comment
Share on other sites

:bunny: DRAIN COOLANT AT RAD

31 post-7641-14150815052938_thumb.jpg

Disconnect coolant lines to head.

32 post-7641-14150815053844_thumb.jpg

Disconnect coolant lines to head. (note, my AAR coolant lines have been removed).

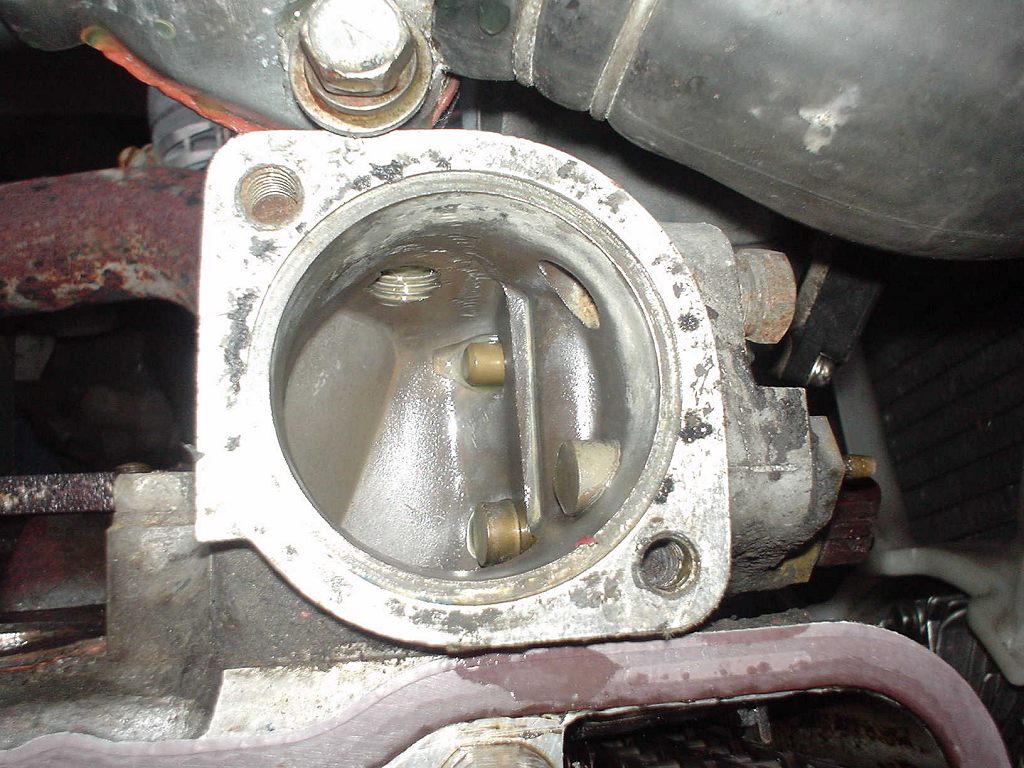

33 post-7641-14150815056598_thumb.jpg

Remove thermostat.

34 post-7641-14150815056146_thumb.jpg

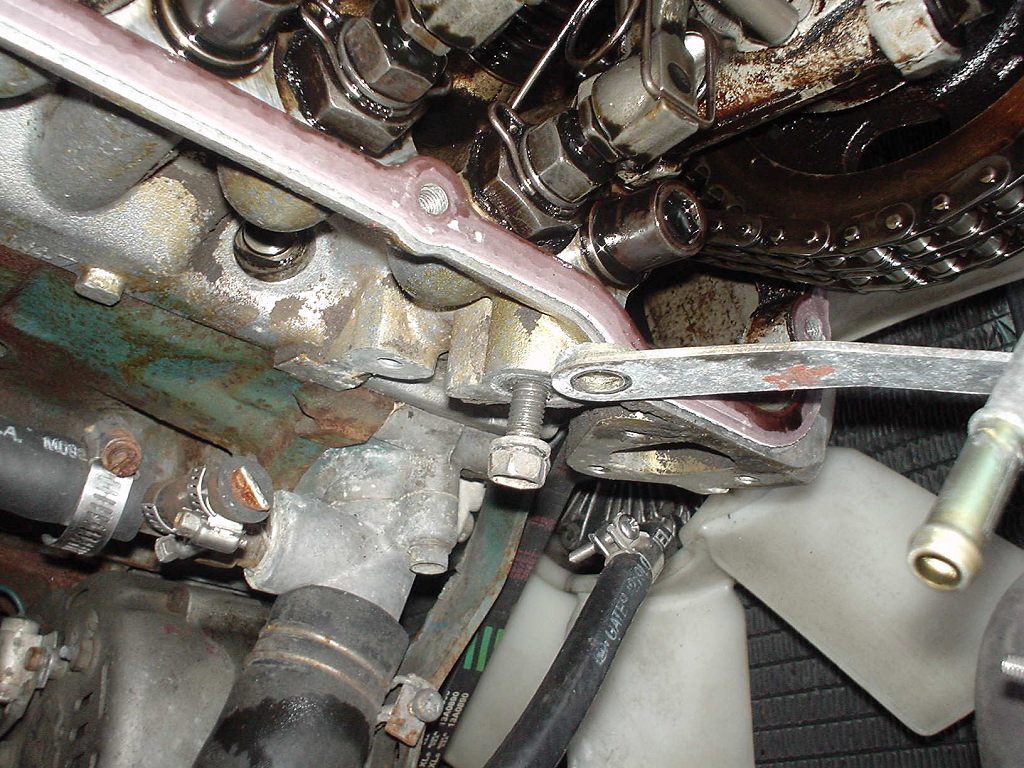

:bunny:Remove 2 small bolts at front of head.

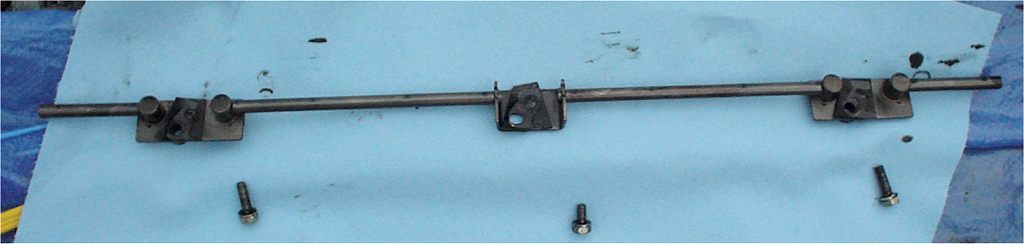

35 post-7641-14150815055635_thumb.jpg

Remove oil bar and bolts. Careful with the gaskets. Note later z's have internal cam oiling.

36 post-7641-14150815055199_thumb.jpg

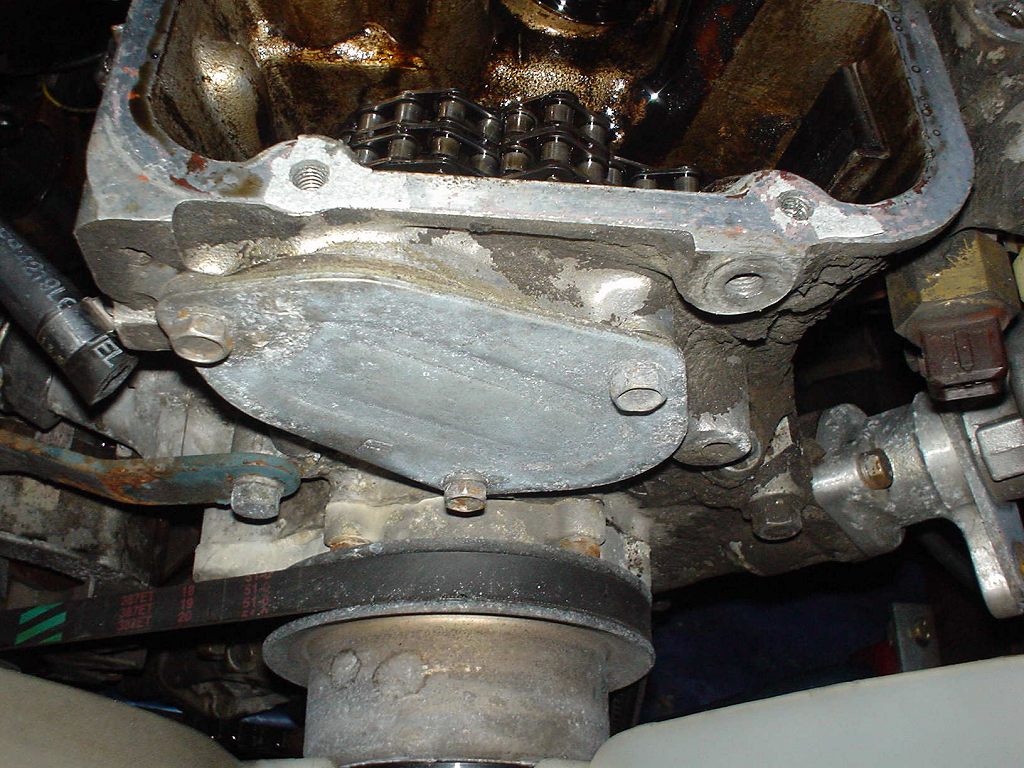

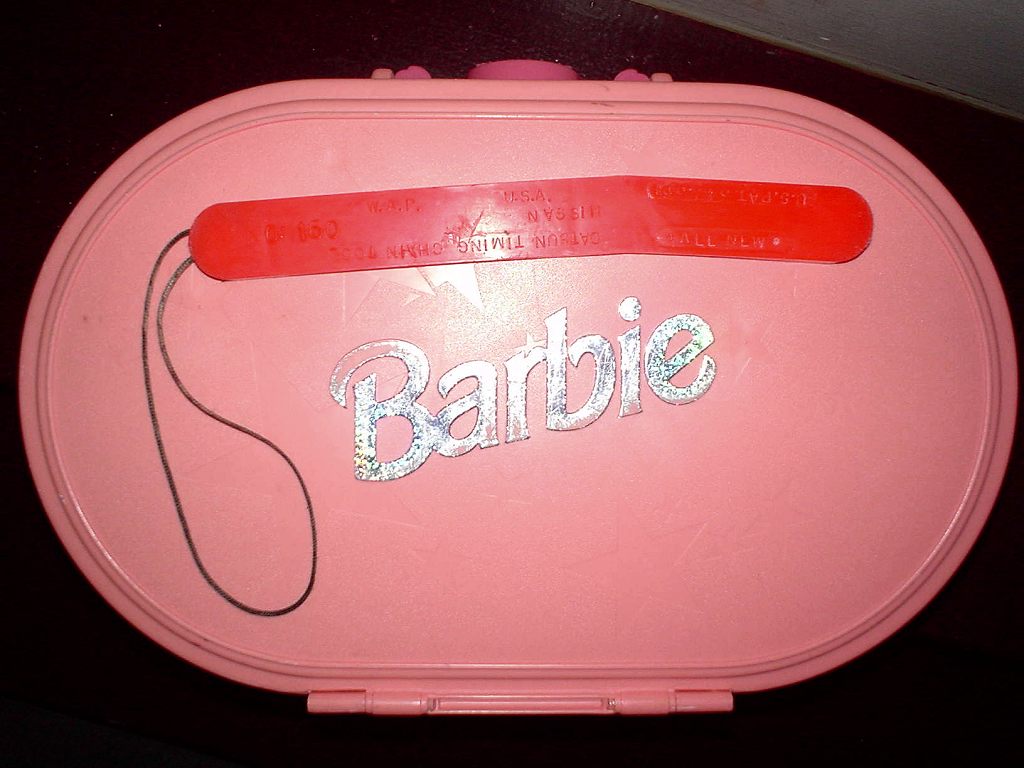

Get a tool to hold back the timing chain tensioner. Here is the famous "Barbie Hockey Stick" that all of us manly Canadians use and store in our Barbie accessory cases. I'm lumberjack and I'm OK.

37 post-7641-14150815057047_thumb.jpg

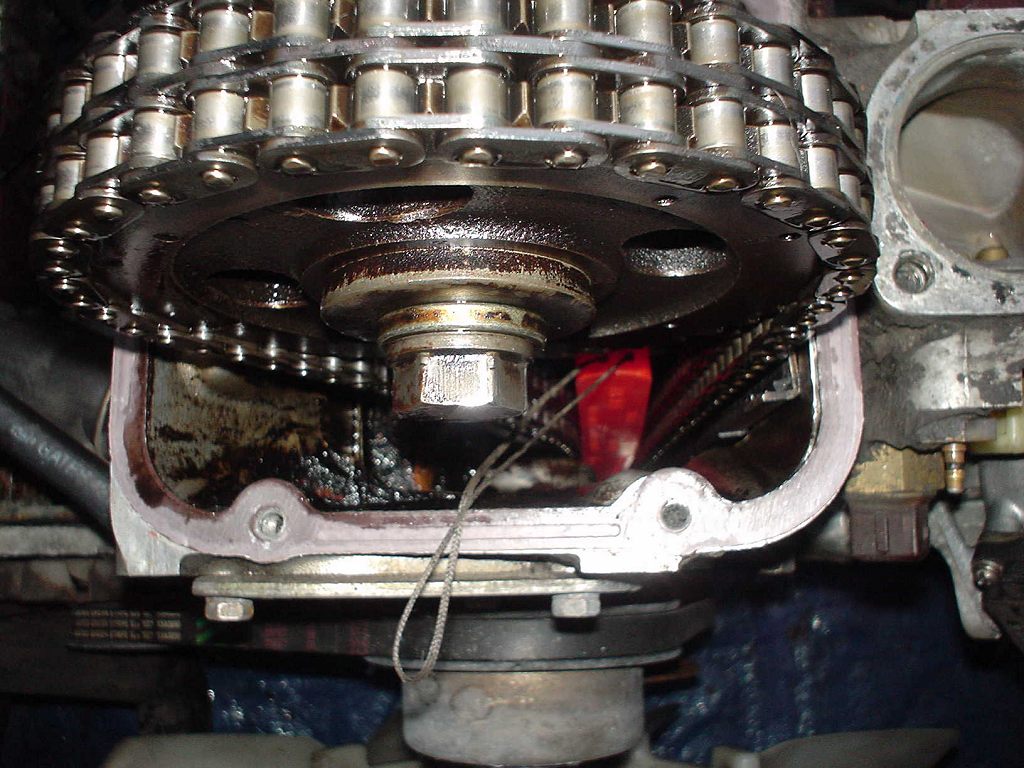

Timing tensioner tool in place.

38 post-7641-14150815054289_thumb.jpg

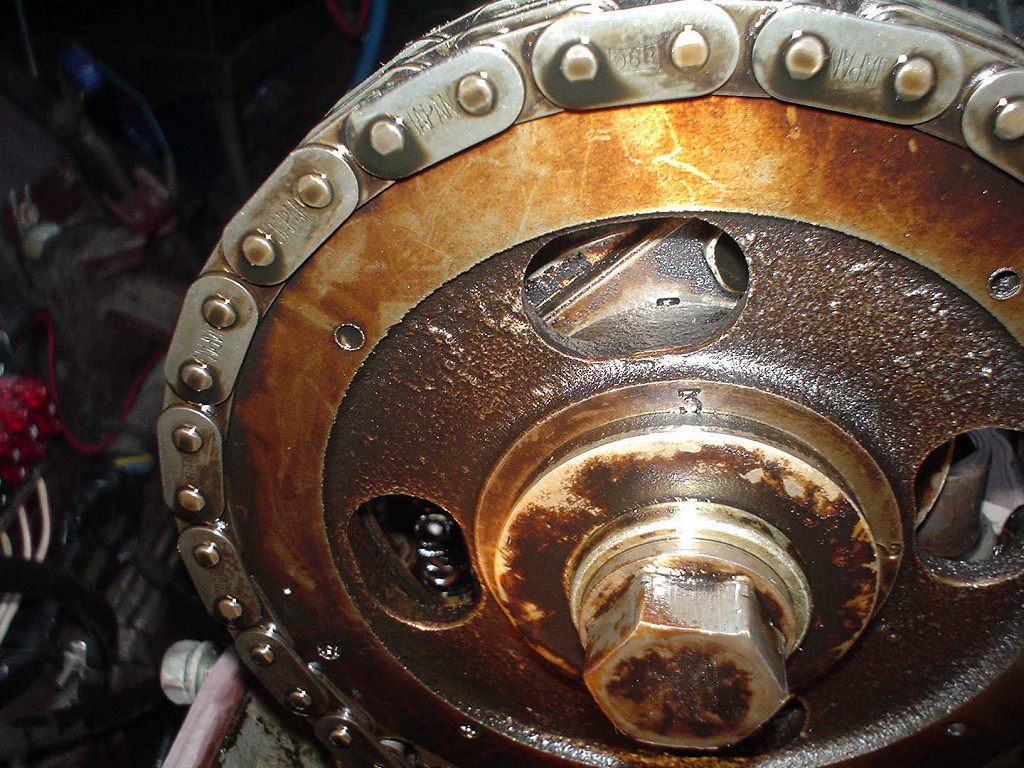

Showing timing at position #3 on my Z, yours may be 1, 2, or 3.

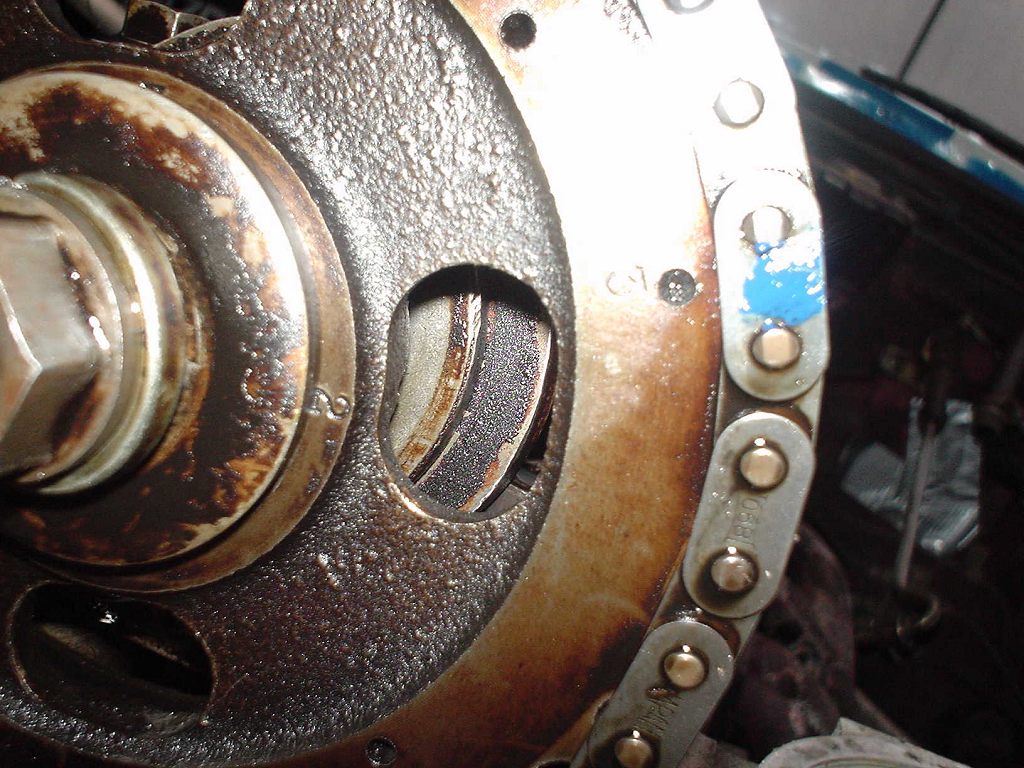

39 post-7641-14150815054749_thumb.jpg

Use solvent to remove oil then paint the link that meshes with the #3 (1 or 2) dimple on the cam sprocket ~ 2pm. This reference is needed when reinstalling the head.

40 post-7641-14150815053383_thumb.jpg

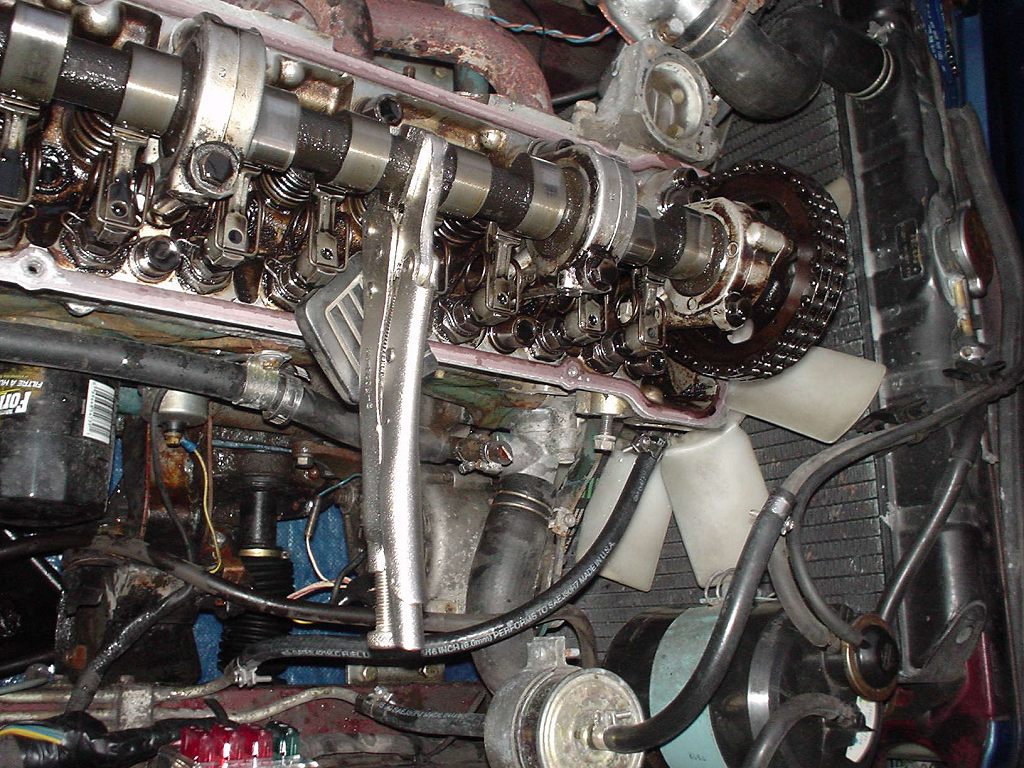

Hold cam at correct location (where the two bumps are cast) then remove cam sprocket bolts, washer, sprocket, etc.

Edited by Blue
Link to comment
Share on other sites

I'd like to add a step 37.5 Blue. Once the chain is wedged, stuff a clean rag around the chain so that nothing can drop down into the front cover. It's a big hole that attracts stray parts. If something drops down there, it's a big job to retrieve it. DAMHIK.

  • Like 1
Link to comment
Share on other sites

  • 1 month later...
  • 9 months later...

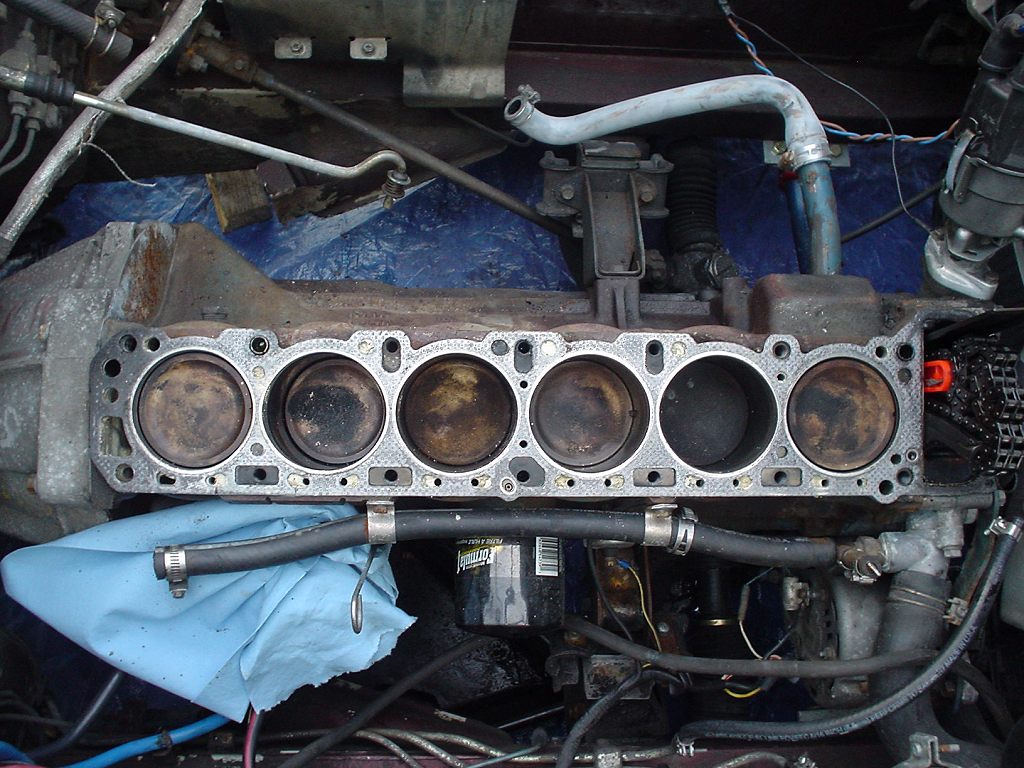

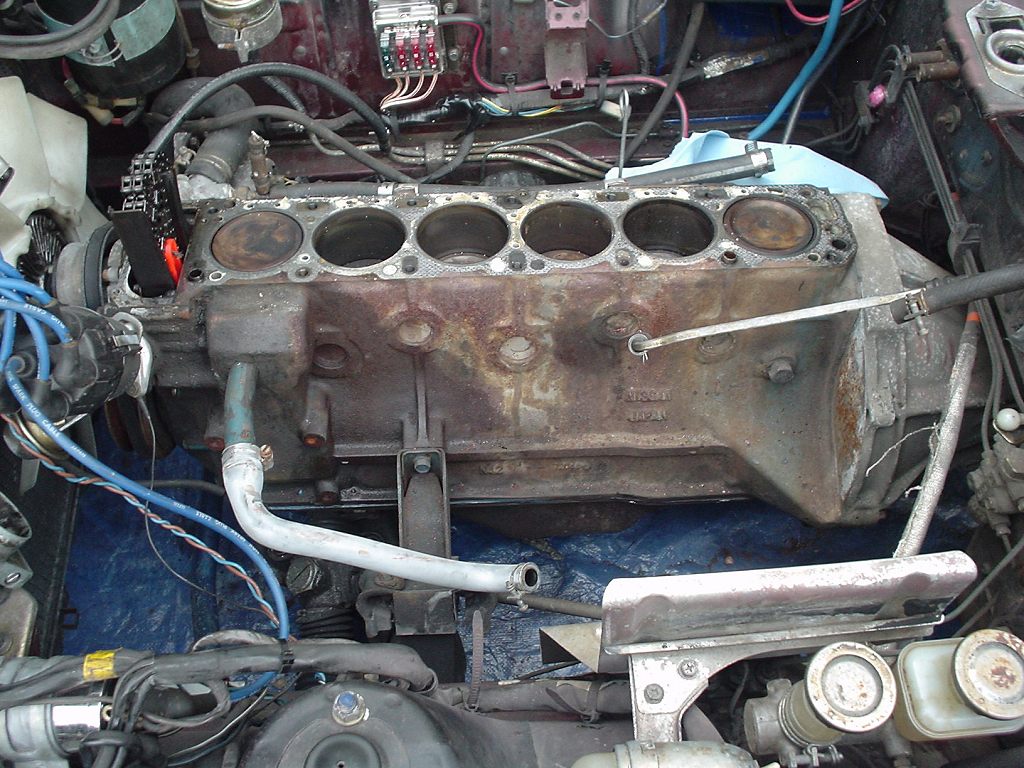

Start in the center and work your way out and be sure to tighten in three steps. Download the FSM from www.xenons30.com for the sequence and three torque steps. I've heard that the '77 FSM isn't working right on xenon's site, so pick the '76 or '78. The engine mechanical stuff is all the same.
