Posted May 28, 201212 yr comment_391320 This may sound stupid; however, I really do not know how a horn functions. My horn in my 76 Z is not working. I have removed the center part of the steering wheel and the plastic piece directly behind the steering wheel. After that I am not sure what I should be looking for. Where is the horn? What other parts need to be considered? I did check the fuse. I looked at a couple previous posts on this topic but did not understand the details.Any help would be appreciated. Link to comment https://www.classiczcars.com/forums/topic/43360-horn-not-wokring-help/ Share on other sites More sharing options...
May 28, 201212 yr comment_391321 There are two horns in the front of the car. A high and low note just behind the front grill. have you looked under the horn pad? if the spring is missing it will not work. also make sure that the curved wiper is in contact with the wheel. check the horns for proper ground and pos conections. Link to comment https://www.classiczcars.com/forums/topic/43360-horn-not-wokring-help/#findComment-391321 Share on other sites More sharing options...
May 28, 201212 yr comment_391330 There is also a relay in the passenger kick panel area. Look at the BE section of the FSM. I had problems with my horn recently. A new relay fixed it. Anyway, it's not a bad idea to test the old relay to see if it still works. Link to comment https://www.classiczcars.com/forums/topic/43360-horn-not-wokring-help/#findComment-391330 Share on other sites More sharing options...
May 29, 201212 yr comment_391336 On my car when I had the horn button off I could ground the metal plate that was behind the horn button with a wire and I could hear the click from the relay in the passenger foot well easily. One metal plate gets pushed into the other to ground the horn relay, I don't know if they all work like that. Link to comment https://www.classiczcars.com/forums/topic/43360-horn-not-wokring-help/#findComment-391336 Share on other sites More sharing options...
May 29, 201212 yr comment_391343 Check the horn grounds them selves. Link to comment https://www.classiczcars.com/forums/topic/43360-horn-not-wokring-help/#findComment-391343 Share on other sites More sharing options...
May 29, 201212 yr comment_391364 Take a jumper and apply 12V directly to the horns themselves. If they work, then it's a switch or relay problem. Link to comment https://www.classiczcars.com/forums/topic/43360-horn-not-wokring-help/#findComment-391364 Share on other sites More sharing options...
May 29, 201212 yr Author comment_391434 OK, hopefully I am not banned from the forum. After looking at the FSM and finally realizing where the horn is located, I beleive that I have no horn. The FSM mentions two horns. Are these sold seperately and are the mounted together somehow. I am trying to located the wiring and not sure if there is a connector at the horn. I have a unused two pin connector in that area but not sure if for horn or side light.A side note: I also noticed a 3 prong plug that appears to go to the engine block. I assume a heater. I guess an after market modification. Any insight here would also be appreciated. Link to comment https://www.classiczcars.com/forums/topic/43360-horn-not-wokring-help/#findComment-391434 Share on other sites More sharing options...
May 29, 201212 yr comment_391437 Sold separately? No. The horns should be in the space between the grill and the radiator.To determine what the 2 pin connector is for, look at the wiring diagram. It will tell you what color wires should be running to the horn.As for the three prong connector, post a picture of it, describe WHERE around the engine block you found it, and describe the wire colors going to it. Otherwise, you may just get more guesses than answers. Link to comment https://www.classiczcars.com/forums/topic/43360-horn-not-wokring-help/#findComment-391437 Share on other sites More sharing options...
May 30, 201212 yr comment_391480 Just a "little" ot: When i drove my Datsun B310, it had only one operating horn (it has 2 also) In yearly inspection, they tested it and it sounded so goofy that the inspector laughed his arse off, he said he has never heard so miserable horn as my. as miserable as this:http://www.youtube.com/watch?v=cMyaN2Edh4c Link to comment https://www.classiczcars.com/forums/topic/43360-horn-not-wokring-help/#findComment-391480 Share on other sites More sharing options...
May 30, 201212 yr Author comment_391562 I checked the FSM and it appears one GW to the first horn an another GW to the second from the first horn. I have none of this wiring. The two pin connector appears to be for the side light. I have one on each side of the car. One side has the mating harness to the side light location. I have neither side lights.I guess I will be running new wiring just not sue where to go from the horn to what? Link to comment https://www.classiczcars.com/forums/topic/43360-horn-not-wokring-help/#findComment-391562 Share on other sites More sharing options...

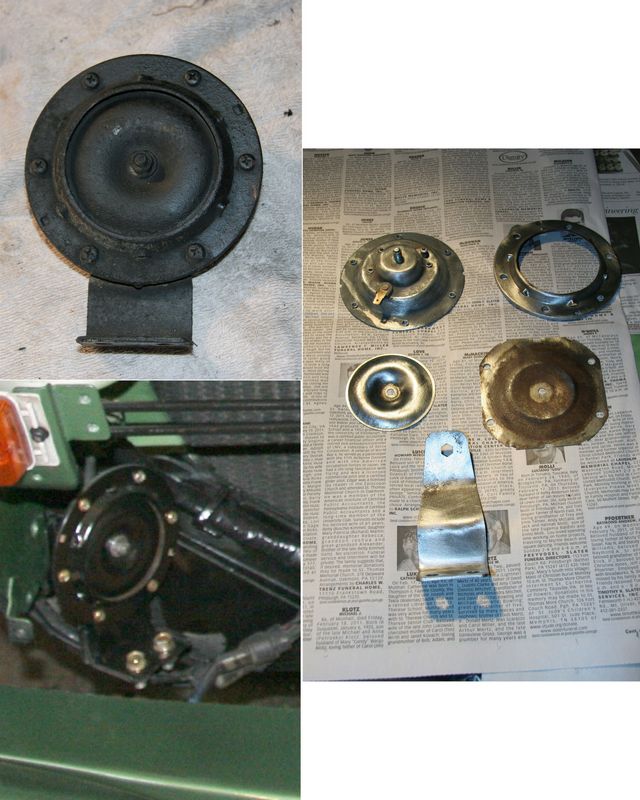

May 31, 201212 yr comment_391625 Here is a shot of mine after cleaning and reinstalling, left side from front. My car is 11/75 or 76 - 280z. Link to comment https://www.classiczcars.com/forums/topic/43360-horn-not-wokring-help/#findComment-391625 Share on other sites More sharing options...
May 31, 201212 yr comment_391628 I checked the FSM and it appears one GW to the first horn an another GW to the second from the first horn. I have none of this wiring. The two pin connector appears to be for the side light. I have one on each side of the car. One side has the mating harness to the side light location. I have neither side lights.I guess I will be running new wiring just not sue where to go from the horn to what? Bruce, I'm not sure what you're asking. The FSM has the layout of the circuit on BE-61, shown below. This shows the complete circuit, including the connectors where the wires pass. Unless someone hacked into the wiring harness, the Green/White wire is probably still lurking around the space between the grille and radiator, most likely coming from the engine harness from around the passenger side. Link to comment https://www.classiczcars.com/forums/topic/43360-horn-not-wokring-help/#findComment-391628 Share on other sites More sharing options...
