need help with ultra 9100 CDI

[brenco]

hi there.. i'm pallie from malaysia and currently i having a problem with Ultra 9100 CDI.

now i'm facing a problem to install this stuff because i can't find a installation guide..

really appreciate if u guys help me with this matter..

i'm planning to install this stuff in my L24.

do i need other item??? as i got this one from my friend.

here a sample of the item..

i've search in google but can't find any installation guide there

really appreciate any comments or opinion or any technical advise regarding this stuff

here the actual item..

i really need the user guide.. hope u guys can help me out.. thanks..

[HS30-H]

....currently i having a problem with Ultra 9100 CDI.

now i'm facing a problem to install this stuff because i can't find a installation guide..

I have an NOS full 9200 CDI kit in the box with original instruction manual / wiring diagrams. It's not exactly the same, but the 9200 was essentially an updated 9100 so it should be very similar installation.

What L24 do you plan to install it on? Have you got the full kit with the sub harness and all connectors?

I'll scan the appropriate page from the fitting instructions if you can tell me what car type you are going to use it on.

And - seeing as this is essentially a 40 year old piece of electrickery, are you sure that it actually works...?

[brenco]

I have an NOS full 9200 CDI kit in the box with original instruction manual / wiring diagrams. It's not exactly the same, but the 9200 was essentially an updated 9100 so it should be very similar installation.

What L24 do you plan to install it on? Have you got the full kit with the sub harness and all connectors?

I'll scan the appropriate page from the fitting instructions if you can tell me what car type you are going to use it on.

And - seeing as this is essentially a 40 year old piece of electrickery, are you sure that it actually works...?

thanks a lot bro.. i'm planning to install in my s30 240z that now currently using L24 engine.. does i require additional item to install this stuff bro??

i just only have this thing with all harness still attached.. i dunno weather this one still functional or not but according to my friend.. this item just taken out from the car and it's still functioning at that time before changing to MSD 6AL. maybe with a wiring diagram i can do some testing before i put in my car.. anyway.. thanks a lot for ur help and kindness bro.. really appreciated..

[HS30-H]

OK, I will scan the relevant page from the fitting instructions and post it up here with some notes.

Bear with me.....

[HS30-H]

Three scans from the ( universal ) fitting instruction booklet that came with the 9200:

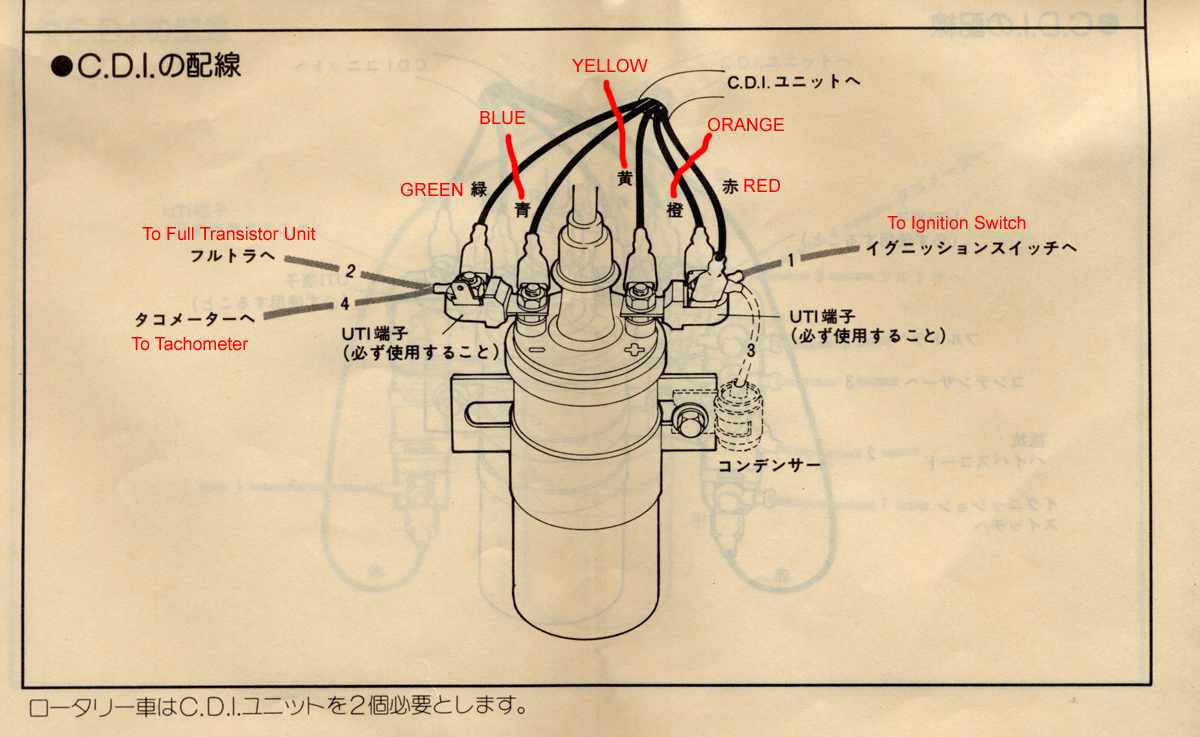

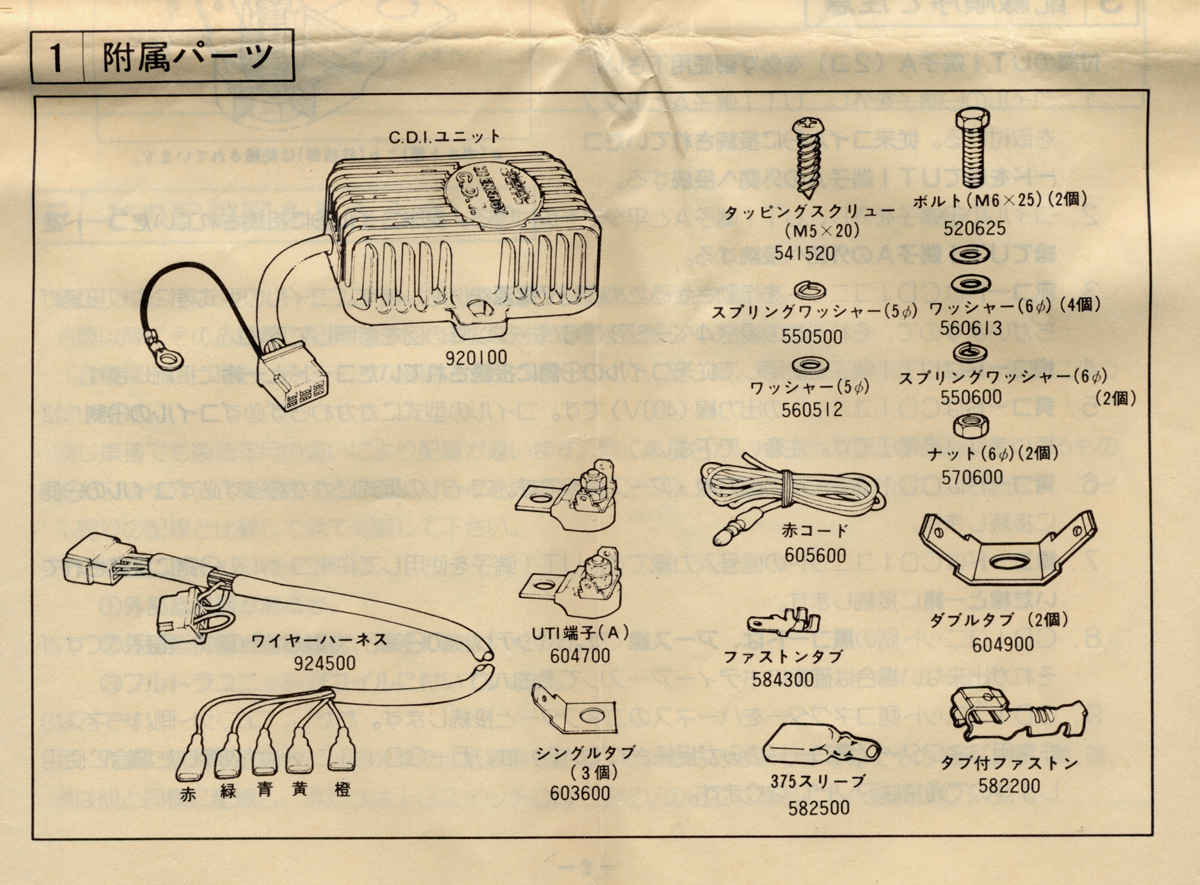

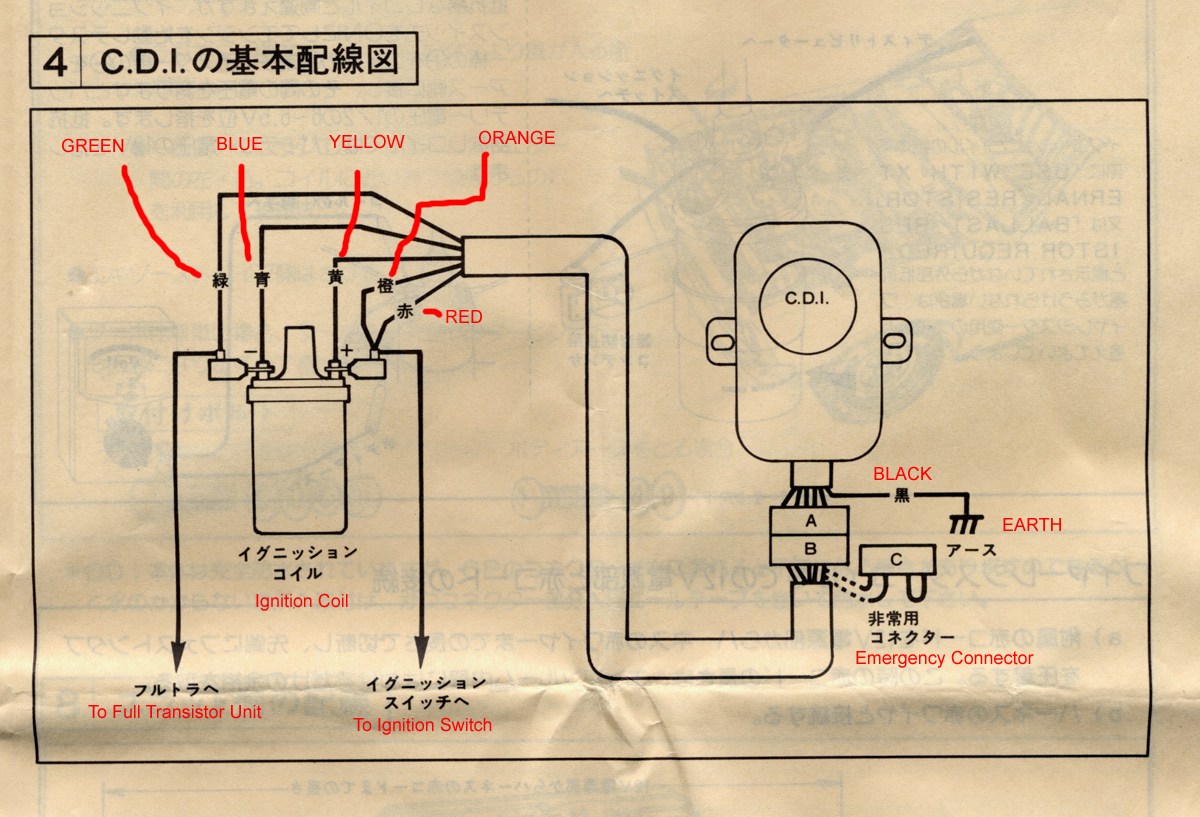

P1 lists the parts included in the kit, P3 shows a basic wiring schematic and P7 shows the specific wiring at the ignition coil which should apply to your car.

You can ignore the mentions of a 'Full Transistor' unit, as these apply to cars that were fitted with the Mitsubishi transistor ignition system from the factory ( ie S20 engined in this case ).

[brenco]

thanks so much bro.. that's really helps.. errrr.. can u scan all the booklet and email to me?? just asking and if u're no busy.. i think my cousin can help me with all the japanese words due he's previously study at Osaka..

here my email.. brenco977@yahoo.com..

btw.. thank you so much bro.. i dunno how i will ever thank you for your kindness.
