Photo references! Edutainment! Add your photos with descriptions of your carburetors, linkage, inlet manifolds and related parts so we have a visual reference database. So here are some photos of triple Dellorto DHLA 40 with unknown manifold (Datsun 240Z cast into the bottom of the manifold), linkage, and Warneford Design (Bap Geon) air cleaners.

Edited November 15, 201212 yr by z e r o

Here is an inlet manifold by Cannon. Linkage unknown.

Edited November 15, 201212 yr by z e r o

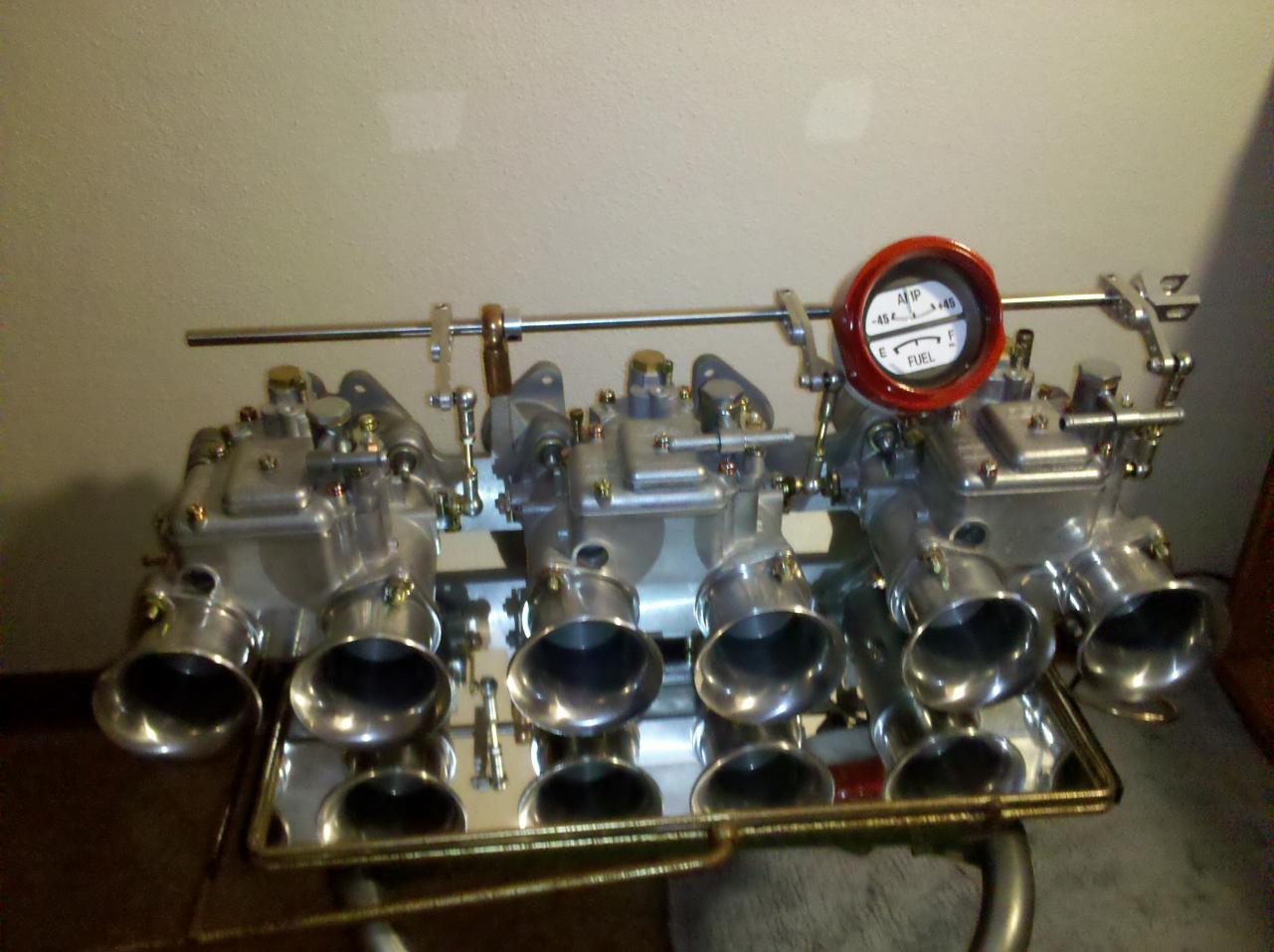

OER 47mm's Purchased from Pierce Manifold complete

Took a shot of what I had not bolted down:   Mikuni Solex from Datsun Comp-- 50's  / 3 Sets of 44's , 1 Set NOS /

From Mikuni America, 44's and 40's / Webers 45's, 42's, (4)Sets of 40's / IDAL 3C 40's / 1 Mechanical Fuel Injection set up (Hillborn type) From a 2.5 liter hydroplane.

I know a little bit about trips...........







Edited April 21, 20195 yr by smittybuilt

^Oh man, life is not fair!  Very impressive.
