jwilliams7200 Posted August 12, 2014 Share #1 Posted August 12, 2014 (edited) Okay! So to start, I can't read those stupid wiring diagrams worth a flip. I have come across a low grade HID conversion kit for my headlights. Each headlight works individually, but when I hook them up simultaneously, they flicker back and forth. I have decided to wire relays into the original circuit and route wire straight from the battery to each of the headlights. Problem is, I don't understand how the brights even work. . What I'm asking for is a walkthrough of the wiring from the battery, through whatever switches, and to the headlights. High beams and low beams. Stock setup. I can't seem to find anything descriptive on this matter. If you do know of a walkthrough, a URL would do fine. If not, once I gain a sufficient understanding, I will post a thread myself. Thank you! Edited August 12, 2014 by jwilliams7200 Link to comment Share on other sites More sharing options...

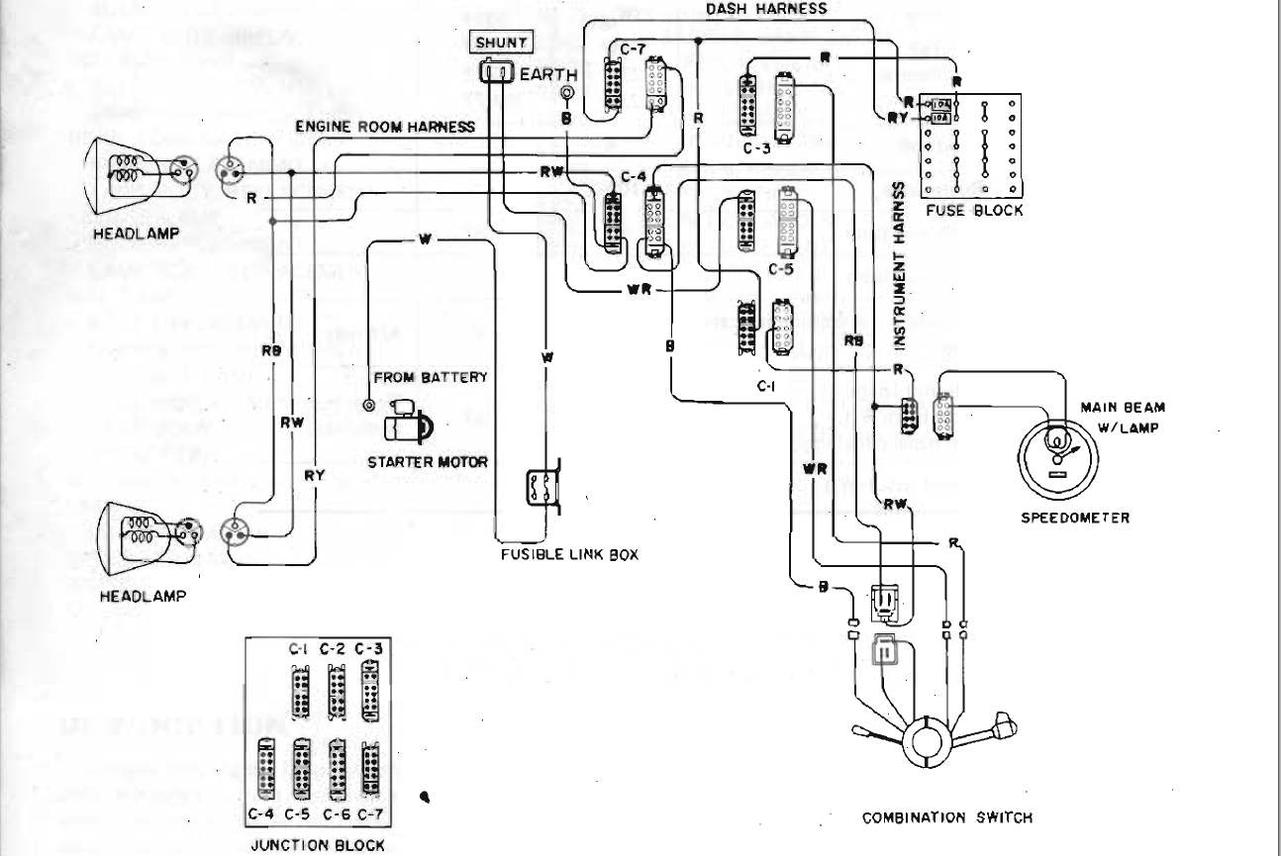

SteveJ Posted August 12, 2014 Share #2 Posted August 12, 2014 Look at the drawing for the 260Z circuit. The wire colors are the same, but the connectors and fuse locations are a little different. The W/R wire comes off the battery/alternator and goes to the headlight switch. It comes out as a Red wire. The R wire goes to the left & right headlight fuses and comes out R for the right headlight and R/Y for the left headlight. There are two wires that come off each headlight and go back to the high/low beam switch. The R/W wire is for the high beams, and the R/B wire is for the low beams. The switch determines which of those two wires is connected to ground. Link to comment Share on other sites More sharing options...
jwilliams7200 Posted August 13, 2014 Author Share #3 Posted August 13, 2014 Thank you for your reply, Steve. Didn't think I'd get one, haha. I will reply with more questions or a conclusion on Thursday. Link to comment Share on other sites More sharing options...
SteveJ Posted August 13, 2014 Share #4 Posted August 13, 2014 Be sure to search on this site, too. There are plenty of posts on headlights. Link to comment Share on other sites More sharing options...
Jarvo2 Posted August 13, 2014 Share #5 Posted August 13, 2014 I would highly suggest either buying the Dave Irwin harness from MSA or build your own like I did ... Dave's 1972 Datsun 240z: Headlight wiring harness with relays Link to comment Share on other sites More sharing options...
jwilliams7200 Posted August 18, 2014 Author Share #6 Posted August 18, 2014 Well, a little later than Thursday, my apologies. I figured out that my battery was just bad, so that's why I could never get the ballasts for the headlights to operate simultaneously. Fixed that, problem solved. Thanks a lot for the diagram and explanation, Steve! I'm gonna do what Jarvo says and build my own relay harness using that guide. Link to comment Share on other sites More sharing options...
SteveJ Posted August 18, 2014 Share #7 Posted August 18, 2014 One nice thing about buying Dave's relay harness (via Motorsport Auto) is that it's plug and play. I would suggest going that route. Link to comment Share on other sites More sharing options...
