240260280z Posted April 3, 2015 Share #1 Posted April 3, 2015 I'm helping a friend restore his 1973 240z so I figured I'd throw some data here for all to enjoy. 1 Link to comment Share on other sites More sharing options...
240260280z Posted April 3, 2015 Author Share #2 Posted April 3, 2015 Reference Material: FSM Electrical Chapter:1973 BE Body Electrical.pdf Corrective Fuel System Upgrades: 1973 240z 1974 260z fuel system modifications.pdf Link to comment Share on other sites More sharing options...
240260280z Posted April 3, 2015 Author Share #3 Posted April 3, 2015 (edited) Electrical Wiring Diagram: wiring diagram.zip Edited April 3, 2015 by Blue Link to comment Share on other sites More sharing options...

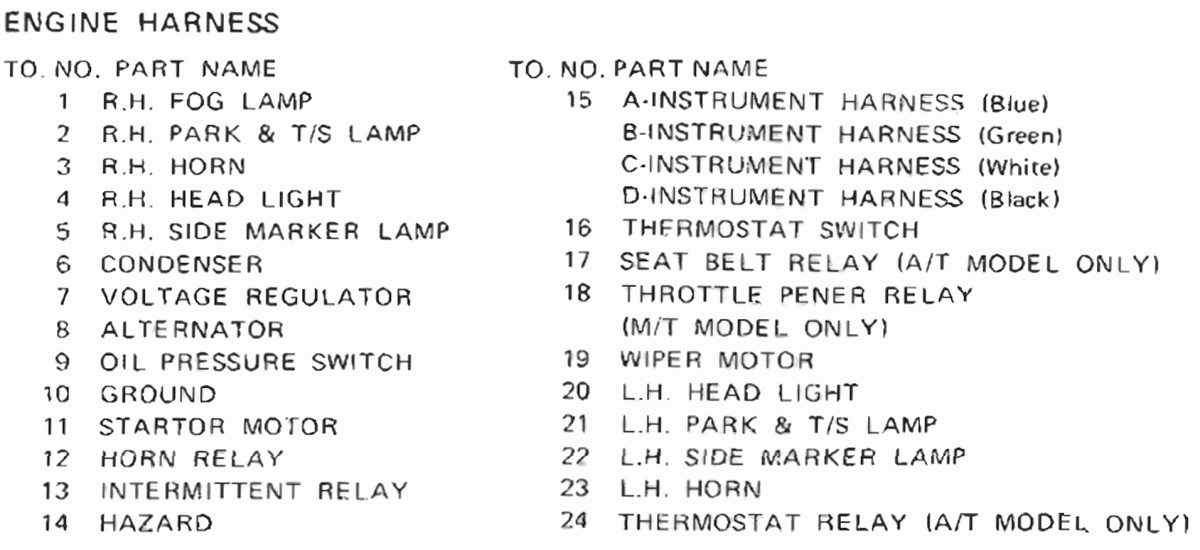

240260280z Posted April 3, 2015 Author Share #4 Posted April 3, 2015 Engine Harness: 1973 Engine Wiring Harness.zip Link to comment Share on other sites More sharing options...

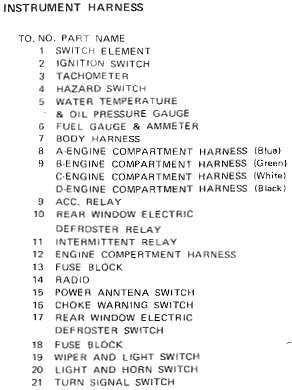

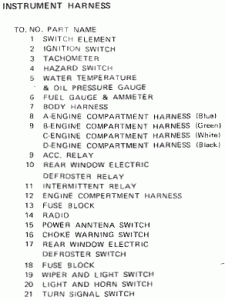

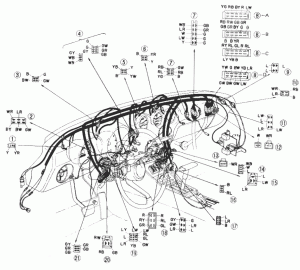

240260280z Posted April 3, 2015 Author Share #5 Posted April 3, 2015 (edited) Dash Harness: 1973 Wiring Harness Dash.zip Edited April 3, 2015 by Blue Link to comment Share on other sites More sharing options...

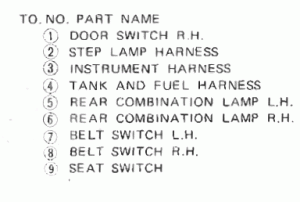

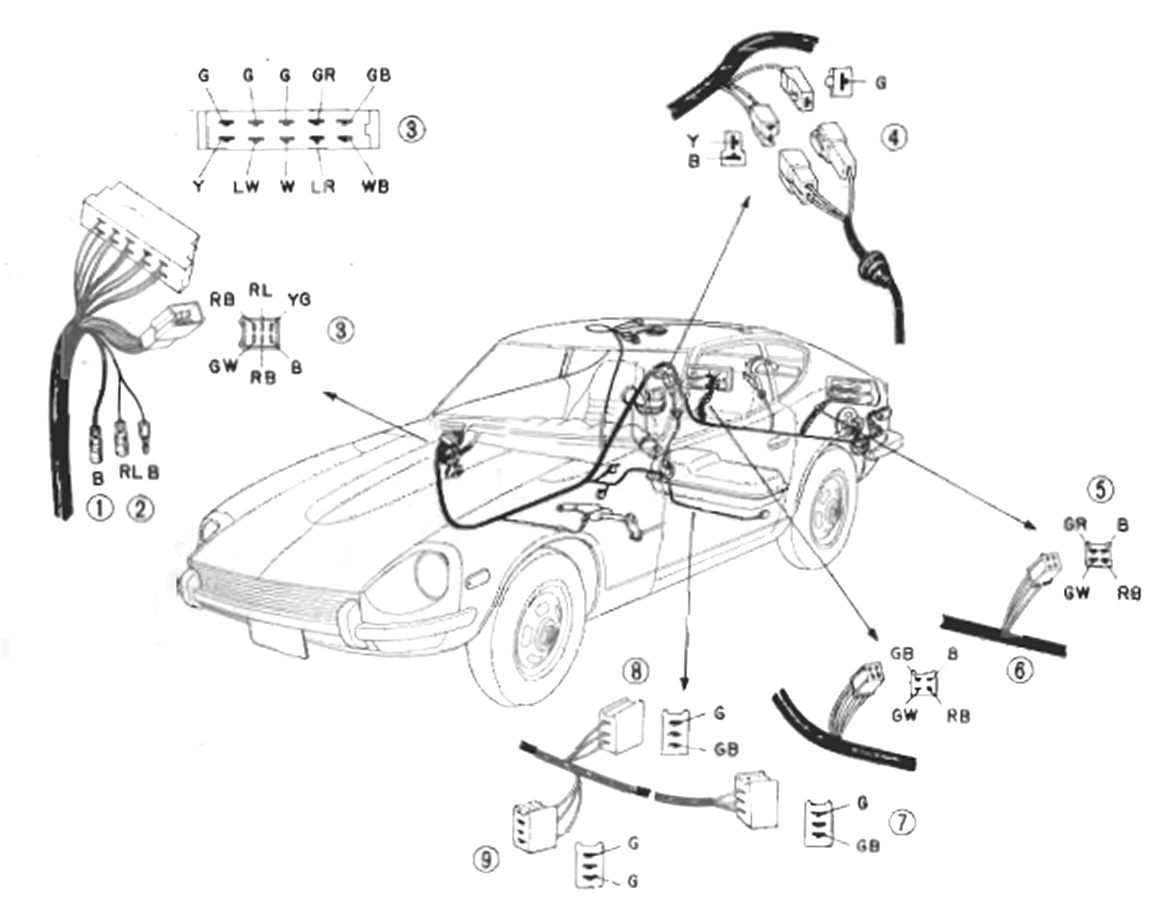

240260280z Posted April 3, 2015 Author Share #6 Posted April 3, 2015 Back Harness: 1973 Wiring Harness Back.zip Link to comment Share on other sites More sharing options...

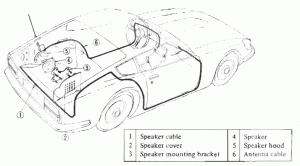

240260280z Posted April 3, 2015 Author Share #7 Posted April 3, 2015 (edited) Radio (Antenna & Speakers) Harness: Edited April 3, 2015 by Blue Link to comment Share on other sites More sharing options...

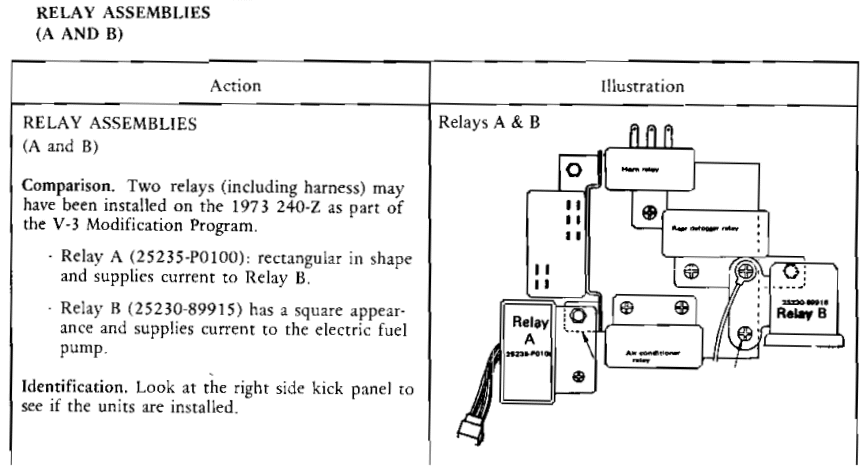

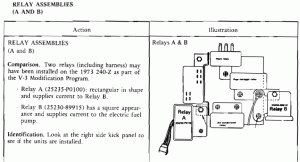

240260280z Posted April 3, 2015 Author Share #8 Posted April 3, 2015 Fuel Pump Upgrade (Optional post-sale fix... not on all 73's): Reference:1973 240z 1974 260z fuel system modifications.pdf Link to comment Share on other sites More sharing options...
