Transmission mount

[grannyknot]

This is the transmission mount for a /72 4spd, is this the same mount that was used on the ZX cars?

I know the ZX 5spd will fit on this mount, I just heard the ZX mounts were different and if anyone had a pic of it.

Thanks,

Chris

[Zed Head]

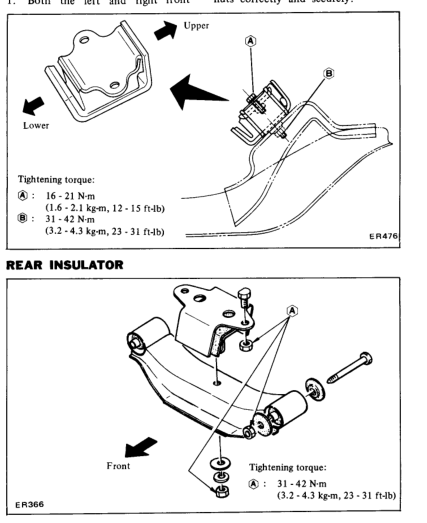

Looks like the ZX uses the two longitudinal bolts, like the later 280Z's.  From the 82 MT Engine Removal chapter.  Weird that they have a special chapter for it, seems like it would be in Engine Mechanical.  The transmission mount is considered the third engine mount.  Not clear if you meant the crossmember or the rubber.  If rubber, the part numbers should be the same at Rockauto or wherever.



I have a ZX mount in the garage somewhere.

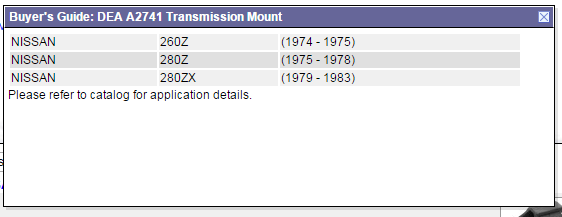

Edit - added some Rockauto stuff.

Edited September 7, 2015 by Zed Head

[grannyknot]

Thanks Zed
