Exact under hood decal placement 1978Z

[dmorales-bello]

I'm in the very last stages of my 1978 280Z project and I inadvertently erased the pictures of the underside of my hood and now have no visual references to replace the emissions and AC decals. I went through every forum topic and although there are several references none of the show a picture of the the underside of the 1978 hood with it's factory decals!

Can anyone please help me with this?

[siteunseen]

[dmorales-bello]


Thanks very much!!!

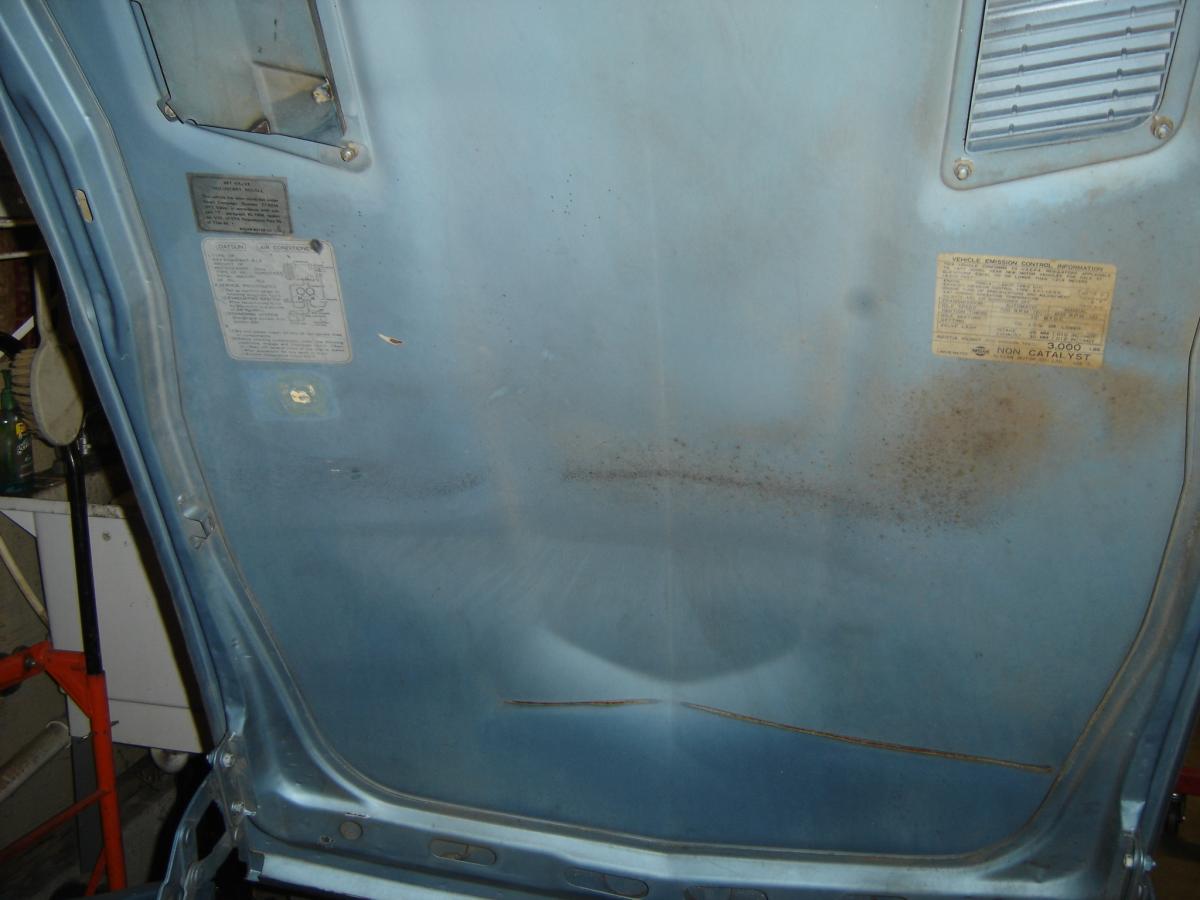

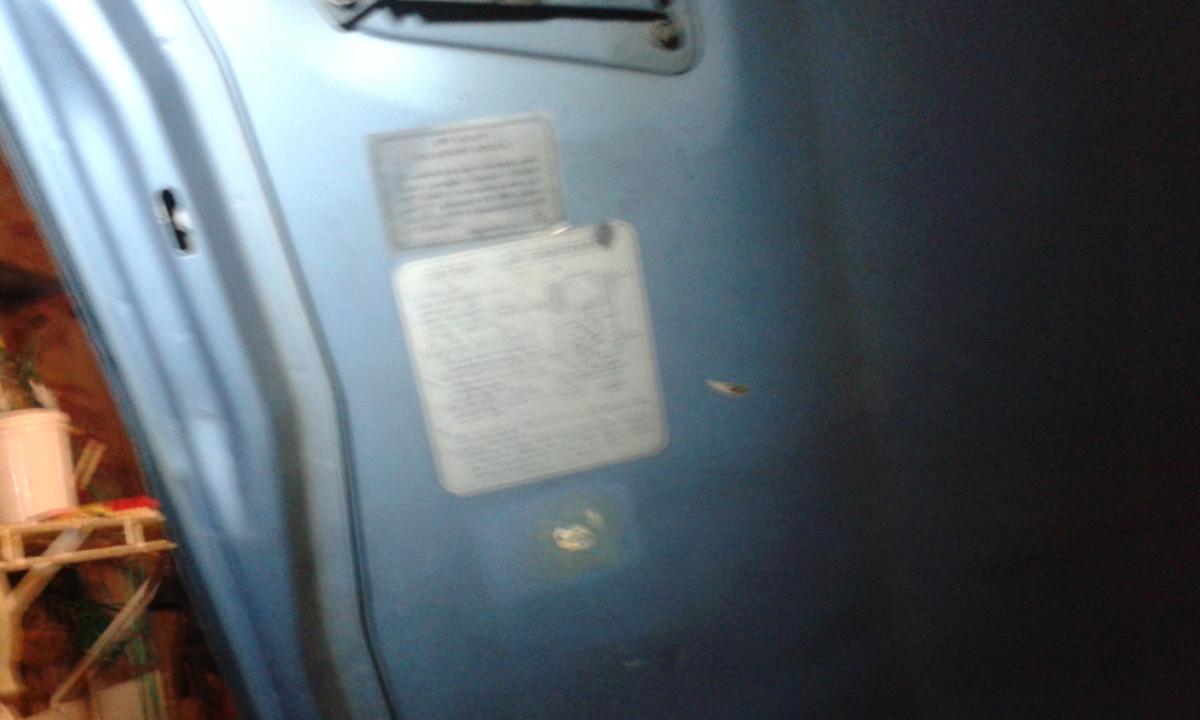

I suppose these are pics of your '77 Z hood, correct? Should they be the same for the 1978 model year? I'm sure I only had 2 decals: the emissions and an AC one. You seem to have another one plus what looks like a spot on the drivers side where another decal is missing.

[siteunseen]

Thanks very much!!!

I suppose these are pics of your '77 Z hood, correct? Should they be the same for the 1978 model year? I'm sure I only had 2 decals: the emissions and an AC one. You seem to have another one plus what looks like a spot on the drivers side where another decal is missing.

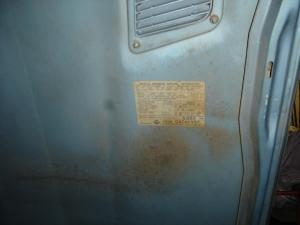

I apologize for the poor quality pictures.  I'll get a better shot later today and some measurements if you want.

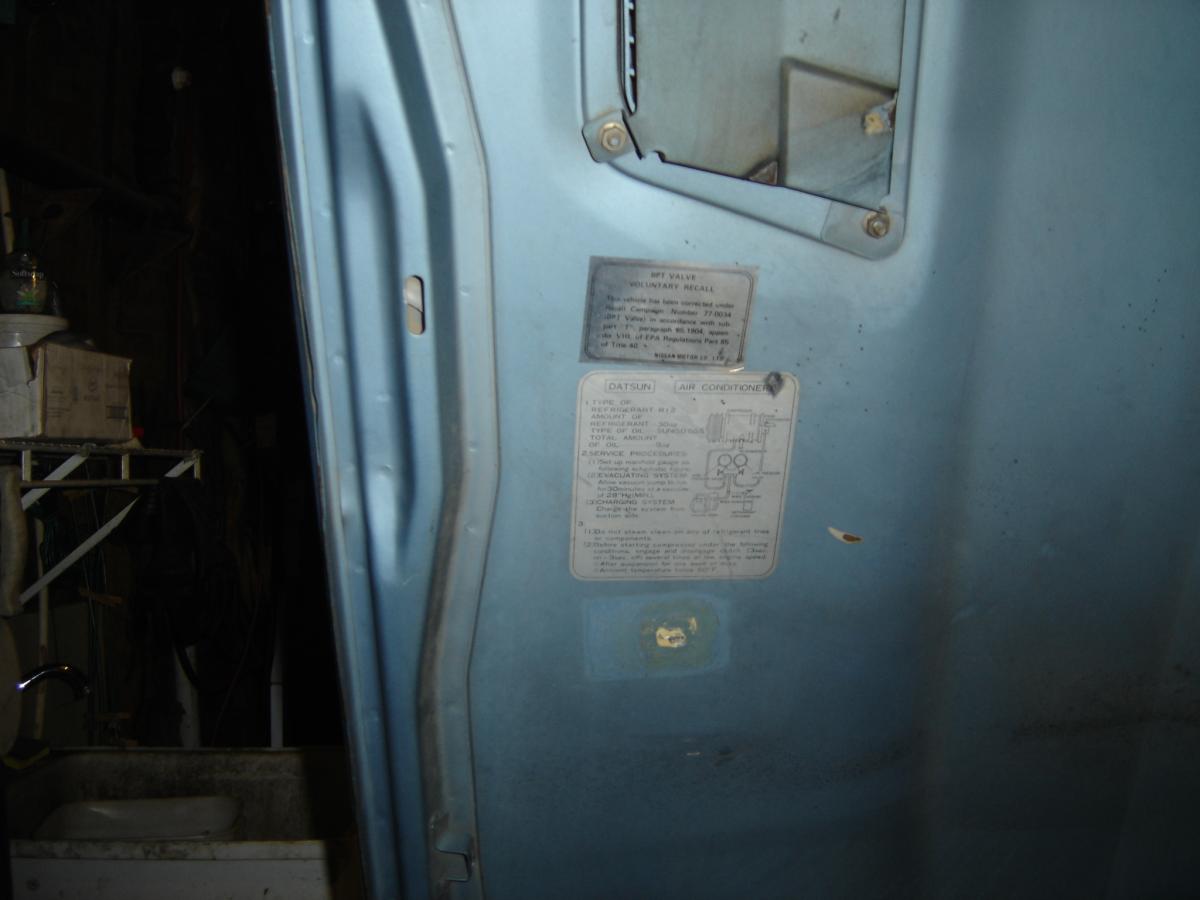

That extra one on the drivers side is a "recall fix" sticker for the BPT valve.  I'm not too sure about the one that's kind of missing, it may be an upgraded freon sticker?  I'll get something clearer soon!

[dmorales-bello]

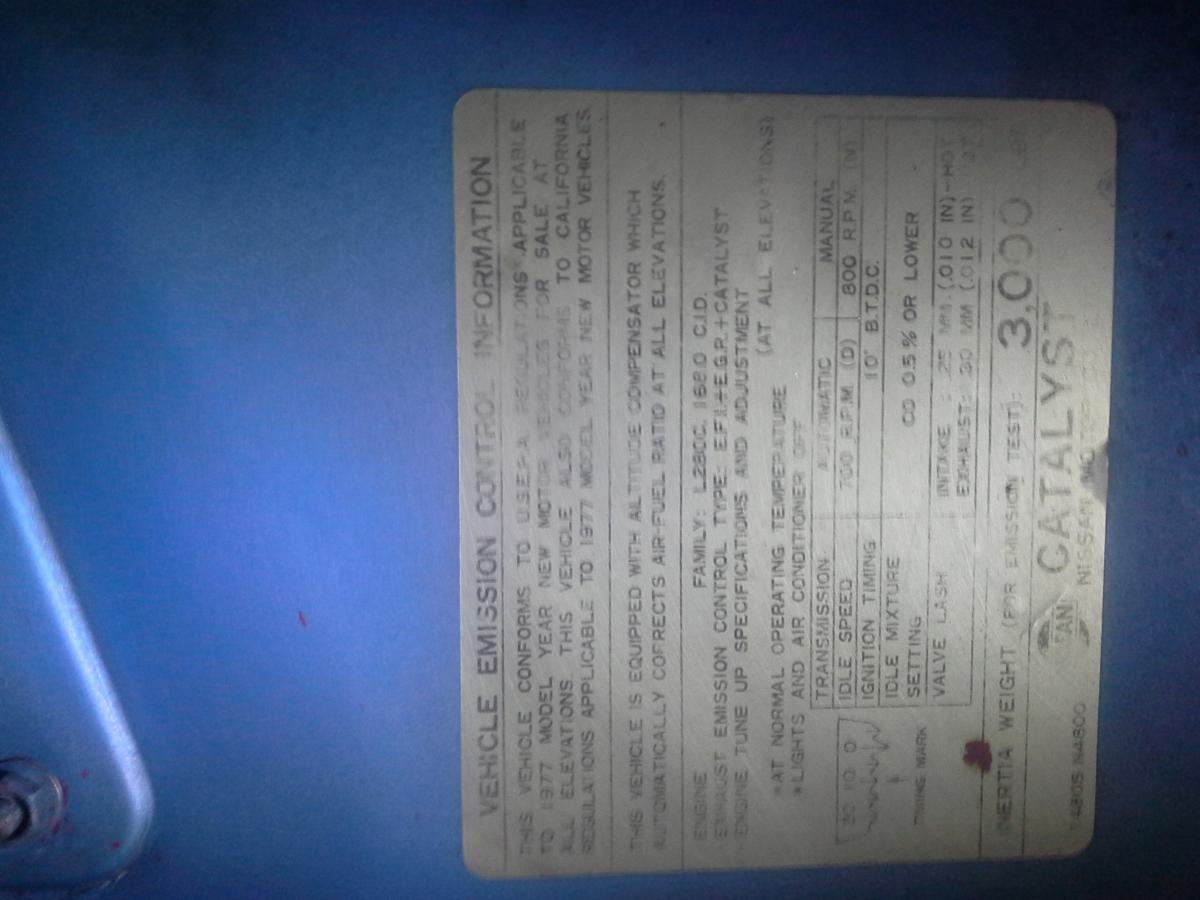

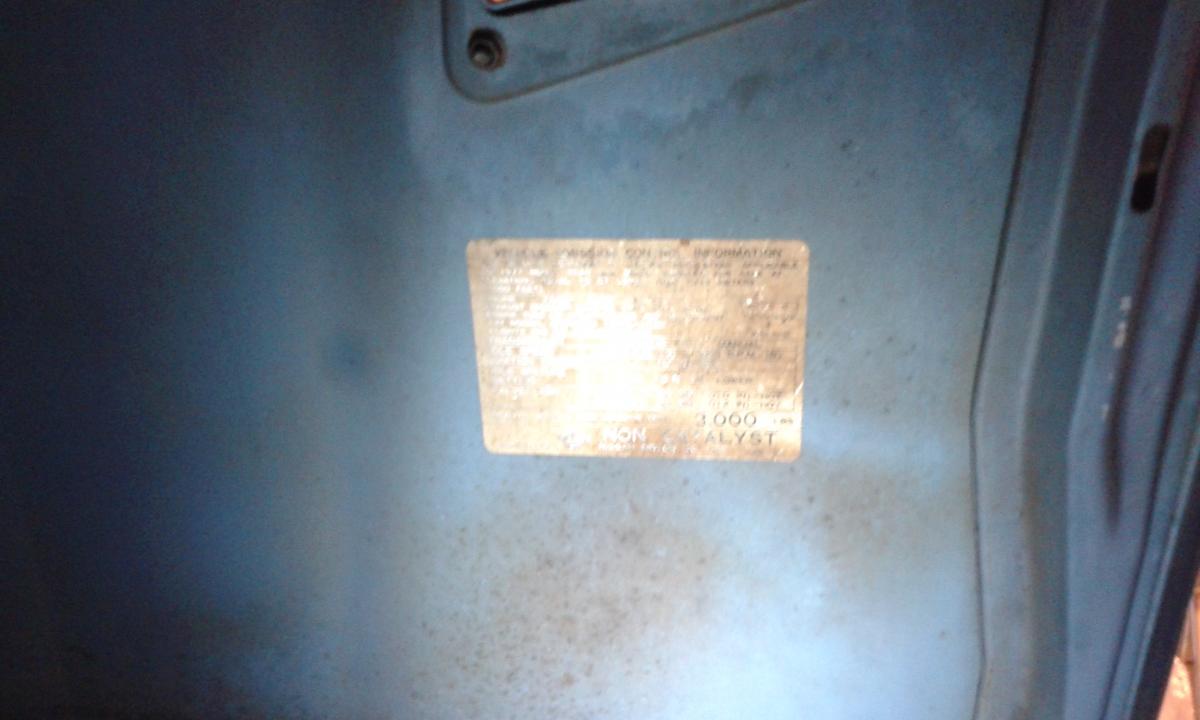

Thanks again for all the trouble. Would it be the same placement for the 78s? I could have sworn both my decals were on the passenger side only!

[siteunseen]

Thanks again for all the trouble. Would it be the same placement for the 78s? I could have sworn both my decals were on the passenger side only!

I'm not sure about that.  The car hasn't been painted, so I think that's where they belong?  My 240s have just one on the passenger's side though.

[siteunseen]

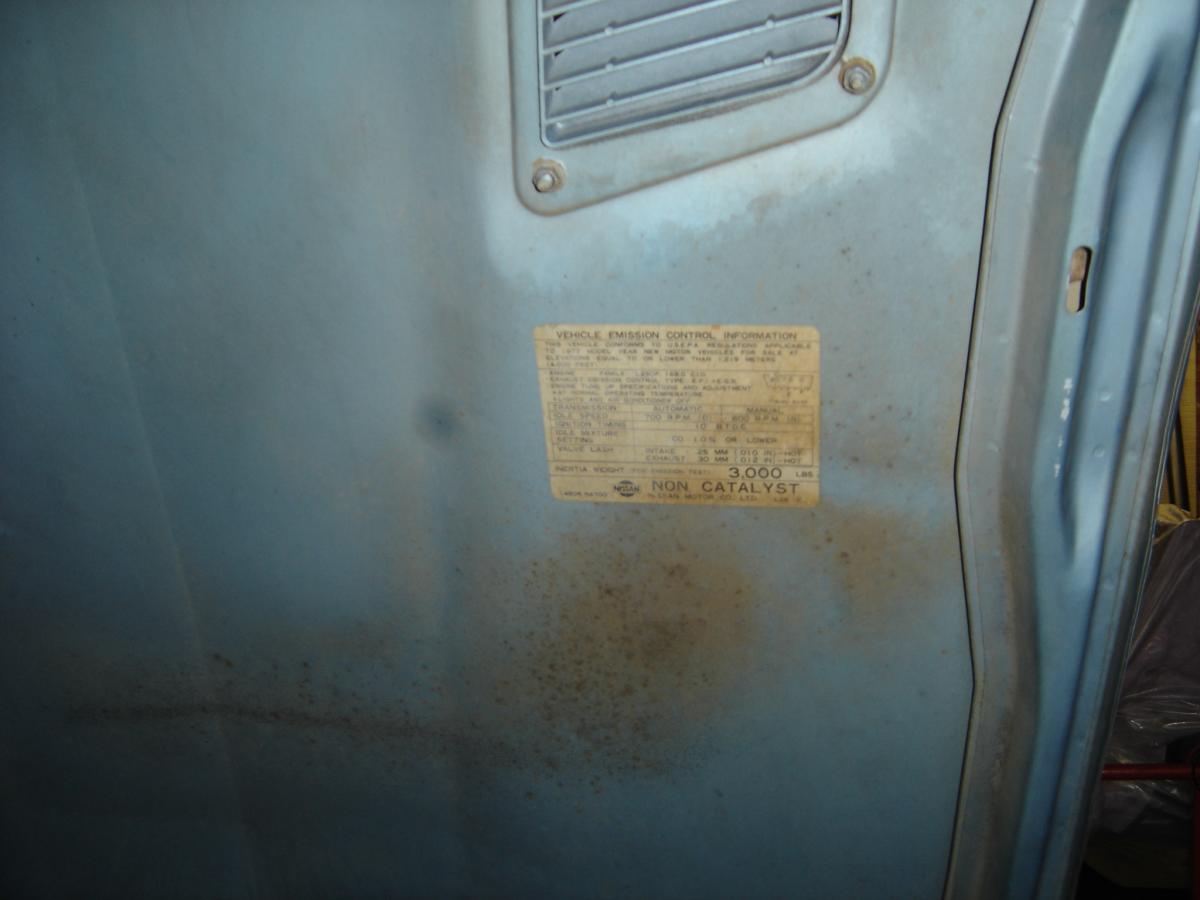

Post number 6 might help, http://www.classiczcars.com/topic/32650-emmissions-stickers/



That's a '78 so I'd bet they ARE both on the passenger's side.

[EuroDat]

I also have a 77 model and the sticker is in the same position as sites. I would seem likely they would be in the same position on the 78.

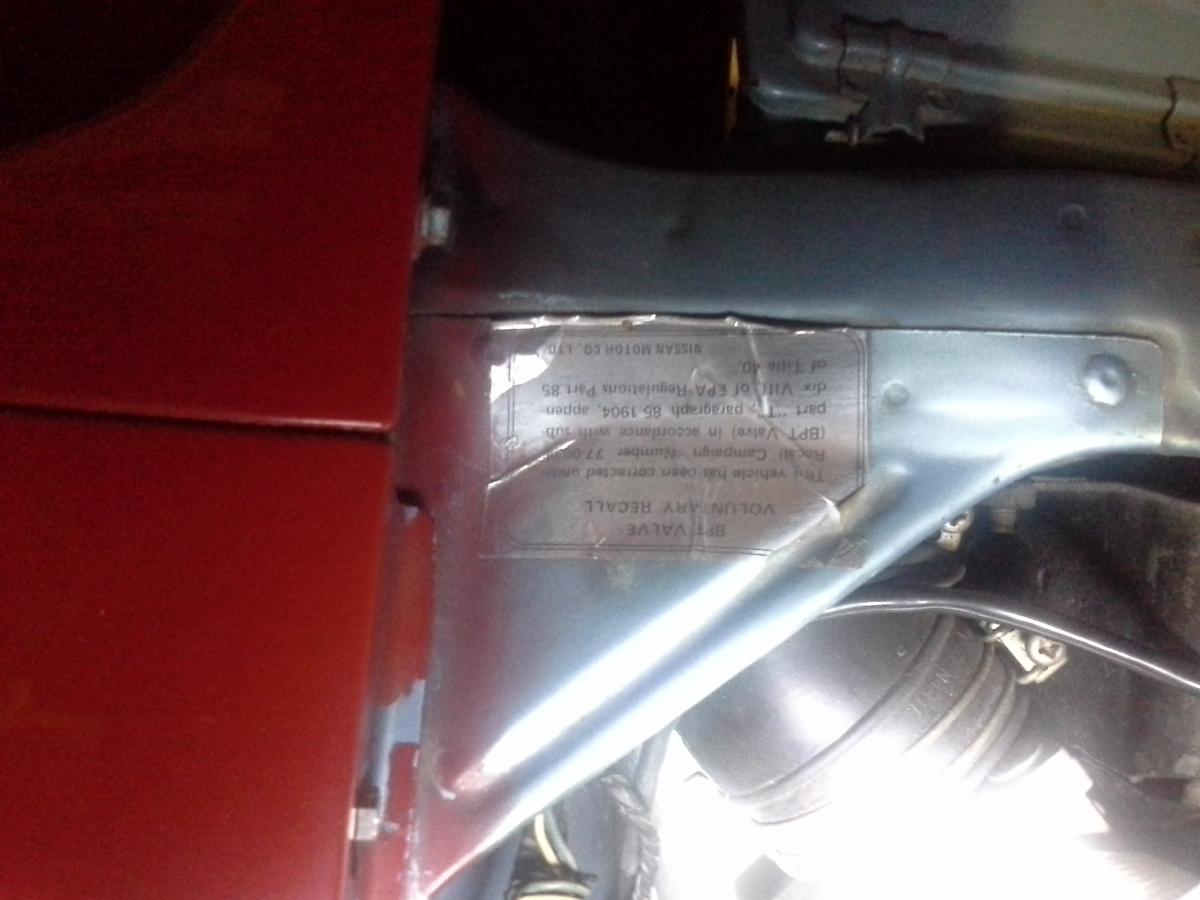

The BPT valve recall sticker is on the front radiator support at the AFM side. I think the dealer just place them at their own discretion.

[siteunseen]

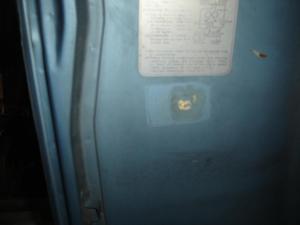

Sorry for forgetting this.  The sticker that's been removed has one word I can make out, "Correct", no idea what it was.



And I thought my puppy was house trained to use the doggie flap to go outside to use the restroom.  Wrong!  I found his toilet behind this 280 when I was taking the pictures.
