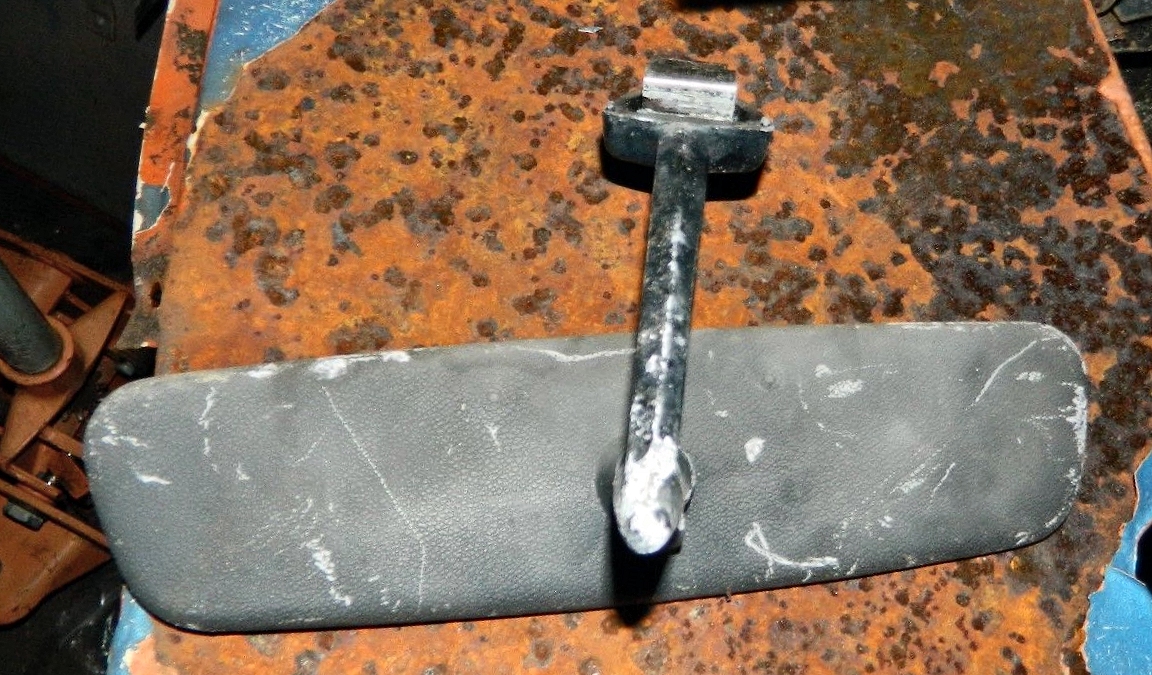

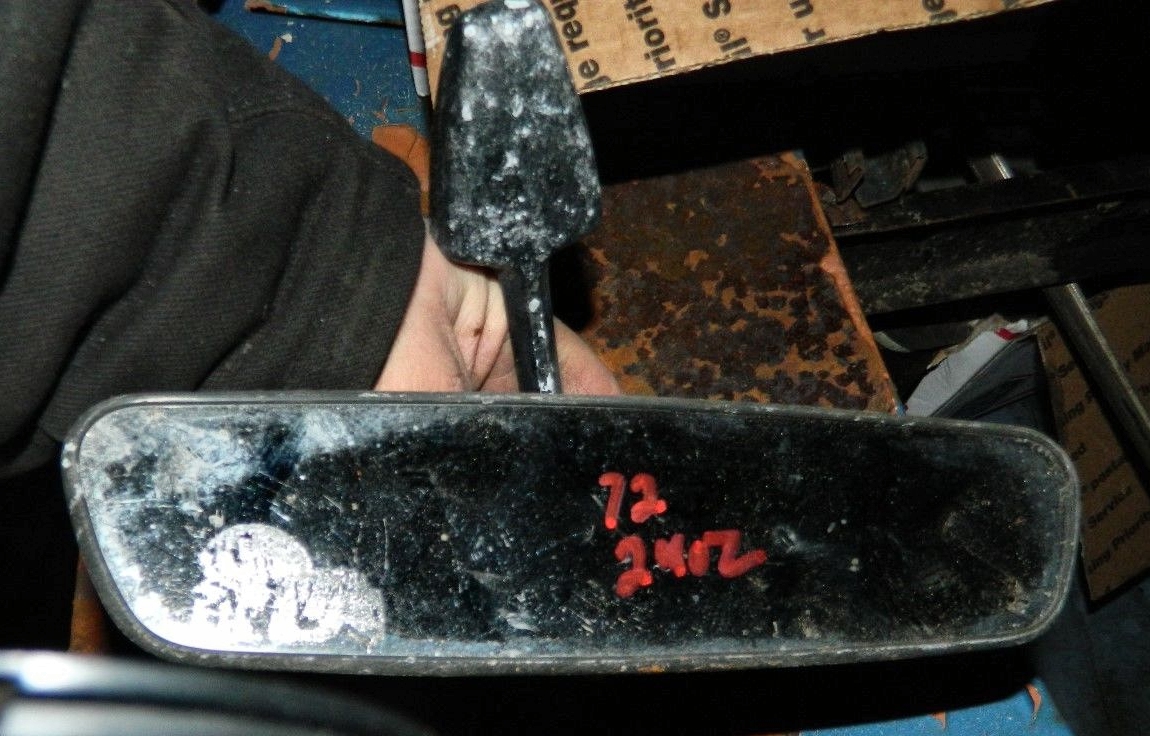

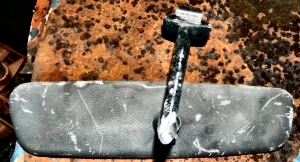

Are there Z mirrors without the toggle switches like the one in the pictures, or are these from a different car?

Is the mirror body real thin?   Then likely 510

96321-E4100 was the '69-up interior mirror for the S30-S Fairlady Z 'Std' model and the PS30-SB Fairlady Z432-R model, with no Day/Night adjustment.

Many other Nissan models (especially in Japanese market) had similar style mirrors. What makes them Z specific is the curve of the stalk and the mounting.

Thanks Alan!

Thanks Jim, I'll have a look at 510 mirrors my friends have.  It could be one but this one seems to be more trapezoidal.

Edited May 12, 20177 yr by 240260280

I bought this from the US as new in the box , kept it on a shelf a while, then sold it on Yahoo Japan a few years ago.

Most of the Z432-R which I saw do not have this mirror, I think they just lost it at some point.

It is a quite common story that people were trying to obtain this plain mirror (because of Z432-R) from the local Nissan sometime ago , they ended up receiving mirror with an ugly mounting  stay.

Bravely some people were trying to sell the not original mirror with listing "Z432-R mirror" , they were relying only the fact that they placed an order to Nissan with the collect part number.

I do not know why parts catalog says this mirror is applied "automatic" .

Kats



Edited May 12, 20177 yr by kats

I had one of these off of an early production car. I don't know if I sold it or if it is still in my parts stash. I will have to take a look this weekend.

39 minutes ago, kats said:

Most of the Z432-R which I saw do not have this mirror, I think they just lost it at some point.



Like many road-going 432-R users, they probably found that it was a nuisance when night driving. In just the same way, quite a few road-driven 432-Rs ended up with gloveboxes, heat/demist controls and centre consoles etc within a few years of being sold.

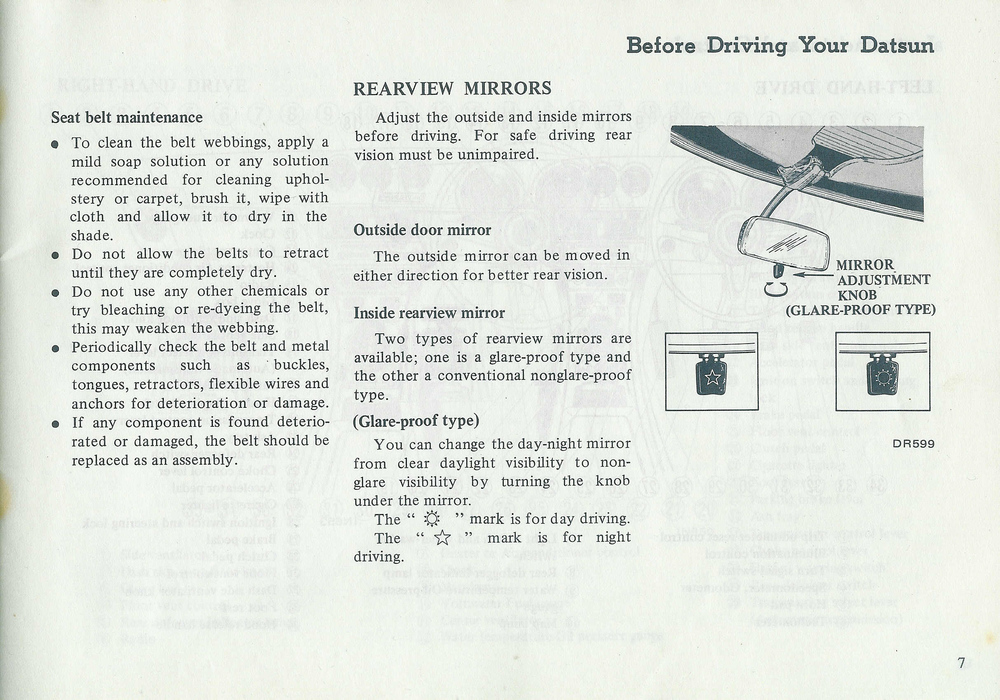

The rear view mirror on my 1977 UK 260Z does not have a day/night toggle lever. The owner's manual suggests that this non-toggle type of mirror is fitted with anti-glare glass.

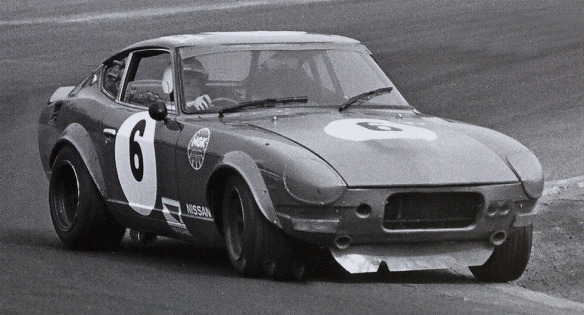

The mirror w/o the glare-proof toggle seems to appear in some of the early 432R racers in Japan in spring of 1970.

They seem wider at the top too which is like the one in the first post.  That crusty grey plastic also seems to agree with the photo below and with other early parts like the ashtray and heater panel.

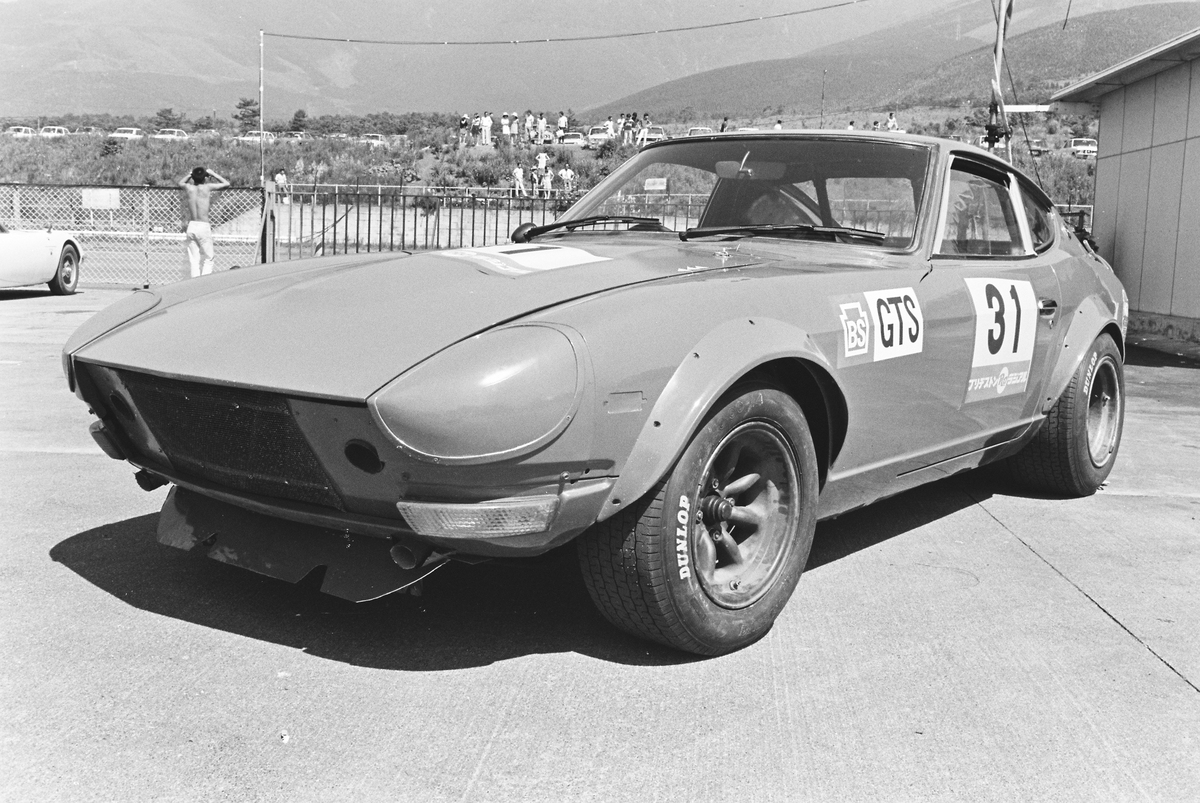

1970 09 05 Fuji International Golden Race

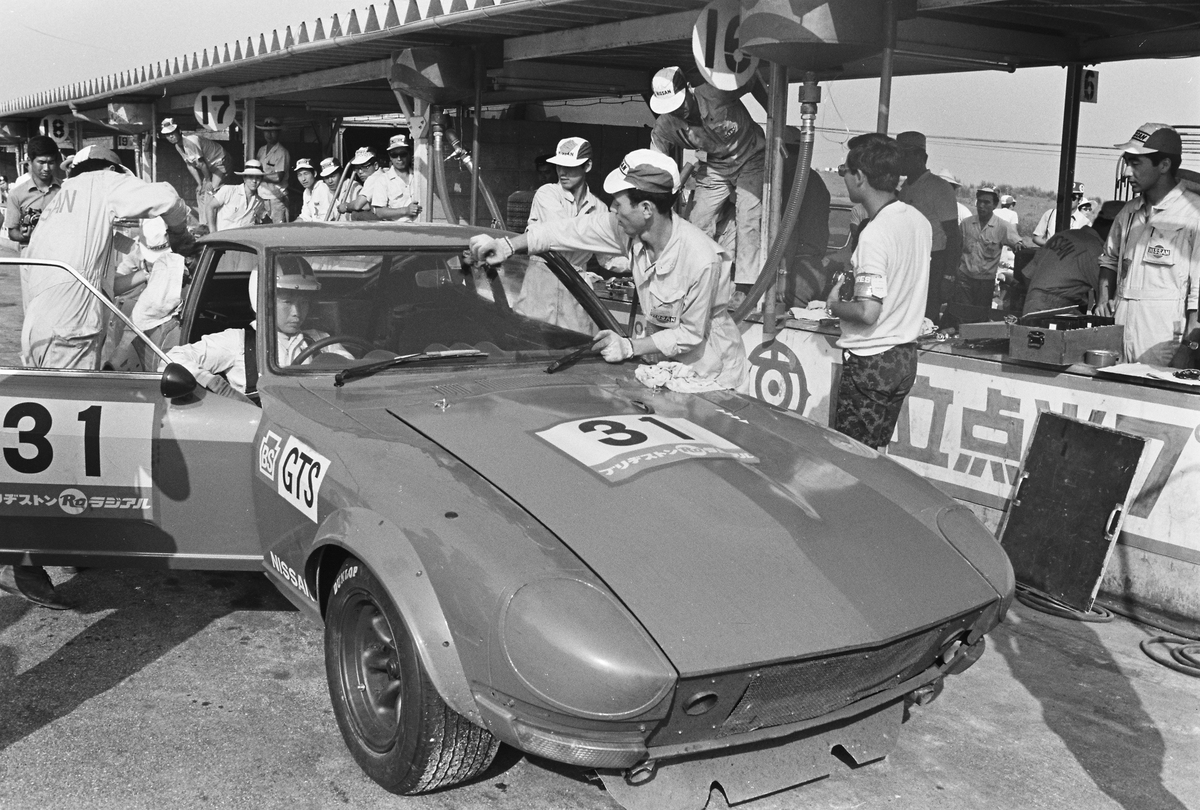

1970 07 25 All Japan Fuji 1000km

Edited May 12, 20177 yr by 240260280

"They seem wider at the top too which is like the one in the first post."

It's a spherical mount. Turn it 180 degrees and it'll be wider at the bottom?

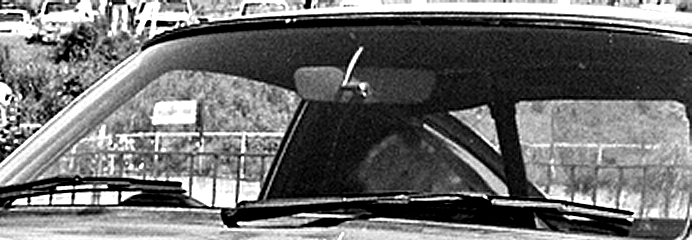

I think you are correct.  Maybe the racers put them higher for better forward visibility:



"It don't matter who's behind you, only who's in front of you."

Edited May 12, 20177 yr by 240260280

That's probably the case. I modified a couple different rear view mirrors from other cars to fit my Z, and it takes a bit to get used to it. I wish they were all closer to the roof.

Thanks Alan, I see why they have some comfortable features. They are road going Z432-R, each car has each owners needs.

My automatic 240Z has day/night mirror of course.

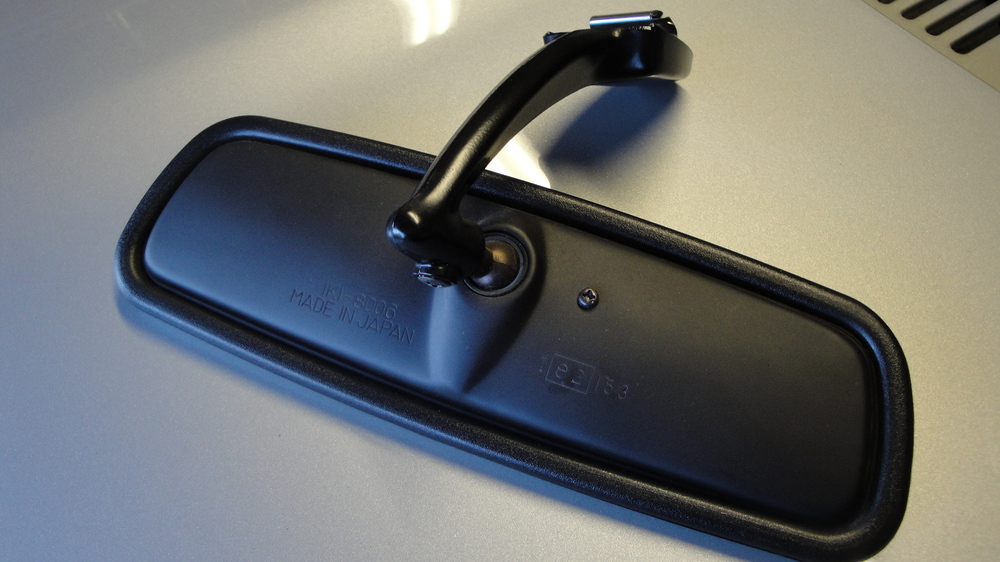

And this is the mirror which provided later from Nissan.

Kats
