Parts Identication

[joe newsom]

Can anyone identify these parts and have a suggestion of where to purchase.

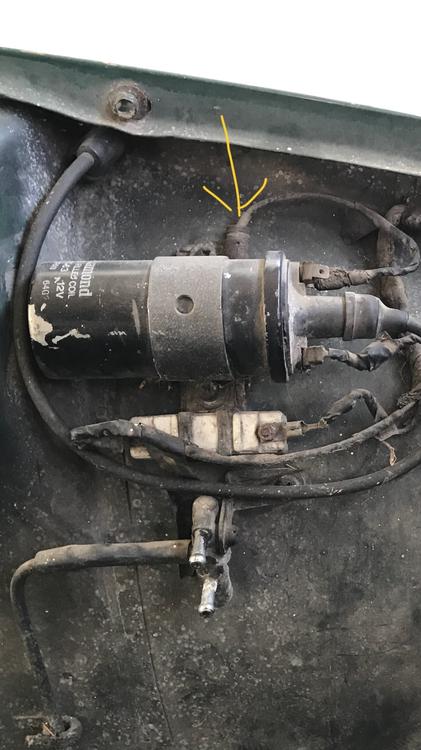

The first pic looks like some type of capacitor or suppressor on top of the coil.

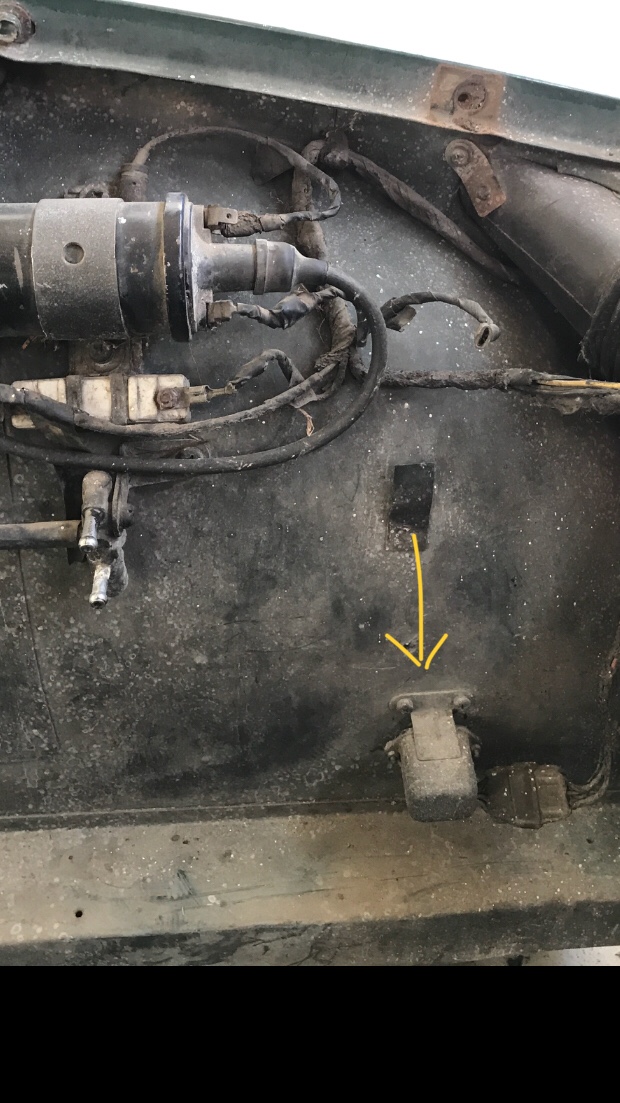

The second pic I have no idea





Sent from my iPhone using Classic Zcar Club mobile

[Captain Obvious]

The first item is indeed a capacitor. Commonly known in the automotive trade as a "condenser". Used to help reduce ignition noise and extend points life. As for where to get one... I haven't looked, but I gotta believe web searching must turn up something suitable.

As for the second item... What year are you working on here? Off the top of my head, I would guess it's an EGR actuation relay, but depends on the year.

[EuroDat]

The second photo could be a horn relay. I can't tell the wire colour, but if it is Green - Green/red stripe - Green/black stripe, it could be a late 72/73 240Z. Without knowing the model, it's just guessing.

[SteveJ]

Condensers are still available through Rockauto. Search under ignition parts.

As for the relay, try cleaning off some of the crap that is coating the wires and give us any wire colors you can make out. Be sure to identify both the main color and the color of any stripe that may be on the wire.

[7tooZ]

The first item is indeed a capacitor. Commonly known in the automotive trade as a "condenser". Used to help reduce ignition noise and extend points life. As for where to get one... I haven't looked, but I gotta believe web searching must turn up something suitable.
As for the second item... What year are you working on here? Off the top of my head, I would guess it's an EGR actuation relay, but depends on the year.

Joe told me earlier he is working on 71 series II car with automatic trans.
That relay is not something I have run across on early series I and II cars.


Sent from my iPhone using Classic Zcar Club mobile

[SteveJ]

21 minutes ago, 7tooZ said:



Joe told me earlier he is working on 71 series II car with automatic trans.
That relay is not something I have run across on early series I and II cars.


Sent from my iPhone using Classic Zcar Club mobile



Thank you. It's clear now. The relay is to bring in the retarded timing points on the dual point distributor in the automatic transmission cars. There is a clear description of it on page EE-26 of the 73 FSM. When the temperature sensor gets up to a certain point, the switch closes and energizes the relay. The relay closes the contact between the second set of points and ground.

[joe newsom]

Is it necessary if I am converting it to a manual?


Sent from my iPhone using Classic Zcar Club mobile

[SteveJ]

No.

[joe newsom]

Thanks


Sent from my iPhone using Classic Zcar Club mobile
