Restoration of "One-eighty-seven"

[dprchuynh]

Regarding replacing the hood:  Early cars are known to have slightly different hoods.  You should try to save it if you can if you ever plan on selling the car.  Crazy Z people know about the different hood and will want it to be on the car vs. the later one.

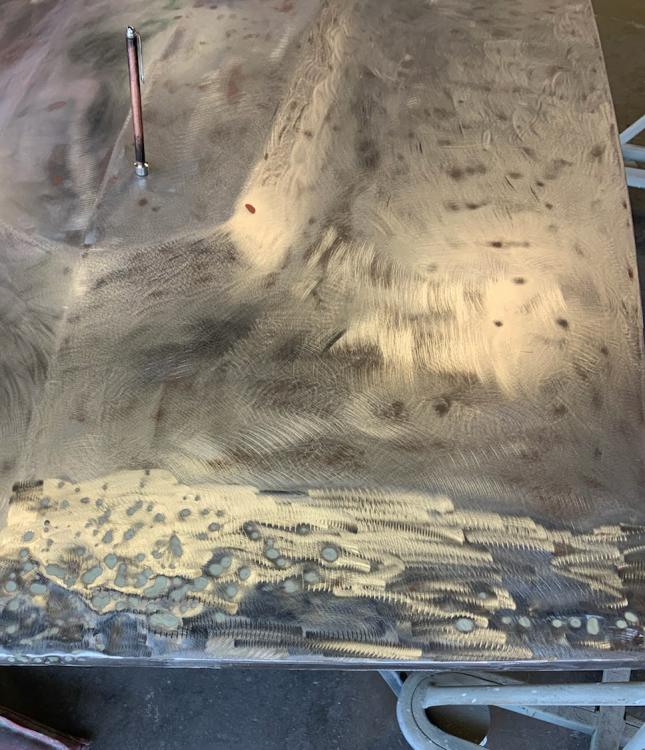

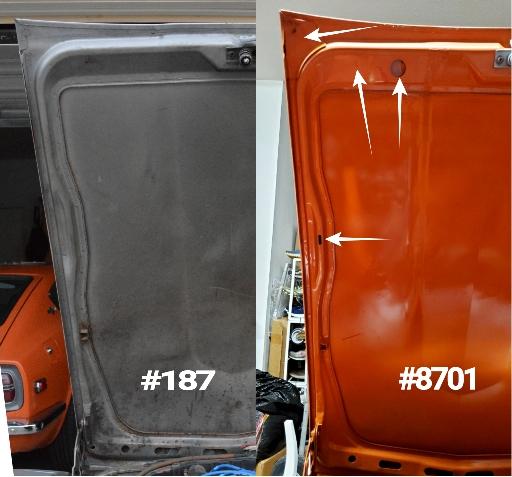

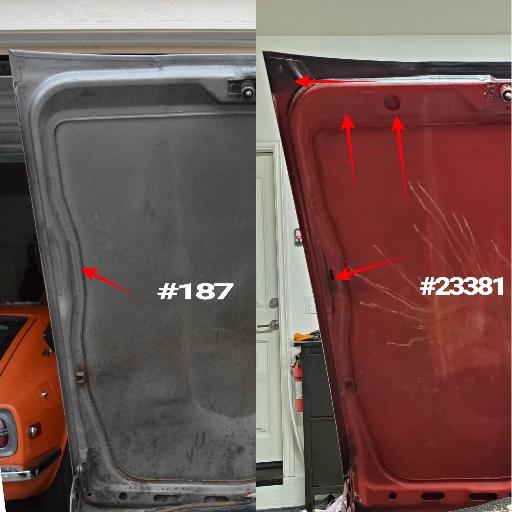

Yes, the 69 hood is different in several areas. I compared it to my later Series 1( #8701) and Series 2 (#23381). The most striking different is that reinforced piece at the upper corners. The 69 hood doesn't have them. So yes, we're trying to save the hood of #187. As you can see, the front lip of the hood was originally bent down and in, and shows a lot of fillers once the paint was stripped.

Sent from my SM-G975U using Tapatalk

[drpchuynh]

Happy Holidays to all! It's been awhile since I last posted. Here are some updates. Final alignment before the panels were taken off for paint.

[drpchuynh]

Panels were painted separately and jams were painted before the panels were put back on.

Edited December 28, 2022 by drpchuynh

[drpchuynh]

Of note, the 69 builds don't have the padding around the spare wheel well.

[drpchuynh]

Suspension components were powder coated.

Edited December 28, 2022 by drpchuynh

[drpchuynh]

We are going to restore and put away the stock brakes and go with the bigger brakes for optimal braking.

[drpchuynh]

A few other unique oddities of the 69's.  The discs have these cutouts and the dust covers are different than the later models.

Edited December 28, 2022 by drpchuynh

[drpchuynh]

Brake lines were too rusty. Most fell apart upon disassembly. Rod had to source from a donor car. Luckily the brake lines are consistent throughout the early years.

[drpchuynh]

Pedal box.

[drpchuynh]

We went with the Kia blower motor for increase efficiency.



Edited December 29, 2022 by drpchuynh

[drpchuynh]

Apologized for the sequencing. I should have posted these before the others. Rod lined it with the vapor barrier, rubber barrier for acoustic shielding, and threw the old jute back on.

[drpchuynh]

Replaced the dash with one of Hung Vu's dash and upgraded the instrumentation lights with LED bulbs for better illumination.
