Sweet shop and nice old Bondurant Mustang!

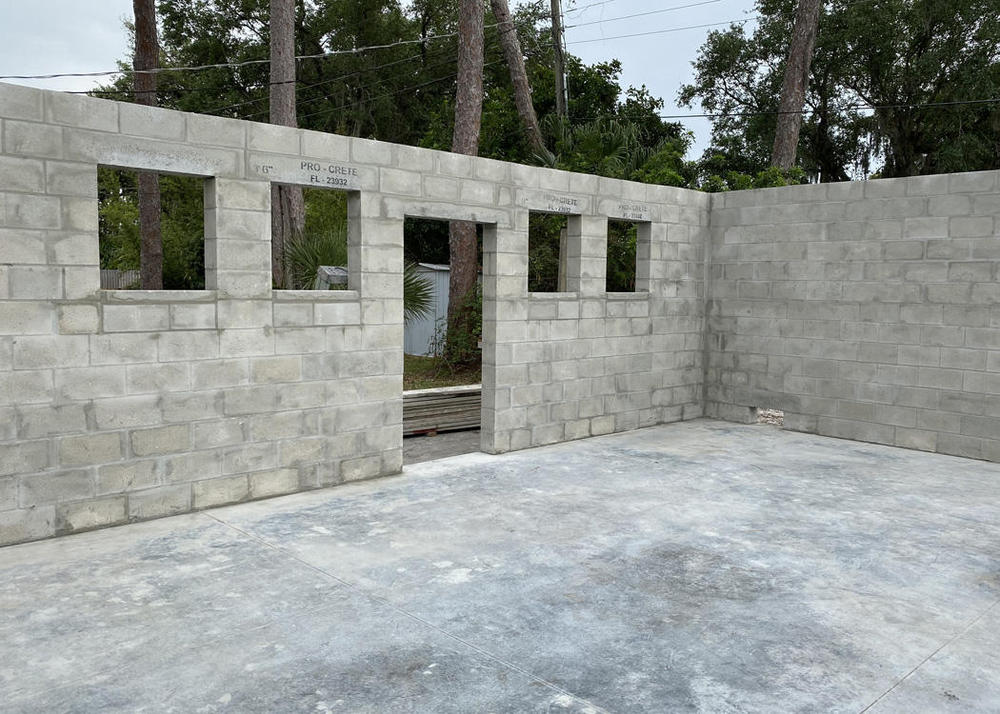

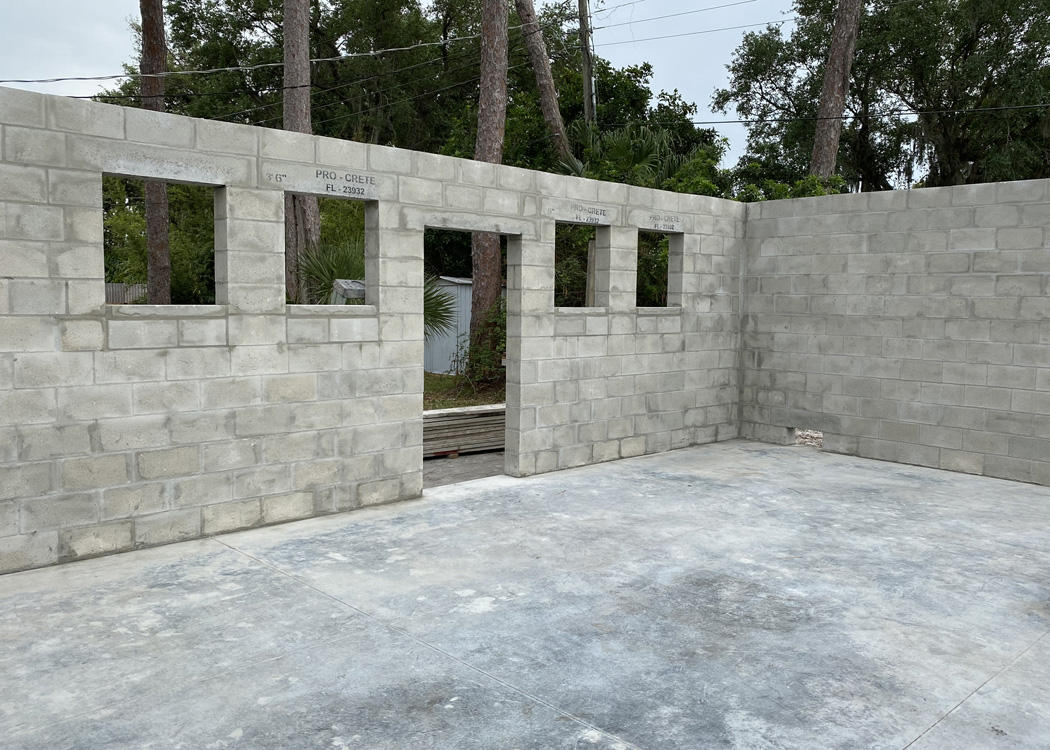

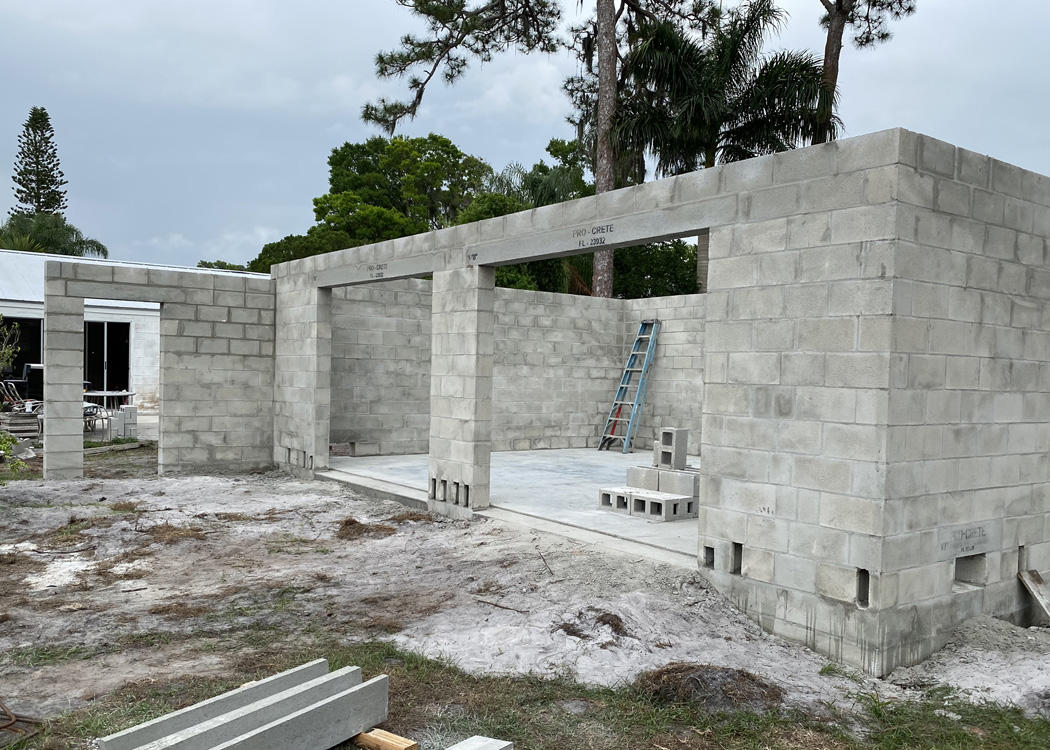

Poured the bond beam today.  Roof trusses start tomorrow.  First pic looking out the south wall.  Second pic is looking east along the north wall.  I built a little wing wall between the house and the garage to define the landscaping between the two buildings.

The garage is 22' x 30 with two 9' overhead doors.  The walls are 8'-8" tall with sloped ceiling trusses to a height of 10'-6" in the middle.  I should be able to get a lift in.  The slab is thickened and reinforced for a lift.  Foam insulated attic with a drywall finish ceiling.  I'll paint the block walls.  I paid special attention to a completely flat, dead level slab.  It is really nice.  It will be finished in epoxy.

Edited April 14, 20204 yr by 26th-Z

  On 4/14/2020 at 8:45 PM, Jeff G 78 said:

Sweet shop and nice old Bondurant Mustang!

Thanks.  Old #74 is a real hoot to drive at the track. It is hiding a Coyote motor, built to Illumintor specs.

  On 4/14/2020 at 9:51 PM, 26th-Z said:

Poured the bond beam today.  Roof trusses start tomorrow.  First pic looking out the south wall.  Second pic is looking east along the north wall.  I built a little wing wall between the house and the garage to define the landscaping between the two buildings.

The garage is 22' x 30 with two 9' overhead doors.  The walls are 8'-8" tall with sloped ceiling trusses to a height of 10'-6" in the middle.  I should be able to get a lift in.  The slab is thickened and reinforced for a lift.  Foam insulated attic with a drywall finish ceiling.  I'll paint the block walls.  I paid special attention to a completely flat, dead level slab.  It is really nice.  It will be finished in epoxy.

Looks like you are making good progress.  You are doing a lot of the right stuff.  High ceilings are a must have.

Update

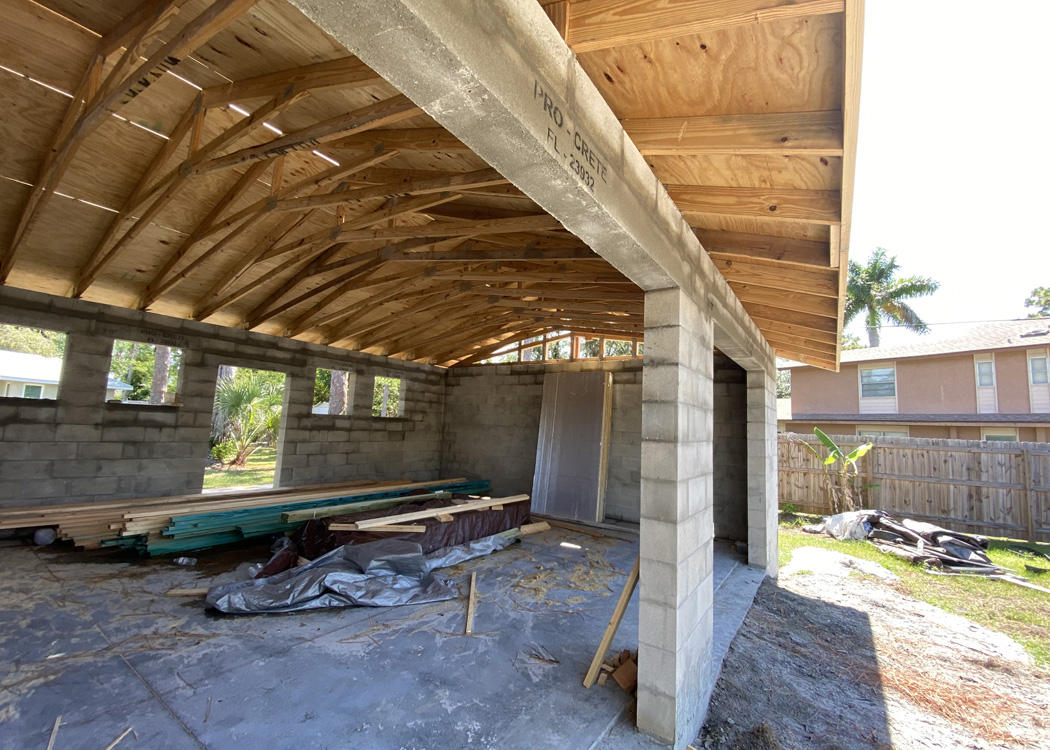

I can't figure out why the plywood clips are so different on the backside vs front. Is that by design or just not nailed down yet? Looks great, robust like a storm shelter too. #26 deserves it.

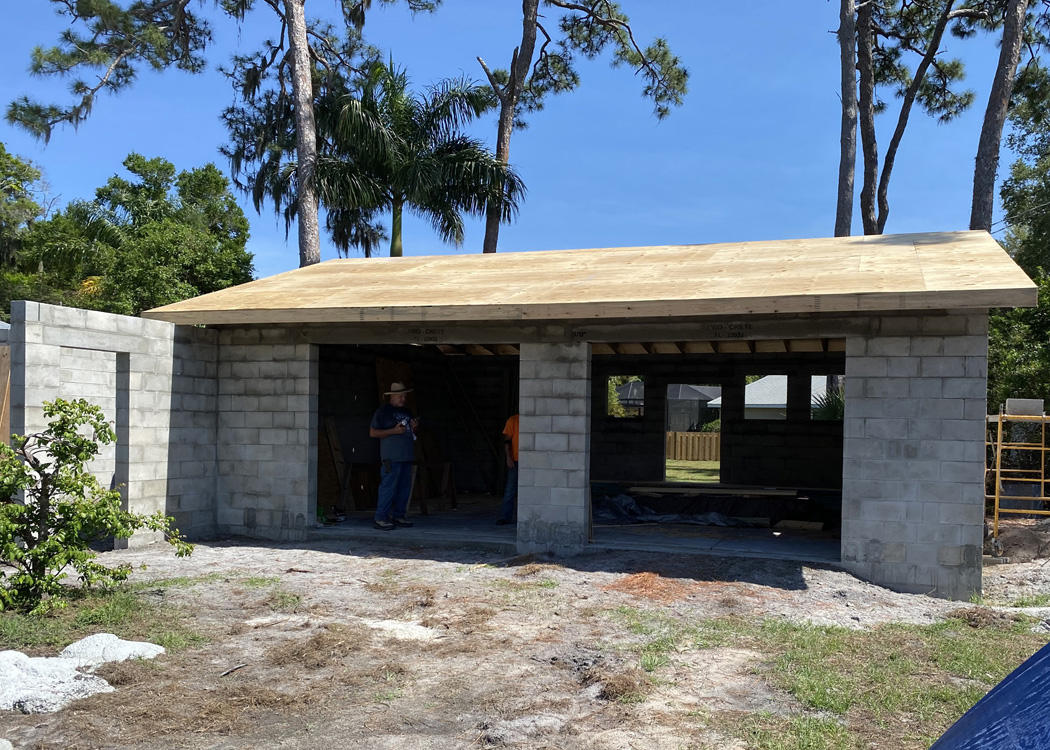

Thanks!  The roof deck is 5/8" plywood on trusses at 24" on center.  The gable ends have a 12" overhang but I have 30" overhangs over the doors.  The plywood deck is nailed with 10d nails at 4" on center and the clips are mid span.  The clips are 16ga steel stamped into an H shape with the wide flange pointed down (if you lay the plywood out from fascia up to the ridge).  The clips also space the long edges of the plywood so that they won't bow over time.  They are not fasteners; they just block the plywood edges.

This is going to have a galvanized metal roof and I didn't need to use 5/8" plywood.  My design wind speed is 160 mph and even though I don't have any uplift greater than 1000 pounds, I opted for the thicker plywood, nail spacing, and truss straps that wrap over the top of the truss.  My insurance will be lower, and, as you say, the cars will be safer.  I also opted for impact rated windows and doors for the same reason.

Thank you for the reply.  That's a well thought out then built garage for sure.  You'll enjoy that for many years.

Looking back at your photo it must be some kind of reflection that I thought was a gap.  Farther down the gap isn't there.

It's just the photograph.  There is a consistent gap between the plywood sheets.

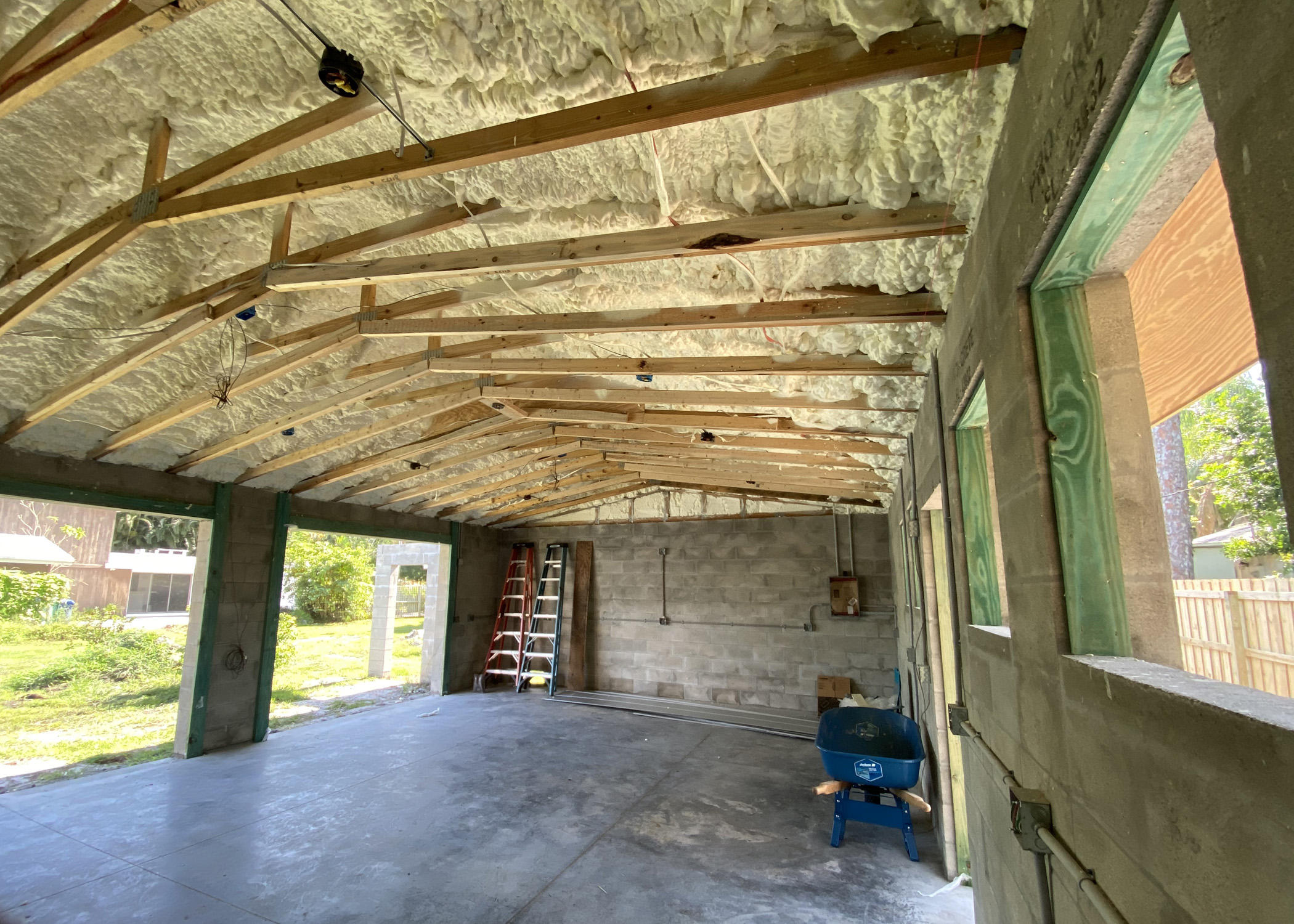

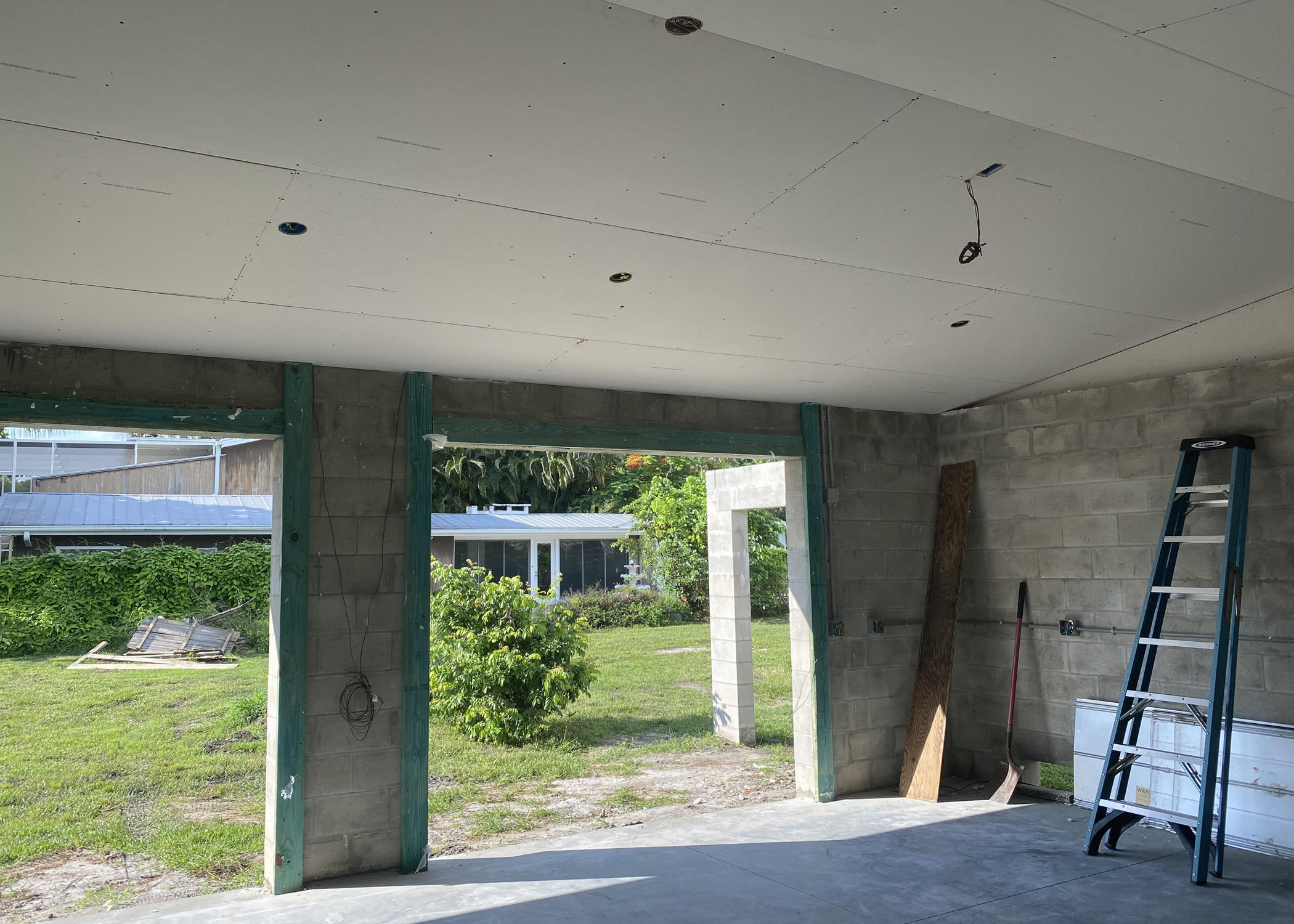

The foam insulation went in Monday and much to my delight drywall today.

  On 6/10/2020 at 10:30 PM, 26th-Z said:

The foam insulation went in Monday and much to my delight drywall today.

Looks like it is moving along nicely.  What kind of lighting are you putting in?

  On 4/22/2020 at 3:50 PM, siteunseen said:

Thank you for the reply.  That's a well thought out then built garage for sure.  You'll enjoy that for many years.

Looking back at your photo it must be some kind of reflection that I thought was a gap.  Farther down the gap isn't there.

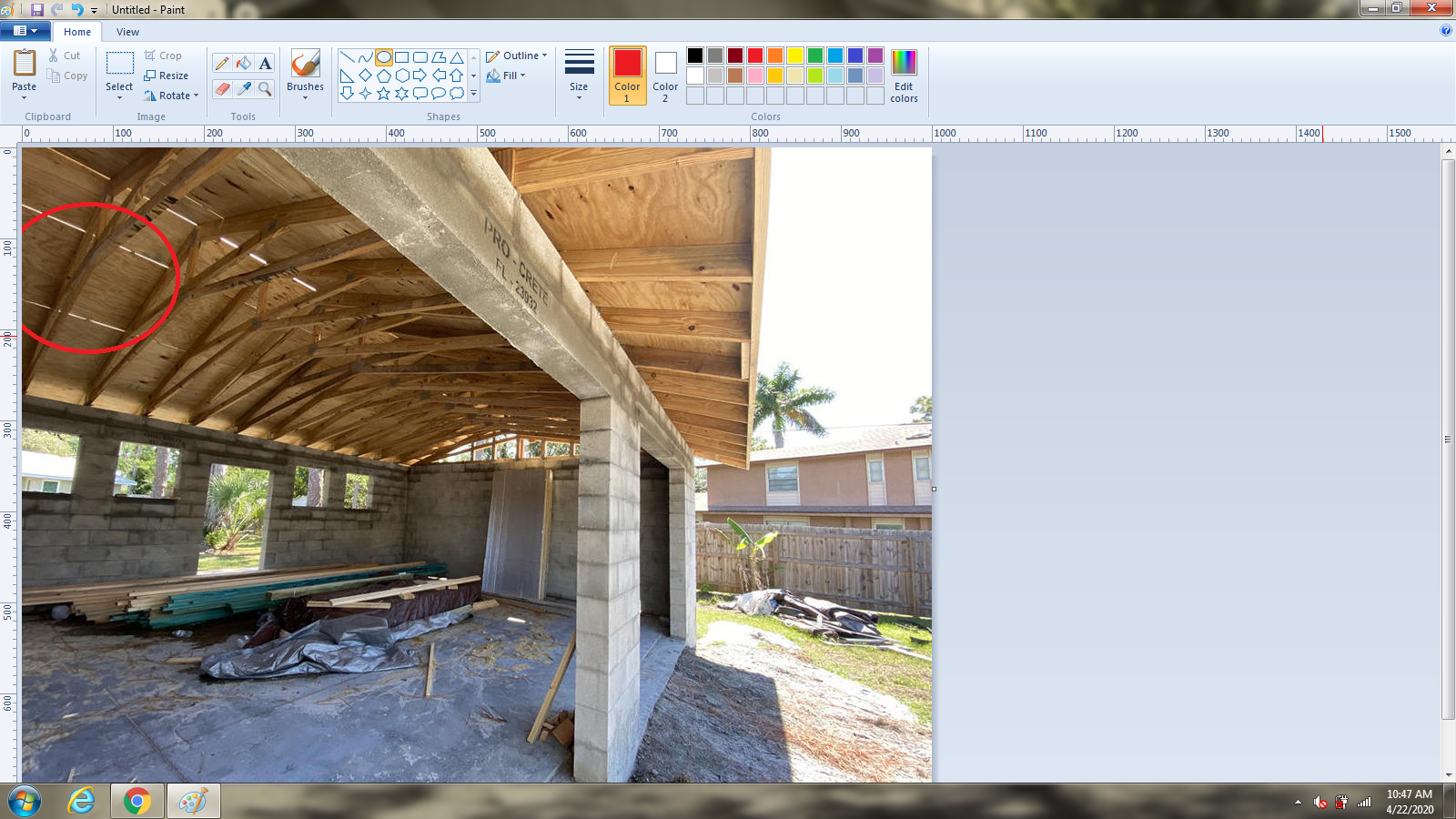

There is always a gap in roof sheeting due to the H clips used between each sheet to distribute the loads when 2' on center trusses are used.  I'm sure the sun was simply shining directly on the circled area.  You can actually see the dark spots where the clips are located.  I used to frame houses 30 years ago  ?
