Posted January 26, 20205 yr comment_591498 OK I can't find any info for this specific question online and I can't remember for the life of me how it came off the car. Where exactly does the fuel level sender harness come up through the unibody so it can connect with the body harness? I.e. which hole in the hatch area? There's a hole directly above the tank and I'm reeeeeeeeally hoping I don't have to drop the tank again because I did things out of sequence... Thanks in advance all. Link to comment https://www.classiczcars.com/forums/topic/63478-routing-for-fuel-level-sender-harness/ Share on other sites More sharing options...
January 26, 20205 yr comment_591499 The fuel level sender harness comes up into the car through the bottom or side of the rear P/S pocket behind the rear wheel, you will have to remove the rear interior side panel, behind that you will see the fuel filler hose. Just in front of that search around with your hand and you'll find it, it should have a rubber grommet in the hole. Link to comment https://www.classiczcars.com/forums/topic/63478-routing-for-fuel-level-sender-harness/#findComment-591499 Share on other sites More sharing options...

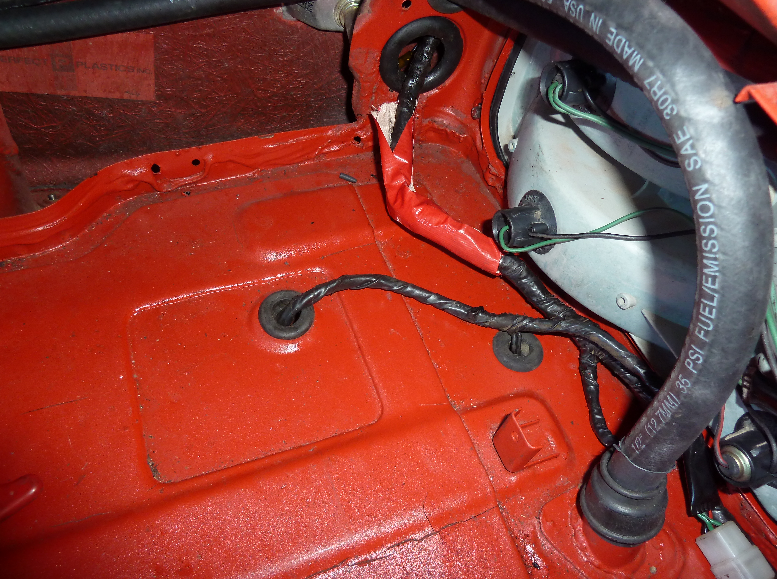

January 27, 20205 yr comment_591508 Jan 1971 has two holes: Link to comment https://www.classiczcars.com/forums/topic/63478-routing-for-fuel-level-sender-harness/#findComment-591508 Share on other sites More sharing options...
January 27, 20205 yr comment_591513 1 hour ago, 240260280 said: Jan 1971 has two holes: I guess I'm thinking of the 280z Link to comment https://www.classiczcars.com/forums/topic/63478-routing-for-fuel-level-sender-harness/#findComment-591513 Share on other sites More sharing options...
January 27, 20205 yr comment_591516 The wire has to be inducted from the hole which is inside of the tail light trim panel . The one which the black big harness coming from is for the drain . Hope this helps Kats Link to comment https://www.classiczcars.com/forums/topic/63478-routing-for-fuel-level-sender-harness/#findComment-591516 Share on other sites More sharing options...
January 27, 20205 yr Author comment_591528 4 hours ago, grannyknot said: The fuel level sender harness comes up into the car through the bottom or side of the rear P/S pocket behind the rear wheel, you will have to remove the rear interior side panel, behind that you will see the fuel filler hose. Just in front of that search around with your hand and you'll find it, it should have a rubber grommet in the hole. If it's the hole you're referring to, I believe I routed one of the evap lines (the small one that comes off the top of the tank) through there using this image as a guide: ^Actually, now that I look at it again, that's most likely the fuel level sender wire wrapping underneath the filler neck toward the back of the tank... Thank you all. Looks like I'll have to drop the tank again... Grrrr. Link to comment https://www.classiczcars.com/forums/topic/63478-routing-for-fuel-level-sender-harness/#findComment-591528 Share on other sites More sharing options...

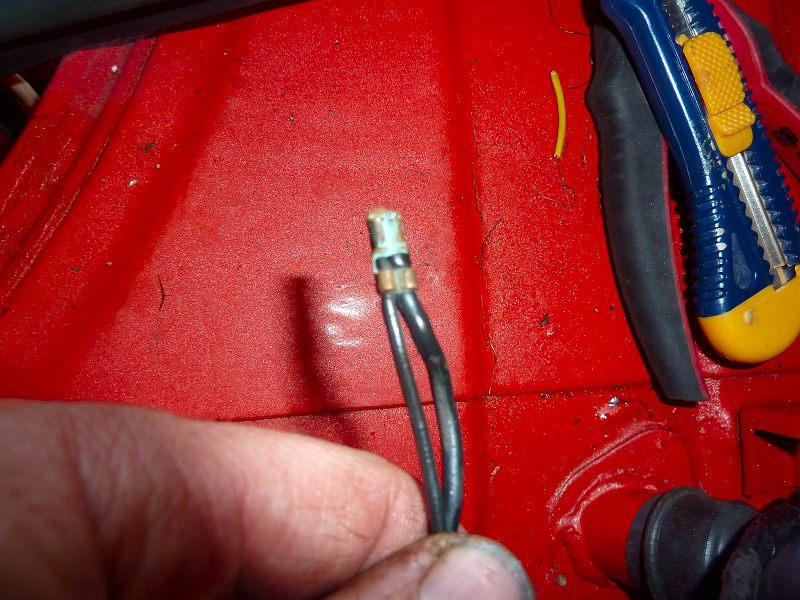

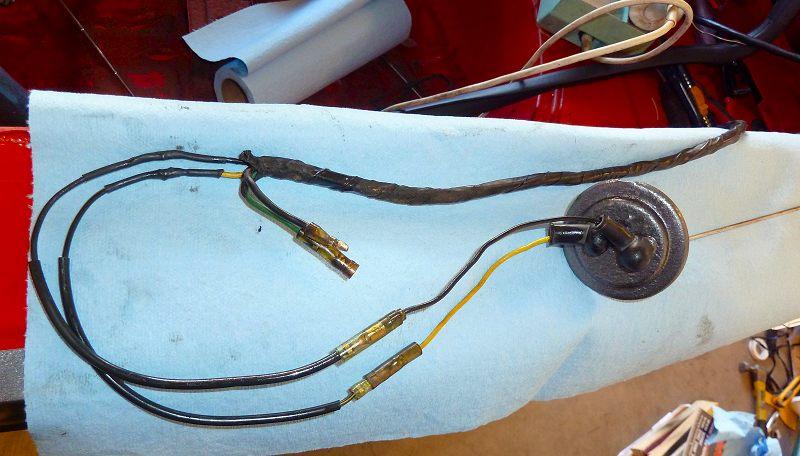

January 27, 20205 yr comment_591533 The Jan 1971 above has two holes in the floor. The harness has two groups of wires that run through these: One group is for the sender leads and the other is for a ground connection leads. A 1973 that I am now working on does not have the ground leads coming from the rear harness so it only needs one hole as Kats shows, Here is the run to the fuel sender and the extra leads for the optional fuel pump. Green&Black (Fuel Pump) Yellow& Black (Fuel Sender) Here is the original ground connection that has broken. Two ground leads come out of the the harness and are bonded by the connector. Edited January 27, 20205 yr by 240260280 Link to comment https://www.classiczcars.com/forums/topic/63478-routing-for-fuel-level-sender-harness/#findComment-591533 Share on other sites More sharing options...

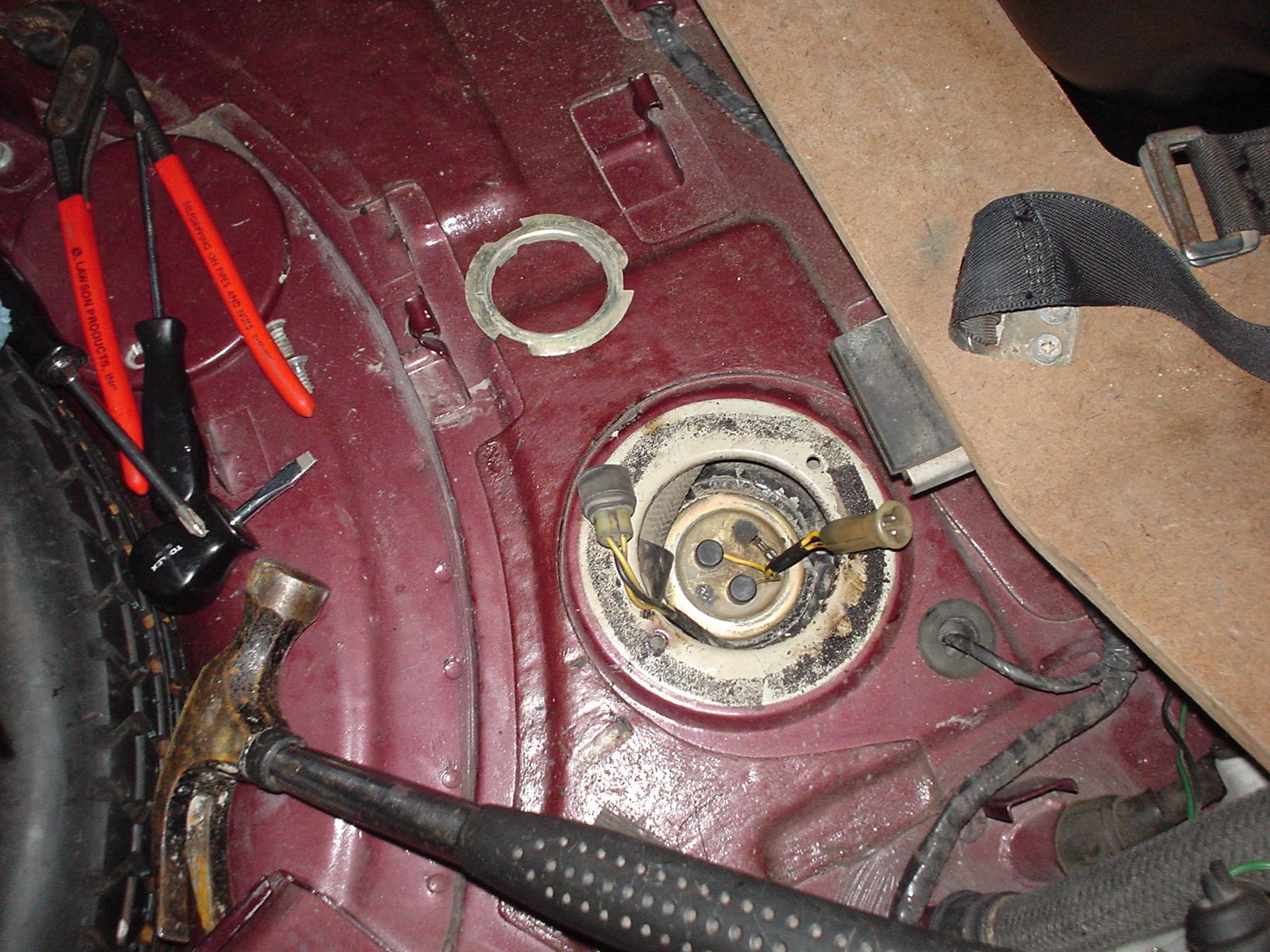

January 27, 20205 yr comment_591534 1977 280z has an access port in the floor. The sender is in the top of the tank. The connector has 3 wires. Sender return low fuel sensor. Edited January 27, 20205 yr by 240260280 Link to comment https://www.classiczcars.com/forums/topic/63478-routing-for-fuel-level-sender-harness/#findComment-591534 Share on other sites More sharing options...

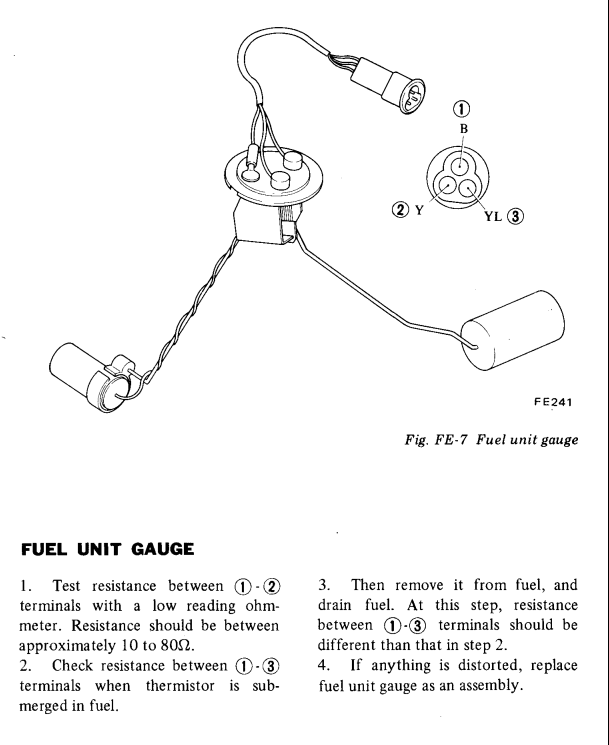

January 27, 20205 yr comment_591564 9 hours ago, 240260280 said: 1977 280z has an access port in the floor. The sender is in the top of the tank. The connector has 3 wires. Sender return low fuel sensor. Sort of related: In my '78 the "low Fuel" warning light does not seem to be going on even with the tank approaching totally empty. The bulb checked out OK. How can I test from the connector leads over the fuel sender? Link to comment https://www.classiczcars.com/forums/topic/63478-routing-for-fuel-level-sender-harness/#findComment-591564 Share on other sites More sharing options...
January 27, 20205 yr comment_591570 14 minutes ago, dmorales-bello said: Sort of related: In my '78 the "low Fuel" warning light does not seem to be going on even with the tank approaching totally empty. The bulb checked out OK. How can I test from the connector leads over the fuel sender? Link to comment https://www.classiczcars.com/forums/topic/63478-routing-for-fuel-level-sender-harness/#findComment-591570 Share on other sites More sharing options...
January 27, 20205 yr comment_591578 @BoldUlysses, so you can see I'm totally wrong in my advice but I just remembered why I thought the hole was in the bottom of the pocket, like you I found myself trying to get the fuel sender wires up through the hole above the tank. I really didn't want to drop the tank again so I spliced in an extension and created a access hole in that pocket near the fill hose. Lazy but it works fine. Link to comment https://www.classiczcars.com/forums/topic/63478-routing-for-fuel-level-sender-harness/#findComment-591578 Share on other sites More sharing options...
February 2, 20205 yr Author comment_592045 On 1/27/2020 at 6:29 PM, grannyknot said: @BoldUlysses, so you can see I'm totally wrong in my advice but I just remembered why I thought the hole was in the bottom of the pocket, like you I found myself trying to get the fuel sender wires up through the hole above the tank. I really didn't want to drop the tank again so I spliced in an extension and created a access hole in that pocket near the fill hose. Lazy but it works fine. It's OK! Thanks for chiming in. I got the fuel sender harness routed earlier this evening. It was easier than I thought it would be: I undid the fuel tank straps and filler neck and pivoted the tank down just enough to be able to get the harness through and secure the ground screw to the frame. I routed it through the rubber finger on the frame and hitched up the tank again. Done. Only issue now is that the terminal boots are hard as rocks. Going to try a hair dryer tomorrow and see if I can soften them. Since they're interchangeable, does it matter which wire goes to which terminal on the sender end plate? Link to comment https://www.classiczcars.com/forums/topic/63478-routing-for-fuel-level-sender-harness/#findComment-592045 Share on other sites More sharing options...
