MSD ign box

[toastedboy54]

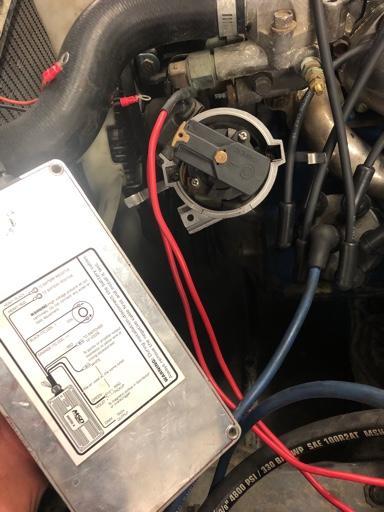

Are these wires going to my distributor my mag pick up wires





Sent from my iPhone using Tapatalk

[Zed Head]

You do realize that there are a lot of wires in your picture?  Too early to be toasted...

[toastedboy54]

You do realize that there are a lot of wires in your picture?  Too early to be toasted...

The red ones with the black ends they come from the coil



Sent from my iPhone using Tapatalk

[Zed Head]

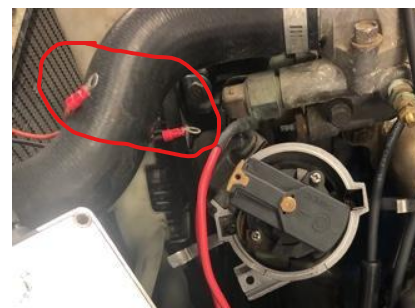

Those would be the output wires from the MSD box, to control the coil.  The wires with the ring ends are probably the mag pickup wires.  Follow them and see where they  go.  The pickup is in the distributor.

[toastedboy54]

Those would be the output wires from the MSD box, to control the coil.  The wires with the ring ends are probably the mag pickup wires.  Follow them and see where they  go.  The pickup is in the distributor.

The wires you pointed out are from the box


Sent from my iPhone using Tapatalk

[Zed Head]

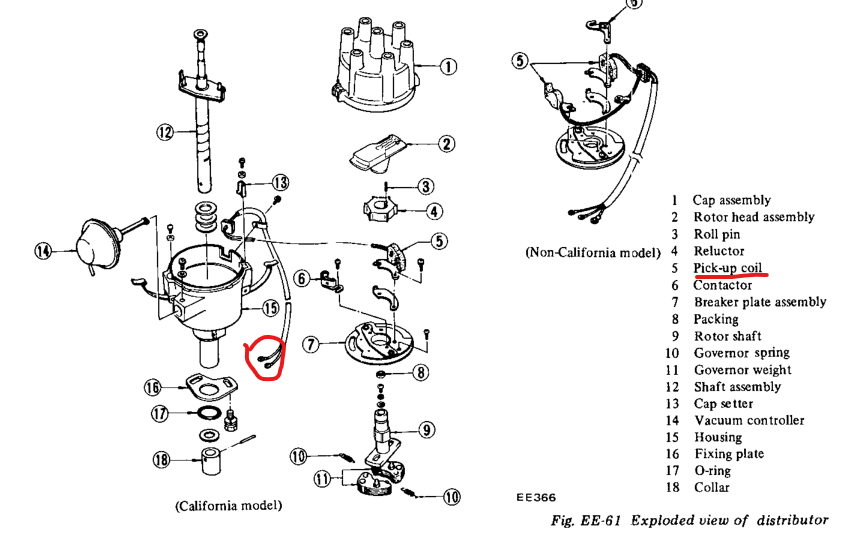

Find these...

[toastedboy54]

Find these...

Is it possible I don’t have those?!


Sent from my iPhone using Tapatalk

[Zed Head]

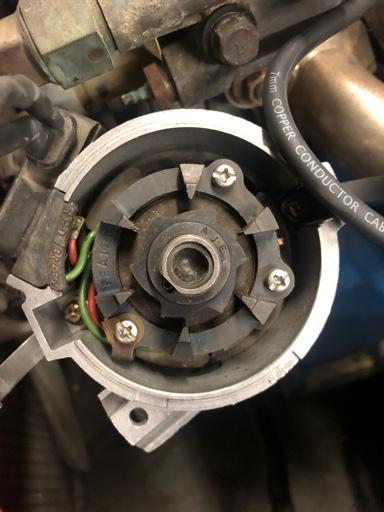

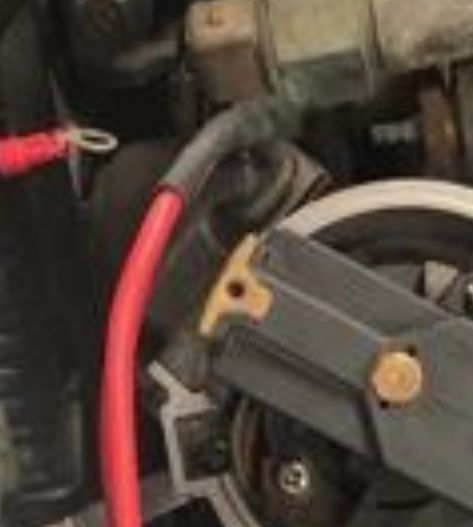

I zoomed in on your picture and it looks like you have a ZX distributor  (spiky triangles).  So there should be an ignition module on the side of it.  Not sure who added the thick red wires.  Might even be that somebody used a GM HEI module on the side of your ZX distributor.  Take a good closeup, from the side, of whatever those red wires are connected to.  You might have to remove it and use the wires that you can just see inside the edge of the distributor.

[toastedboy54]

I zoomed in on your picture and it looks like you have a ZX distributor  (spiky triangles).  So there should be an ignition module on the side of it.  Not sure who added the thick red wires.  Might even be that somebody used a GM HEI module on the side of your ZX distributor.  Take a good closeup, from the side, of whatever those red wires are connected to.  You might have to remove it and use the wires that you can just see inside the edge of the distributor.

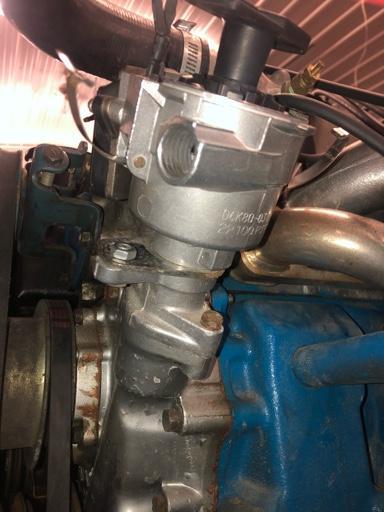

Those wires come from the coil they are negative and positive.


Sent from my iPhone using Tapatalk

[Zed Head]

They do not.  No offense but I'm not sure you know what the coil is.

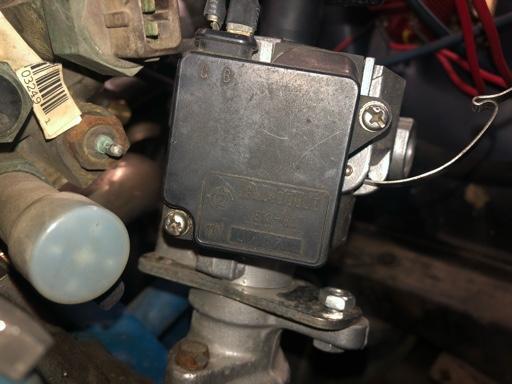

That black box in your last picture is the ignition module.  You have a Nissan factory stock ZX distributor and ignition module.  It's actually a very good ignition module.  No significant reason to try an MSD ignition system.  Your tach will probably stop working after you figure out where the wires go and get it connected.  A common problem.

By they, I mean these.

Edited February 1, 2020 by Zed Head

[toastedboy54]

They do not.  No offense but I'm not sure you know what the coil is.
That black box in your last picture is the ignition module.  You have a Nissan factory stock ZX distributor and ignition module.  It's actually a very good ignition module.  No significant reason to try an MSD ignition system.  Your tach will probably stop working after you figure out where the wires go and get it connected.  A common problem.
By they, I mean these.

Tach doesn’t work anyway....


Sent from my iPhone using Tapatalk

[Zed Head]

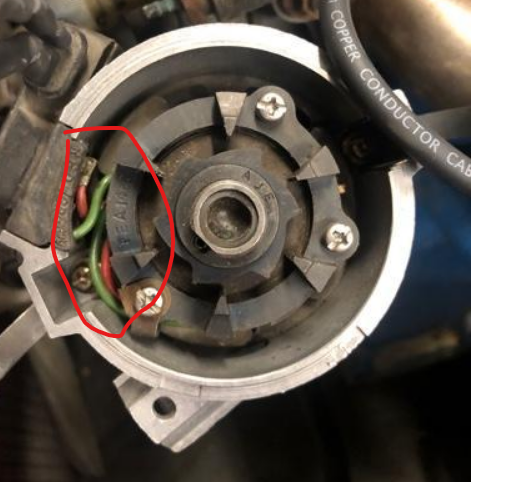

The green and red wires are your "mag pickup" wires.  You'll have to extend them after you unplug them from the black box ignition module..  If you want to use the MSD system.
