As some of you might remember, I swapped my original fuel sending unit on my "78 280Z a few weeks ago. Although the original sender measured fuel level adequately, the "FUEL" warning light had stopped working a couple of years ago so I decided to spend some quality quarantine time swapping it for a new reproduction unit from Z Car Depot. I had already tested the yellow/blue lead and assured I had continuity from the "FUEL" light in the dash all the way back to the sender plug.

I plugged in the Z Car Depot sender to the harness before inserting it into the tank and upon turning the car key to the "ON" position the "FUEL" illuminated and I could change the position of the needle on the fuel gauge by moving the floater arm on the sender. Everything seemed to work as it should. Once I put the sender into the tank and locked it, the needle in the dash positioned itself to the right (I had an almost full tank of gas) and the "FUEL" warning light turned off (as it should). Needless to say I was very happy with the way everything went.

I drove the car for the first time since the sender swap about a week later and went on a nice 25 mile run. After driving for about 15 minutes the "FUEL" warning light came on! The tank was still pretty much full and the needle on the gauge was close to the extreme right. I drove another 15 minutes to get home and the "FUEL" light did not go off until I turned off the ignition. I turned the key back to the ON position to power the fuel gauge and the "FUEL" light did not illuminate BUT upon turning the key to START and running the engine the darn light came back on.

I performed the same routine a few days later and the malfunction remained exactly the same. "FUEL" light comes on after the car has been running for about 15 or 20 minutes. The tank being over half full. The "FUEL" light will turn off when I shut the engine it and will remain off even with the car key turned to "ON" with the fuel gauge working but will illuminate as soon as I start the car again. After the car sits overnight the light will be off until the engine runs for about 15 minutes and the whole "Groundhog Day" scenario repeats itself. In other words, the engine needs to be running for the malfunction to occur. Leaving the key in the "ON" position (which powers the fuel gauge) will not trigger the "FUEL" light. I'm totally stumped!!

I contacted Scott at Z Car Depot and he said he hadn't had that malfunction reported before and he immediately sent out another sender. Amazing customer service!!

I installed the "new" sender the day it arrived and the malfunction remained exactly the same. I made sure all the contacts on the plug were clean, applied dielectric grease, looked for anything that might look strange, successfully tested the sender by plugging it into the harness before putting it in the tank and nothing changed. I'm even more perplexed by the malfunction. As always, any help from the vast knowledge base will be greatly appreciated.

Keep safe everyone.

This is why someone like me would just go to the wrecking yard and get some 1995 Pathfinder thermistors.

http://www.sfu.ca/phys/231/archived, 041-061/061/data_sheets/thermistor.pdf

Edited August 4, 20204 yr by Zed Head

I just use my fuel gauge instead of trusting the light


Sent from my iPhone using Tapatalk

So here's a preliminary report.

I tried out the stock bulb (#6 on my list) once again just to have a baseline value. It has a resistance of 3.8 ohms. As had happened before, the light went brightly on after running the car for 25 minutes. Easily seen with the bulb inside the housing even under bright sunlight.

Next I tried bulb # 5 which has a resistance of 6.3 ohms. After 25 minutes of running the engine that bulb illuminated very faintly, very hard to detect in daylight and subtly seen in the dark car. This one could work the way @Dave WM suggested which is as a monitor that the system is operational when lit dimly and as a low fuel warning when lit brightly. However, I've yet to run the tank down to empty.

Next was bulb # 4 with a resistance of 11.4 ohms. It also illuminated after 25 minutes or so but the glow of the filament is so faint that it can only be seen directly when the bulb is out of the housing. Once inside the housing it's invisible in daylight and almost undetectable inside a dark cabin. If this bulb (as predicted) will glow brighter once the fuel level falls below the thermistor, this would would work well as intended.

With this trend, one could extrapolate that the remaining bulbs could illuminate even more dimly (directly proportional to the increasing resistance values) at the 25 minute mark as well but might be a bit dim even when the fuel level drops below the thermistor, rendering the low fuel warning function ineffective.

Again, I will finish reporting once I run my tank empty but seemingly there are 2 alternatives so far I could live with ?.

Edited August 6, 20204 yr by dmorales-bello

Can you figure out the wattage of those two bulbs? It may help someone else who buys the ZCD sending unit.

Can you figure out the wattage of those two bulbs? It may help someone else who buys the ZCD sending unit.

These bulbs don't have the wattage in their specs. As a matter of fact they have nothing more than a serial number and the "made in China" stamp. I'll be happy to test them with my dvm of you can explain how it's done.
Additionally, I plan to contact Zcar Depot to explain the problem and give them the solution. They should simply include the "correct" bulb along with their sending unit. I want to finish testing the bulbs with an empty tank before drawing the final conclusions.

Sent from my SM-N950U using Tapatalk

Does the serial number correspond to the information on the website description?

Does the serial number correspond to the information on the website description?

Good idea. I'll check and post.

Sent from my SM-N950U using Tapatalk

went to the JY today (yea no cover charge!) and found a 1991 Toyota, 4 door sedan, the tank sending unit was easy to get at so I pulled it and found the same style thermistor but it was inside a plastic holding tank (like 2 oz size). removed it and ran some test. It was pretty grody so I sprayed some electronics cleaner in it  but could not get the light to go out unless I sprayed the cleaner direction into the tiny holes. I used some fine wire to open them up but I think there is still junk inside that is causing issues with getting the fluid in and out.

I ended up opening two holes (top and bottom) to about 1/16" with a drill, now it works reliably. will post up the video in a few. I wanted to see if warm fluid (in my case water since I don't want to smell up the house with gas) would keep it from coming on so I used hot tap water, about 110f.



Edited August 8, 20204 yr by Dave WM

I was able to peel down a strip of the can to get a better look, while I was not able to focus the IR gun on the tiny thermistor (looks like the size of a 1/8 watt resistor) I was able to hear it hiss as I dunked it in the water.

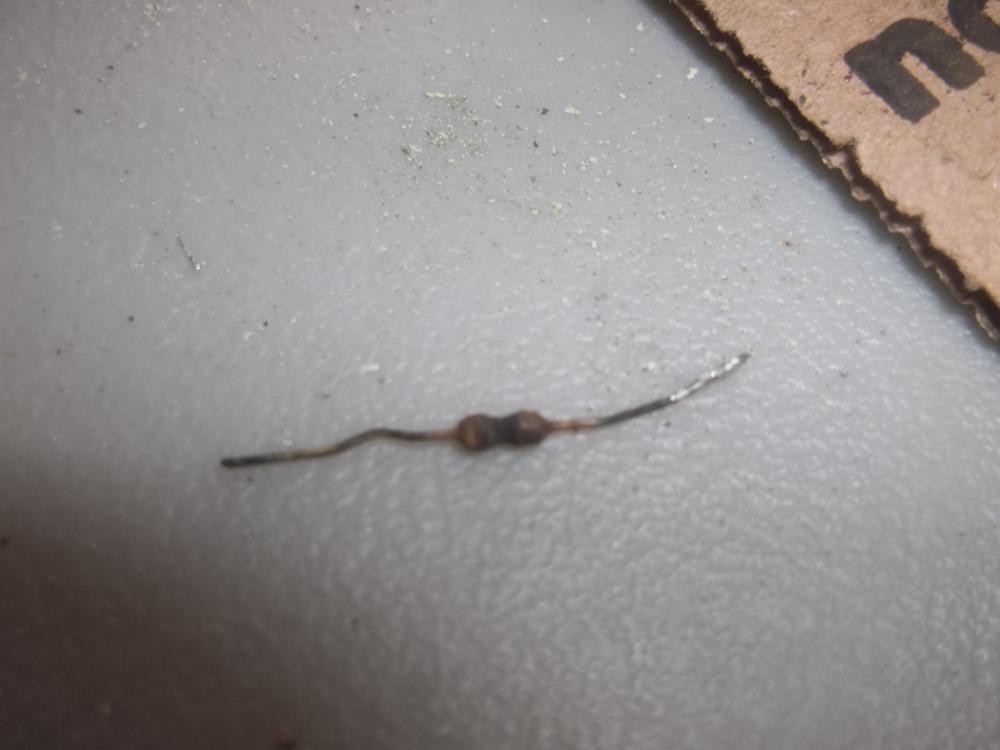

From what I can see it seemed to have a dark burned looking band in the middle. Further test show its resistance to be polarity sensitive at least with the DVM. It would range from 1.6k to 2k just by swapping leads. the VOM did not seem to notice it but being analog and the scale pretty small it may have moved a bit. the VOM showed something like 1.7k as did the VTVM. I suspect the solid state nature of the device may be a factor in this. I am not sure if I can salvage the thermistor with out destroying it, at this point the can is toast so I would have to if I wanted it in a uncompromised can. Not a big deal but would be fun to try.

another interesting observation was at 1st I was unable to get any resistance reading with the DVM, it would just toggle between moHms and koHms, not settling on a scale (auto ranging DVM) I did not have this issue with either of the fix range VOM or VTVM. After a few min (maybe when it had cooled down as I tested right after using it in the light circuit) I was able to get the 1.6-2k readings (depending on polarity) with the auto ranging DVM.

Edited August 8, 20204 yr by Dave WM

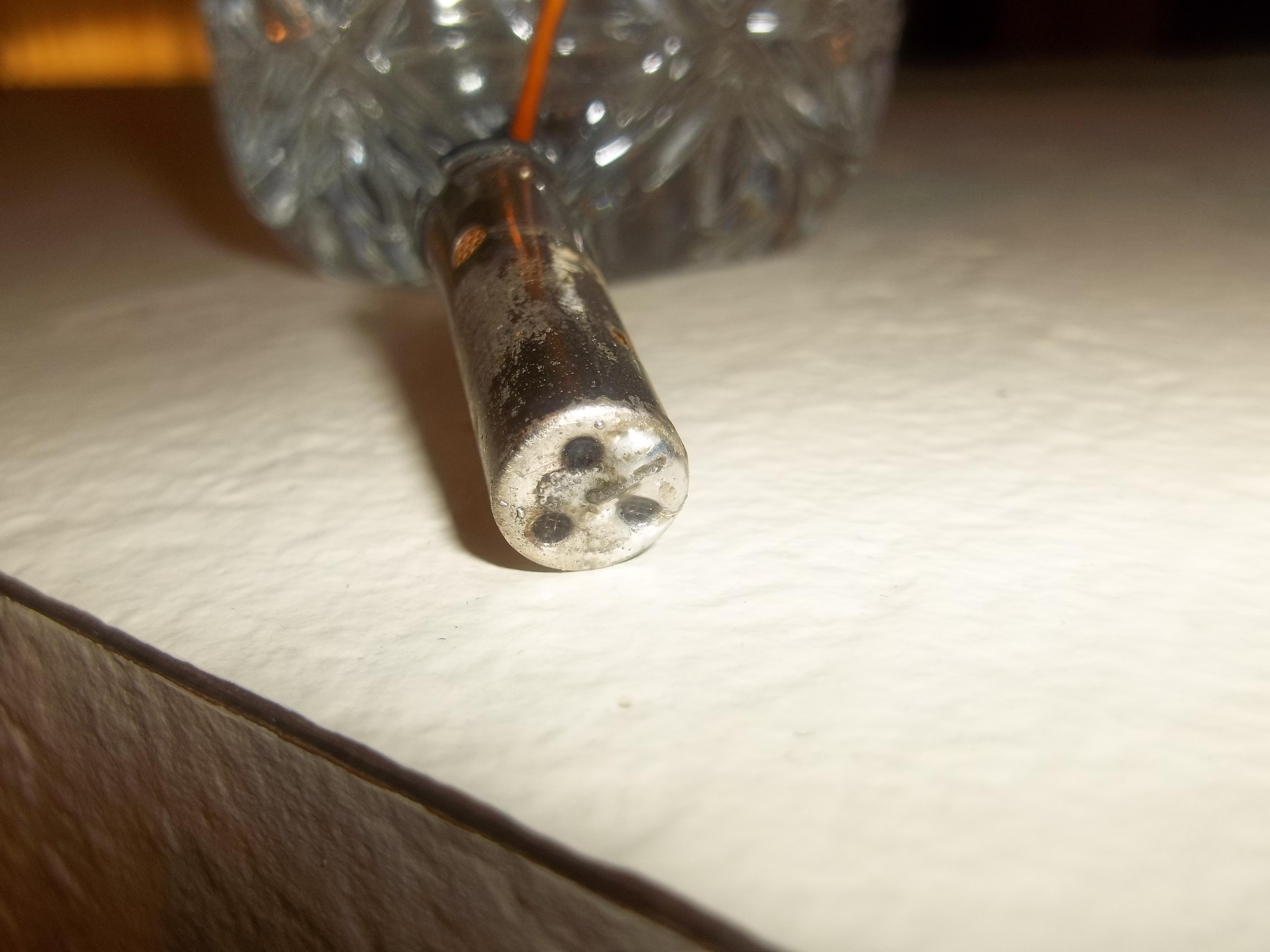

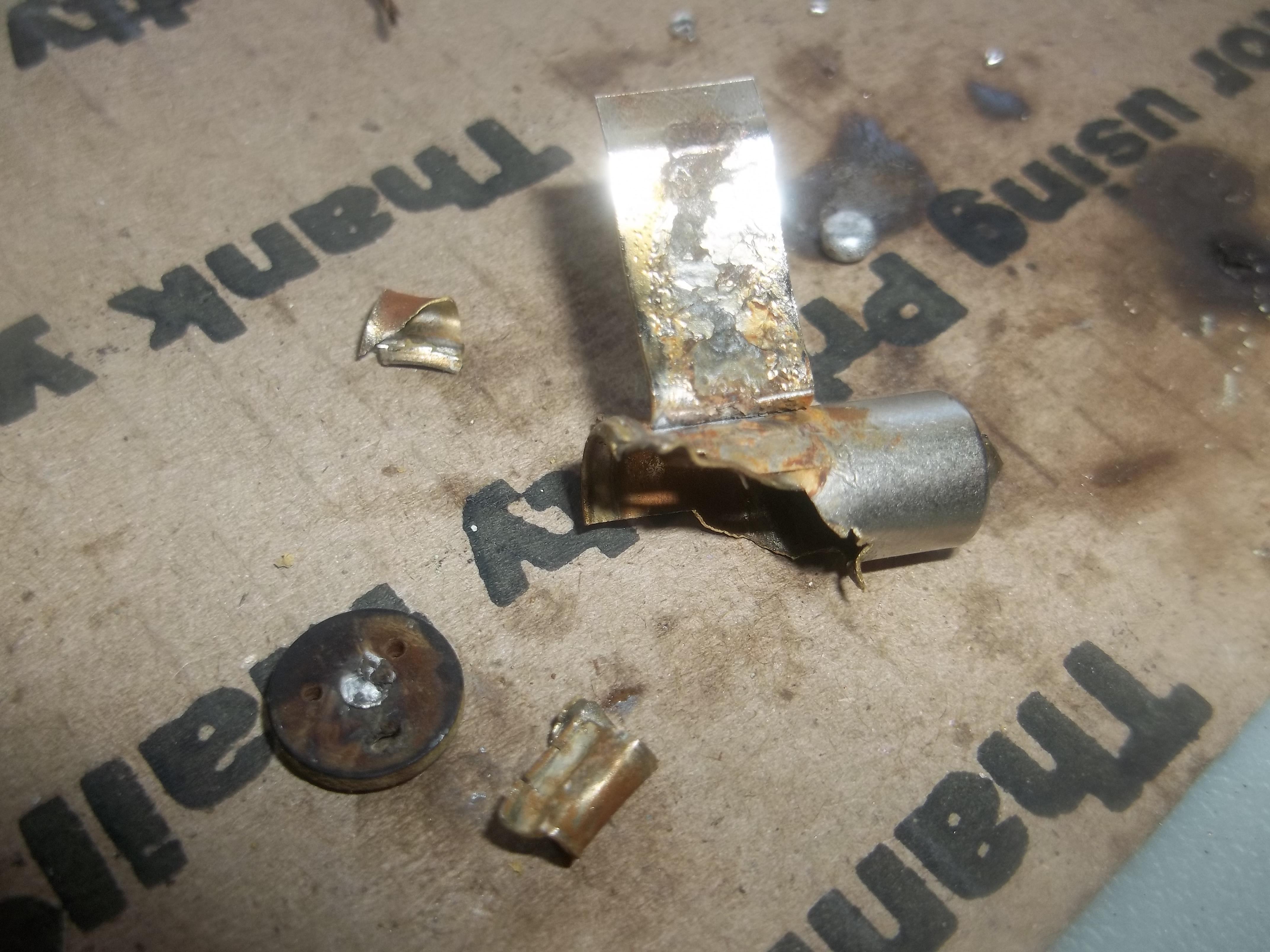

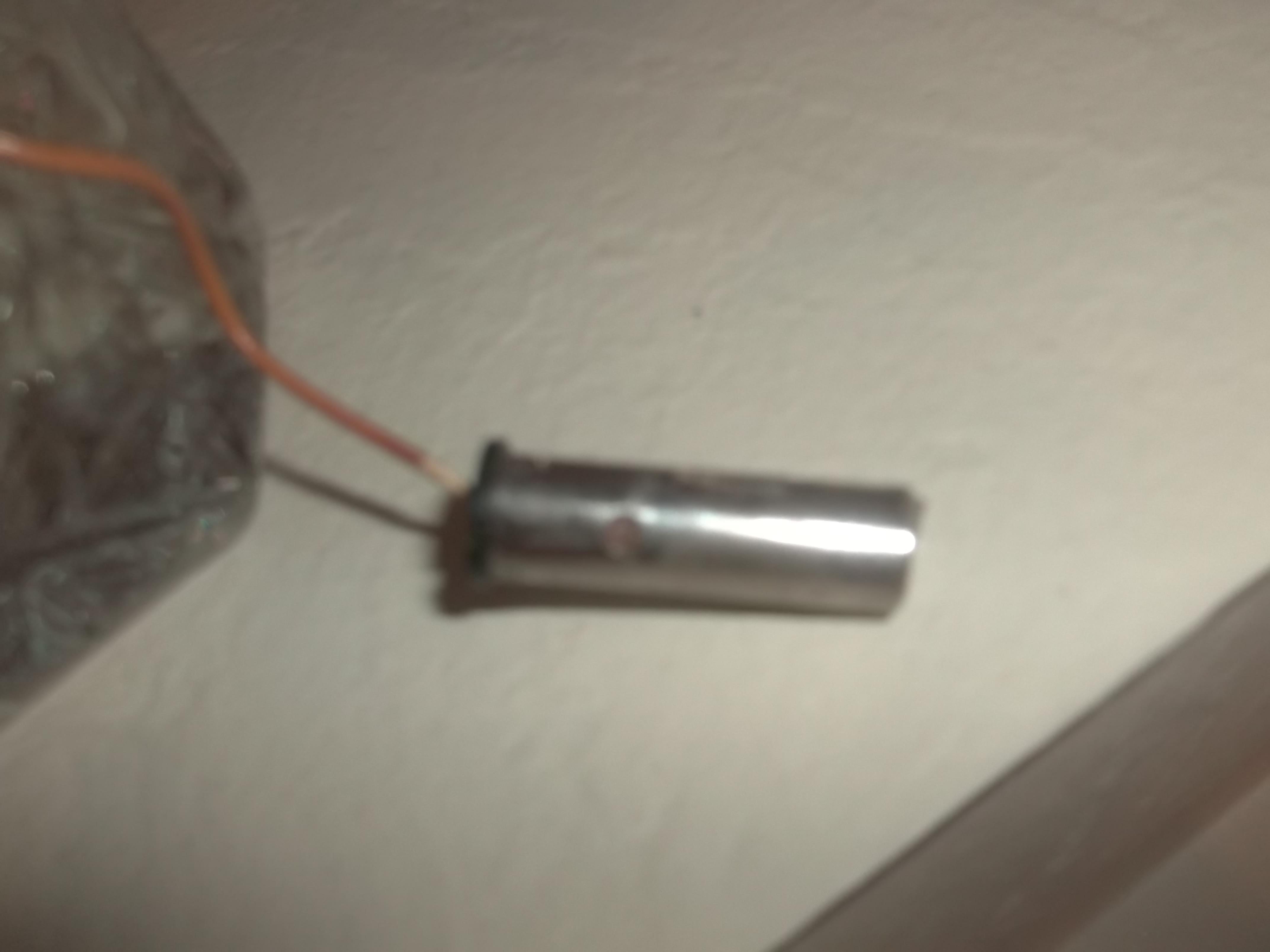

some of the harvesting and transplanting operation. I pigtailed the remnants from the hot side of the can inserted one lead of the thermistor, crushed and then soldered. Removed the old filter material (copper weave I think) soaked in vinegar to remove the scale, then reassembled soldered up the other lead to the can. The OE can works much better as far as getting the fluid in and out of the can.



I am going to clean and touch up that solder on the bottom. I thought I had the lead cleaned and tinned but it looks like it could be better.

Edited August 8, 20204 yr by Dave WM

Maybe they are designed to drain and fill slowly so that the light does not go on and off as I described earlier, from gas sloshing around.



The little gas pump/robot symbol light came on, were running out of gas!  Wait, it's off...  It's on again!  Nope...wait...

some of the harvesting and transplanting operation. I pigtailed the remnants from the hot side of the can inserted one lead of the thermistor, crushed and then soldered. Removed the old filter material (copper weave I think) soaked in vinegar to remove the scale, then reassembled soldered up the other lead to the can. The OE can works much better as far as getting the fluid in and out of the can.






I am going to clean and touch up that solder on the bottom. I thought I had the lead cleaned and tinned but it looks like it could be better.

Amazing, delicate work, Dave! So... does it work?
