I found a capable local guy that should have no problem rebuilding my 70 series one engine.  Is there anything I can provide him that will assist in his success.  He said he has no problem getting parts, and building the engine, but I'd appriciate any information that might be useful.  I've already got a document that has links to everything Z related. I probably got that here.



True


Sent from my iPhone using Tapatalk

47 minutes ago, z8987 said:

True


Sent from my iPhone using Tapatalk

Seriously though. I just thought of a headache he may run into. The 240 engine bay motor mounts are a little different than the 280's. The locating pin is diffetent. Check yours if you've bought them already, if not read around and get the good ones. I'll try and find that discussion.

@EuroDat has the Nissan p/n on his reply, post #21.

Whoa! $107 each. That pallet of money just got smaller.



Edited January 28, 20214 yr by siteunseen

1 hour ago, siteunseen said:

Seriously though. I just thought of a headache he may run into. The 240 engine bay motor mounts are a little different than the 280's. The locating pin is diffetent. Check yours if you've bought them already, if not read around and get the good ones. I'll try and find that discussion.

@EuroDat has the Nissan p/n on his reply, post #21.

Whoa! $107 each. That pallet of money just got smaller.



$67 here:  https://zcardepot.com/products/engine-motor-mount-oem-240z-260z-280z-280zx?_pos=5&_sid=d972a746c&_ss=r

7 minutes ago, texasz said:

$67 here:  https://zcardepot.com/products/engine-motor-mount-oem-240z-260z-280z-280zx?_pos=5&_sid=d972a746c&_ss=r

Hopefully those will work but for me the research i did showed that anything that was not specific to 240Zs were considered universal fit. Those do not work without some grinding, modifying of the pins. The ones you show are for 1970 to 1983.

25 minutes ago, siteunseen said:

Hopefully those will work but for me the research i did showed that anything that was not specific to 240Zs were considered universal fit. Those do not work without some grinding, modifying of the pins. The ones you show are for 1970 to 1983.

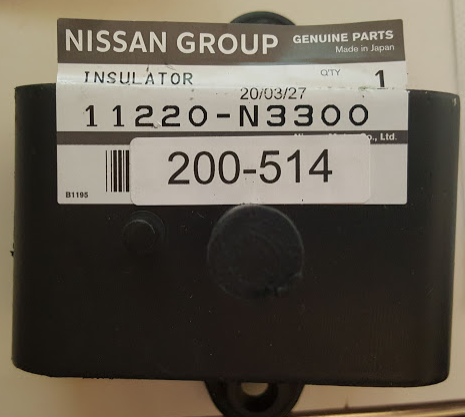

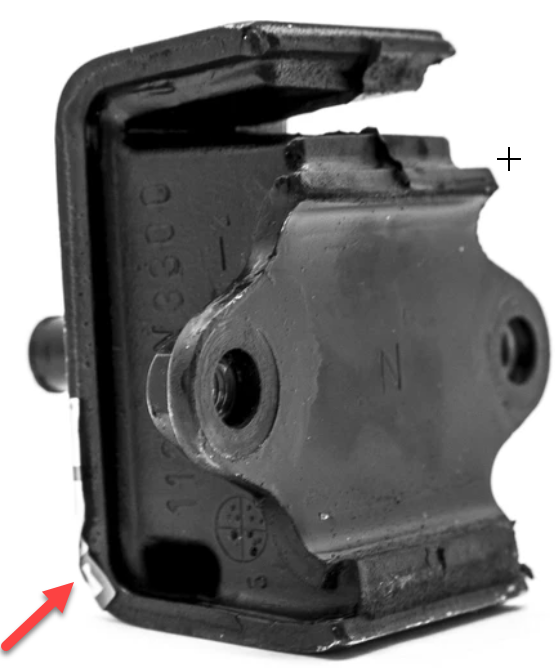

Hmmm...I'm not sure.  These are OEM though, in the first picture you can just see the corner of the Nissan logo on the sticker (red arrow) and the second picture I just took of one of the ones I received from them a couple months ago.





32 minutes ago, texasz said:

Hmmm...I'm not sure.  These are OEM though, in the first picture you can just see the corner of the Nissan logo on the sticker (red arrow) and the second picture I just took of one of the ones I received from them a couple months ago.





Here is some info about interchangeability of part number 11220-N3300 from the Nissan parts book:

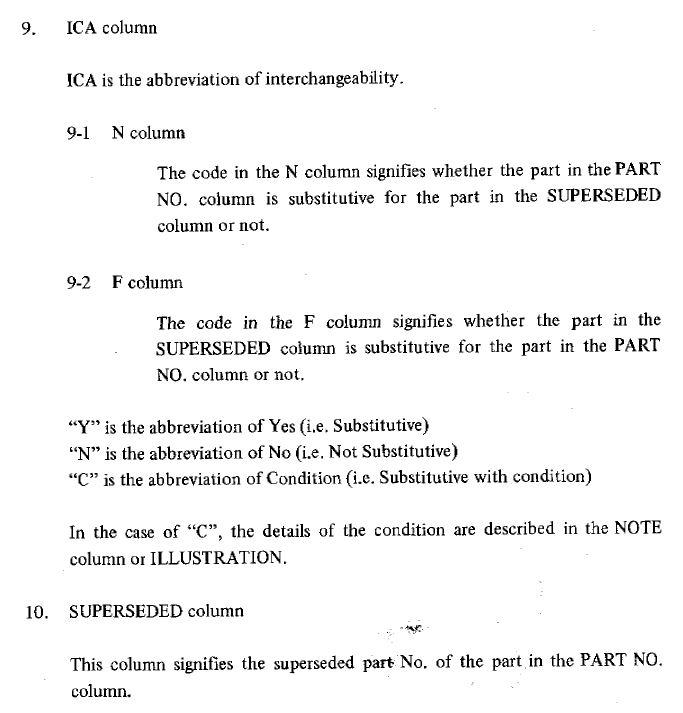

The "N" in the ICA columns means not interchangeable. Here is an explanation of the columns from the Datsun 521 pickup parts book.

I'll be pulling the engine, so I guess this will be my problem to deal with?



Sounds to me like the best option is to buy OEM, which will eliminate all issues, and I won't have to modify anything?  Correct ?



The aftetmarkets I bought would not work without modifying. Anything that list '70-'83 almost certainly will need to be ground down, modified in my experience.

You can't go wrong with Nissan parts. You get what you pay for so you get a lot with OEM parts, they're high like a giraffes arse.

OEM

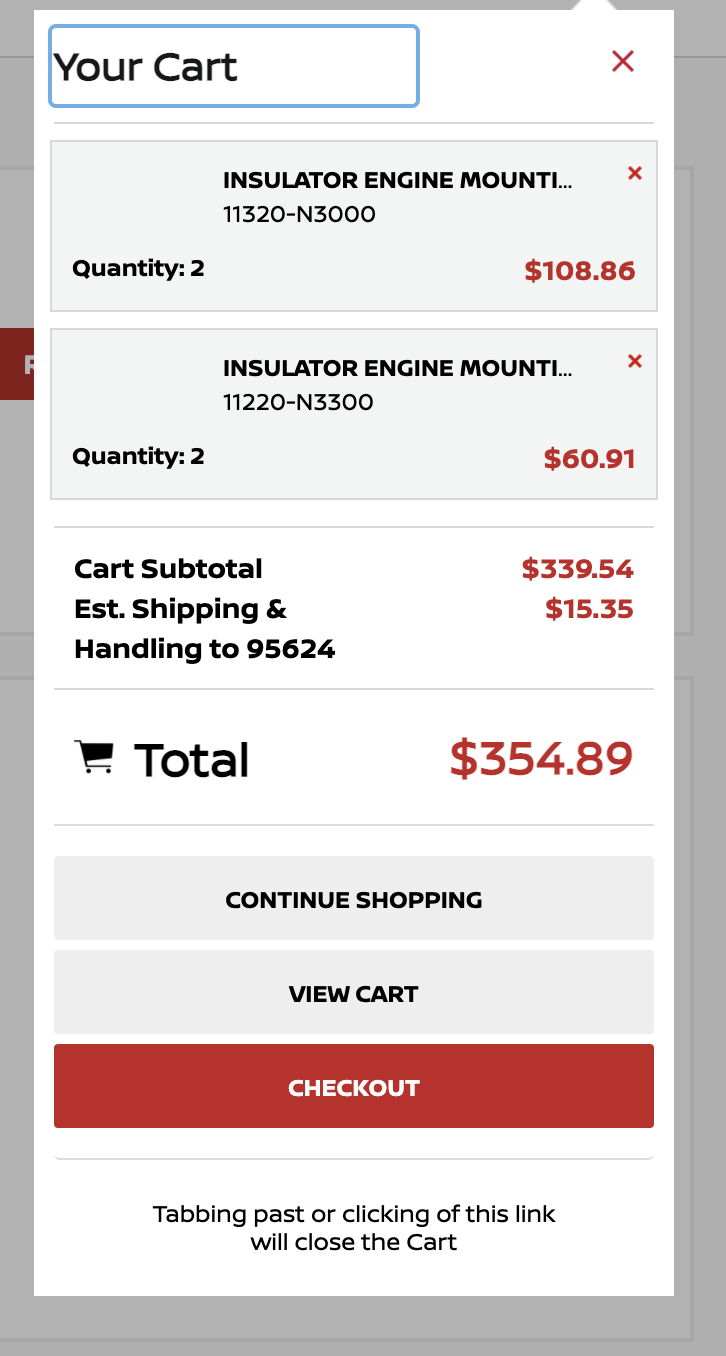

You need  2 of the11220s cantech shows above but only one tunnel mount 11320. You have 2 for quantity, am I missing something?
