Posted March 30, 20214 yr comment_618893 Need a big favor. My hatch has had the holes for both hatch emblems filled in. Not sure why. Before i start painting it i need to know where the holes should be. Does anyone have a diagram with measurements or can someone take a photo of theres with measurements from right side of hatch and bottom of hatch so i will have a good est. of where to put holes? much appreciated. if matters is 1971 240z series 2 last what are small recessed things that hold in emblems. some kinda clips Edited March 30, 20214 yr by Wally Link to comment https://www.classiczcars.com/forums/topic/65238-hatch-emblems/ Share on other sites More sharing options...
March 30, 20214 yr comment_618894 So they were welded closed? Link to comment https://www.classiczcars.com/forums/topic/65238-hatch-emblems/#findComment-618894 Share on other sites More sharing options...
March 30, 20214 yr Author comment_618895 not sure, possibly. i went and looked at the hatch a minute ago (its all at my painters). even looking from the inside i cant see or feel where the holes were originally. So, i will most likely need to re-drill them. Link to comment https://www.classiczcars.com/forums/topic/65238-hatch-emblems/#findComment-618895 Share on other sites More sharing options...
March 30, 20214 yr comment_618897 Have the painter sand the area. If it's just filler, drilling is unnecessary. Link to comment https://www.classiczcars.com/forums/topic/65238-hatch-emblems/#findComment-618897 Share on other sites More sharing options...
March 30, 20214 yr comment_618912 3 hours ago, Wally said: Need a big favor. My hatch has had the holes for both hatch emblems filled in. Not sure why. Before i start painting it i need to know where the holes should be. Does anyone have a diagram with measurements or can someone take a photo of theres with measurements from right side of hatch and bottom of hatch so i will have a good est. of where to put holes? much appreciated. if matters is 1971 240z series 2 Video Player is loading. Play Video Play Unmute Current Time 0:05 / Duration 0:19 Loaded: 100.00% Stream Type LIVE Seek to live, currently playing liveLIVE Remaining Time -0:14 Playback Rate 1x Chapters Chapters Descriptions descriptions off, selected Captions captions settings, opens captions settings dialog captions off, selected Audio Track Fullscreen This is a modal window. Beginning of dialog window. Escape will cancel and close the window. Text ColorWhite Black Red Green Blue Yellow Magenta CyanTransparencyOpaque Semi-Transparent Background ColorBlack White Red Green Blue Yellow Magenta CyanTransparencyOpaque Semi-Transparent Transparent Window ColorBlack White Red Green Blue Yellow Magenta CyanTransparencyTransparent Semi-Transparent Opaque Font Size 50% 75% 100% 125% 150% 175% 200% 300% 400% Text Edge Style None Raised Depressed Uniform Dropshadow Font Family Proportional Sans-Serif Monospace Sans-Serif Proportional Serif Monospace Serif Casual Script Small Caps Reset restore all settings to the default valuesDone Close Modal Dialog End of dialog window. Advertisement: 0:21 last what are small recessed things that hold in emblems. some kinda clips Wally, We have a '71 series 2 car coming in. It is also missing the hatch emblems. I can take pictures and messurements for you when it arrives. Will this car give you what you need? Is series 1 and series 2 different? Ed Link to comment https://www.classiczcars.com/forums/topic/65238-hatch-emblems/#findComment-618912 Share on other sites More sharing options...
March 30, 20214 yr comment_618913 4 hours ago, Wally said: last what are small recessed things that hold in emblems. some kinda clips Here are the oem clips that hold the emblems on car. https://zcardepot.com/products/emblem-clip-set-clips-keepers-10-oem-240z-260z-280z Link to comment https://www.classiczcars.com/forums/topic/65238-hatch-emblems/#findComment-618913 Share on other sites More sharing options...
March 30, 20214 yr comment_618915 4 hours ago, Wally said: Need a big favor. My hatch has had the holes for both hatch emblems filled in. Not sure why. Before i start painting it i need to know where the holes should be. Does anyone have a diagram with measurements or can someone take a photo of theres with measurements from right side of hatch and bottom of hatch so i will have a good est. of where to put holes? much appreciated. if matters is 1971 240z series 2 last what are small recessed things that hold in emblems. some kinda clips It may have had a spoiler sometime in it's life. Mine does and the holes are filled in, emblems are mounted on the spoiler. Link to comment https://www.classiczcars.com/forums/topic/65238-hatch-emblems/#findComment-618915 Share on other sites More sharing options...

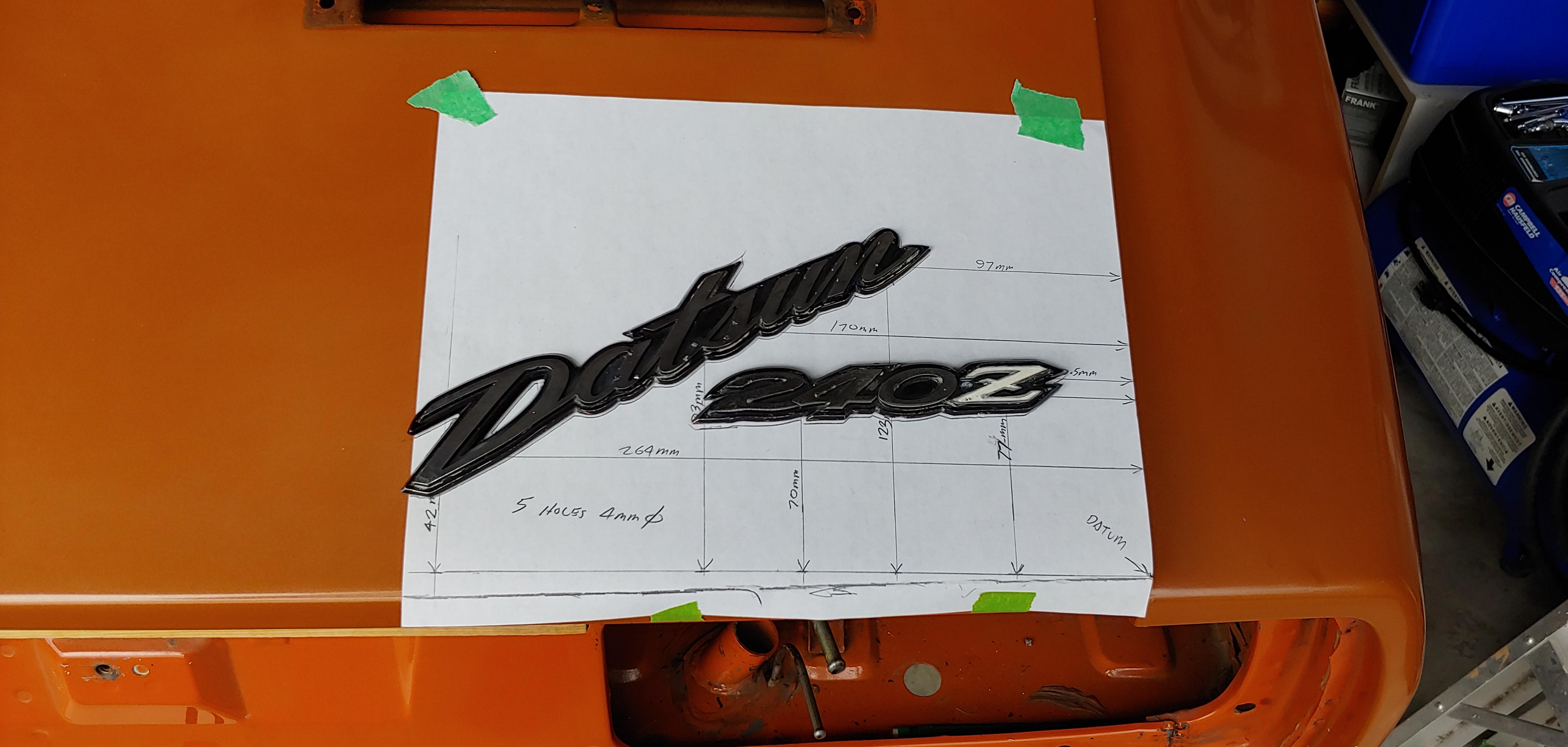

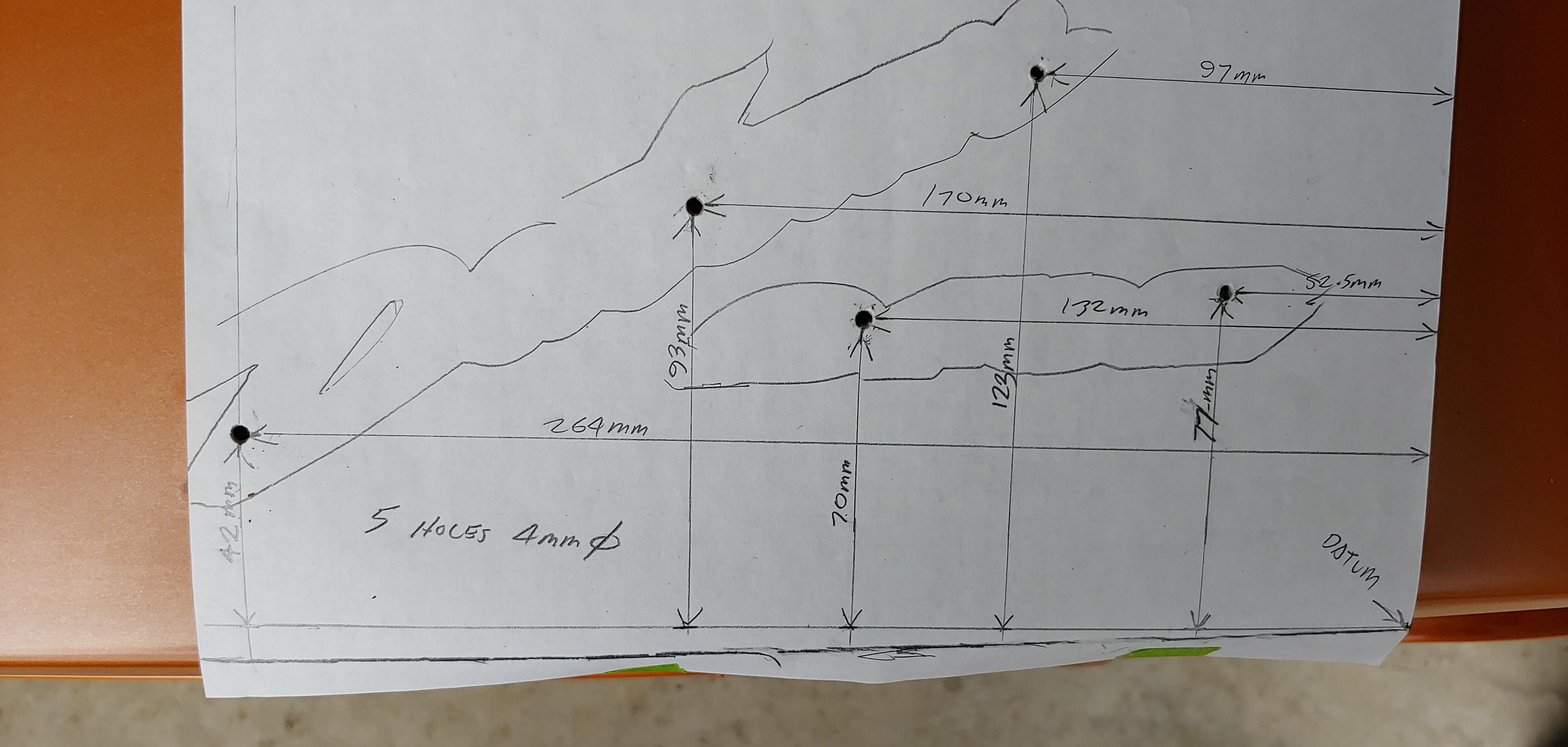

March 30, 20214 yr comment_618917 I'm pretty sure they are the same for series 1 and 2, here are measurements from my 1970. The datum for measurement is the lower right corner of hatch. The bottom edge of the hatch is curved so instead of the that edge I drew a line at right angle to the right edge for the vertical dimensions. I hope that makes sense. Link to comment https://www.classiczcars.com/forums/topic/65238-hatch-emblems/#findComment-618917 Share on other sites More sharing options...
March 30, 20214 yr Author comment_618920 you guys are awesome. exactly what i was needing. thanks Link to comment https://www.classiczcars.com/forums/topic/65238-hatch-emblems/#findComment-618920 Share on other sites More sharing options...
March 31, 20214 yr comment_618930 CanTechZ, Nice job. Great grid. Thanks for doing that, now I don't have to. Ed Link to comment https://www.classiczcars.com/forums/topic/65238-hatch-emblems/#findComment-618930 Share on other sites More sharing options...
March 31, 20214 yr comment_618932 3 hours ago, CanTechZ said: I'm pretty sure they are the same for series 1 and 2, here are measurements from my 1970. The datum for measurement is the lower right corner of hatch. The bottom edge of the hatch is curved so instead of the that edge I drew a line at right angle to the right edge for the vertical dimensions. I hope that makes sense. Awesome idea! 2 hours ago, Wally said: you guys are awesome. exactly what i was needing. thanks Maybe @CanTechZ could mail you a copy of his template. Link to comment https://www.classiczcars.com/forums/topic/65238-hatch-emblems/#findComment-618932 Share on other sites More sharing options...
March 31, 20214 yr comment_618937 Here is a scan of my sketch, if you print on 8.5" x 11" paper and select "actual size" it will print to scale. 1970 240Z HATCH EMBLEM HOLES.pdf Link to comment https://www.classiczcars.com/forums/topic/65238-hatch-emblems/#findComment-618937 Share on other sites More sharing options...
