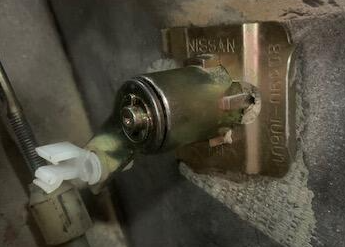

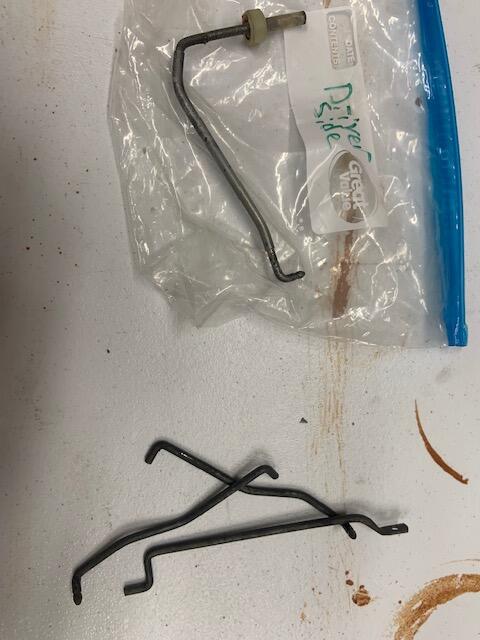

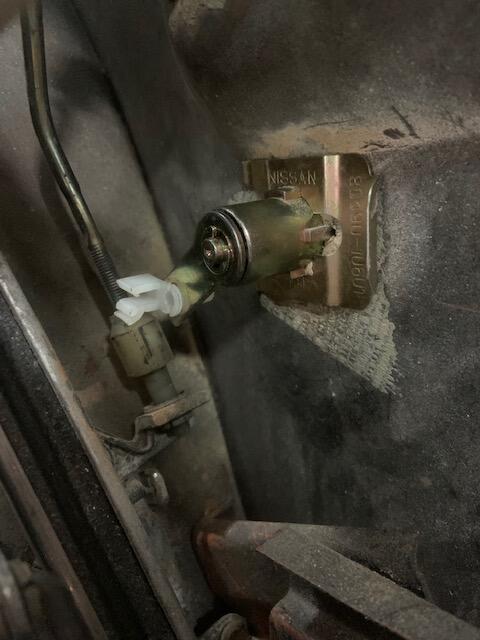

Posted September 17, 20213 yr comment_628645 Need some advice on door locking mechanism. I have the interiors side of door handles operating fine. I also have the outside chrome handles in and working. What i cant seem to understand is 1. how i get the outside door lock attached.I have an image with the really white clip for the outside door lock. does one of the rods slide into this and the opposite side of the door handle? FOr some reason thats what i am thinking but if so not sure the right rod. 2. The inside door lock, stopper whatever its called is frozen. I know it works as it once was, its just not hooked up right. anyone have any reference material, images, info. I have rods not currently used in image. one on ziploc i know goes on driver side somewhere. thanks guys BTW, Not sure if this is in the right place. Link to comment https://www.classiczcars.com/forums/topic/65823-door-locking-mechanism-71-240z/ Share on other sites More sharing options...

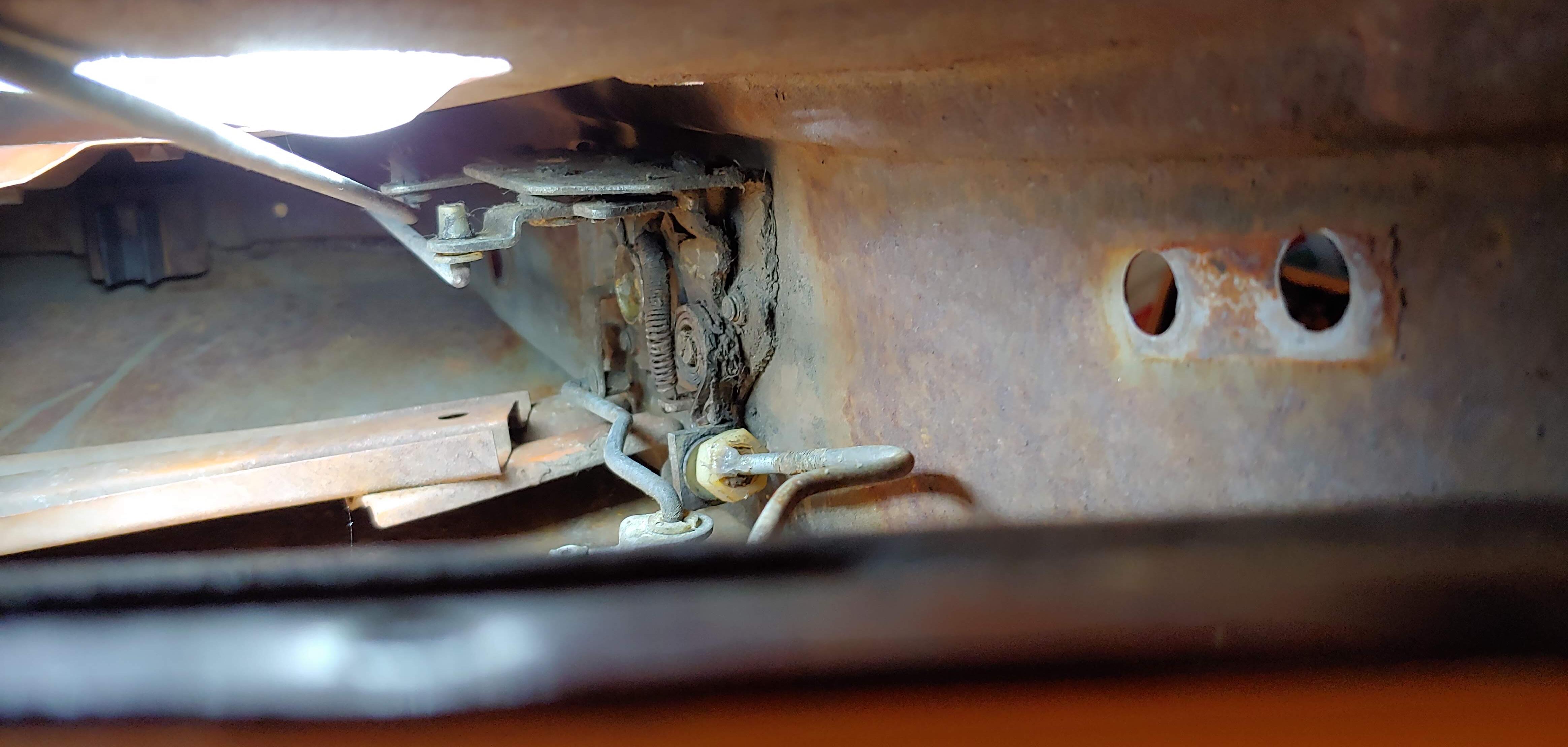

September 17, 20213 yr comment_628646 Here are a couple of pictures from my 7/70 that I took so that I could re-assemble in the future. Don't like relying on my memory, Hope this helps. Link to comment https://www.classiczcars.com/forums/topic/65823-door-locking-mechanism-71-240z/#findComment-628646 Share on other sites More sharing options...

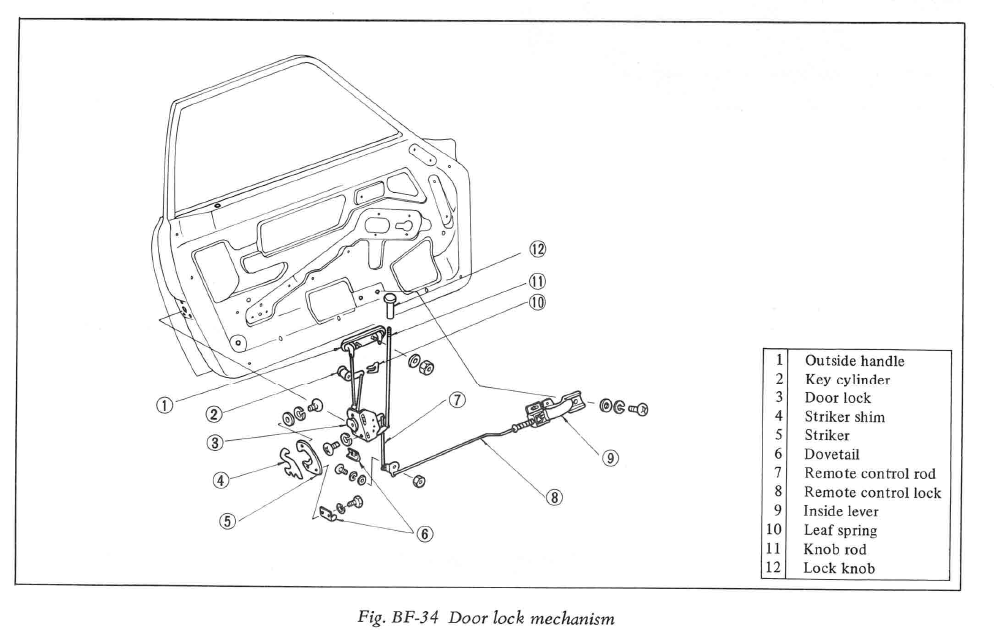

September 17, 20213 yr comment_628647 Also here is an image from the body section of the FSM. Link to comment https://www.classiczcars.com/forums/topic/65823-door-locking-mechanism-71-240z/#findComment-628647 Share on other sites More sharing options...
September 17, 20213 yr comment_628648 Is that the correct key cylinder? Mine doesn't have the white plastic clip that is in your picture. Edited September 17, 20213 yr by CanTechZ Link to comment https://www.classiczcars.com/forums/topic/65823-door-locking-mechanism-71-240z/#findComment-628648 Share on other sites More sharing options...
September 17, 20213 yr comment_628649 Just now, CanTechZ said: Is that the correct key cylinder? Mine doesn't have the white plastic clip that is in your picture. Yes, imagine the clip below the hole. It holds onto the arm going through the hole. Maybe I can use one of my spare mechanisms for show and tell. Link to comment https://www.classiczcars.com/forums/topic/65823-door-locking-mechanism-71-240z/#findComment-628649 Share on other sites More sharing options...
September 17, 20213 yr comment_628650 Just checked the lock assemblies on the doors from my 1971 parts car (12/70), they don't have the plastic clip on the the lock cylinder actuator either. Edited September 17, 20213 yr by CanTechZ Link to comment https://www.classiczcars.com/forums/topic/65823-door-locking-mechanism-71-240z/#findComment-628650 Share on other sites More sharing options...

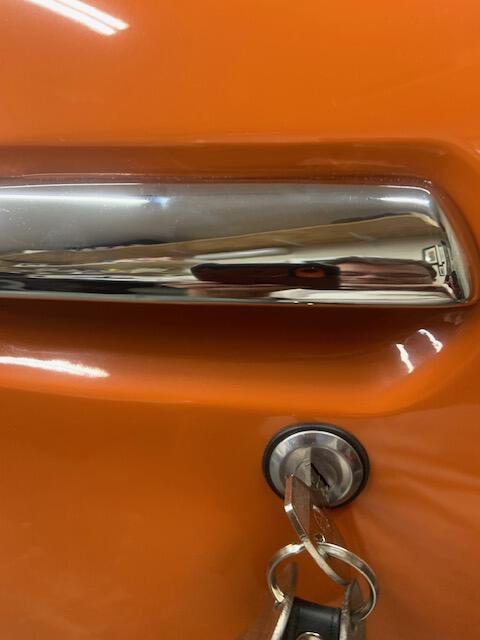

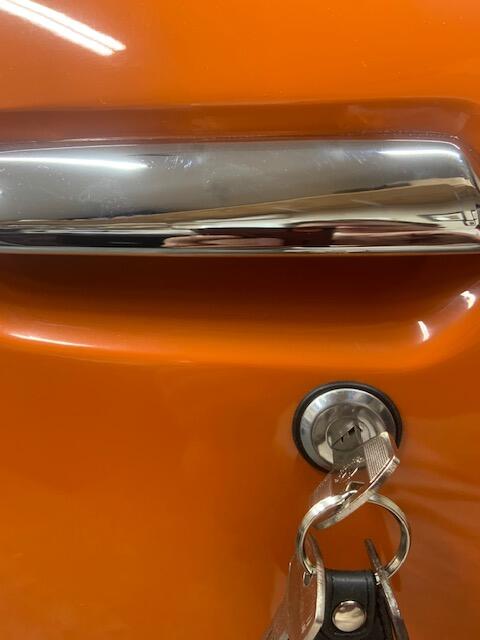

September 17, 20213 yr Author comment_628651 Awesome guys. thanks. will review images and Figs. I already see where one things goes from them. Just the lock knob now to work on.... Should the outside lock only move to the left and right 45 degrees each way? Link to comment https://www.classiczcars.com/forums/topic/65823-door-locking-mechanism-71-240z/#findComment-628651 Share on other sites More sharing options...
September 17, 20213 yr Author comment_628652 4 minutes ago, CanTechZ said: Just check lock assemblies on the doors from my 1971 parts car (12/70), they don't have the plastic clip on the the lock cylinder actuator either. Not sure. i know my 71 is a series 2 if that matters. Also, those locks and mechanism are not orginal to the car. I bought news ones from either zstore or ZCD. Not sure if that makes a difference. i did put rod in though and it aligns fine with clip in place Link to comment https://www.classiczcars.com/forums/topic/65823-door-locking-mechanism-71-240z/#findComment-628652 Share on other sites More sharing options...
September 17, 20213 yr comment_628653 They might be different for "series 2". My car has the two key system with the short single sided key for the doors. Link to comment https://www.classiczcars.com/forums/topic/65823-door-locking-mechanism-71-240z/#findComment-628653 Share on other sites More sharing options...
September 17, 20213 yr comment_628654 I've assembled my 280z locks in the last couple of days. My key does turn plus or minus 45 degrees (to lock or unlock). My white clip looks a little different from yours, but it is what holds the rod in place. Link to comment https://www.classiczcars.com/forums/topic/65823-door-locking-mechanism-71-240z/#findComment-628654 Share on other sites More sharing options...

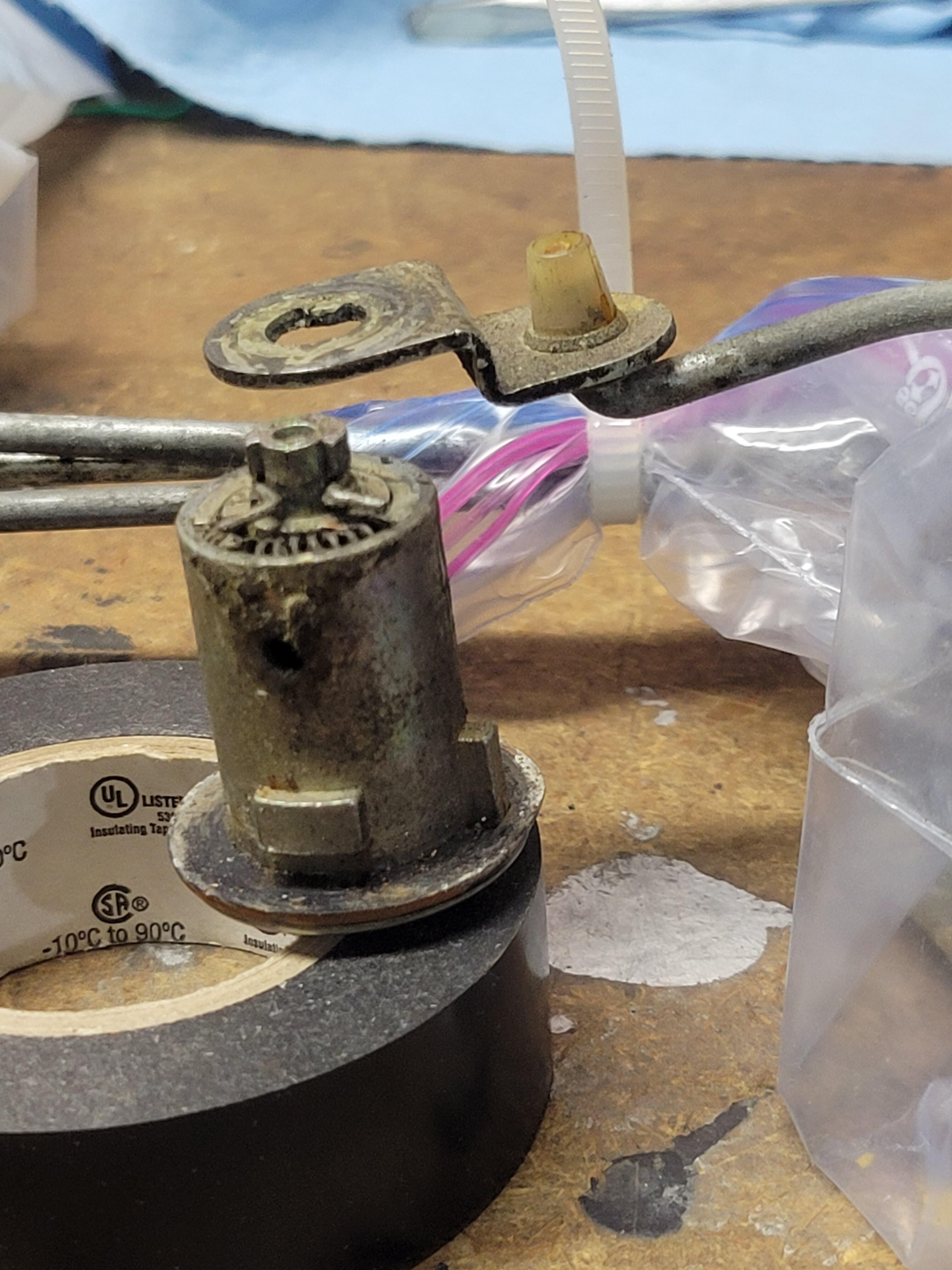

September 17, 20213 yr comment_628655 For those with early cars who may find this discussion later, here is a close up picture of the connection from the actuator on the key cylinder to the rod on the door lock mechanism. It shows the split plastic bushing that is used, instead of a clip type connection as shown above. Link to comment https://www.classiczcars.com/forums/topic/65823-door-locking-mechanism-71-240z/#findComment-628655 Share on other sites More sharing options...

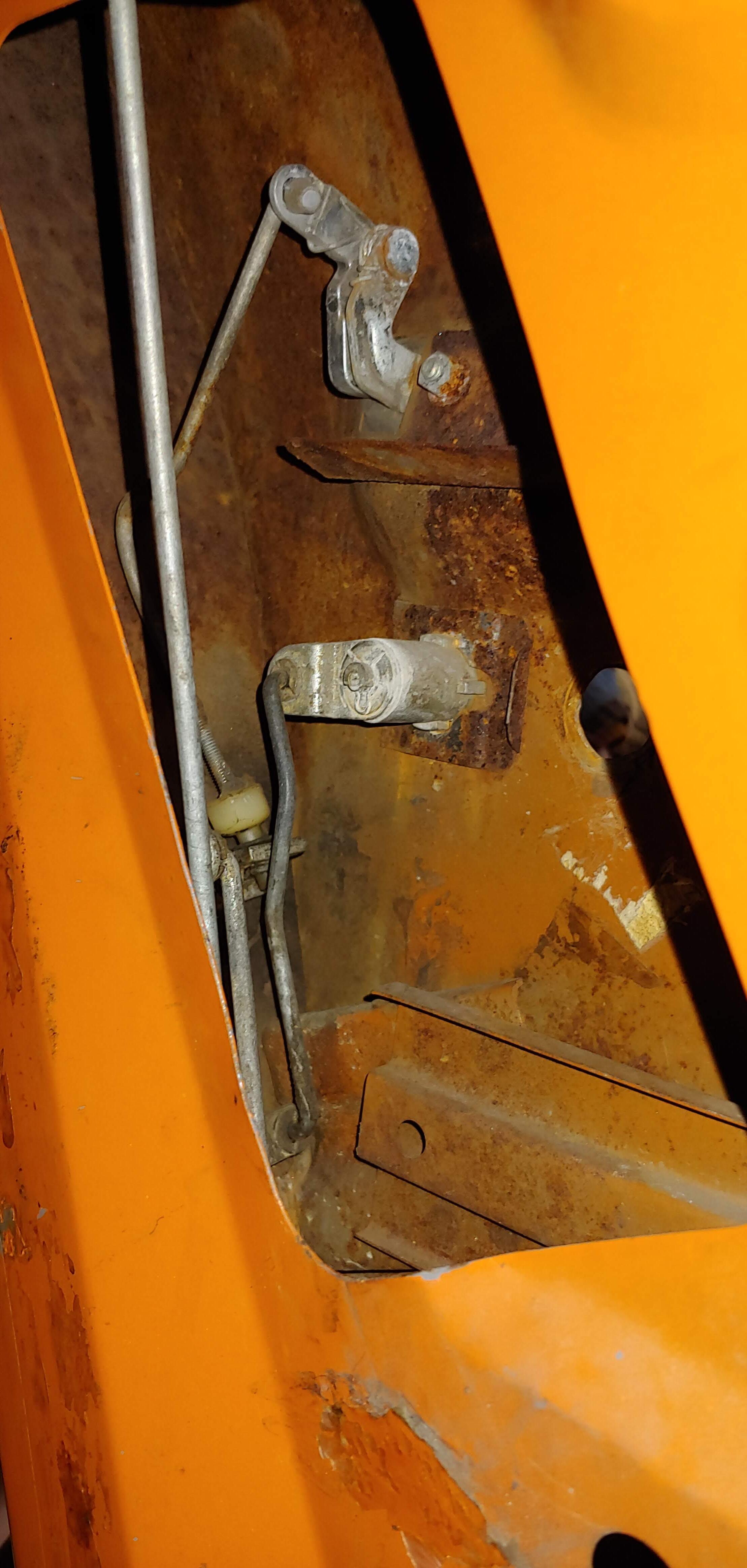

September 17, 20213 yr Author comment_628658 went ahead and took window chrome off to get better look. I took all locking stuff out and played with it to understand how it all works. I have passenger side all working. Driver side is 90%. Issue i saw causing all the issues was piece i circled. It will prevent something from operating if its up to high or too low. Getting it adjusted right is crucial...imo On driver side only thing not working as of now is using key to lock from outside. I am thinking its the door lock itself and needs a little adjustment. Between installing new window regulators, bushings etc. and the door locks think i may have to take a break. Link to comment https://www.classiczcars.com/forums/topic/65823-door-locking-mechanism-71-240z/#findComment-628658 Share on other sites More sharing options...
