Looking for measurements on the following. This is an early VIN car under 1000, not sure if that matters if its series 1-3.

Thanks.

Does this help?

Fantastic.

  On 10/14/2021 at 9:24 AM, AK260 said:

Does this help?

Whats the third drawing?

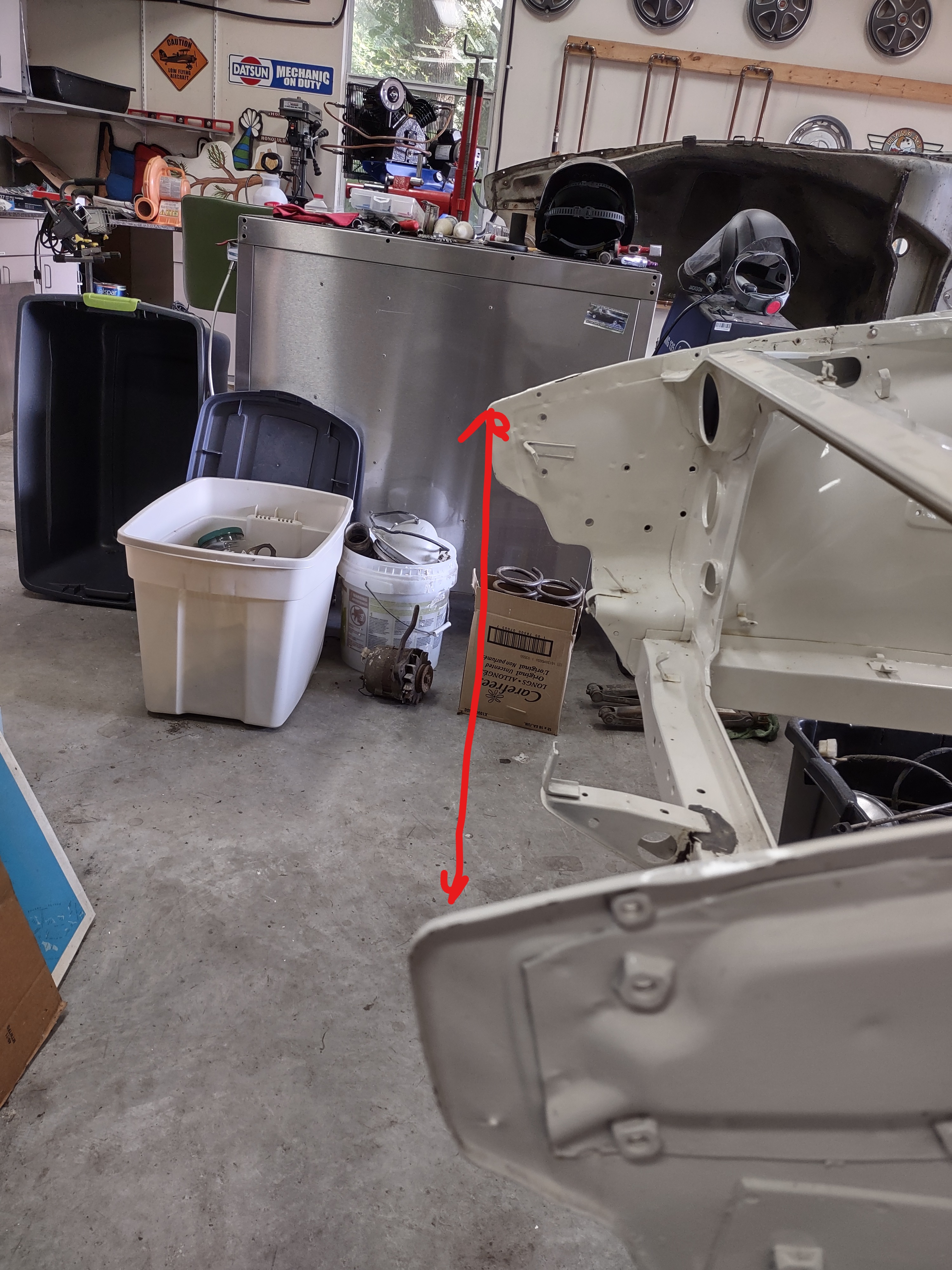

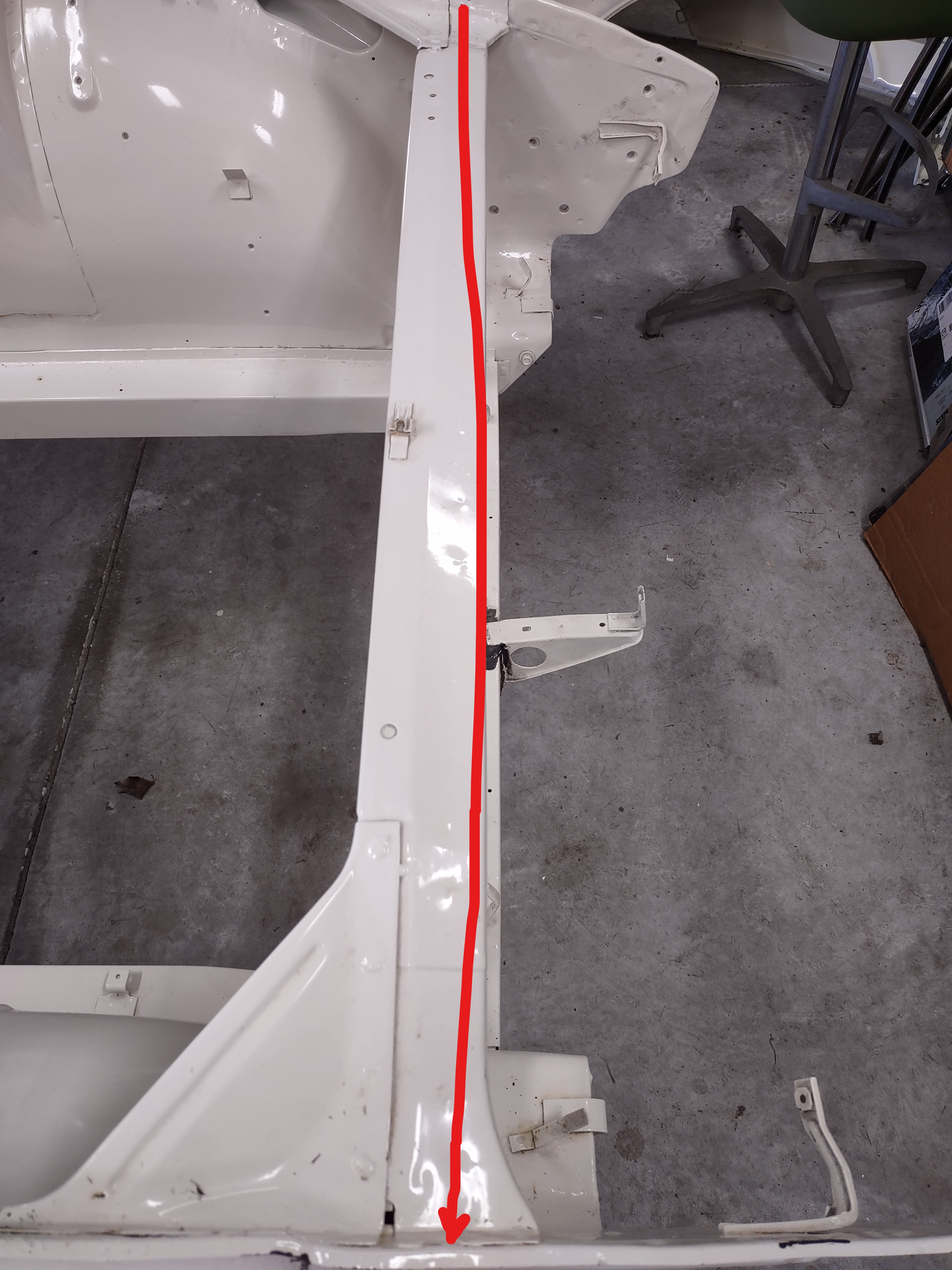

The first one is looking from the top down, the third one is looking from the underside up. I think ;)

  On 10/14/2021 at 8:43 PM, AK260 said:

The first one is looking from the top down, the third one is looking from the underside up. I think 😉

Doesn't look like a z at all. The others are great.

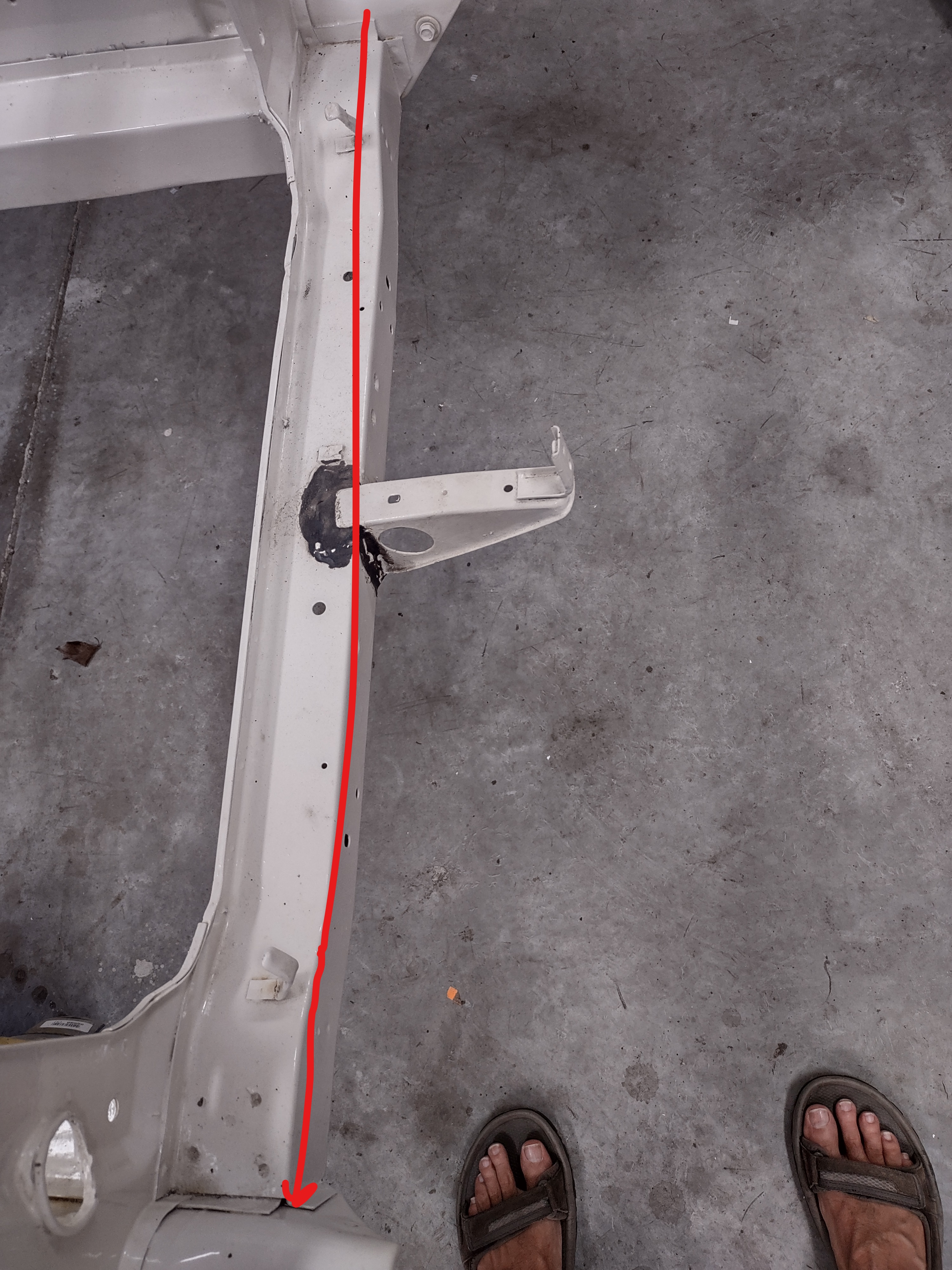

I am pretty sure the third image is not S30.  Nothing there I recognize.

  On 10/14/2021 at 11:32 PM, zKars said:

I am pretty sure the third image is not S30.  Nothing there I recognize.

You know, I have a dropbox folder full of little gems I discover over time on the net - this was in that folder and I have to agree with you. I was looking at it on my phone screen so didn't spot it. I also have no idea what it's supposed to be or where it came from 😉 Sorry for causing confusion / mis-info.

Edited October 15, 20213 yr by AK260

S130 maybe?

Yeah, I was wondering about that too!
