fuel rail installation question

[Jeff Berk]

I'm installing a fuel rail with a gas tank return on an SU fuel system. A PO removed the original fuel rail and set the fuel system up as a dead head which is causing some vapor lock issues when the car sits between auto cross runs.

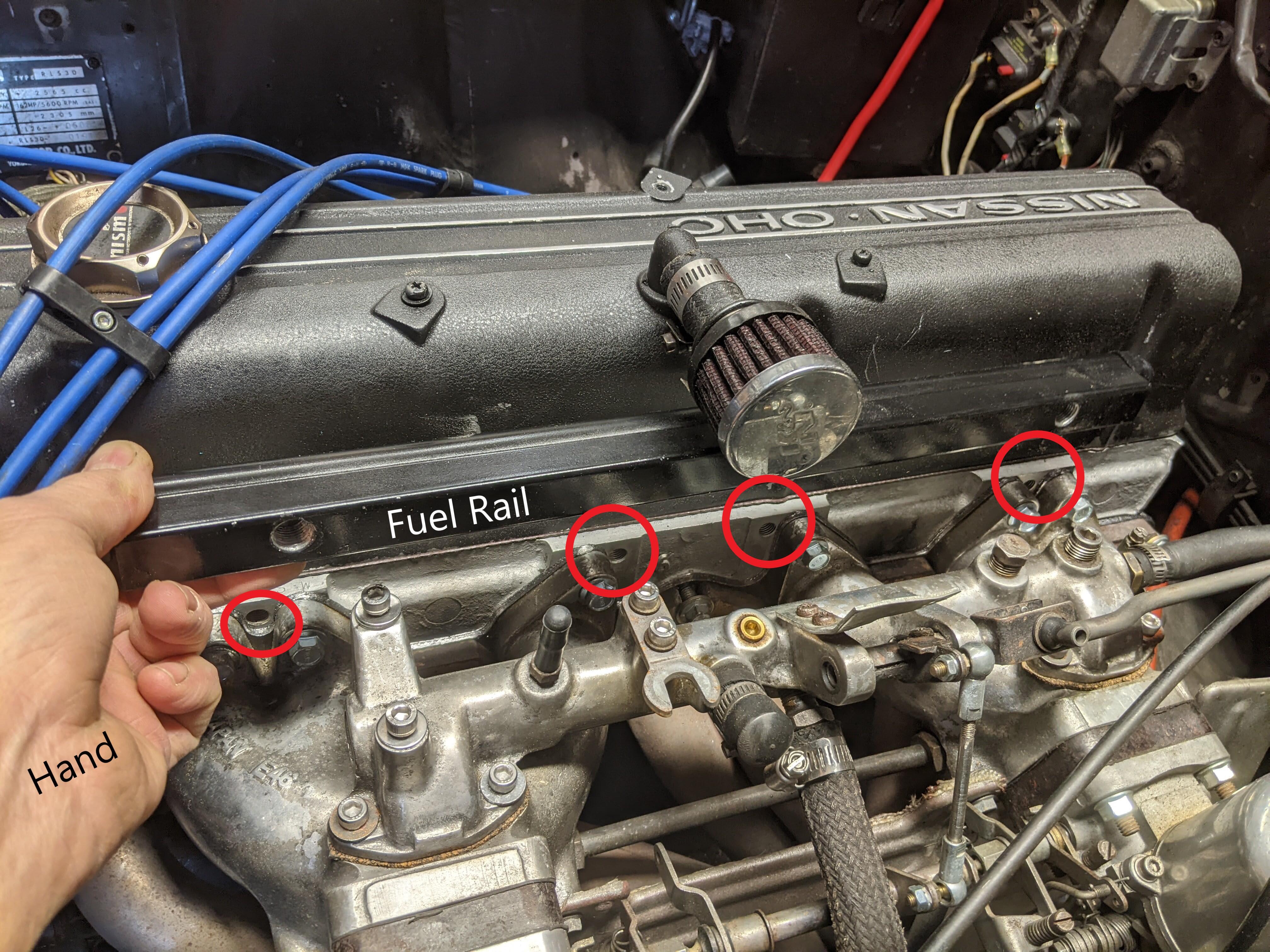

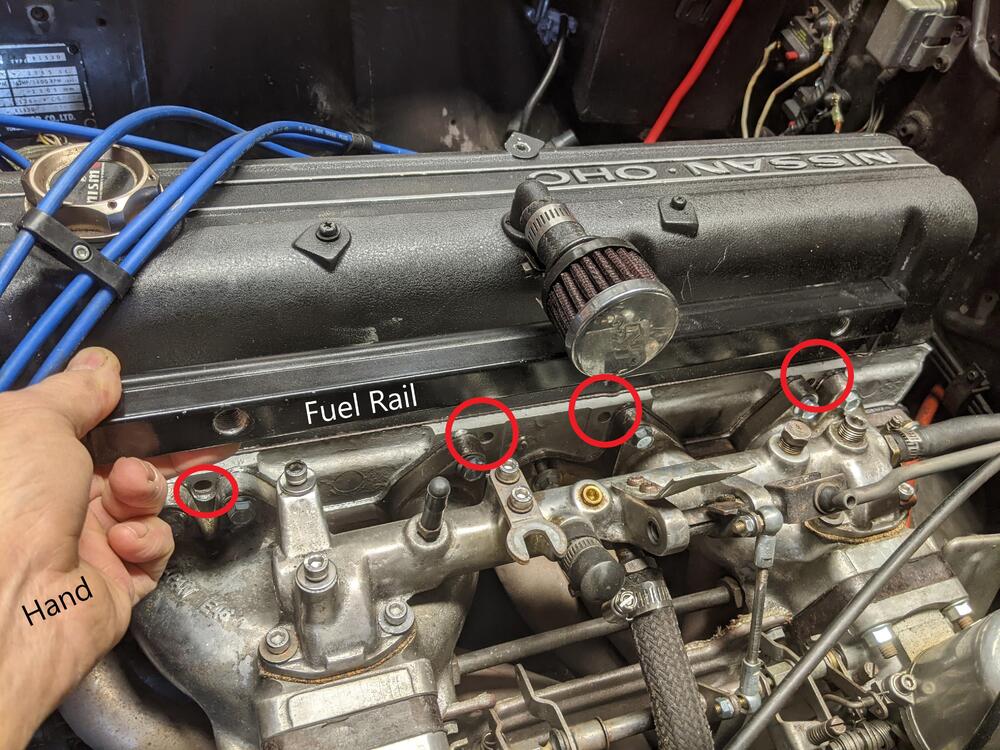

The issue I'm having now is how to attach the aluminum fuel rail extrusion. There are four 10mm bolt holes on the cylinder head (circled in red), two wire loom screws, and valve cover bolts as possible mounting options. The cylinder head bolt holes would be a good option except that they are so close to the intake manifold flanges that I'm not sure they will be something I could use for mounting. Also, is there any off the shelf fixture for mounting the fuel rail extrusion or at least a design I can copy?

[zKars]

Never seen a published solution for using an extrusion on an SU manifold, but I bet it’s been done.

Heat wise, I’d be tempted not to mount the rail to the head. There are plenty of un-used mounting points on the balance tube that I would likely press into service.

The stock fuel rail return line has a tiny orifice hole in the tip where the 3/16 hose gets clamped on, this is the stock pressure regulation. I’m hoping you plan on running some sort of regulator on your system on the return side of your rail.



[Zed Head]

Plumbing and electrical fixtures offer a wide assortment of possibilities especially if the final route to the carbs is rubber hose.  Many come with rubber or plastic grommets inside.

Don't forget to insulate the rail.  Nissan made up a whole fancy insulation package for the rails to combat heat soak and percolation.  That aluminum is going to soak up the heat.

[Jeff Berk]

The fuel will enter the fuel rail at the front and has two ports for the pair of SUs. Excess fuel flows out the rear of the fuel rail to a low pressure regulator mounted on the firewall. Fuel then flows to the return line which hopefully has no leaks in it.

As for insolation, I'll likely wrap it with something.

[Zed Head]

Have you read Nissan's document?  Might give you a few more ideas while you're devising solutions.  I think that hot float bowls is part of the problem too.



[crayZlair]

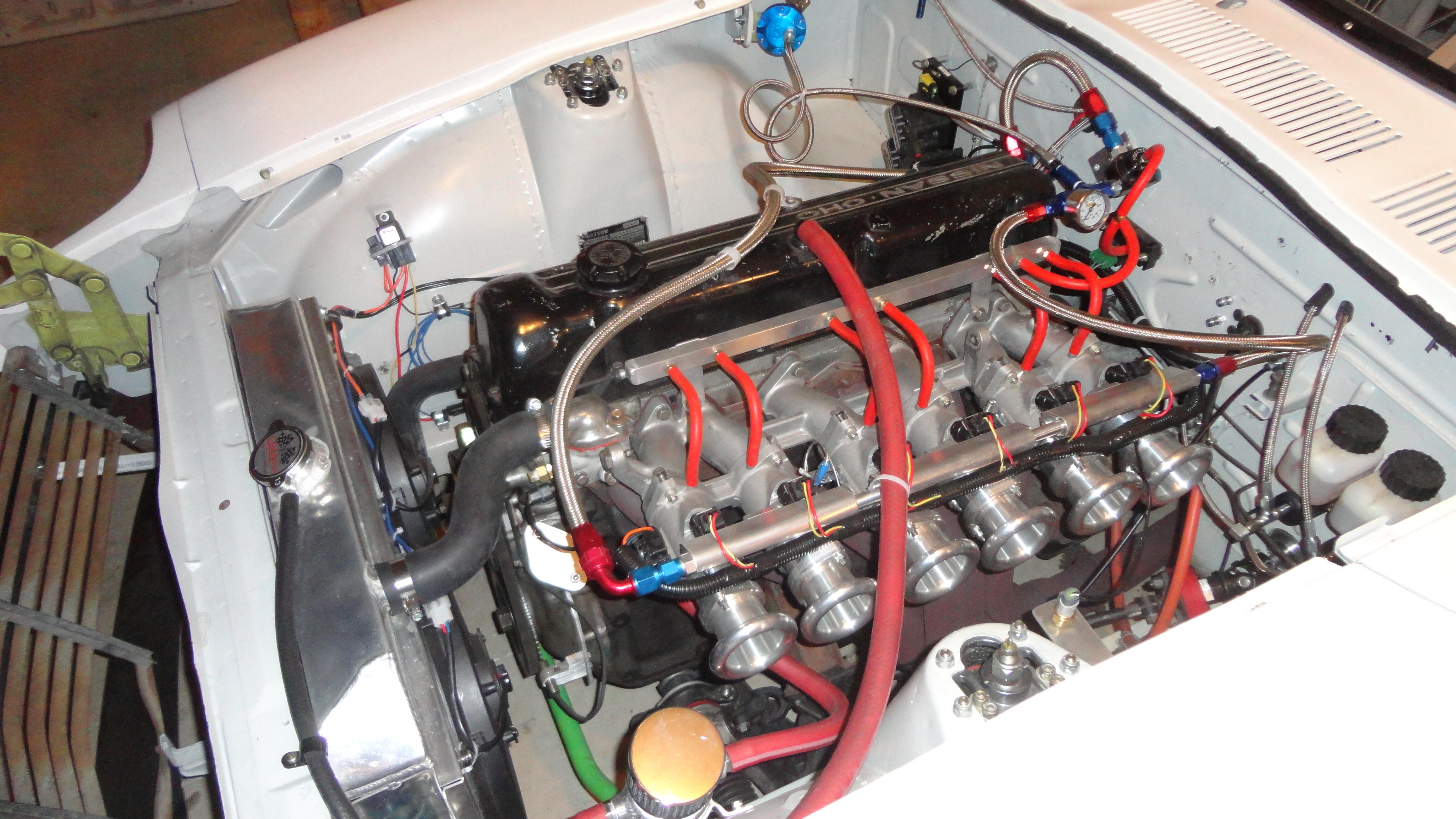

It's a vacuum manifold instead of a fuel rail, but here is how I mounted it.

[Jeff Berk]

I like the clean engine compartment. Thanks for the picture. It looks like you used the intake manifold bolts to mount the extrusion. I'll likely do the same but come up with a thermal break somehow.

[reerlyly]

Its a vacuum


Sent from my iPhone using Tapatalk

[crayZlair]

10 hours ago, reerlyly said:

Its a vacuum


Sent from my iPhone using Tapatalk

It most certainly is!

[Tweeds]

Thanks for labeling the hand - wasn't sure what I was looking at there. Ha!
