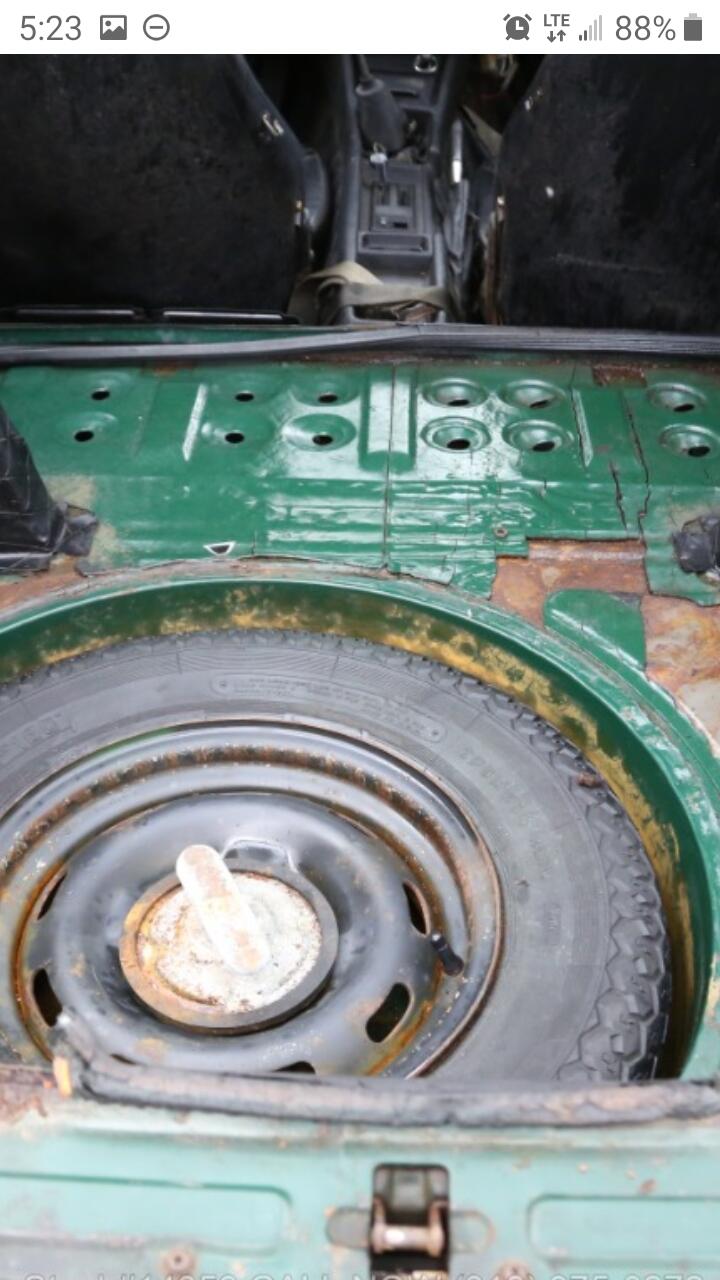

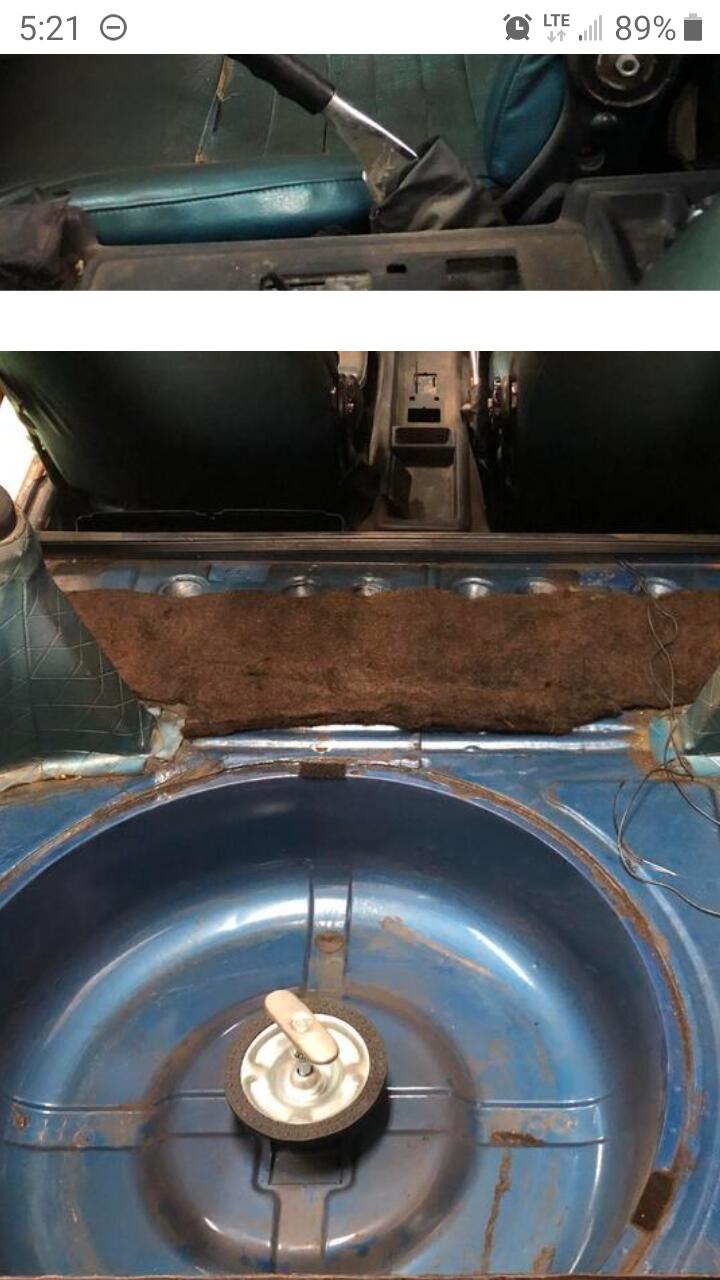

Posted February 10, 20223 yr comment_635666 I've recently noticed these round holes on cars before my 1972 which has the storage bins. What are their purpose? Thanks for any response. Link to comment https://www.classiczcars.com/forums/topic/66338-curious-on-early-240s/ Share on other sites More sharing options...
February 10, 20223 yr comment_635667 They're only on the series one cars. They had the tools located behind plastic covers just ahead of where the tool boxes are. Presumably someone realized there was some dead space there that could be used to put the tools in and did that instead for the next run of cars. Link to comment https://www.classiczcars.com/forums/topic/66338-curious-on-early-240s/#findComment-635667 Share on other sites More sharing options...
February 11, 20223 yr comment_635670 The holes are likely a weight saving feature. Or a way to tease you. You look in there and realize there is space to squirrel things away, but you realize can’t get there from here…. Someone was a hero when they suggested using that space for tools and doing away with the behind seat storage. Link to comment https://www.classiczcars.com/forums/topic/66338-curious-on-early-240s/#findComment-635670 Share on other sites More sharing options...
February 11, 20223 yr comment_635688 The early, early cars didn't have insulation mat melted over the holes in the metal. I can't think of anything other than weight saving for that design. Link to comment https://www.classiczcars.com/forums/topic/66338-curious-on-early-240s/#findComment-635688 Share on other sites More sharing options...
February 11, 20223 yr comment_635704 As related to me by Uemura san, the pierced dimples 'cheesegrater' deck area is the top half of an important transverse structural (triangular) box section in the bodyshell. The reason for the pierced dimples is simply to aid strength, and to help avoid 'oil canning' should any load be put on the top surface of the deck. Nothing to do with weight saving. The vertical front face has square-pierced pressings for the same reason (strength), with the earliest examples lacking a partial doubler plate over the transmission tunnel which was soon added to beef up that area. The subsequent integral tool box design pretty much did the same job, killing two birds with one stone. Link to comment https://www.classiczcars.com/forums/topic/66338-curious-on-early-240s/#findComment-635704 Share on other sites More sharing options...
