Hi, I am trying to work out how many types of 240z steering columns covers are there or the LHD and RHD cars and what they respective part numbers are?

Can anyone shed some light on it?

CarPartsManual.com

Thank you

You might find this useful for RHD,



In respect of right hand drive (R-Drive) variants of the steering wheel cover I can find, these are as follows:

Europe R-Drive:

48470-E4101 to 06/72, 48470-N3200: 07/72 to 07/73, 48470-N3400 (two seater and 2+2): 08/73 to 07/76 and 48470-N3410 from 08/76.

Japanese market:

48470-N3402 to 06/78, 48470-N3403 from (presumably) 07/76 on.

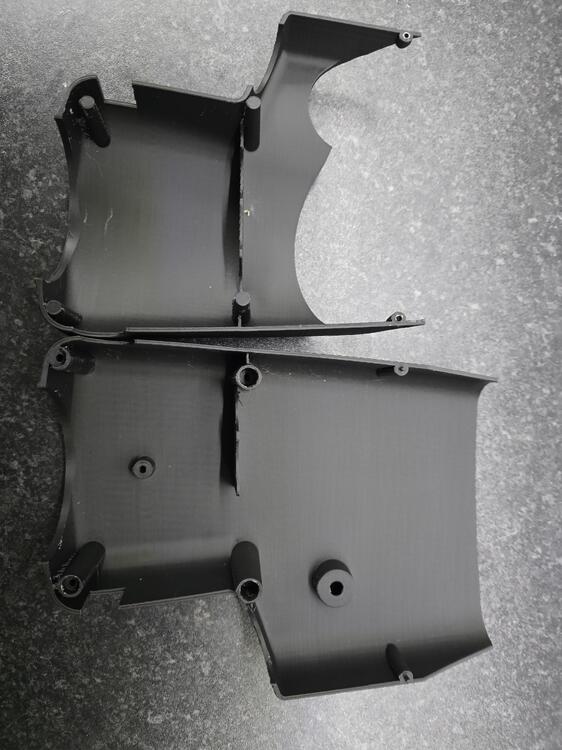

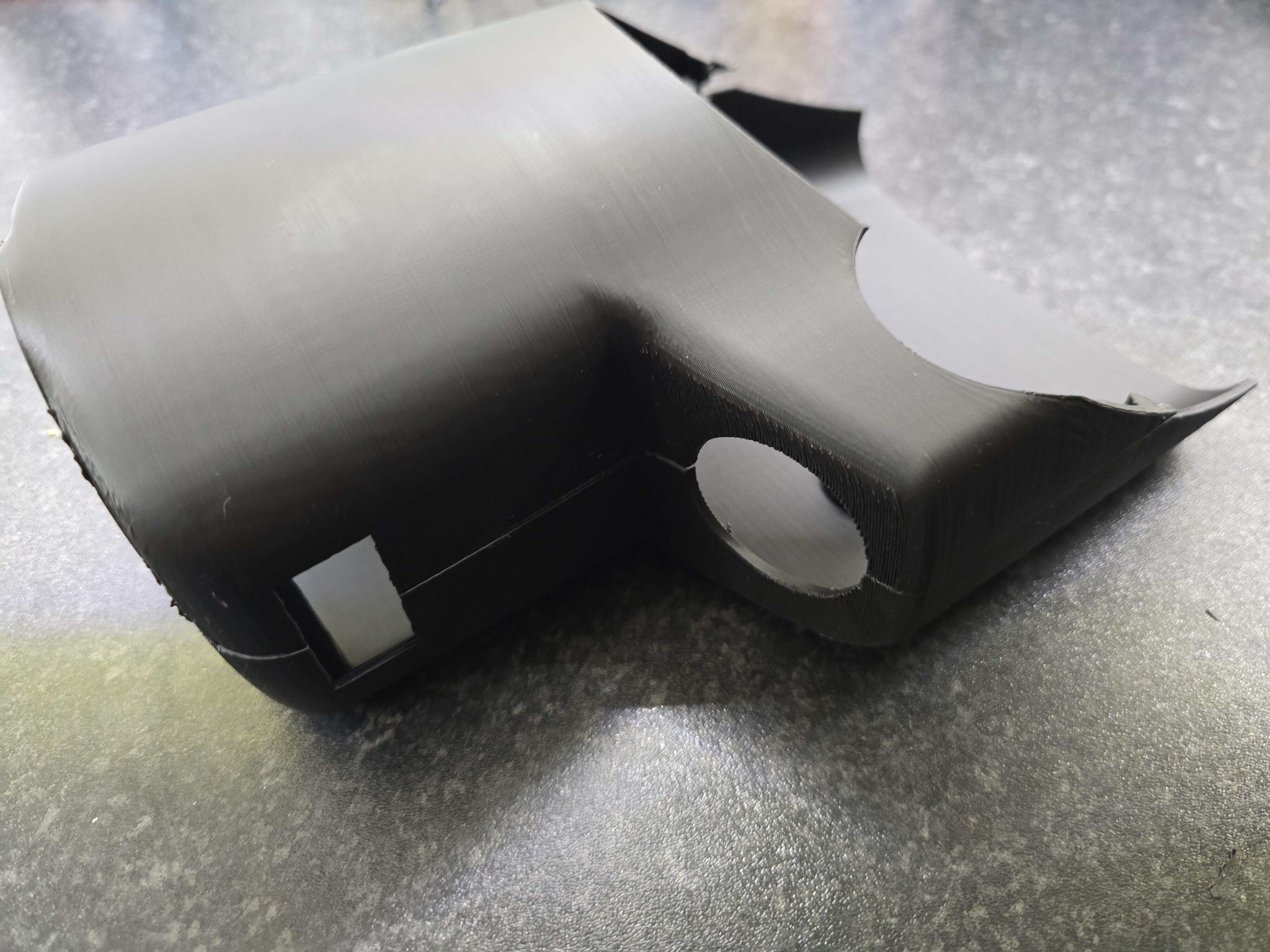

This is one I am working on on currently- trying to work out what is involved for the set

Looks like 48470-E4601. Very nice!!!

Ooops - I just looked at the combo switch openings. This one must be for a RHD.

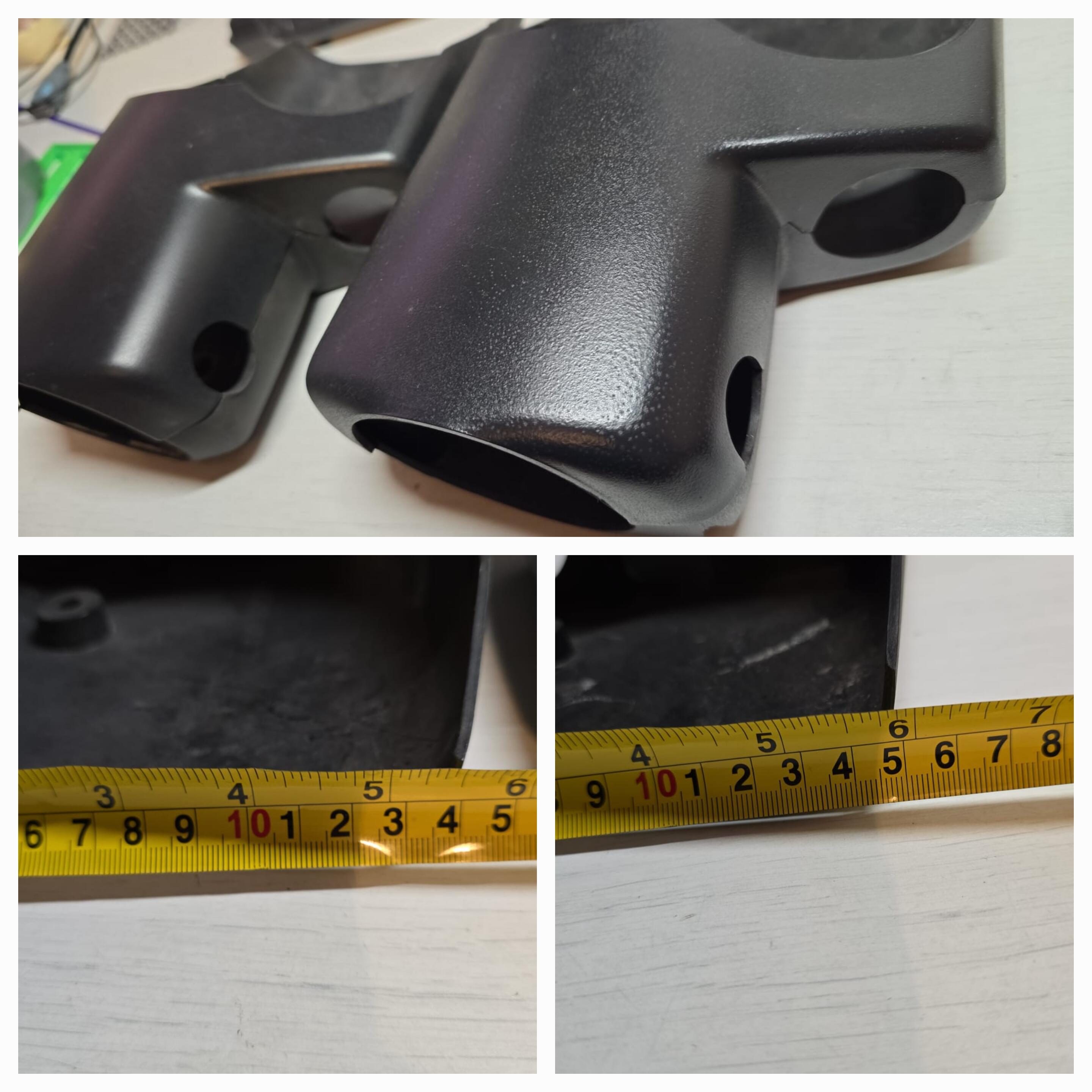

I have these two to look at too, very slight difference

In my experience, they often have the part number moulded-in on the inside surface. Should at least tell you what samples you have.

2 hours ago, jerz said:

In respect of right hand drive (R-Drive) variants of the steering wheel cover I can find, these are as follows:

Europe R-Drive:

48470-E4101 to 06/72, 48470-N3200: 07/72 to 07/73, 48470-N3400 (two seater and 2+2): 08/73 to 07/76 and 48470-N3410 from 08/76.

Japanese market:

48470-N3402 to 06/78, 48470-N3403 from (presumably) 07/76 on.

Japanese market got 48470-E4101 from the beginning of production, same part number as the initial Euro R-Drive got.

okay- these are the stamps taken from inside

48470-E4601                                          1970 –1972/06

48472-N3300                                         1972/07 –1973/07

48472-N3200                                          07/72 to 07/73  (RHD)

the last one has the below crossed out the the following two numbers below it

48470-N3400   /  N3410 / N3403







Edited October 28, 2024Oct 28 by Chris Holt
