Splash Pan

[GSTOM]

Thanks for Quick replies @ AZ-240Z and webmanic 70 .

I have the splash pan for the late model with the hole. I didn´t know that there are different styles.

Thanks for the pictures. So I have to find a new splash pan.

Thanks for help

Thomas

[TomoHawk]

you go.... Add the Splash pan to the list of NLA items to "re-design" and fabricate- in Carbon fibre this time? Maybe aluminium...

[ascalla]

am about to install my splash guard…can anyone tell me the size bolts used for the splash guards?

thanks

[bpilati]

am about to install my splash guard…can anyone tell me the size bolts used for the splash guards?

thanks

I believe they are 5 mm, and I recommend buying stainless. I also used large washers was well. I think there are nine of them.

[bpilati]

you go.... Add the Splash pan to the list of NLA items to "re-design" and fabricate- in Carbon fibre this time? Maybe aluminium...

$$$$$$

[Mikes Z car]

If I ever get my hands on one I am going to document the dimensions and hole locations for possible duplication. I wonder if it cuts down on water getting in the engine compartment and helps reduce corrosion?

[Chickenman]

May as well add to the confusion. I owned an original 1971 240Z, production date 10/70. This was a Canadian market car and came with a splash pan that was definitely spary painted from the factory. Still had the manufacturing stickers over a thin coat of what looked to be a matte finish black paint. My 1968 Canadian spec 510 had the same style of splash pan and it was painted the same color.



Funny thing was... I was a Datsun/Nissan Partsman for 17 1/2 years from the mid 1970's to the early 1990's, and I can't remember ever selling a splash pan for the early Z's and 510's. Everyone just seemed to throw them away...



Of course, it could also mean that I'm just getting Senile and can't remember Isht !!



In later years, particularity the later 70's and all through the 80's and 90's, Parts specifications for Canadian and USA production markets were often different.



Electrical wiring connectors on exterior Lamps and body harnesses were of a different configuration than USA cars. IE:  Canada would get a type of sealed terminal ( similar to Weatherpak ), where a California car would get a non-sealed terminal or one of a different configuration. Engine components were different, even as far as Pistons and camshaft specifications. Some of the weirdest things were different, such as Windshield wiper blade assemblies and even drive-shaft U-Joints on the 720 series of trucks. California models got a smaller U-Joint than Canadian models. Generally Canada got HD everything and usually Japanese or Euro spec on motors through to the mid 1990's.

[siteunseen]

On 10/1/2003 at 1:53 PM, Carl Beck said:

Hi Guys:

The picture I have can be seen at:

http://ZHome.com/History/240ZSplashPan1.jpg

At least on my monitor the color is pretty close to the actual item - of course your monitors might display it differently...

regards,

Carl

Carl Beck

Clearwater, FL USA

http://ZHome.com

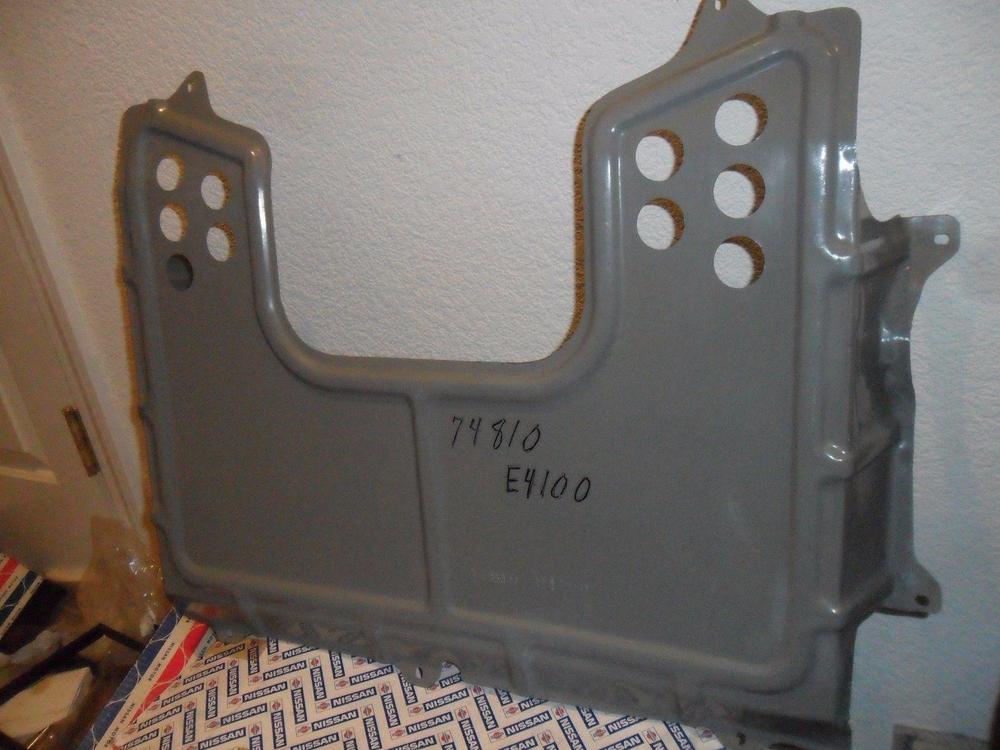

Here's a good shot Mr Beck.

Thanks @240260280

Edited November 8, 2018 by siteunseen

[240260280]

[240260280]

[wheee!]

In case anyone is wondering about a new one...

https://zcardepot.com/products/engine-splash-pan-guard-240z

Or the newer style...

https://www.ebay.ca/itm/Datsun-280Z-1975-78-Engine-Splash-Shield-Pan-Panel-Stainless-New-250/323531219088

[Patcon]

They're proud of that!
