Murph Posted January 20, 2004 Share #1 Posted January 20, 2004 Any chance anyone has one handy, knows of one on the web or could take a pic for me please. I'm sorta desperate to get my hands on one, so it would be greatly greatly appreciated.Thanks,Justin Link to comment Share on other sites More sharing options...
Murph Posted January 20, 2004 Author Share #2 Posted January 20, 2004 Also...I'm after the complete wiring diagram for a aus spec 260 2 seater. Any one able to help me out there please? Link to comment Share on other sites More sharing options...
Murph Posted January 20, 2004 Author Share #3 Posted January 20, 2004 Also, is it normal to have a small light up under the passenger side of the dash, mounted to the back of the glove box? Buggers me what it's good for? Link to comment Share on other sites More sharing options...
drunkenmaster Posted January 20, 2004 Share #4 Posted January 20, 2004 I removed my wiring harness just over a week ago, i dearched my pics but i didnt get a clear shot of the box cover, can take one tomorrow night though if its not too late. Link to comment Share on other sites More sharing options...
1 Bravo 6 Posted January 20, 2004 Share #5 Posted January 20, 2004 Well, now, Justin, you just might be in luck mate.I had a film in the camera with a couple of shots left on it so I took the cover of my 8/74 260Z 2 str. then had fun trying to get a suitable background so the white lettering would show up on the clear plastic cover.If they turn out I'll post the pics on this thread tomorrow night.Fingers crossed.Don't think I can help out with the wiring diagram but the glove box in "Precious" does have a light in it, operated by a plunger type switch located top right corner of the glove box. Opening and closing of the trap door makes it go on and off. Ain't modern technology AMAAAAZING !!!!.:devious: :devious: Rick. Link to comment Share on other sites More sharing options...
Murph Posted January 20, 2004 Author Share #6 Posted January 20, 2004 The race is on! Who's going to get their pics up first! But seriously, thanks guys. Your efforts are greatly appreciated! Rick: I have the light in the glove box too, but no hooked up. This light I am talking about is on the back/outside of the glove box! It lights up, under dash, the fire wall and the back part of the foot well. The wierd thing is it did work when I got the car, but now it isn't hooked up, but it wasn't me that unhooked it. Must have been the farkin panel shop... It wouldn't supprise me if I find thing they farked up until the end of time. :mad: Anyhow, there's lots of crazy wiring under there that looks non-standard. Will hopefully have that ripped out/fixed up by the end of tomorrow. Link to comment Share on other sites More sharing options...
Mr Camouflage Posted January 20, 2004 Share #7 Posted January 20, 2004 Originally posted by Datto-Zed Also, is it normal to have a small light up under the passenger side of the dash, mounted to the back of the glove box? Buggers me what it's good for? Mood LightingROFL Link to comment Share on other sites More sharing options...
Murph Posted January 20, 2004 Author Share #8 Posted January 20, 2004 ...for those with romantic toes. Link to comment Share on other sites More sharing options...

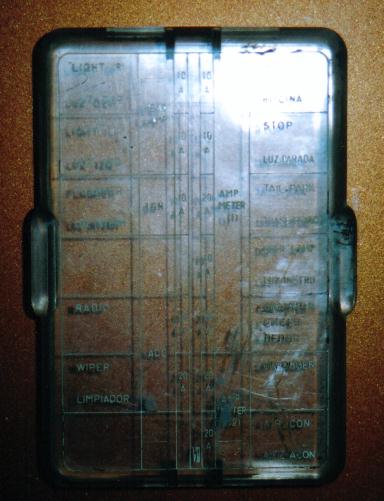

1 Bravo 6 Posted January 21, 2004 Share #9 Posted January 21, 2004 Hey, Justin, Perhaps the light was SUPPOSED to light up the floor area ????. Mate, the photo of the fuse box cover was a disaster. Being clear plastic with white lettering made it difficult for me to find a decent background. Anyway, here it is. I'll follow it up listing the fuse ratings etc. Rick. Link to comment Share on other sites More sharing options...
Murph Posted January 21, 2004 Author Share #10 Posted January 21, 2004 Excellent! Nah the pic is good enough for me to see what I need to see. Thanks again for that.Re: The romantic toe lamp.....do other aussie zeds have them? I sure as hell can't see romantic toe lamp on the wiring diagram in the hanes manual (non aus spec). Link to comment Share on other sites More sharing options...
1 Bravo 6 Posted January 21, 2004 Share #11 Posted January 21, 2004 Stuffed up first time round.Didn't come out the way I typed it. See how I go this time.LEFT HAND SIDE OF COVER.____________________________________________________Light ® 10 HeadLuz Der A________ _____Light (L) 10 LampLuz Izq A_________________________________Flasher 10 IgnLuz Interm A___________________________________________________________________Radio 10 A_________ Acc _________ Wiper 20 Limpiador A___________________________________________________________________________RIGHT HAND SIDE OF COVER._______________________________________10 Horn A Bocina___ _____________________ 10 Stop A Luz Parada___ Amp _______________________20 Tail. Park Meter A Trase. Estac___ (1) _________________________10 Dome Lamp A Luz Instru___ ____________________________20 Cig. Lighter Ensen A Dedor______________________________________________20 Defogger Amp A ___ Meter ______________________20 (2) Air Cond. A Aire Acon_________________________________________________ Hope that's of help to you mate.Rick.No :devious: this time. Link to comment Share on other sites More sharing options...
HKSZ Posted January 21, 2004 Share #12 Posted January 21, 2004 It would have to be out of a guage or a backlight on the cig lighter??Another thought- was or is your car an auto Link to comment Share on other sites More sharing options...
