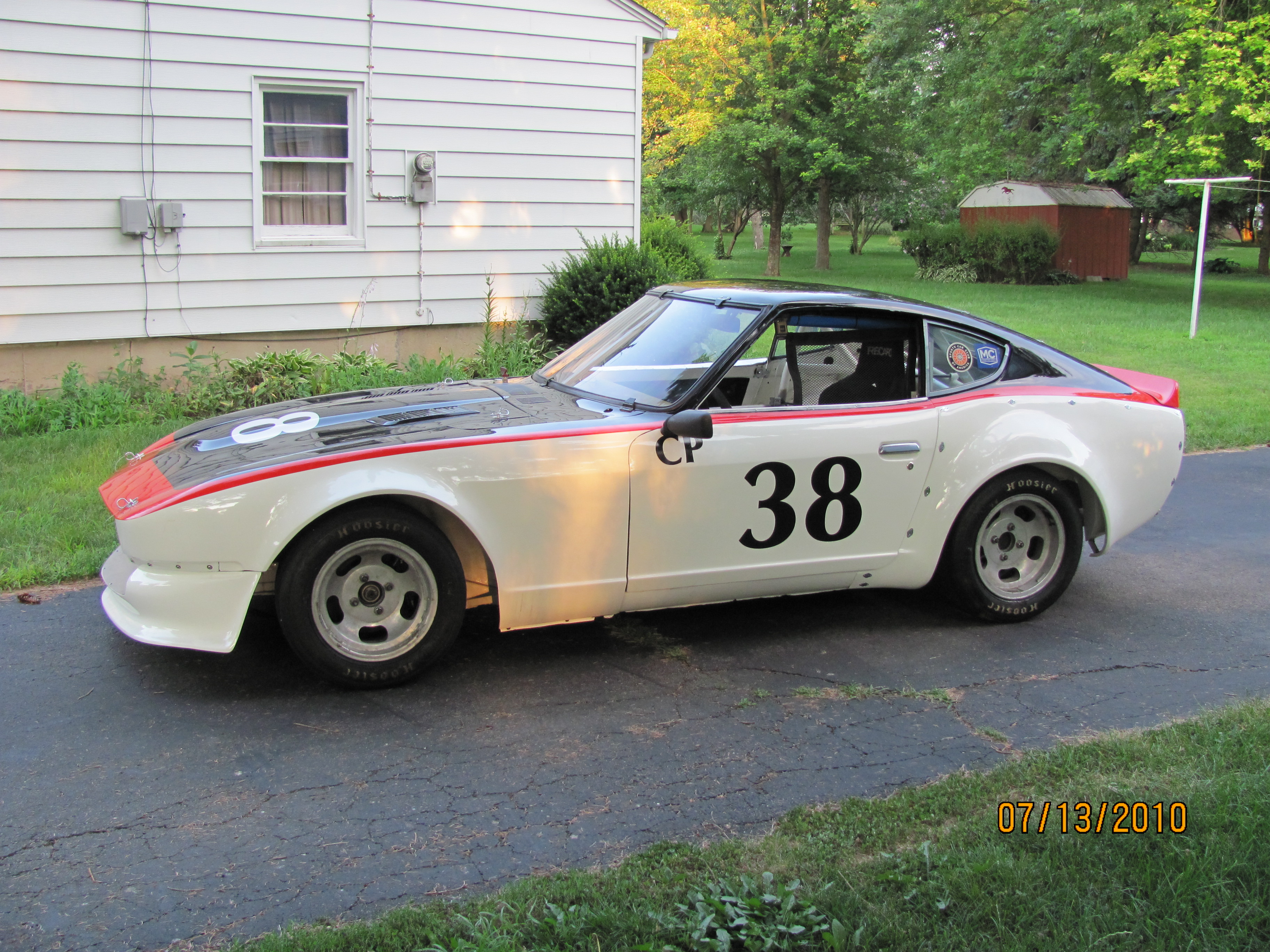

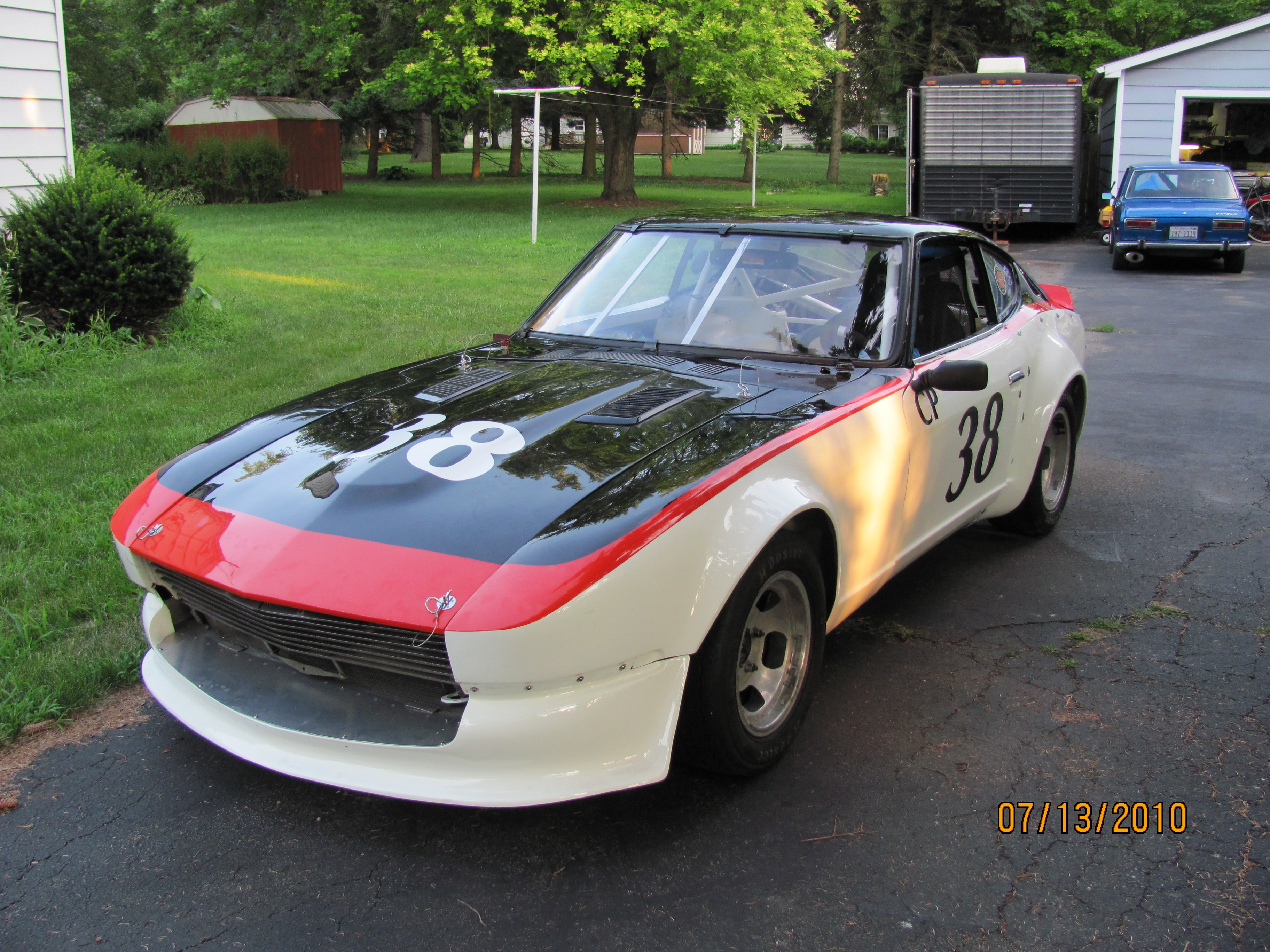

Original 1971 240Z race car. Manufactured in very late 1970 or early 1971. First owned and raced in IMSA GTU, SCCA, Midwest Council through the 70's by Jack Buchinger. Never driven on the street. He took the car to the SCCA Runoffs in 1978/79. Jack raced the car with the classic 240Z drivers like Blackburn, Sharp, Fitzgerald, Newman and others. He sold the car to Larry Landrum who raced it in the 1980's. I purchased the car in 1990 and raced it in SCCA GT2 (the CP class was long gone by then) and vintage. In the last five years the car has gone through a rotisserie restoration (media blasted inside and out down to bare metal), with fresh fiberglass, new Wilwood rotors and calipers, new shocks/inserts, new lexan front and rear, finished in its original race livery, dyno-time only 2800cc race engine (ATI damper, ARP bolts, aluminum flywheel, QuarterMaster clutch, Datsun comp oil pump, water pump pulley, oil pan, and so on). The chassis, electronics and engine were originally prepared for Jack by three of the soon-to-be-disbanding BRE crew members. The cage, dash, gauges are from original race prep. I'll fill in more details, including VIN#, in the future.
- Album created by thannagan
- Updated
- 3 images
- 288 views
-
Gallery Statistics
-
-
Current Donation Goals
-
CZCC FundraiserRaised $95
-
-
Image Comments
-
I know a few people were following along on this- been a while since I last posted here- but finally all came together!
Mounted up and running strong! Still a few details to work out; but runs good, sounds good, feels good on the initial pulls. Super happy it worked out!
-
-
Well I decided to go for it -
Went with 42's and a TWM manifold. Still lots to sort out, but Ill start another thread on it somewhere and link it back here. Rought calculations hopefully put it in between an OER setup and a Mikuni PHH setup $wise.
-
By duffymahoney · Posted
I would probably do them in pairs, then each pair goes to a common shaft.
-
Part of running a single shared throttle shaft was for a super clean look- like how datsun_tokyo linked above has it.
I also still haven’t decided on the manifold- but was planning on the TWM one- seems to be the cleanest and allows me to run without all the linkages.
With that said I’m interested- I’ll shoot you PM.
-
By duffymahoney · Posted
I have common under mount bar mount I could sell you, with either teflon or brass bushings. You would need arms, but it would be the best for actually balancing them. Just a thought.
-
That car is one of the main reasons I’ve even considered this. I have been in touch with him- unfortunately the language barrier is tough. Might need to recruit an old autox friend who is in Tokyo now to translate. The owner of that car did express that he much preferred the HSRs over OERs and that he was never able to find the right tune with OERs. Looking back through his thread he had PHH 50s on there at some point - but that is a very built engine - 3.1 I think with custom head etc.
Did a little more digging and thinking on this last night - I think mechanically the hardest part will be the common throttle shaft - it looks like each carb has 3-5 holes on the shaft. 2 for pins for to hold the throttle stop and accelerator pump levers; at least 1 maybe 2 for the return springs; and the main threaded one for the slide lift. With some patience and precise measurements it’s shouldn’t be to terrible, but not a cheap if you mess one up and have to start over on a new stainless shaft.
-
By duffymahoney · Posted
https://www.instagram.com/p/Czs3Cpqys-Q/?igshid=NTYzOWQzNmJjMA==
-
For the sake of keeping this in the same thread. I found a little more info on the car in the photo- unfortunately it seems the owner passed away last year.
But this post on hybridz says he replaced his Weber 45s and actually saw better gas mileage and great throttle response
https://forums.hybridz.org/topic/64666-mikuni-hsr45/?do=findComment&comment=1229737
“I decided to try my own setup with 6 HSR45 Mikunis. I had previously run Weber 45's. I used the original linkage so that I could return to the Webers if I wasn't happy with Mikunis. Because of the shape of my extracters I had to add some extensions as The bowl of carb 4 was hitting the exhaust. Apart from that it was pretty straight forward with the carbs being quite straight forward to tune. The throttle response is very good and although I wasn't looking for it the mpg ismuch improved over the Webers.”
This of course does not help my decision process… on one hand it says to me it works! But on the other hand it makes me wonder if I should do 45s? I do believe it was a “built” engine but to what extent I don’t know.
-
Gave them a try - says they haven’t done a 6 pack on a Z. But need to follow up with a few questions
-
