new injection manifold


Brett240

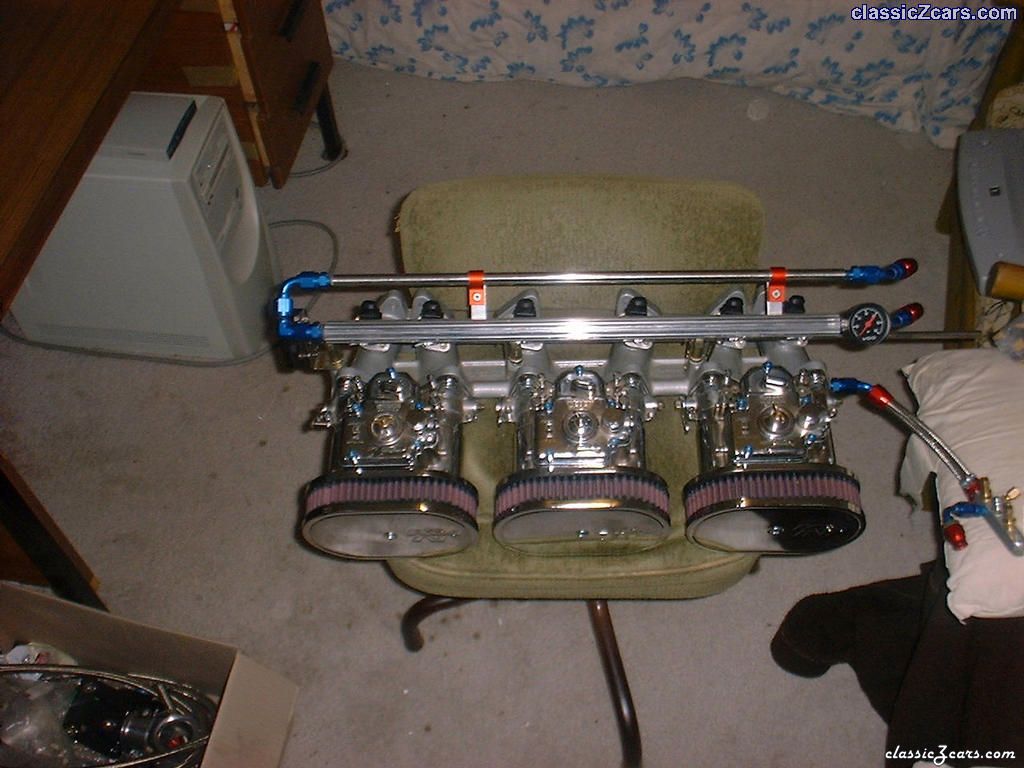

my new injection manifold ready to go on. note fuel injectors plugged into the back of manifold


From the category:

Big Z Photo Collection

· 17,884 images
  • 17,884 images
  • 8,026 image comments


Recommended Comments

very interesting could you please give me some info on this set up. It would be something I'd highly consider myself.

Link to comment

its a standard redline webber manifold with injectors custom mounted into the top. the webbers act only as throttle bodies. The throttle position sensor is bolted to the side and runs off the main linkage shaft. it will just be a matter of hooking up all the sensors, crank wheel, TPS, o2 sensor, air temp sensor etc to the computer and it should be going within the month
