Bulkhead and access panel


panchovisa

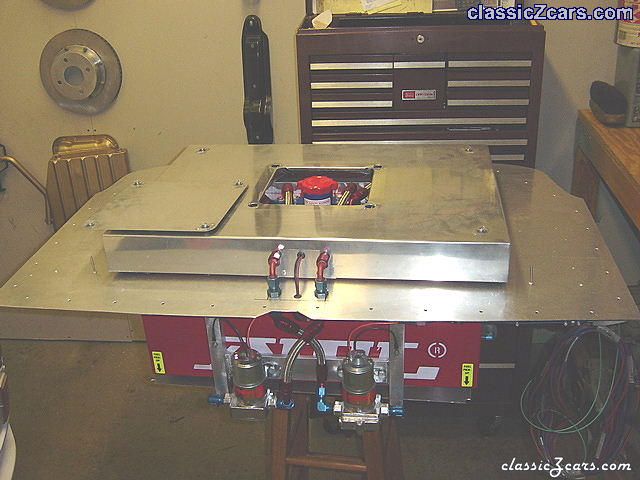

Here is the bulkhead cover (required by racing associations) to seperate the fuel cell from the drivers compartment. See how the fuel lines are closed in by the cover and sloted piece behind cover. No need for bulkhead fittings here that would restrict access to fuel cell. Cover is not fully fitted yet, but will retain the gap to floor panel that will be filled by carpet/ jute. Access panel comes off with 1/4 turn of Dzus fastener for filling.
