The Round or Square one ? It looks like it has a backing on the lens itself, so I'm not sure whats in between them, it may have reflective material or something, Can I make them ? probably not. I don't want to destroy the ones I have to see how it works. Nigel

http://www.classiczcars.com/forums/showthread.php?36789-part-number-for-Heater-Hoses&highlight=heater might help a little Nigel

They look pretty much the same, in the picture the light is behind the top light, that why it looks lighter

the top one is the original

something like this ? This is using the 'cheap' resin, so I can work out the colour (how many drops of red dye to use per 100ml of resin)

What's the saying, Measure twice, cut once... also you will note that the 'red' is not dark enough done the outer light now as well Nigel

Yes, but I did measure it, so I can make them the same Nigel

I can almost see the light at the end of the tunnel.....

A little more progress, don't forget to use a release agent between the two halves, I have some silicon car stuff, it's used to makes plastic shiny. it worked ok on the other mould I made. Nigel

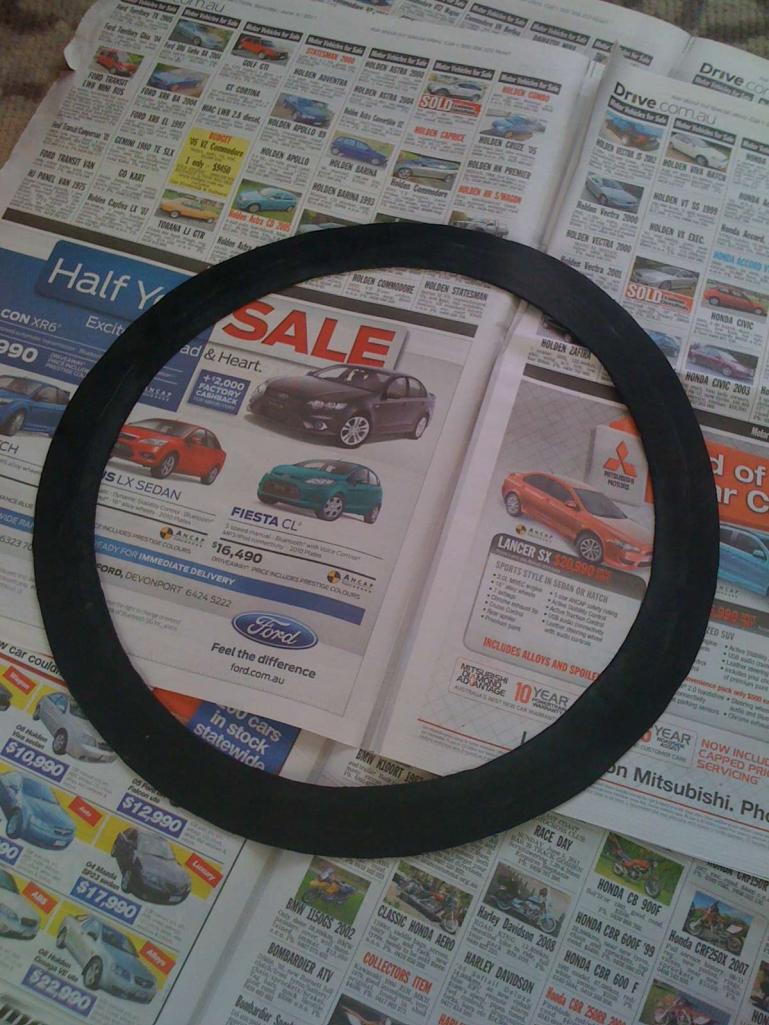

Small problem, the resin once hardened, shrank about 4mm across, this deformed the RTV mould, it was not sitting flat, I'll make a different backing, and see if that fixes the issue.. live and learn... Nigel

A little more progress, the mould martial I used this time is a little more flexible than the stuff I used for the reverse light, so I decided to add a hard backing, made out of resin to stop it from deforming once it's finished. once this drys, I'll work on the other half

I'm one step close to getting my JDM style tail lights, I'll do some more on the inner brake / tail light tomorrow if I get a chance. Nigel

Hi Kent, Do you still have these pictures some where, your links are broken Nigel

I just brought it from his web site,(did not deal directly with anyone) and no, only fiberglass.

I just spent over $650ish yesterday on some flares, and a rear bob tail for my coupe..

I been looking into what 15 inch tyres are available, and there's not a great deal about, especially if you want to stay to the height that the original tyres gave you (185x70x14) the 50 series in 15 inch are equal to the original 14 inch tyres in height, but these are the only one I found so far, 225/50R15 G-Forceâ„¢ Sport BFGoodrich 225/50R15 ZE912 Falken 225/50R15 Ventus HR II Hankook 225/50R15 Ventus Prine Hankook 225/50ZR15 Ventus R-s2 Hankook 225/50ZR15 Proxes R888 Toyo 235/50ZR15 Proxes R888 Toyo I can't find any wider 15 in 50 series, so width will be restricted to 9 inch Nigel

Some more pictures

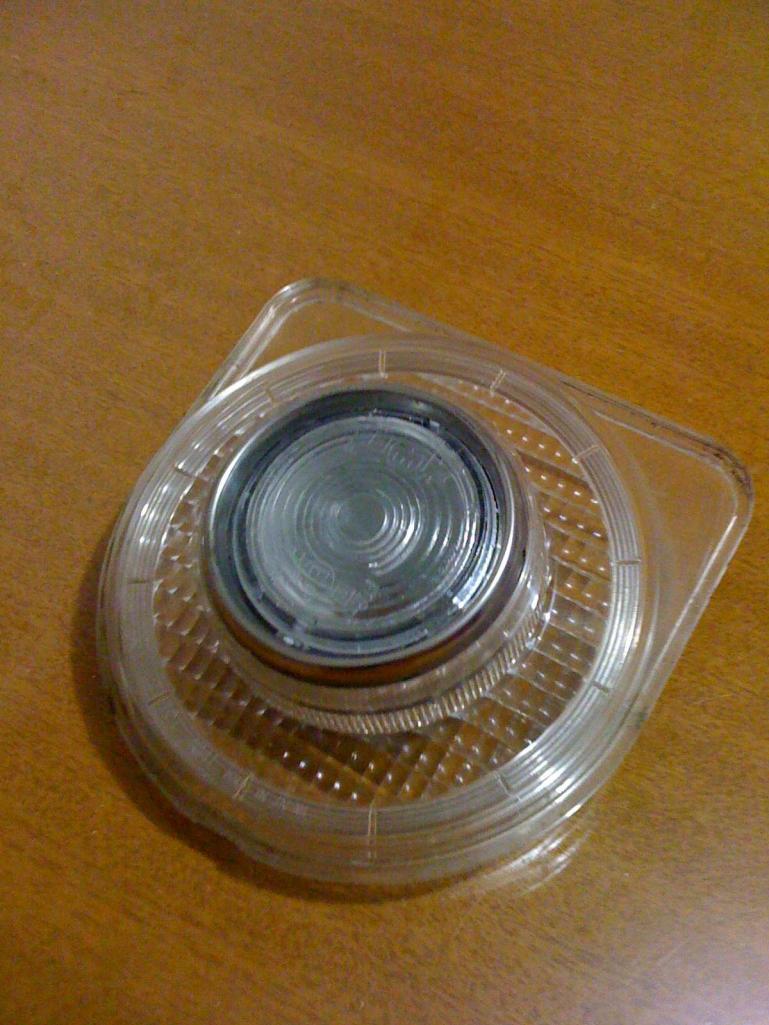

I have made some progress into making the center light, it turned out pretty good I think. also started on one half of the mould for the inner tail / break light. Nigel

Hi, What size rims, tires, offset did you use in the end ? Nigel

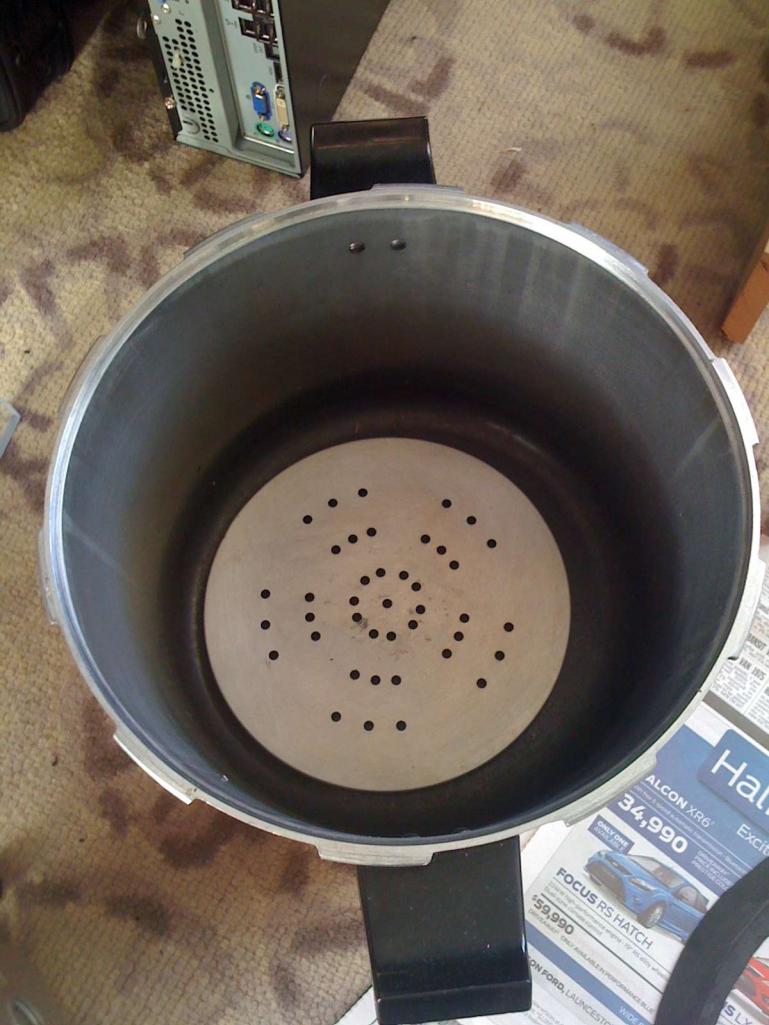

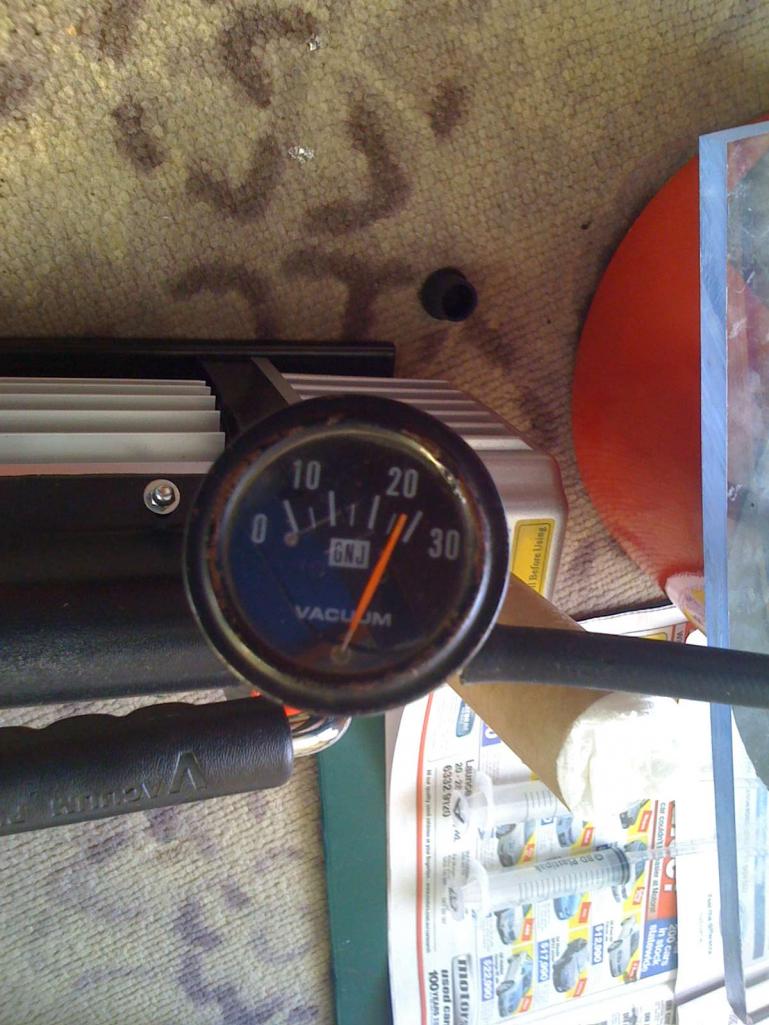

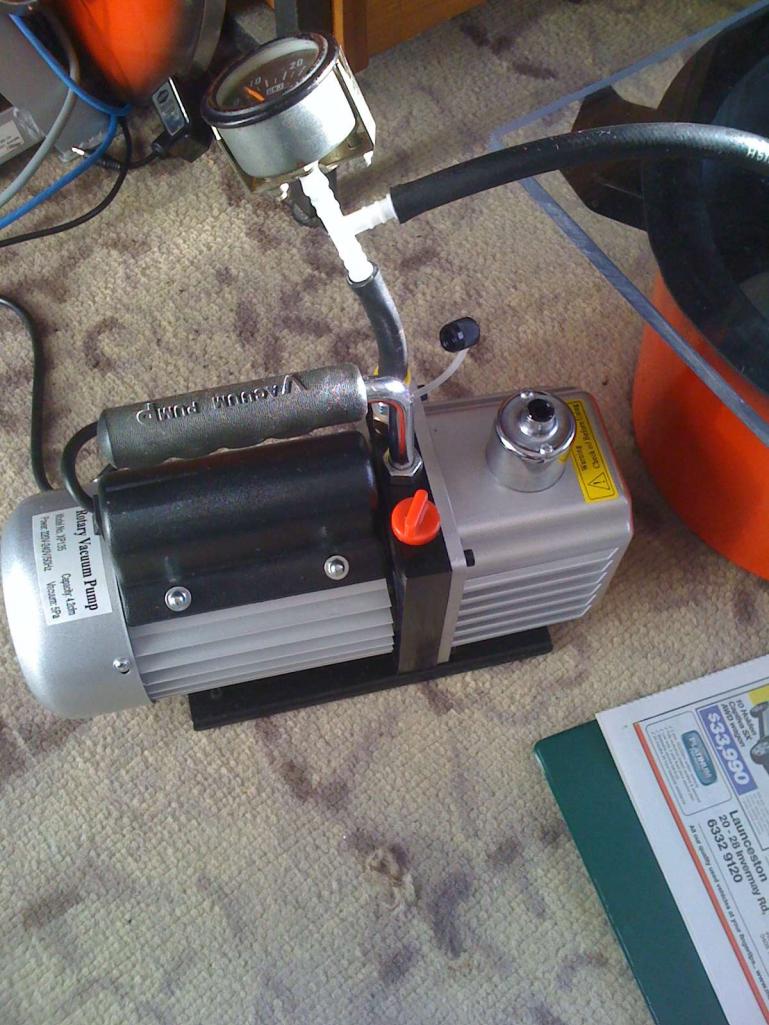

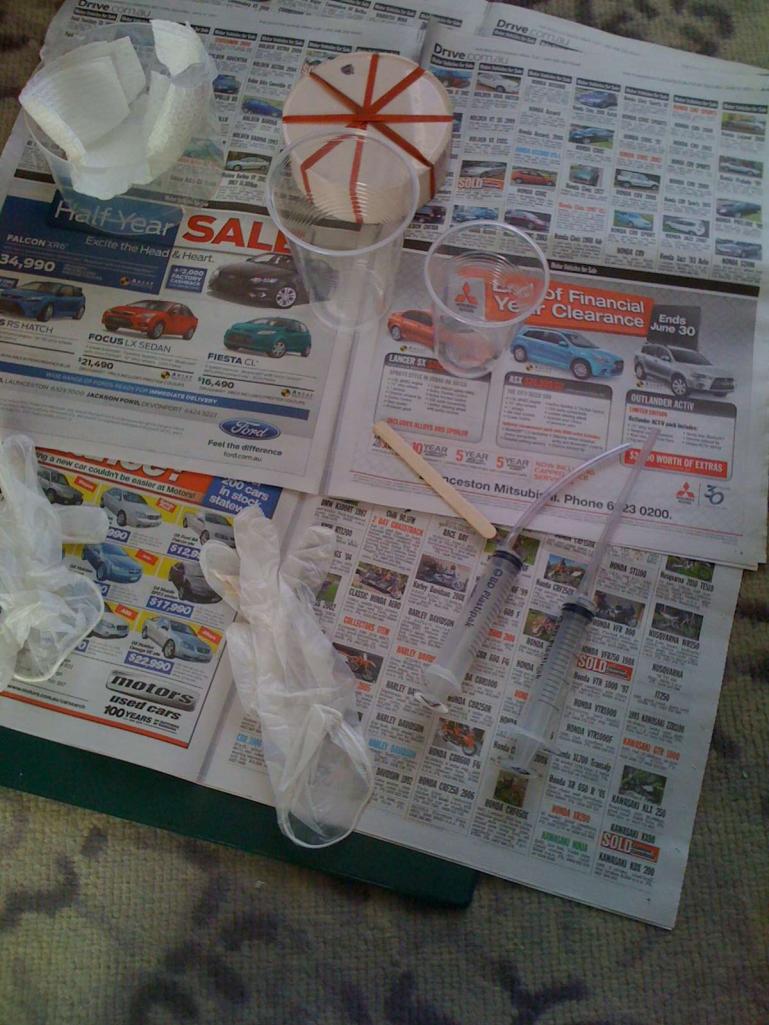

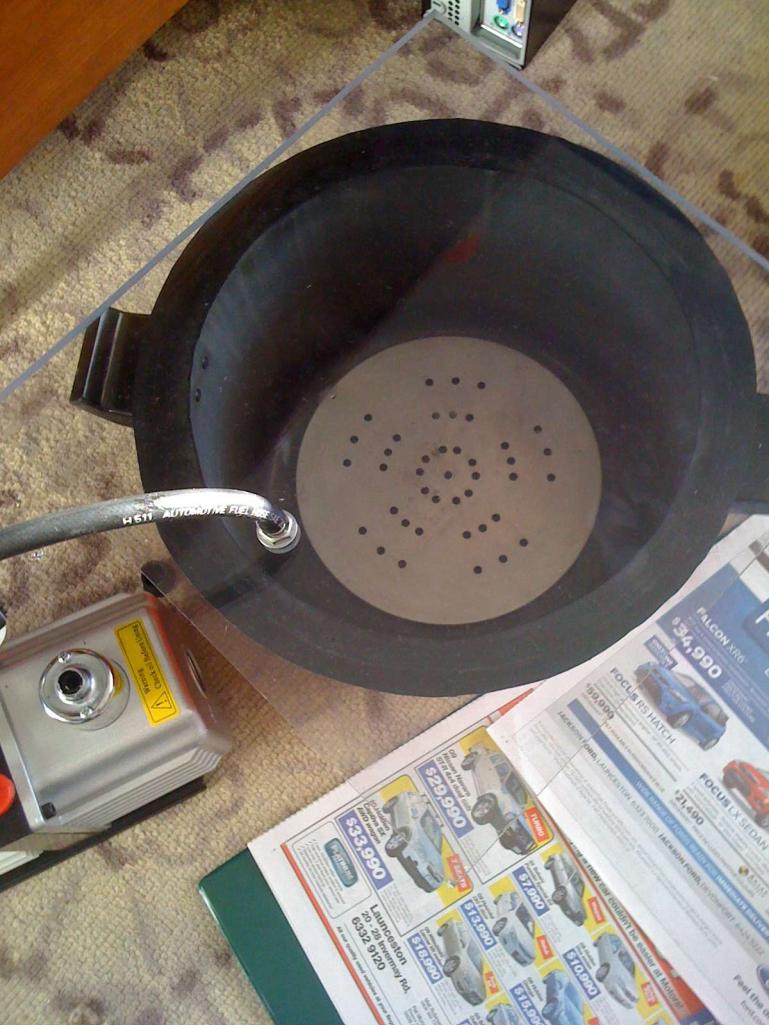

This is my gear, a $10 pressure cooker, a square 10 mm thick flexi glass (I was told it's the stuff they use in excavators to stop the trees getting the driver) a vacuum pump, vacuum gauge, this is the main gear I use, also I can pressurize the vessel if I need to. also I wrote some code to work out the measurement of my resin, sine it's mixed 100 : 88 parts Nigel

Kent, If I was to make something like this, I would make the part out of wood / bog / hard foam / etc., then take a mould of that. I was looking at making the square cornered reflector ( the one on the bumper bar ), but I don't know how to get the chrome finish, I assume these have a chrome finish on the out side ( It's a bit hard to see with your photos, and the ones I have I cant see it either) When I get some more time, I'll take some photos of my gear for you. Nigel

Thanks you for the encouragement. Hopefully they will turn out good, if they do, I'll sell a few of them, I don't see a big market for them, but since I need the mould to do mine, I can do some extras, so it should help some others. Nigel

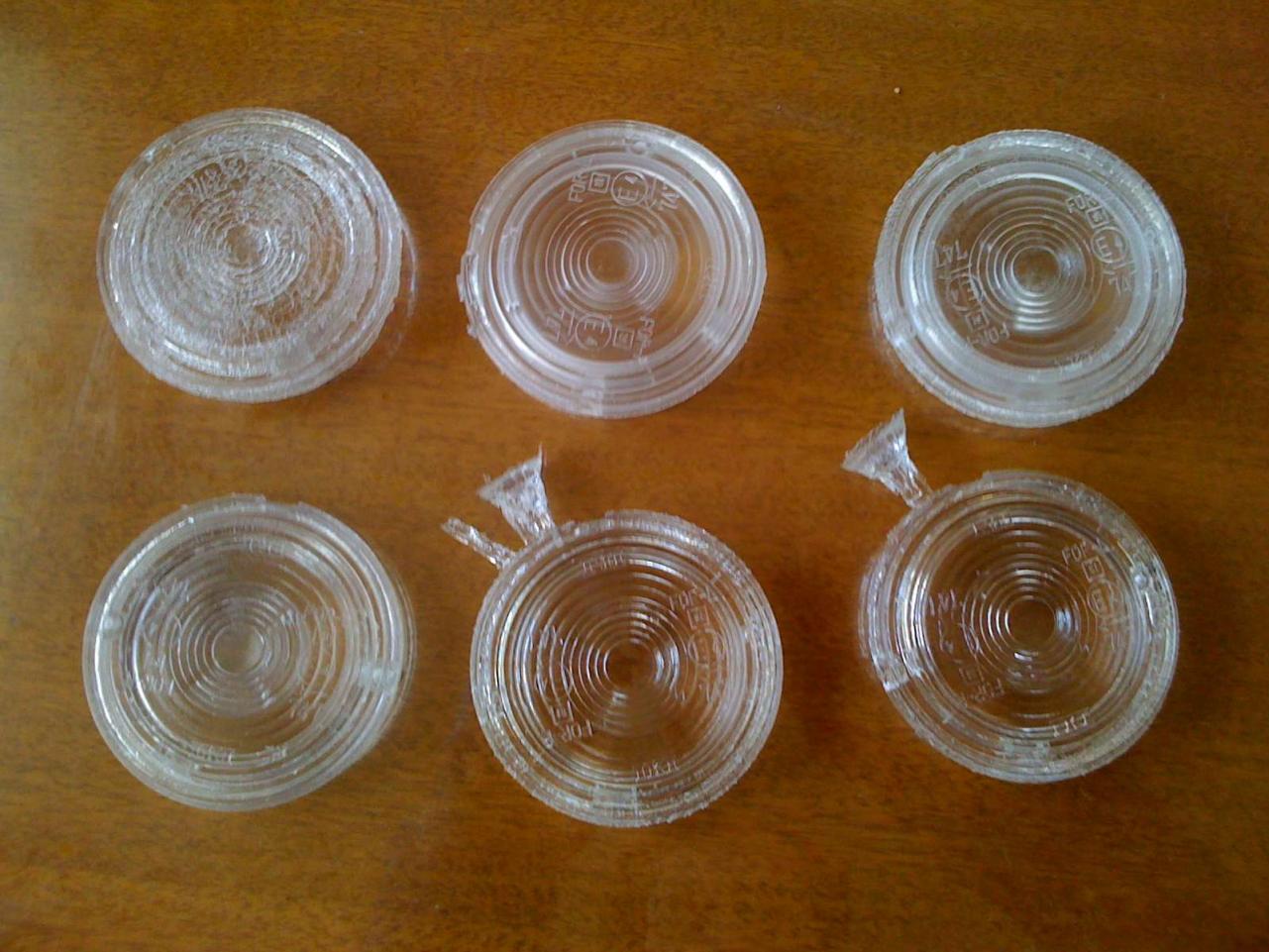

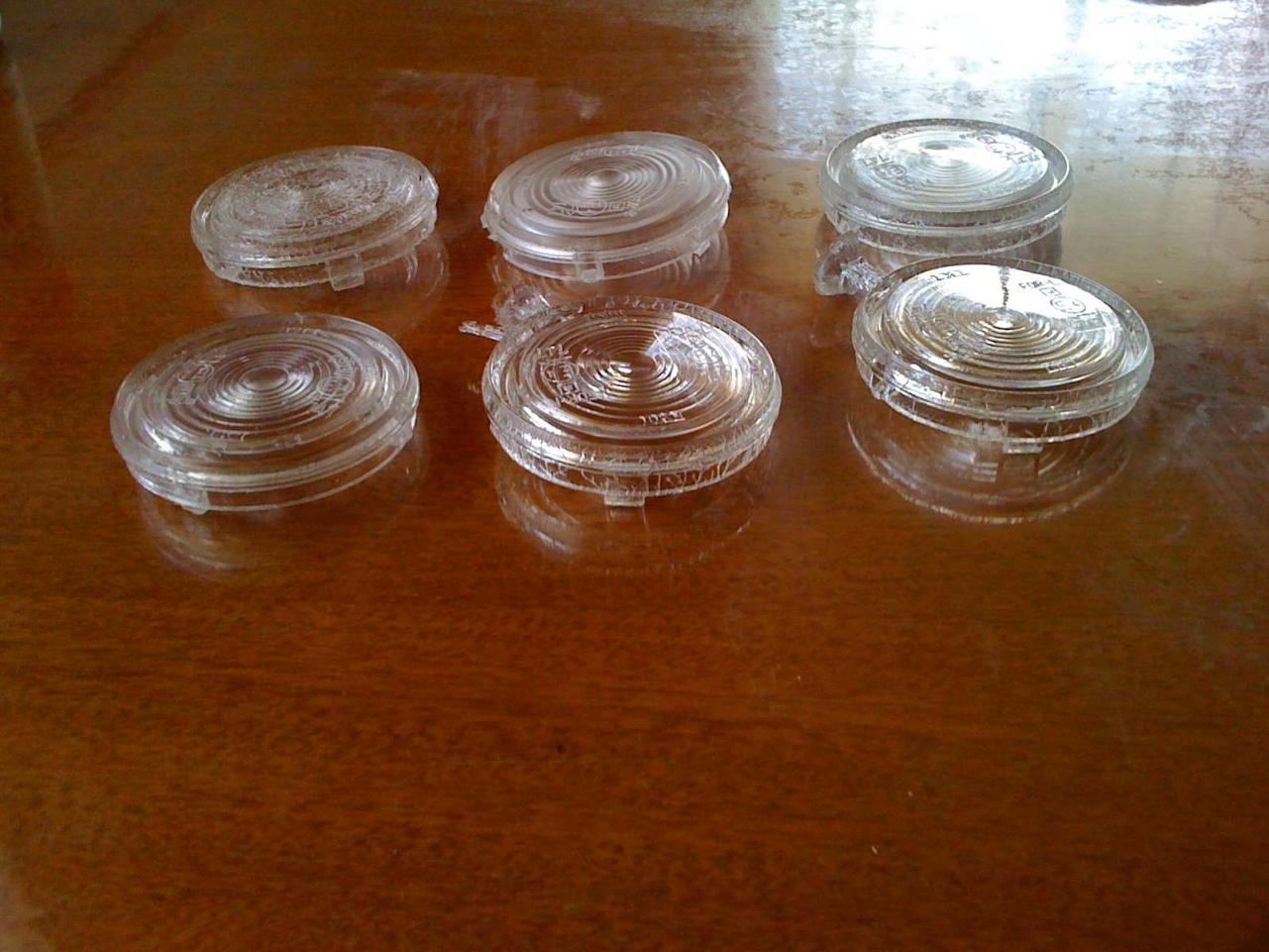

Hi, I'm getting a nice collection now, but I not getting the results I want, so I sent a email to the company that I been buying my stuff from, and it appears I'm using the wrong type of resin, hopefully in the next week my order of "BJB rigid waterclear" will turn up. Nigel

It hasn't got a good smooth finish, I don't think I'm leaving it long enough to set, or not putting enough MEKP catalyst in it. It's cold where I'm working on it ( about 10C ), the next one I'll put it in the oven for 30 -50 minute before I open it. just to make sure we are talking about the same part, it's the clear center lens ( will be the reverse light ) Nigel

This one is a lot better, but not good enough.
