  1. 'Planet USA' thinking. By inference, nobody outside the USA would need to take any notice of what BRE and Sharp were doing locally then? Nissan's Works team rally activities were undertaken on the WORLD stage in competition with the other manufacturer Works teams. Anybody with an interest in world-level motorsport would understand this as significant. Ben is saying that this is largely unrecognised in the USA, especially with regard to the content and specs of the cars involved, and I concur. Nissan never rallied a car in the USA because there was no World class rallying event in the USA to take part in. Not exactly a shining success, was it? And I'd dispute the 'for them' part too. The attention BRE gave to the Baja style events was purely its own. Nissan was concentrating its Works efforts on the Big Three world-class events - the E.A. Safari Rally, The Rallye Monte Carlo and the RAC Rally - through the 1960s, 70s and 80s as standalone events and also - from 1970 - as part of the FIA International Championship of Makes. Manufacturer-backed local activities in the USA were best undertaken by locally-based teams. Why have a dog and bark yourself?
  2. One of those Hollywood snow-making machines would be appropriate at this point. Maybe sprinkle some ice cubes from a local convenience store? Good luck!
  3. I agree about the period Japanese magazines. They are very technical and the access to major players such as Namba san and Takashi 'Waka' Wakabayashi san gave a great behind-the-scenes insight. I still think they held back on some of their activities though. Always lots of secrets! Auto Technic magazine's 'Rally & Rally' special editions were superb. See if you can seek out the 74-11 edition. The European magazines did get hold of some cars to test. Autocar magazine (UK) were allowed to borrow Rauno Aaltonen's 1970 RAC Rally car '695' after the event, and clearly it was very tired. Not surprising really. The journalists didn't seem to know too much about the spec of the car and the team probably didn't tell them much either. There are some mistakes and misapprehensions in the article. Echappement magazine (France) tested Aaltonen's 1971 Monte Carlo Rallye car '985' and it is a little light on detail and spec but has some great photos. Autorevue magazine (Holland) got hold of '988' (just after it had been used as a Recce/Fast Service chase car on the 1971 Monte) and similarly it is a little light on detail, with some nice photos. I think the team staff were playing their cards close to their chests with regard to some of the details of the cars. Perhaps understandably.
  4. That period of Japanese Dunlop radials - especially the 'SP Radial' series, which was a key branding product for Dunlop Japan on road cars - was designed to run either with and without tubes. There are some good technical articles covering them in the period Japanese specialist press (especially Auto Technic and Auto Sport magazines) and they were certainly pushing the 'Tubeless' philosophy. However, for sure the Works team were running with tubes some of the time. It probably made puncture repair turnaround faster at remote servicing. I use tubes in my original Kobe Seikos when fitted with Dunlop CR65s, but it is the tyres themselves which let the air out! They are supposedly a Tubeless design, but I see no harm in using tubes. Old Magnesium wheels can become quite porous, so best to inspect and treat on a case-by-case basis. Generally speaking I tend to suspect the rubber is at fault rather than the wheel unless the wheel is a repeat offender. The Japanese Dunlops had a really good reputation in period. Nissan's Works team manager said they could not have done so well on the Monte (against rear-engine, rear-drive/front-engine, front-drive cars with their inherent traction advantage) or won the Safari without the Japanese Dunlops. In fact one or two of the UK-based drivers 'acquired' several sets for their own personal use...
  5. The BRE Baja 240Z and the Nissan Works rally 240Zs have no connection whatsoever. Two completely different things. The most commonly-used tyre on the Nissan Works rally 240Zs was the Dunlop (Japan) SP44, with the PW51 and PW72 also used for snow and ice stages, usually fitted with spikes.
  6. No doubt that's what was involved in making it, but both Izumi and Nissan called them 'Wood Rim Steering Wheels' so I think it fair to follow suit. So, high-pressure moulded, heat-cured, oriented strand wood fibre (quite a mouthful), but certainly 'wood'.
  7. My 'autopsy' wheel is from a 4/70 production-dated car, and the hoop measures consistently at 7mm all the way around. Conjecture: I wonder if there was a production change where a smaller rod was specified. Could it have been related to safety, as was the change from solid to pierced spokes? Your customised wood rim wheel is based on a pierced-spoke wheel, right? Well we are going to have to agree to disagree then, because what I have in front of me has a readily-observable grain structure which follows the circular shape of the wheel. I don't see grain 'laying all over the place'. It seems to weave in an out of itself like rope, and where it hits surface layer after the glossy (varnish?) coating is worn away it has texture too. That texture is quite distinctive. Obviously the tooling required a split line between its two halves and if you look closely you can see that, but it is very well disguised. See the tooling split line in the RH side piece above? Here:
  8. The 'hoop' on my 4/70 steering wheel - as seen in the photos on the first post of this thread - is mild steel bar and measures at 7mm. 6.3mm seems a strange - non-standard - size? I would imagine it being far more likely that they would use a readily available standard size, no? I don't know where this talk about wood "powder" and even "sawdust" comes from. There is an easily-observed grain and structure to the wood material used. That grain follows the shape of the wheel circumferentially. There are no readily-seen end joins. In a way it is rather like wool, where short strands of carded wool are spun together to make a continuous thread. The wood fibre used here seems to have been processed in something of that nature. Yes, it is not a traditional wood-rim wheel in the way that your custom-made version is (we have already covered that) but it IS wood.
  9. A couple of extra comments from the Bring-a-Trailer auction that I think are worth saving with a screenshot. "...simulated wood, not real wood." As the old saying goes, 'You can lead a horse to water, but you can't make it drink'...
  10. Yes Kats, you beat me to it. The Z-1 Service Shuho was my next card... Instead I'll show another Japanese market sales brochure, this time the late 1971 large format booklet that introduced the L24-engined HS30, HS30-S and HS30-H models alongside the already available L20A-engined S30 and S30-S models and the S20-engined PS30 and PS30-SB models, giving a seven model lineup at that time. Again, a light-coloured rim (better for photos?) and described (No.16) as 'WOOD RIM STEERING WHEEL'.

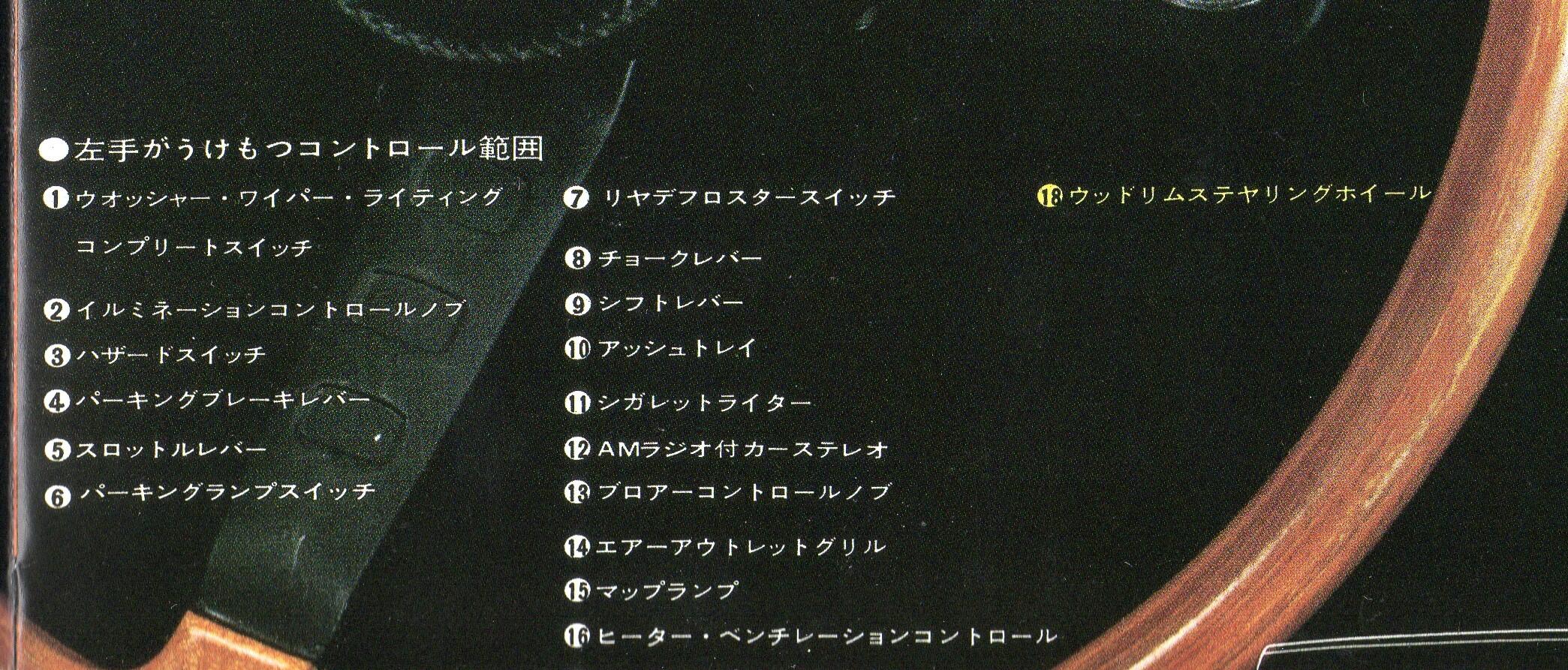

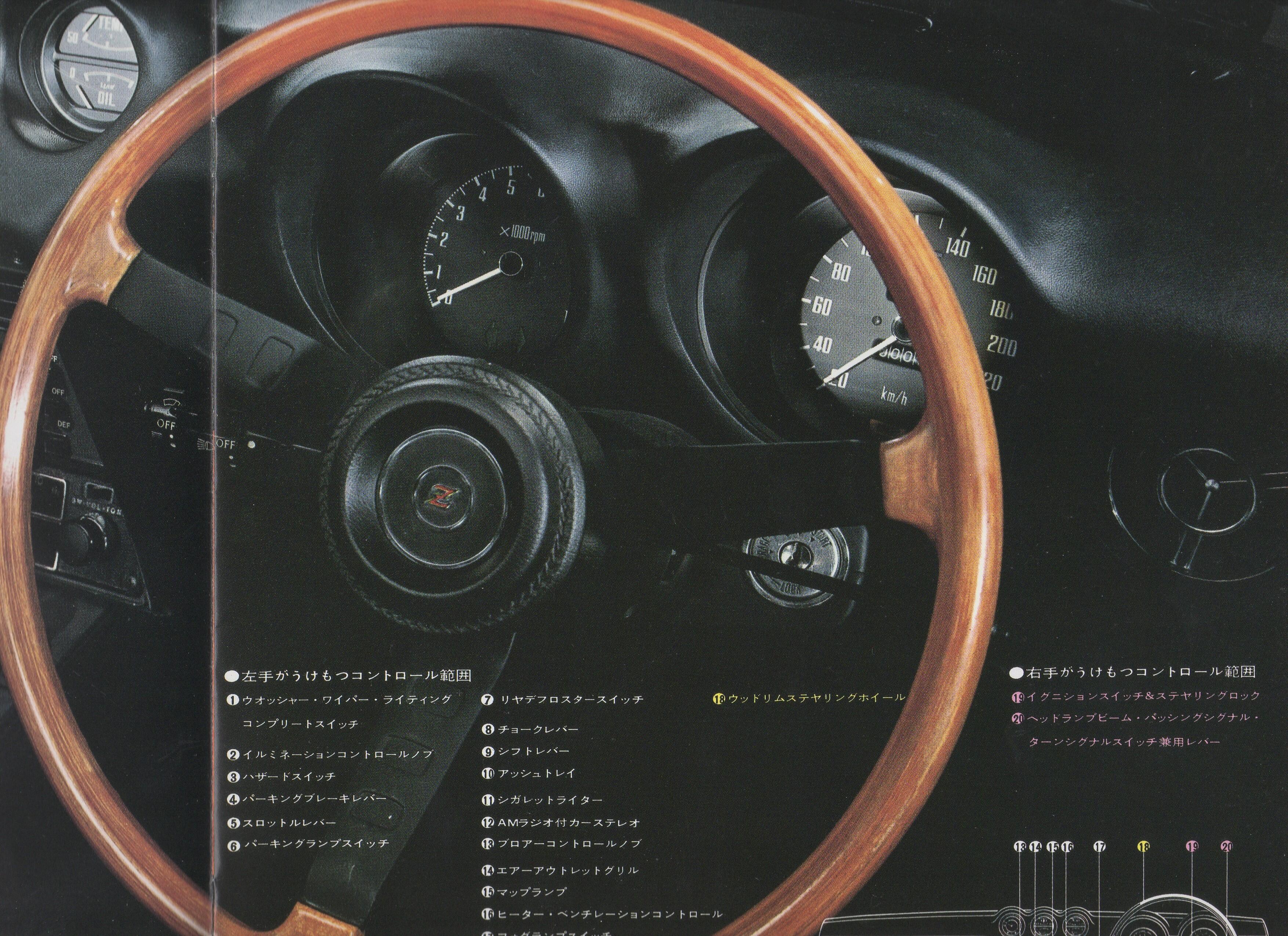

  11. From the 1970 Nissan S30-series Fairlady Z model range brochure. 'INSTRUMENT PANEL' double page picture and dash layout explanation. Item No.18: Written in Katakana: 'WOOD RIM STEERING WHEEL'.
  12. I suggested Indian Rosewood earlier, but Walnut seems very likely too. Izumi would surely have needed a good, uniform quality, supply. We have noted rim colour differences - lighter in the early factory publications - before on this forum. I'd consider giving a sample to a wood expert or scientist for identification/appraisal, if I can find one. Izumi themselves - of course! - could have answered just about every question we have here, but contact after the Autoliv takeover might make asking difficult.
  13. You might be advised to qualify who you're talking about with the "feels like plastic" thing. You left plenty of room for crossed wires. And sorry if I come off as "feeling superior". Don't want to step on your toes for that mantle.
  14. "...so good that the final product seems like plastic."
  15. Are you sure about that?
  16. No need for details in that context. I think pretty much everybody is familiar with bentwood furniture and the general concept of materials such as MDF. Part of my job involves sourcing and exporting vintage 20th Century modernist furniture, so I'm up to speed with the processes and materials that 26th-Z was referencing. I don't think I need to explain any tongue-in-cheek banter between myself and 26th-Z to you either. I agree with you about the art (or perhaps craft...) but if the final product really does seem like plastic to you, then I can't help you. I think it is bizarre for somebody to look closely at one of these wheels, look at the photos on this thread, and still talk about 'plastic'.
  17. Already covered in post #6 of this thread, I'd say. Izumi - and Matsuo san - mentioned that the wood was processed in 'fibre' (conjoined strands, oriented lengthways) form. It is not a solid piece of wood in the way that traditional, mostly hand-made wood rim steering wheels used to be. The only hint (and it is only a hint....) of any seam or join I can detect is on the inside edge, where I think there is a faint line. It may be some sort of mould tooling joint line, which would make sense. Just such a view is visible from the photos in the first post. The final photo homes in on an imprinted 'negative' of the welded joint between a spoke and the outer steel hoop. There's still 'grain' visible, but the impression of the welded joint is pushed into it. You can also clearly see the dark and smooth area where the wood material was pressed around the main part of the steel hoop. I would expect the steel spokes and hoop to conduct more heat than the wood and the resin, and we know that the mould tooling itself was hot. That seems to be one of the things that affects the surfaces most in contact with the metal. I already did this, with two results. First I burned a section with the outer (shiny, dark) layer in situ and got grey smoke and a distinctive smell. Then I chipped off some of the more obvious wood inner and burned that on its own. Much lighter smoke and a very typical burning wood smell. The burned black wood can be used to write and draw, like a piece of charcoal. The material is incredibly tough. It was hard to remove from the steel rim (although it was not adhered to it) and difficult to split the material into smaller pieces. It wants to split with its circumferential grain and it is very resistant to breaking across it. It makes me think of some sort of hardwood, like Indian Rosewood.
  18. Good stuff Ian, thank you. Looking more closely at the CSP311's wheel, it does indeed look very similar to the rim type used on the S30s. I saved this photo from the Silvia that sold in Australia last year, and which shows some partial de-lamination (sun damage?) of the wheel rim which is quite revealing I think:
  19. Some more photos from my 'autopsy'. This time from the outer surface of the rim where 50+ years of use has worn through the outer layer and revealed a naturally-grained surface below it:
  20. I hear what you are saying, but I'm still going to push back. Izumi called these steering wheels 'wood'. They had already been making moulded plastic steering wheels - as seen on earlier, more utilitarian Nissan models - for many years. They would not have bothered using wood/wood fibre unless they were going to make a point of it. There were plenty of other - synthetic, readily available, repeatable - materials available for them to use as the reinforcement component, so why wood fibre? The answer is staring us in the face. It was because they were engaging is mass-producing something that would otherwise be regarded as a hand-made item, as seen from contemporary specialist makers like Bluemels, Springalex, Moto-Lita, Nardi, MOMO, Les Leston and their ilk. They used wood because they were specifically making wood-rimmed steering wheels for these cars.
  21. Ha ha! I'm always hopeful, but not so sure. I think we will see people talking about "plastic" steering wheels for many years yet. I still see Goertz getting credit for something he never touched (including the MF10 Toyota 2000GT). Excellent! And the president had such a great classical name too, almost like from a Taiga drama. So we can see where the 'Izumi' name came from. Thank you! One of my key motivations with this thread is to somehow give due credit to Izumi for their fine work. And yes, I do think it is fine work. When I think about it, I don't know how they managed to make these steering wheels for Nissan at an acceptable cost. There's a lot of processing in there. Many of the parts suppliers for our cars were independent companies who specialised in their particular fields, often to an almost artisanal level. I have seen this many times in Japan. Such companies still exist, but their craftsmen have been retiring and/or dying out whilst bigger companies gobble them up. It would be sad to think that companies like Izumi came and went without people like us - who literally lay hands on their work when we interact with our cars - even knowing their name.
  22. It's a dirty job, but somebody's got to do it. Seriously, that's just the type of rivet-counting that we need to be doing here at classiczcars.com. Here today, gone tomorrow posts on the likes of Bring-A-Troller and Farcebook are just not good enough. There are plenty of things still to be understood regarding the S30-series Z, and plenty of myths still to be dispelled.
  23. I think these 'collector's items' are worth saving for posterity: I must say '71Zcollector' is my kind of guy. He knows plastic when he sees (and feels...) it and he's sticking to his guns. That's the spirit!
  24. My *guess* - informed only by what I see - is that there must have been some sort of finishing performed on the outer surface with a coat of lacquer or varnish. When you sand them down you typically see an outer layer of clear, after which you get into the organic material. I can't imagine they would come out of the press tooling with a 'finished' rim. That would be too clever! The other thing I note is that the steel part under the rim is bare metal, not painted. Therefore I think the spokes and centre were painted black after the rim was formed around the steel hoop part (high heat involved) and that may point to a certain amount of rim finishing being necessary too. Seems very likely, but I wonder if - given the CSP's 'premium' nature - Nissan upped the quality on it and specified a more hand-finished wheel for it? It certainly looks more 'Italianate' than the stock SP/SR wheels, and very Nardi-like. Is there a split line/joint in the CSP's rim?
  25. This whole forum is about "Japanese cars". This thread focuses on a component which was made in Japan by a Japanese company using an innovative and (evidently) somewhat obscure process, and which is - clearly, repeatedly - misunderstood. And blinkers? I suggest you might like to pay some critical attention to those who want to tell us that these are "American cars, Made In Japan"... Rather than "calling out anybody who doesn't agree with..." me, I'm interested in getting to the truth. My eyes and ears are open to learning and every day is a school day. If robust, reasoned debate is a little too upsetting for you then by all means bow out. The whole point of this thread seems to have whistled over your head at around 1,500 feet. I started it in response to yet another "they are plastic" statement on Bring-a-Trailer. You are guessing - as predicted - at the resin to wood content percentage, stating a generality as though it applies here. Of course, you're probably not far off, but - as I predicted - you are guessing just the same. I'm going on what I see in front of me. Feel free to chip (see what I did there?) the rim off one of these steering wheels and tell me what you see in front of you. No need to count the rings or get into dendrochronology though. Just a natural response to organic-derived matter will do. Yes, Straight, no spin. The rim is - I'll say it again - made from wood. Wood (hey, Cellulose!) plus a relatively minor content of resin of some sort (ironically, very likely to be cellulose-derived too) and not majority "plastic" in the sense implied by the people I'm kicking back against. You yourself are nit-picking by trying to refine this any further than that. How about you stick up for Izumi some?
