i installed the GM HEI modules and still no spark.

thanks. got it. will look for igniter tests.

I dont have a FSM. is it online somewhere? The ignitor has a good ground to chassis. There is 12v +/- in and out on wire to coil, with wire on the coil i see 8.5v at the coil. there is ground out to coil. I have disconnected the wire going to the interior from the ignitor. to the tach i think. i heard a bad tach can inhibit start up. true? what else?

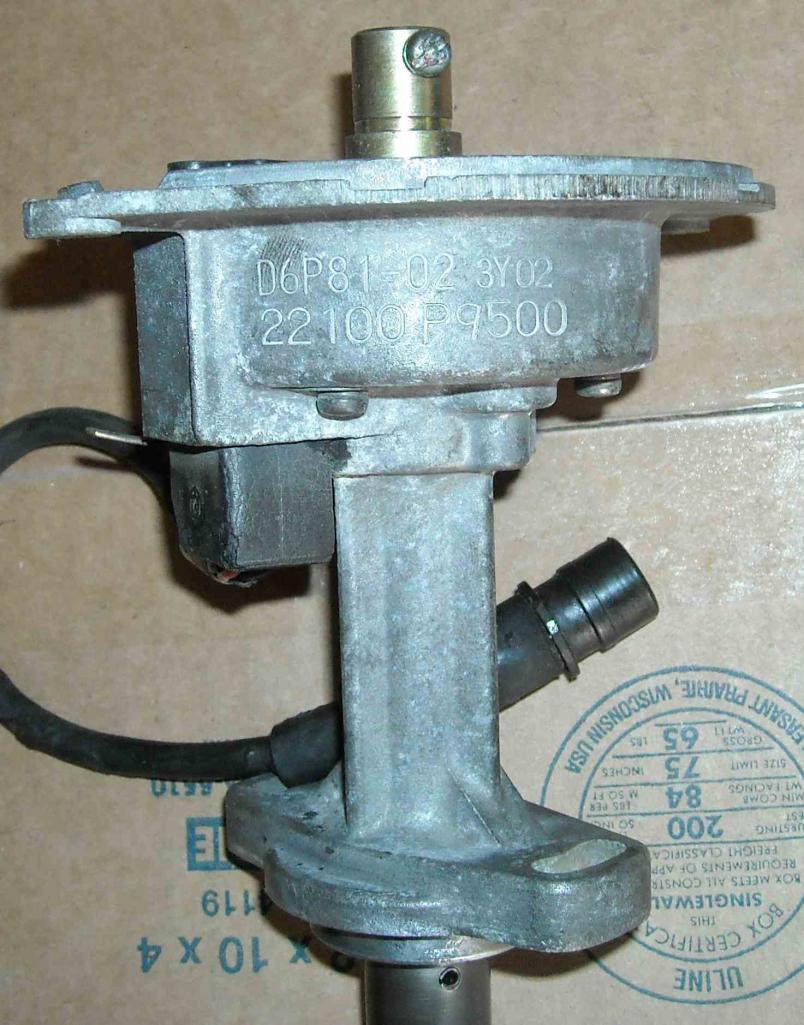

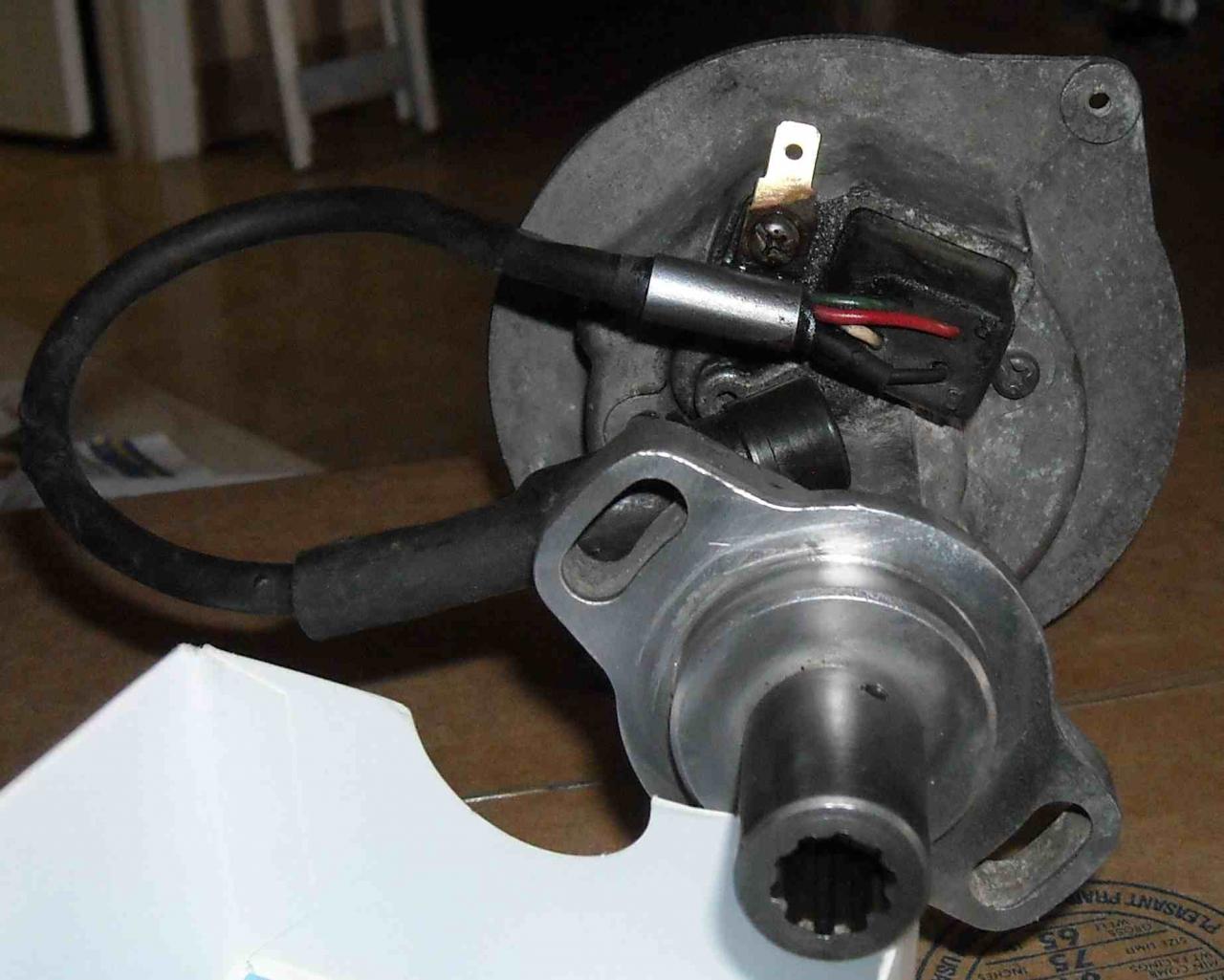

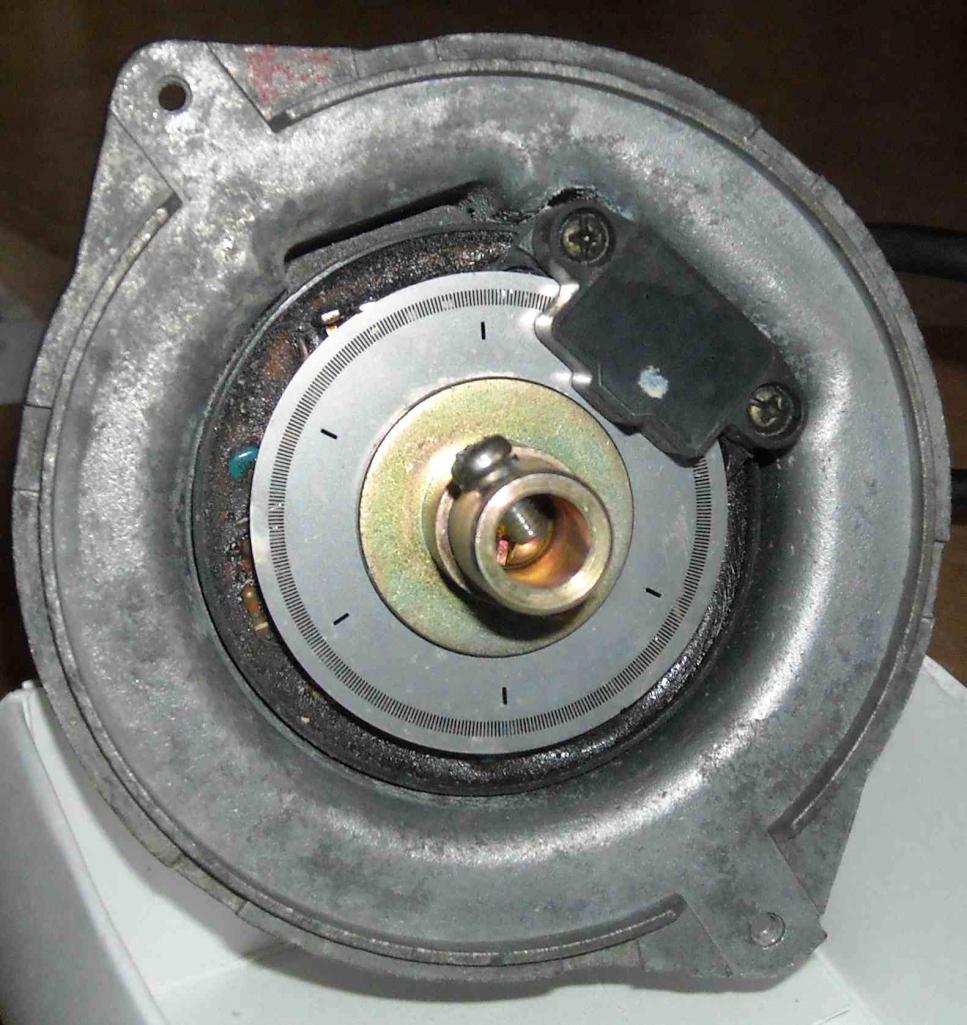

thanks for any and all help. i have worked on cars 45 yrs but this has me stumped. i have a 240z with 1983 280zxT engine. it has run great for 10 yrs but wont start. starter cranks and i hear the fuel circulating in the lines. i see no spark with a plug out against the block i cant see ALL the numbers on the car dist w/o a mirror. but i can see D6P81-02 and 22100 i see no external controller like on the N.A. ? i couldnt get a reading on the eng temp sensor by the oil filter so i bypassed it w/ a jumper. i dont have the FSM. I have an old Haynes Following the Haynes procedure p.125-127: 1. plugs, wires, and connections look fine 2. rotor and cap look fine 3. multimeter is fine. 4. no spark from coil wire to ground 5. battery has 12.5 v 6. 1 mo old battery passes load test at 10.4v 7. less than 30k ohms between the 7 wires and the cap 8. ign coil secondary R is in range at 8800 9. power supply at dist connection is 10.4v, it's under spec of 11.5 for N.A. bad? - connection by injector is clean, harness is undamaged. what else? 10. power supply at dist while cranking : cant do it alone. 11. ign primary circuit: 4.8v ? 12. ign coil primary R: 1.5 ohm which is above limit 1.02 bad? 13. Dist ground, battery to chassis, neg bat connection: 14. pickup coil R: can't reach operating temp 14. pickup coil output: can't reach operating temp i bypassed the ign with a wire from coil + to battery + i get 1 spark from the coil output to grnd when i connect that wire to the battery. i replaced the rotor and dist cap i have checked continuity from the R and B wires to the coil i dont know where the G and W wires go. my Haynes wiring diag is of no help. it is a jumble of lines over several pages! i think this leaves the only the pickup and angle sensor circuit inside the dist? i found a spare T dist. same numbers. they seem the same. Is my next step to try swapping the pickup? if that fails, try the entire spare dist? in case i have to remove the dist: in Haynes i see 20°+/-3 but it says 1982 is adjusted with the external crank angle sensor. nothing said re the 83. i dont see an external crank angle sensor on my eng and the dist has adjustment slots. is the 83 adjusted by the rotating the dist?

Jack asked: " can I re-plumb without Vent Tank and Hoses?? I look forward to receiving advice from Carl Beck and others. " In 2002 I did that and have had no problem. I can provide pics for those interested.
