Everything posted by Kyle
-
backfire through carbs
Dashpot oil; if it's too thin or too low, the dashpots rise too fast, killing air velocity, leaving a gulp of fuel in the intake, ka-BOOM. Leastways, the backfire is the way I know I need to add oil. :-D Too lean will make that happen as well, probably for a similar reason.
-
Possible replacement for Hitachi carbs?
I've got SUs on a 9.5:1, port, polish, balance, cam, header, etc setup. They're fine. If you're considering going away from SUs, the only place to go is EFI in my opinion.
-
280ZX trans rebuild instructions?
Hello again! Trans: 8 Kyle: 1 It's not back in the car (need to get a couple parts), but the problem was obvious when I pulled the front case off: When the mainshaft nut backed off, it let some slop develop in the roller sleeve for 1st, which let the 1-2 synchro slide back and forth on the mainshaft (a definite nono). Slop was probably .030 or more... allowable endplay in second gear (the smallest spec) was .0047 to .0075. So, in other words, I had SEVEN TIMES as much slop as allowable. And it appears that the sleeve for first is VERY tight on the mainshaft, so when I tightened the mainshaft nut in my several attempts a halfassed repairs it didn't move; instead, the additional load was applied to the 5th gear synchro, which I have a sneaky suspicion was fit together incorrectly. All in all, a VERY successful day of babysitting (stayed home with my one year old while wife and four year old took off for the day). Got the garage straightened out so I had a place to work, took the beastly trans apart, found the problem, and now have it 90% back together. Got several feelings from this: 1) I'm the man, and can fix just about anything 2) when I put my mind to it, otherwise I'm a wuss and things don't get done properly 3) which is really pretty stupid since I wasted a lot of time halfassing.
-
Sizing up Clutch kits
Carl Beck, my man. Long time no type. I have an OEM clutch kit in my beastie, and it's been 100% trouble free. It didn't seem like bullet-biting price at the time, maybe $225 for the disk/pplate/TO bearing. Agreed on the TO collar, that's WAY important.
-
Maybe I'm too much of a purist, but...
Other than the 4bbl (BTDT) and the 17"s (way too big, wrong offset, and not enough tire), that thing is HOT. I'd rock it fa sho.
-
Good sources for Suspension Techniques springs and Feedback on same
I have ST springs, full PU bushings, and KYB 4-way adjustable strut cartridges. The car is WAY TOO STIFF for street use. At least, it is if you're 30+ years old. Struts have to be set full stiff in the front and 3/4 in the back to dampen oscillation (horrible in the front especially) On the other hand, I just took it to the track and kicked major arse, so I guess it's a great compromise. Ride height is, uhh, I dunno, here's a pic. http://www.sonic.net/~kyle/kylez.html Before getting bitten by the track bug (and before restoring the car and forgetting how much fun it is to drive) I always planned on swapping the STs out for something else, Euro progressive maybe. Now? I'm happy. Plenty happy. :-D
-
280ZX trans rebuild instructions?
Linky is still working on my end. Holepunched and bindered. I'll tear into that damn thing this weekend or next. So far the standings are: Trans: 8 Kyle: 0 but we'll see about changing that.
-
Tracking again, need inexpensive brake improvements
Hey hey guys. Motor - hee hee, I have learned much since I built it; back then I had this inexcusable insistance on a 9.5 CR. So I put a thick HG in to bring it down from 10.5+/- (L28 +1mm flattops, N42). Guess what that means? (muwhahhahh) I have a big CR jump just a HG change away. Had plenty of power though, so I'm going to leave that (and megasquirt) on the to-do list for the time being). I got the ZX FSM, so I'm going to give the trans one more shot. You guys know I can R&R the tranny in half an hour. The brakes did develop a little yaw toward the end of the day, but there was no other untoward behavior from the system. I was floored by how well everything worked out. I did have the fluid along just in case. Stickier tires are indeed on the agenda. Current tires are 215/60HR15's, Michelin Pilot XGT (?). I was askared that they'd be awful, since they didn't feel great on the street. But they held up much better than other guys in our group, and had plenty of grip for the day. Evidently chewing up the treadblocks got to the "good part", because they were still plenty sticky when I got home. When they wear out, I'll go back to 225/50, and I'll get some good street/track gumballs... probably won't go full race for just track school days, which is all I'll be doing for the foreseable future. Car isn't built to any spec for real racing anyway... and it's too pretty for wheel-to-wheel. But speaking of race tires, I took a ride with an instructor (at the insistance of my wife and buddies who swore these guys were the biz) in hit Dodge Stealth turbo. ya know what? Other than envying his race tires, I felt pretty gratified - I drove the same line (more or less) used the whole track just as much, and overall felt like I knew what I was doing. Man, what an ego boost having my BMW/Porsche/Ferrari/Mercedes etc friends trying like hell to keep up with me. "Dude, that car is FAST!" Hee hee. No, it's not fast. But it handles well. And more importantly: It brakes AWESOMELY!! Couldn't have done it without you guys in this thread.
-
280ZX trans rebuild instructions?
A-ha! http://carfiche.com/manuals020/cars/82_datsun_280zx.zip The entire FSM. Sweetness.
-
Tracking again, need inexpensive brake improvements
Hey Marty- When I went five+ (?) years ago, it was a blast, and I swore I'd do it more often... then life intervened, and whoa, I restored the car and quit driving it. For SHAME! (hahaha). Next run is 9/6, but I probably won't make that. I have to get the trans replaced beforehand. http://www.classiczcars.com/forums/showthread.php?p=183454#post183454 Then it's 10/13, still at Thunderhill, then Buttonwillow on 11/13. I'm going to shoot for both of those. We shall see what happens. Best news of all - my wife is HOOKED!!!!! I got promoted to group B (only one as far as I know - I really was Da Man out there, and that's not my ego talking), so my wife's talking about running the Z in group A.... Or taking her Volvo wagon (which would be pretty sweet). I could see quitting work and just chasing from track to track for the rest of my days. Damn it's fun.
-
280ZX trans rebuild instructions?
I got the fiche, thanks. The tech tips are helpful, and a great link. What I'm really looking for, though, is step-by-step reassembly instructions. I know I have something subtle incorrect, and I'll be damned if I know what it is. Thanks for the links!!
-
280ZX trans rebuild instructions?
Anyone care to share the appropriate pages from the ZX manual on how to reassemble the five speed? I did it by eyeball four years ago, and it was great. Then the 5th gear nut backed off. After tightening it back down, I couldn't get the car in gear (binding on the mainshaft). After loosening it a smidge, it won't stay in second on decel. After retightening it, it's binding on the mainshaft. I have omitted several tighten/loosen stages... but it wasn't right, no matter what I did. Eventually I gave up and put in a junk monkey motion 4spd. Well, it finally bit the dust, so I need to get my 5spd fixed before the next track day. I have all new synchros, bearings, etc. I'm betting I lost a key/ball bearing somewhere. I really would like to gix this myself, and not resort to opening my wallet for a shop.
-
Tracking again, need inexpensive brake improvements
And I'm back. Brakes worked GREAT! GREAT!!!! GREAT I TELLS YA!!!!!! I had no fade, no sponginess, no issues whatsoever throughout a hard drive up and back and five 20 minute track sessions. I also managed to be faster than everyone else in my group, with the least powerful and oldest car. I am now an official track junkie. Thank you, that is all.:beard:
-
Tracking again, need inexpensive brake improvements

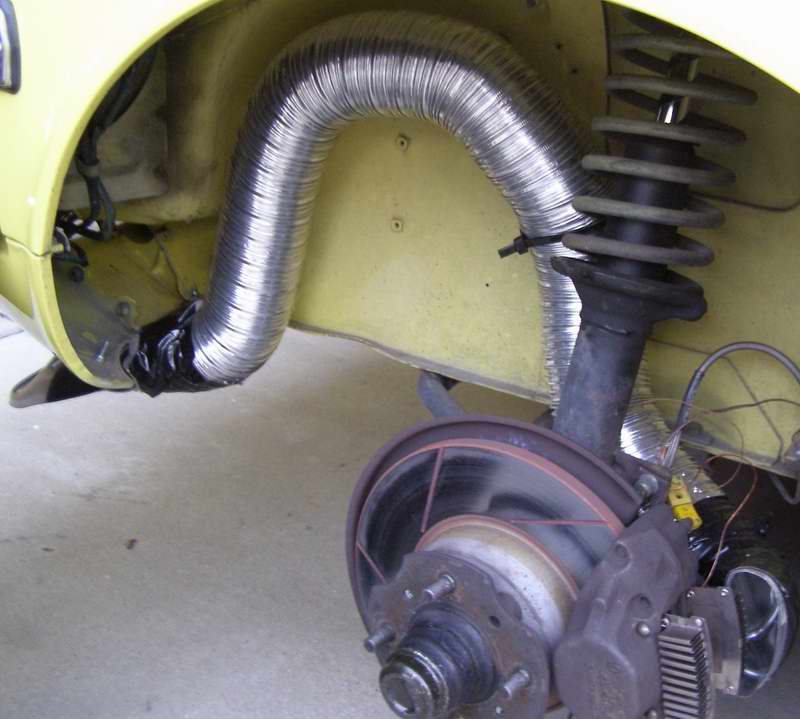

Update: Installed pads, fluid, coolers, and ducting yesterday. The Fade Stop Brake Cooler clearance was extremely tight on the outside, less than 1/8" to the wheel. They are Panasport 15x7, zero offset, non-racing. Just an FYI, they fit but barely I used a single 8' piece of corrugated extendable 3" tubing as suggested. I taped the ducts to the spoiler with 20mil plumbling PVC table (super thick and super sticky). The caliper side, I poked a hole in the ducts, reinforced with some more tape, and ziptied them to the brake line at the caliper as suggested. I didn't use any kind of rigid outlet duct. Routed as in the FSBC seller's image, there's no interference, though things are pretty tight in the area of the caliper to frame to swaybar... hence ditching the outlet ducting. And that stuff likes to unravel if not kept completely circuilar. :paranoid: At full lock one way, the ducting kinda aims at the tire/rim area, and at full lock the other way, it aims cloer to the caliper body. I don't figure either are going to be an issue, since most racing is nowhere near full lock. If I dive in and go AX, I might revise things... though AX speeds probably aren't high enough to be an issue. The ATE super blue fluid is KILLER. Made bleeding the brakes extremely simple; with a transparent bleed hose, you can see the fluid go from brown/tan to yellow to green to blue in a couple pumps. The HP+ pads are excellent. Bite isn't the greatest when cold, but certainly no worse than my old worn out parts-store cheapies. When warmed up, these things are NUTS. Now I need bigger tires! Oh, and no noise yet (I was repeatedly warned that noise can be an issue with these). I used a grease-type (as opposed to the drying RTV type) brake anti-squeal between the pads and anti squeal shims, between the shims and the coolers, and between the coolers and the caliper pistons. I'll be breaking them in this week, off to the track Thursday, and I'll report back on Friday or Monday. So far so good, I'm really happy with the way things turned out. Nice to think that ~$300 on OEM brakes can perform so well. Quick question on the rear brakes, if you can help - I think the right rear locks up before the left. Can I just loosen the adjuster to compensate? As far as I know, the pads are clean and dry and equally worn on each side...
-
Tracking again, need inexpensive brake improvements
Hey guys - I knew about the 4x4 brake upgrade, but somehow managed to forget about it in the interim. Vented rotors would sure be a plus. Well... we'll see how this stuff works. It's surely going to be better than last time out... if I get the racing bug, the 4x4 thing might be the way to go.
-
Tracking again, need inexpensive brake improvements
The ebay seller just sent me this post on HZ: http://forums.hybridz.org/showthread.php?p=661318#post661318 Looks like good data. With the testing, feedback here, and the "gotta do something" vibe I've got, I went ahead and bought a set. Should be here next week... pads/fluid/coolers/ducting, should be good to go. If not, I'll just slow down. Hahahah yeah right!
-
Arizona Z Car Brakes/Suspension
I got some stuff from AZ Zcar, though for the life of me I can't remember what. Good folks.
-
Tracking again, need inexpensive brake improvements
In spite of $150+ seeming like a ripoff for the FSBC, the results seem hard to argue with... so I'm investigating. Drilled rotors are a no-no, is that correct? What about removing the backing plates? Would that allow the rotors to radiate more heat, or would that lead to deformation of the rotor? I have a feeling that good pads and fluid on good stock brakes might be all I need; I used junk fluid and pads last time out. But there's no substitute for strong reliable braking. Thanks for any thoughts.
-
Tracking again, need inexpensive brake improvements
Got the HP Plus coming from Summit. Any sources for the fluid at a good price? I might be able to score something local, but ya never know.
-
Tracking again, need inexpensive brake improvements
Thanks guys. John, I saw your comments re: brake ducting in another thread... I sent you a PM with some questions. As far as pads go, I've looked into Hawk HP Plus, tirerack has 'em for $70, and I think I saw other online vendors a few bucks cheaper. However, noise has been raised as a concern... so if I'm buying street/track pads that I'll hate on the street, why not just get track-only pads and change'm out when I'm done? Axxis Ultimates sound pretty good, but I don't see them for the 240Z. I'm having a hell of a time finding vendors that sell this stuff for the 240Z; most only have OEM replacements and maybe semi-metallic upgrades. Any love? As far as the ducting goes, with 15" panasports and the vague cool air from the airdam, should I just leave it be? I have a welder and some fab skills, so I could make some cooling stuff if I knew what I was aiming for.
-
Tracking again, need inexpensive brake improvements
Hi guys - long time no type. I'm taking my Z to Thunderhill for a track school day, which I've done before... this was pre-restoration, and pre-engine rebuild. With maybe 150HP, I was hitting 130 and having a scary time stopping after the first couple laps. Well, now I've got more like 200HP, and I haven't done a thing to the brakes. Stock rotors, calipers, drums, wheel cylinders. Only mod is SS lines. Master and calipers were rebuilt about ten years ago (wow, already!), and I'm using cheapie pads. Rear brakes are in excellent original condition, and surely I must have replaced the shoes at some point in the last thirteen years of ownership. I have a BRE spook replica on the front, with brake ducts, but they don't lead anywhere; I'm considering fabbing some ducts to the backing plates out of 4" dryer ducting. Anyone have any tips, writeups on this? I'm also thinking some better pads would help immesurably. The car gets driven VERY rarely, and on the street when it does. So I'd like something with good cold performance, low dusting, and good (to very good) hot performance. Life is not an issue, nor is rotor abuse. I've read Hawk HPS to be good street/track pads, but am interested in your ideas. I think pads and ducts are all I really care to invest the time and money in at this time, but I'm certainly interested in other ideas. Time is of the essence here - track day is 7/27, leaving me two weeks of prep time.
-
Amp gauge / Efan, charging or not?
Hey guys- I have a stock electrical system in my 72 240, with the addition of an electric fan. The amp gauge sits at ~10A when running, goes to ~30A (on a 45A gauge) when the EFan kicks in. Tuesday, I was out driving in stupid heat, and the fan ran the whole time (as did the AC, heh heh). Now, when the car is running (fan off) and the battery is partially discharged (from idling with the fan on, or starting up, etc.) the gauge shows about ~20A. When the fan comes on, it DROPS to about 10A. Basically, it's behaving like the alternator can put out only 20A now, and if I try to ask for more, it goes into limp mode, dropping to 10A. Does that make sense? What should I look at as far as culprits go? Is 30A too much to draw off the stock alternator continuously? Should I just install a one-wire 100A alternator and be done? And if I do so, will the stock amp gauge still work? So many questions....
-
ZXT intake questions...
It just might be secret VoVo-MoJo, since none-a YALLS got it going. I'm totally mystified by the slow adoption of MS in the Z community, it really is the coolest thing since ... since ... well, probably ever. Am I the only one who thought, "ya know, there has got to be a cheap easy way to control exactly how much fuel is injected at exactly what engine parameters"... with a free laptop, I can change my fuel and spark as I drive how frickin cool is that? (very is the correct answer) I was putting an Efan in my volvo (also controlled by MSnS!) and got one for my Z as well, from a Taurus. Did not fit. Looked like it might fit if I didn't have AC, but no go regardless. So I said, "dagnabbit, I gotsta do something" and put in the dual 12" fan I'd previously given a half-hearted attempt at installing. a little trimming to fit between the framrails, and I was golden... NEVER runs hot, even idling in 100F weather with the AC on. So I never did track down why it was happening. Could still be a motor mount I suppose, but the car is running solid right now so I'm not going to mess with it. Other than completely changing the fuel induction, I mean
-
ZXT intake questions...
Sheeeeeezus, and you think <b>I'm</b> not observant? The Volvo, link in sig. Took out the stock Kjet (mechanical) and replaced it with LH-jectronic intake manifold, injectors, throttle body (etc) from an 86 740 Turbo. Hooked up MS to it, started first try (really). Then converted to MSnS (megasquirtNspark) so the little $140 U-bild-it box now controls timing and fuel according to my vacuum/rpm maps. It's currently in the garage with the front suspension and oil pan off, I'm adding a T3 turbo and intercooler (also from the 86 740T) to it. It'll go from 107 HP stock to about 200, should make for a fun daily driver. The sky's the limit on boost with the old Volvos as long as you have good fuel management, but the transmissions start to die at about 250HP (manual) 300 (auto), so I'll try and keep things alive. The MS install got me better mileage and economy and drivability over the Kjet, I'm figuring on the same for the Z.... I always loved my SUs with the stock-ish engine, but they don't seem quite happy with the upgraded powerplant. WOT power is killer, but it's a little grouchy in the lower revs... and I've learned SO much MSnS'ing the Volvo, I know what it can do as far as taming the beast.
-
ZXT intake questions...
Hahahah Carl, you slay me No sweat, I wandered over the zcars.com and got the answers I needed. Strangely enough, the ZXT intake really does have the EGR running under the plenum like that. Wierd stuff. Anyway, he's going to get it all welded up, then I'll try to sneak out to the garage to megasquirt the thing. I am SO impressed with it on my other car, it's nutso. And I just thought you guys were being quiet on the list, how was I supposed to know? Nobody tells me NUTHIN.
