You couldn't afford not to buy it at that price!

I'll guess $3500 !

Nice , I look forward to following your progress!

Nice! That is the first 2+2 that I can say I really like. Would have been better off to go with an RB 25 or 26 In my opinion, a Zed has to have a straight six! Look forward to watching that episode of Gas Monkey!

Just an update, got my new Alternator from Rock Auto, turned out its a GM part and my old new belt is too long! Quick trip to NAPA for a shorter belt and all is well, showing a good charge on the gauge and the car is running more strongly and idling better. I'm thinking that whatever problem I had was causing a weak or intermittent spark problem. Thanks to all who offered their input! Mark

That's gorgeous!

Just ordered one from Rock Auto, says it's a reman Hitachi unit. $79 CAD to my door! Can't beat that! As an interesting side note, I drove the Zed to work today and the Amp gauge was steady as a rock! Slight dip into - side when TS on. So....intermittent problem? The readings I got with the multi meter definitely show a problem so I will replace it and see what happens!

No I didn't know that a Maxima Alt is the same, will check onthat! Thanks

Not quite that simple, no ZX alternator available IN CANADA! At least no new or reman one. Searching for a rebuilder here in Edmonton.

Just heard from Dave, looks like a faulty alternator. Should never be more than 15V off idle , the range should be smaller as well. Off to Napa later for a new alternator!

New belt, no slipping, gauge still fluctuates. The brake light in the gauge cluster is dimming and brightening as well. Measured alternator output at the source and it is varying between 13V and 16V at idle increasing to about 18V to 15V with increased revs. Internal regulator problem I'm thinking.

Ground wire attached at correct point now, no change, going to replace the belt this afternoon, but I'm beginning to think it's something else. It's just that after I tightened the belt the first time, the gauge performed normally for a short drive before starting to fluctuate again, and is now fluctuating in a narrower range! It is hard to tell if the belt is slipping, it is a toothed belt not a v-belt and might be making a very slight squeal at idle , but the noise does not get worse when revs are increased. Belt for 19$ is a cheap place to start.

Quick update. Dave replied and I have the ground wire connected to the wrong spot. He also says a slipping belt will cause the gauge to fluctuate.Will correct these tomorrow!

I agree that the belt seems to be the cause.When I say fluctuate, I mean it is going stop to stop as far as the needle can move! it is not possible to tighten the belt further , I sent Dave an email, we'll see what he says! I have to get to bed, work at 5 am! Will pick up a new belt tomorrow, a cheap easy part to replace, Thanks !

All wires are secured properly, I snapped this pic before finishing install. ZX adapter is plugged in , impossible to install incorrectly. Gauge performed normally with old externally regulated alternator, only after new alternator was installed did gauge go wild. Immediately after tightening the belt, the gauge performed normally, but started to fluctuate intermittently during test drive, slowly but surely returning to a full time fluctuation. I will send Dave an email I guess. Thanks for the input.

Spoke to soon, test drive revealed the gauge behaving normally for a while, then fluctuating wildly again.I'm thinking that if the belt has been slipping for a while, it is worn and now slipping all the time. Does anyone agree that a slipping belt will cause fluctuations in the Amp gauge? Time for the MSA alt. adj arm and a new belt I think.

Well..... i got my son to tighten the bolt on the alternator while i pried on it to hold it in position. That seems to have done it! the gauge is behaving normally now, apparently a slipping belt will cause the gauge to fluctuate? Seems to idle better too! Going for a test drive!

This is how I've had it wired . The gauge fluctuates. I am tightening the belt as it seems too loose. Is there another way to wire this?

Yes the ZX adapter plug is installed and external regulator removed

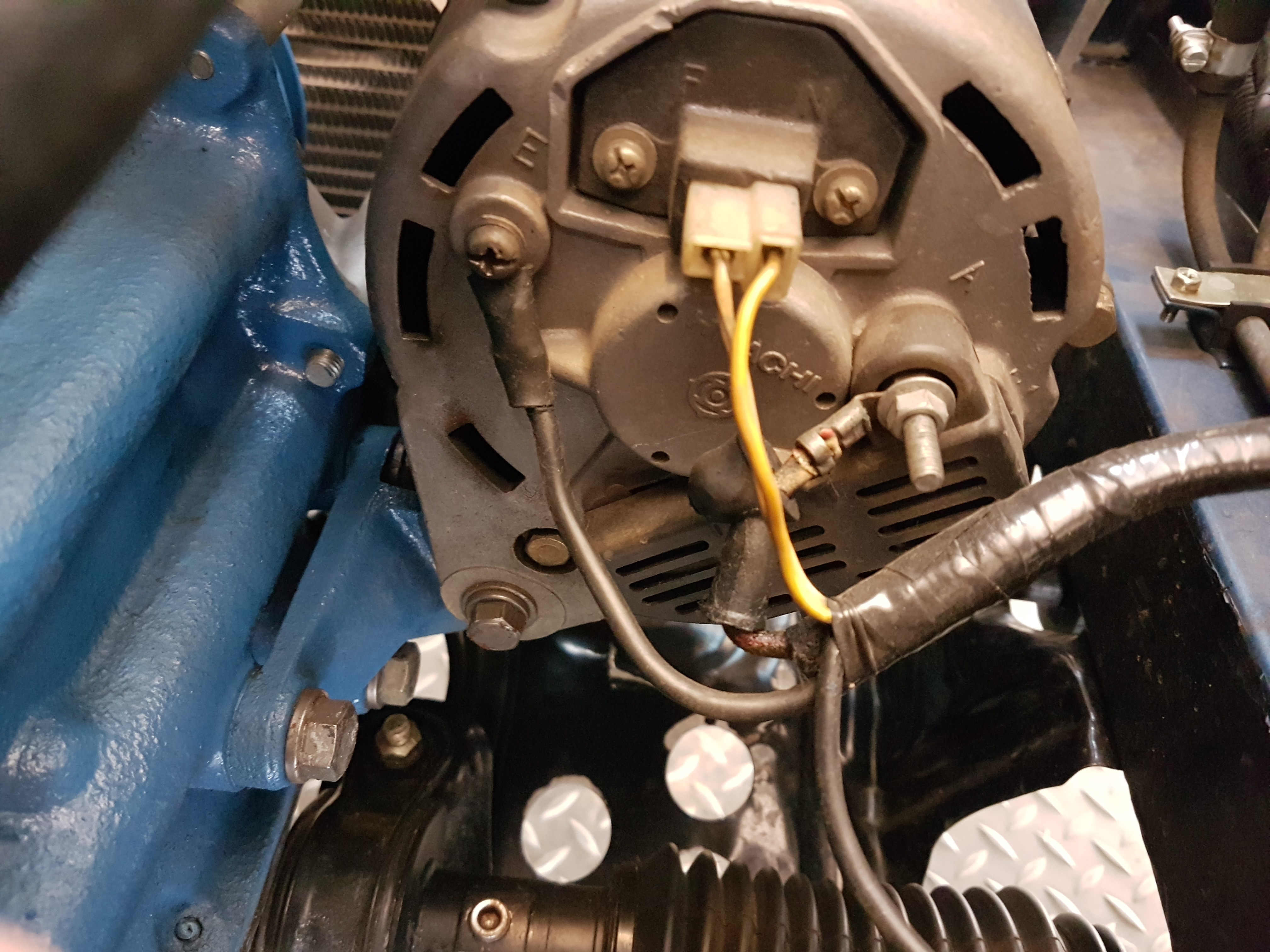

Sorry, here is the correct photo! I know one wire is not secured with a nut .

Woops! posted the wrong picture! Standby!

Thanks Dave, will do.otherwise looks correct?

Hey All, jst a question about wiring in the zx alternator upgrade. Have installed the alternator and adaptor from Dave, the car is charging but the Amp gauge fluctuates wildly when car is running. Does this look like the correct wiring for the alternator. Car is a 12/70 240Z. Going out to change the oil, thanks in advance for any input! Mark

Sounds just like Edmonton!
