jfa.series1

Looks like 48470-E4601. Very nice!!!

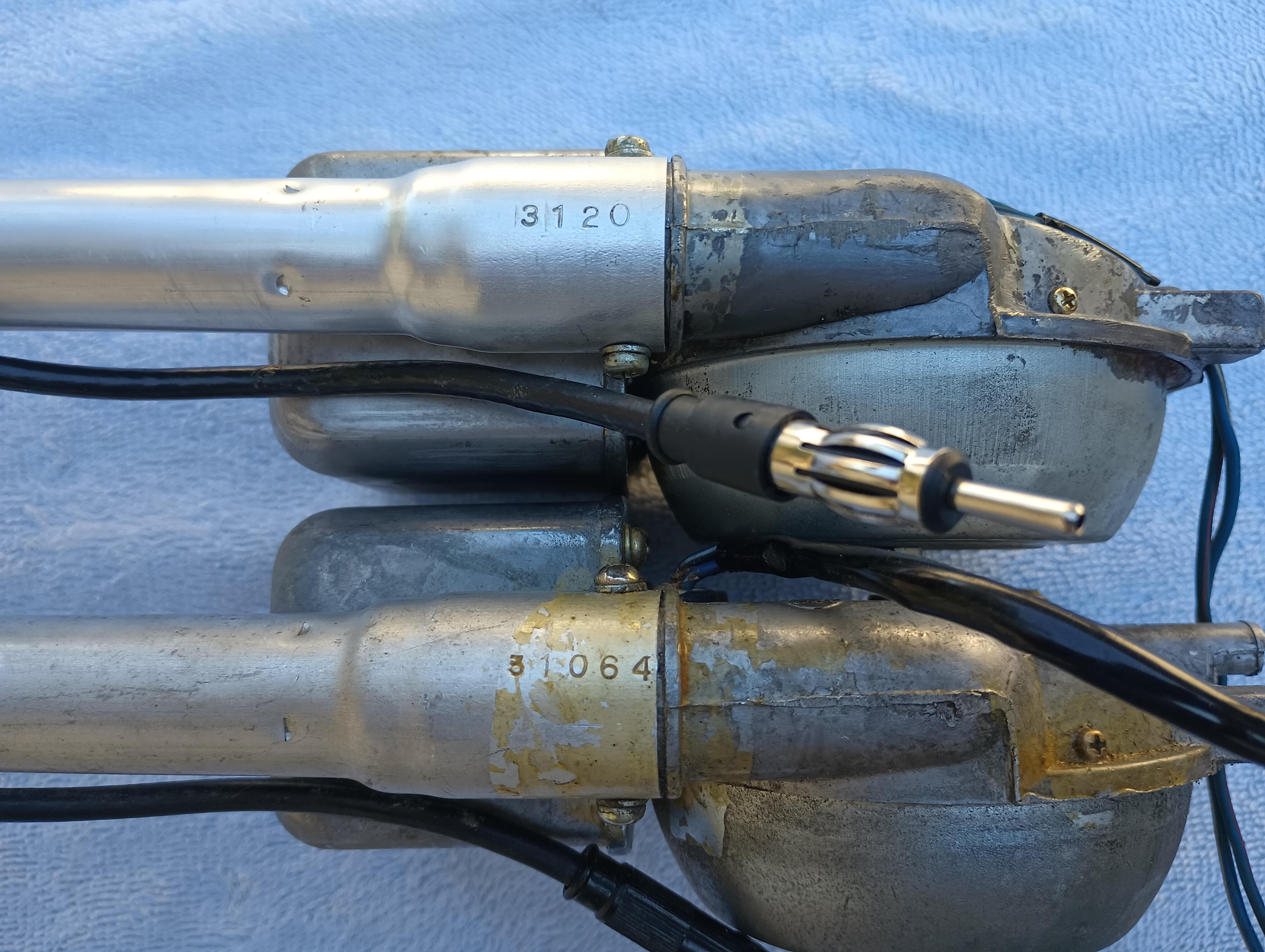

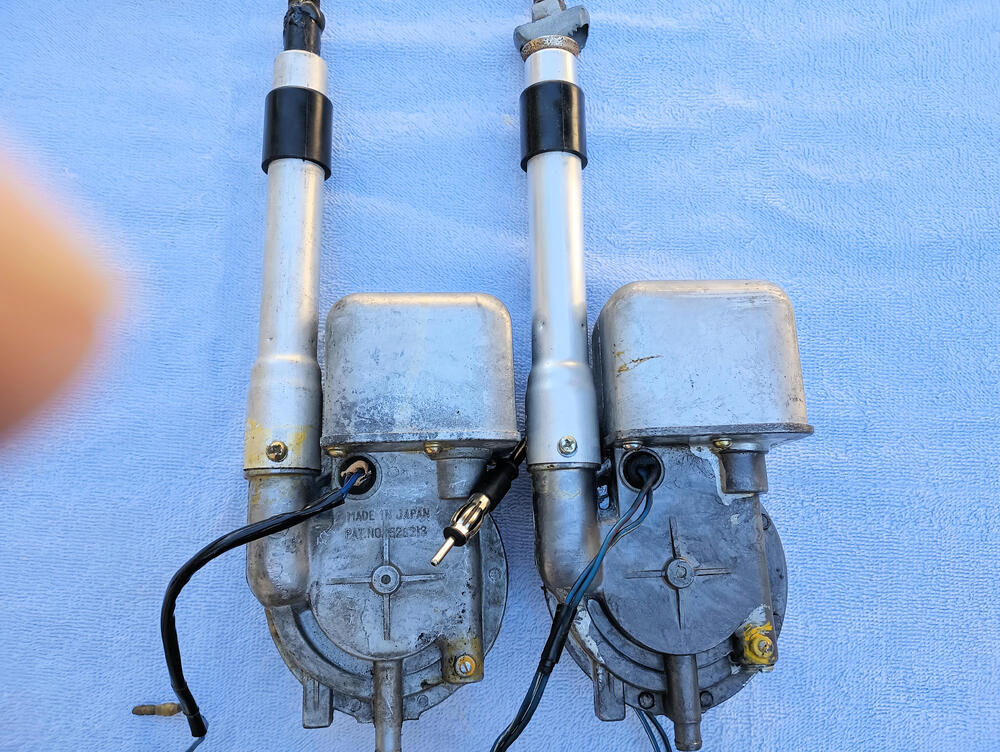

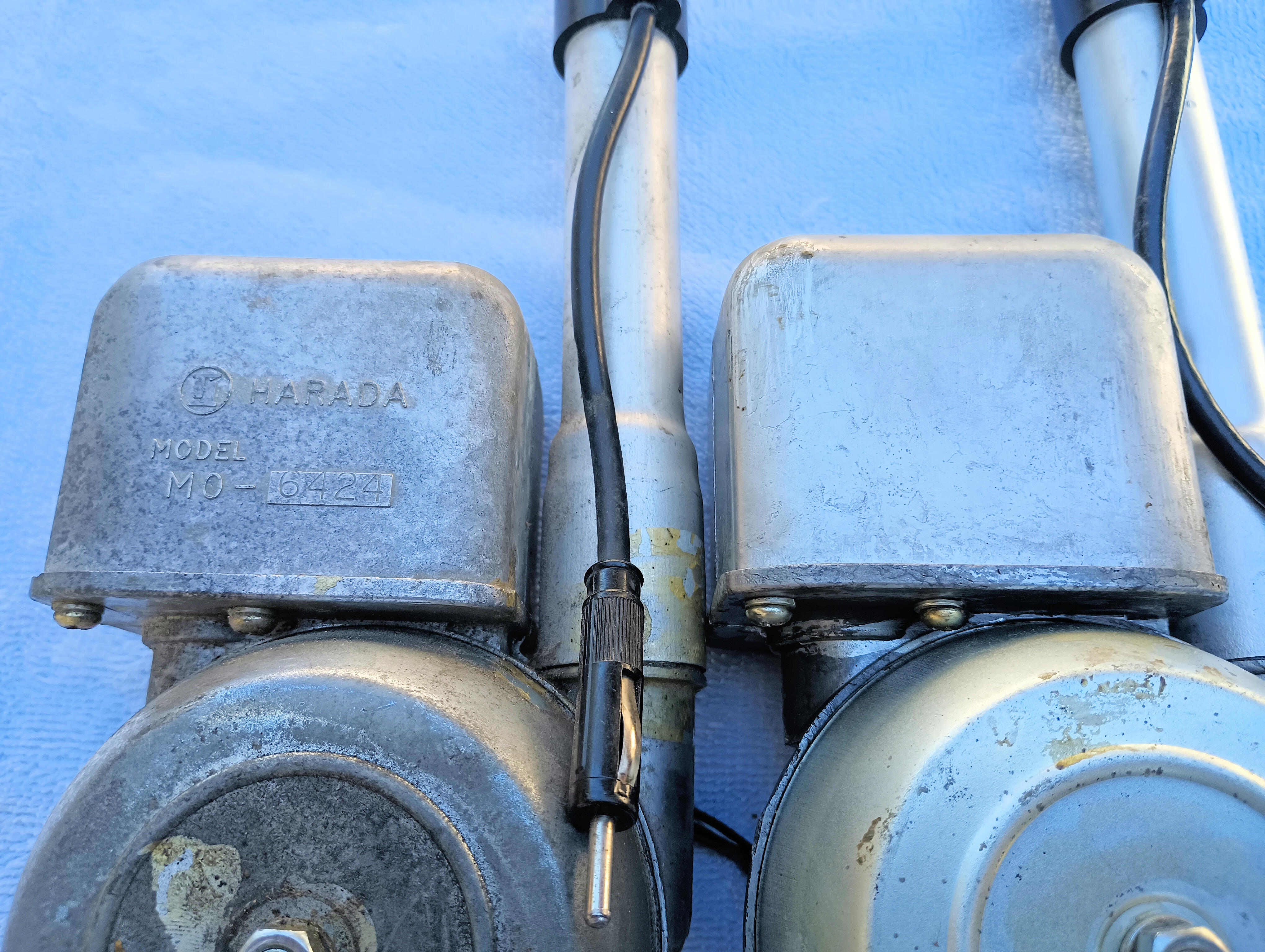

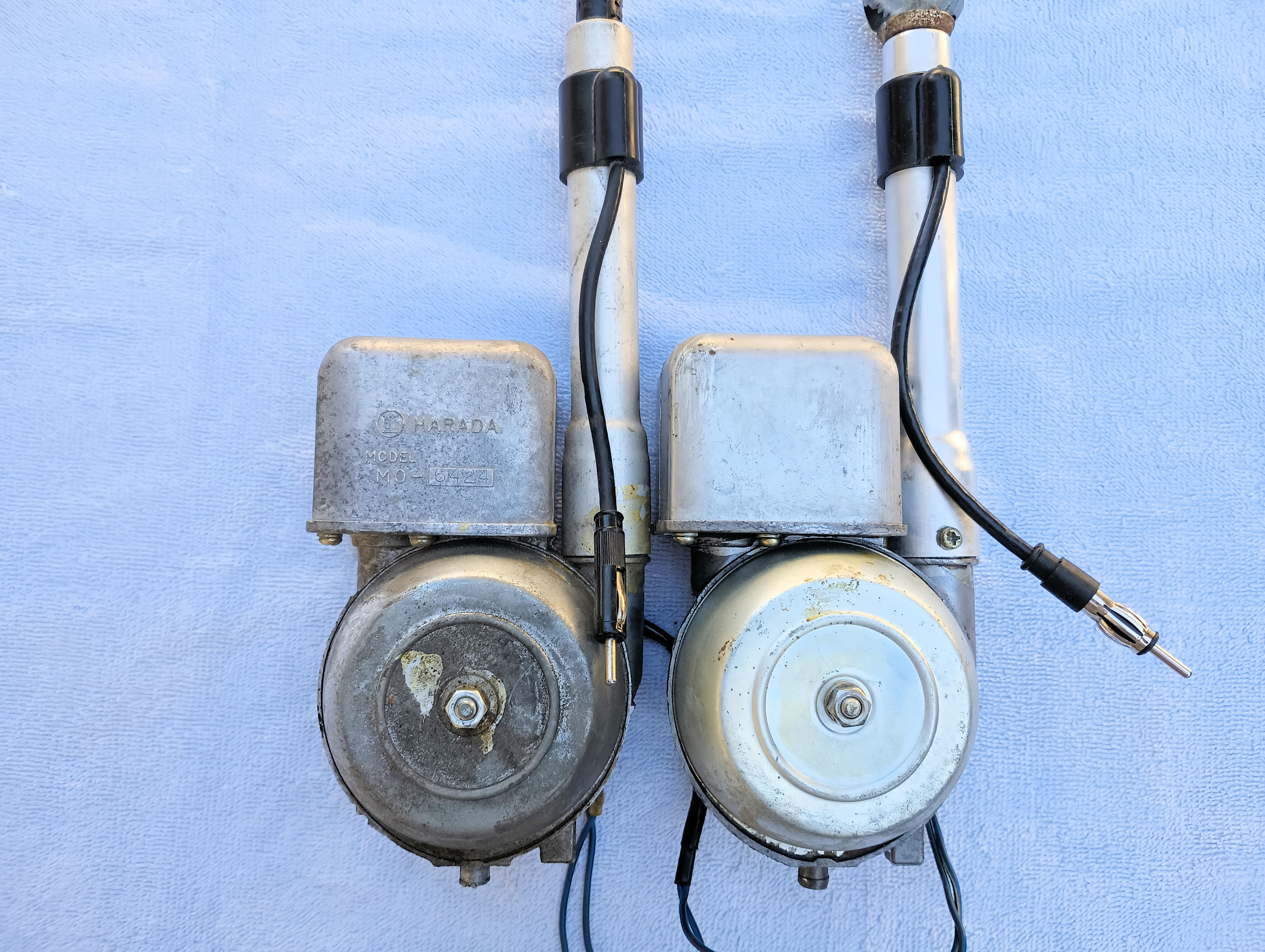

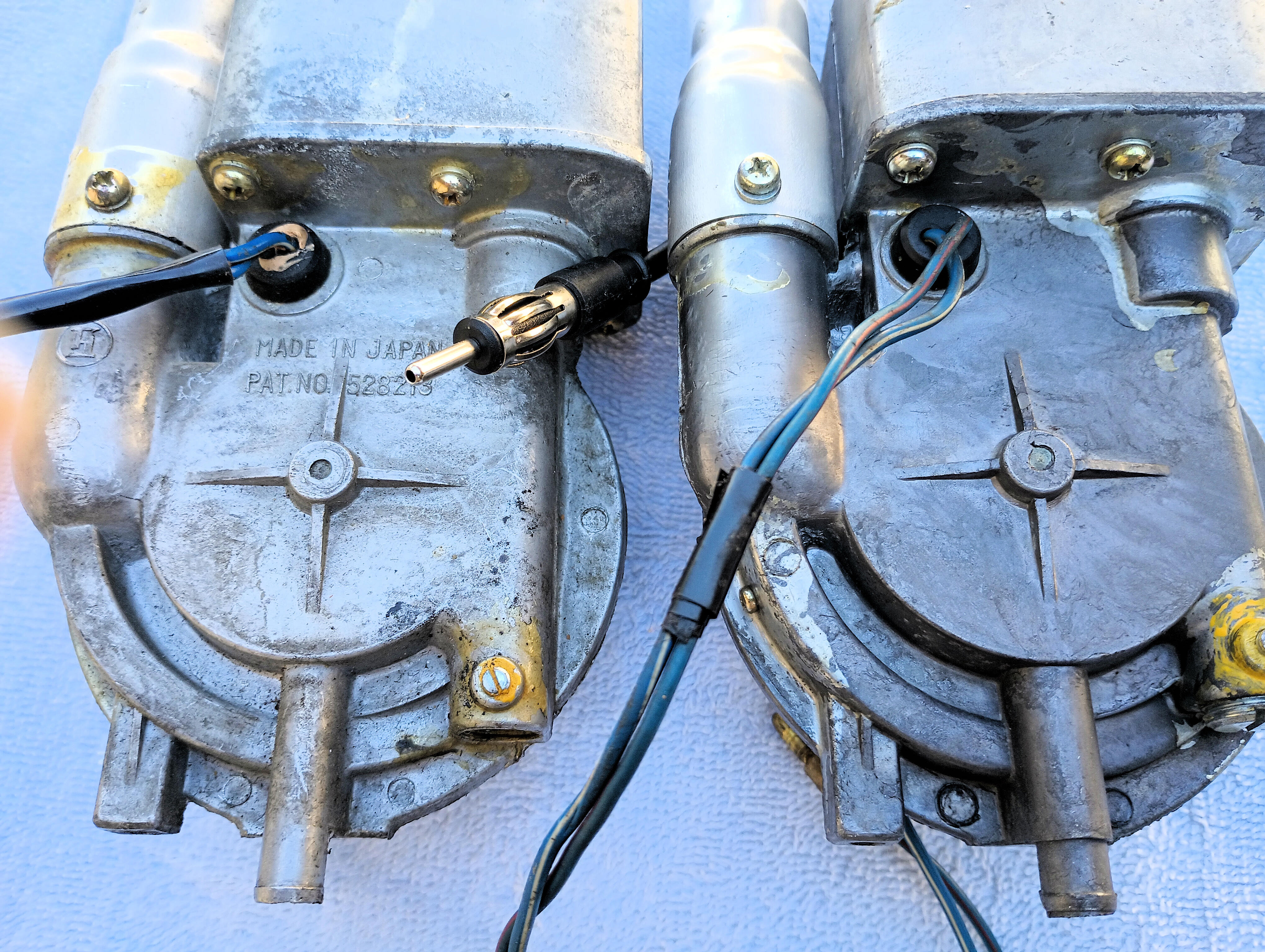

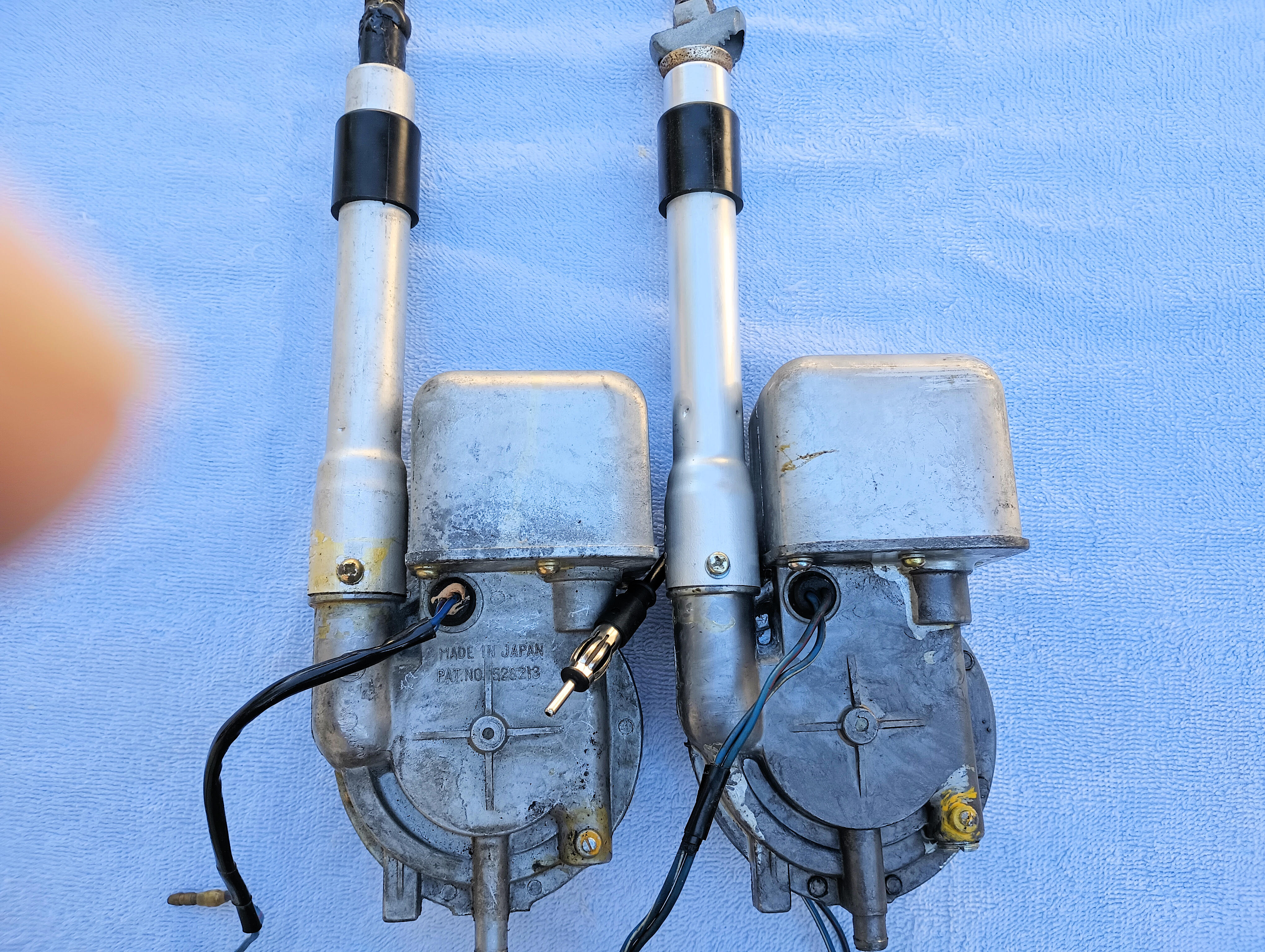

I was recently gifted with a box of S30 antennas and associated parts. I hope to refurb them and get them in the hands of new owners. Of three antennas with mast bases, one is marked Harada and the other two have no branding whatsoever. The branded and non-branded units appear to be virtually identical in all respects, except for branding. Both have what might be a date stamp. My question to the group is: did Harada produce non-branded antennas or was there another manufacturer involved building identical but unbranded units, perhaps under license from Harada?

This is not a new problem, any number of owners of early cars experienced the same issue, myself included. The problems lies with a thick weld bead at the bottom of the strut tube that prevents the KONI insert from fully seating. The problem is visible when the gland nut will not install to the correct depth. KONI and MSA worked on a solution in the form of revised gland nuts with a longer thread body. MSA supplied these modified gland nuts at no cost to customers reporting the problem. I recommend you reconnect with MSA and request the modified gland nuts. BTW, the problem seemed to be limited to the front struts as there were no reports of rear struts having the issue.

I spotted this on one of my FB groups (S30 Life), looks to possibly be a great product for all S30's. Interesting wording on the product description: an exact fit for '69-72 models to 06/72, then a very good fit for all later models. Anything coming out of the folks at S30 World is usually spot on. https://s30.world/product/datsun-240z-nissan-fairlady-z-set-of-door-rubbers-door-weather-strips-for-lr-side?fbclid=IwY2xjawFn5BlleHRuA2FlbQIxMAABHaFz08OpowthIb4moKiiPnBPNcmmq4RaSxakN8zokI1Jhbkwj32GjHmYIg_aem_XFFA0aZ0MJ1qJZtj6rG2cA

It looks like I stand corrected, moving to figure two with the arrow confirms the grease reservoir was limited to 240Z models and discontinued for the 260Z and later. I too had never noticed the arrow function before - learn something new every day.

Not to argue with my good friend Cliff @siteunseen but it seems unlikely that Nissan would have installed a 3/4" high plastic grease reservoir in the same location as the rubber bushing mount. If so, there would have been an existing hole for the threaded throat of the fitting. The carparts manual diagram referenced by @Zed Head shows it to be on the passenger side for all models of S30. Note on my pic there is actually a reinforcing plate on the tube to provide enough metal for threads. I've no theory or explanation as to why our OP has no provision for the part other than some possibility that the rack might not be original to the car.

The rack orignally came with a small plastic grease reservoir on the top right side between the mounting bushing and the tie rod covering. Most have broken off by now leaving the neck of the reservoir stuck in the rack tube. Extract the plastic remnant and install a Zerk fitting to grease the rack.

Oh my, you have been busy - and in secret all these months! Fantastic job, beautiful car. Congrats on an outstanding effort.

The bolt head and the nut will be the same finish as the grill, the shaft is concealed so it does not matter.

Working great!

I just checked back into my project pics, have a shot of one backside and it is 7 0 X. No surprise to me as front and rear casting runs at a factory could have different schedules.

Works for me, my calipers are coded 9 0 2.

I was restoring a bunch of inspection lights and all needed new lens. I contacted 240Zrubberparts to see if I could get a quantity discount. He asked if I wanted "crystal clear" lens and without thinking I said yes instead of specifying opaque. So... I have a bunch of lights that do not look like OE and I occasionally gift them to friends.

FWIW, I fitted a 185/70 to my OE steel spare wheel and it is an exact fit in the spare tire well, the spare tire cover fits nicely into it's original position. As an aside, for anyone running aftermarket wheels there is a possibility that that the lug nuts may not be a good fit against a OE steel wheel so place a bag with a set of OE lug nuts in with the spare tire.

He doesn't take in outside work. 😉

If you are on Facebook, look up Jay Zinc - he has a well regarded service.

I originally bought the kit, ended up not using any of it.

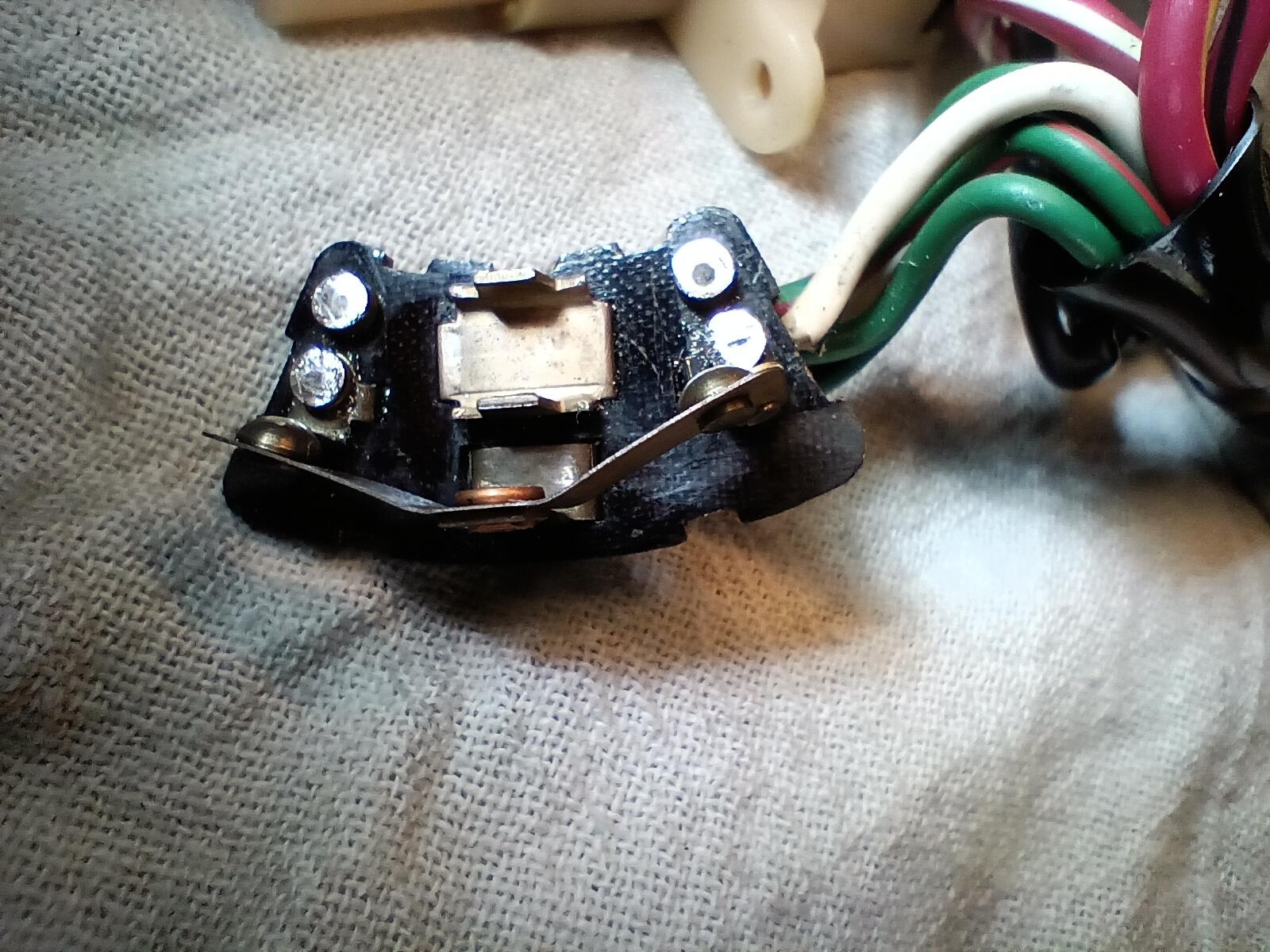

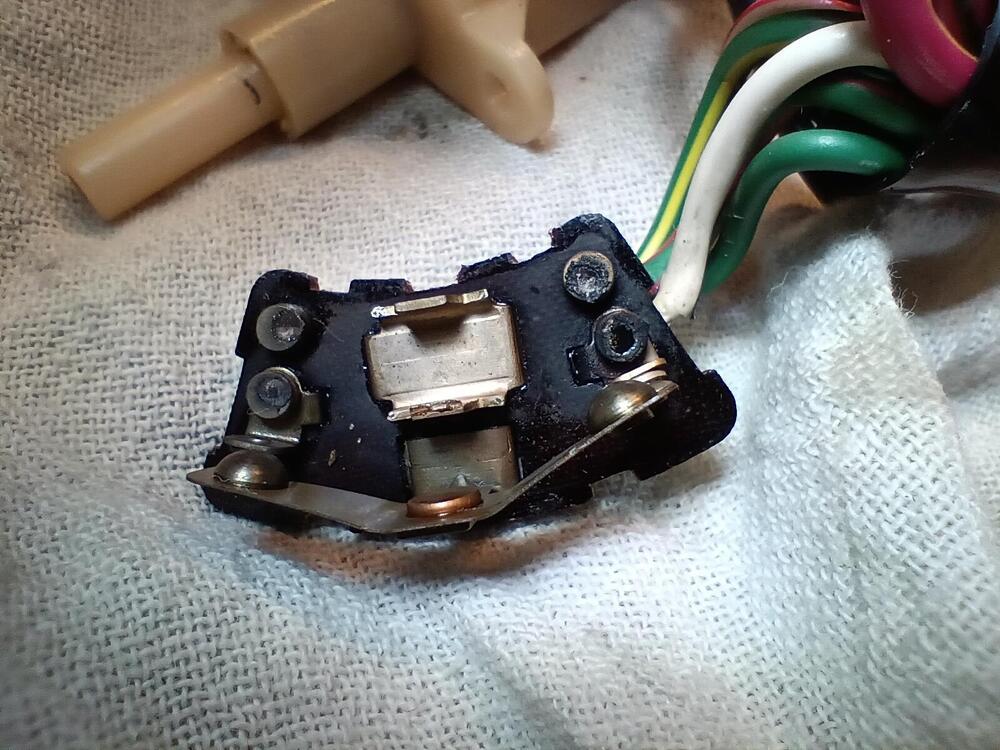

Ever wonder why your turn signals act a bit wonky or even stop working??? Here are the contacts for the '72 switch I recently worked on. That's a nasty buildup of carbon to block the flow of power. The second pic is the same contacts after working them over with a small file (a points file to be specific 😉).

Any chance they were from a non-US spec car, i.e. Canada? The 4650 and 4651 might reflect the same changes as 4600 and 4601. Just a WAG!

Charles, I just pulled out my hardcopy of the parts fische that I bought in 1999. There is no reference to either of these P/N's for the '69-73 cars. For manual transmissions thru 12/70 it was E4600 and E4601; thru 08/71 it was E8300; thru 12/71 it was E8800; thru 06/72 it was E8802; thru 09/72 it was N3300; for the remaining '73's it was N3325 for "A" (?) and N3326 for "B" (?).. Similar changes for cars with the auto transmission. Jim

Mike I'm pretty sure I have a OE 3-piece set in the attic stash. I'll check and send pics if so. Jim

Here's a good thread, slip on down to post #8 from Carl Beck for some great starting points.

SOLD!

View Advert Turn Signal Switch LHD '70-71 240Z OK - '69-71 if you are picky! 😉 Completely refurbished! Dismantled and cleaned, electrical contacts polished, lever stripped and refinished in gloss black. All switch contact positions tested with a ohm meter to ensure proper function. $250 includes standard domestic shipping, foreign shipping available at actual cost. Payment via PayPal, PM if interested, thanks. Advertiser jfa.series1 Date 05/13/2024 Price $250 Category Parts for Sale

Cousins???
