Welcome Luke to the Z community. Love to see your car photo soon. tamo3

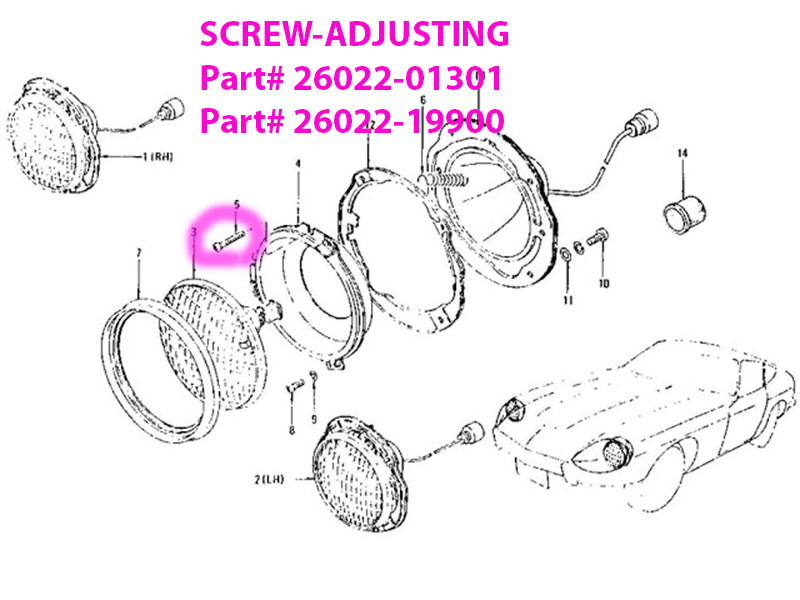

Hi, I try to put back my head light to the fender and I realize I lost my screw for putting headlight to fender. Datsun 240Z/260Z/280Z Head Lamp Based on there, it called SCREW-ADJUSTING. Part # 26022-01301. Does anyone know the size of screw? I don't want to pay $1 more for each screw. Thanks, tamo3

Wow, redzedsled, your Z looks awesome! Thanks for sharing this info. AZ-240z, I haven't tried paint shop yet. Since it's summer time, need to take care of kids and don't have time to work on Z staff until they got to bed. I stopped by o'reilly Auto parts near my home on the coming back from work, but they don't carry closed cell form pad, neither at HomeDeopt. hope to find some other auto store soon.

Thanks for the all the information. Does anyone know where can I purchase such the closed cell foam online?

Hi, I just finished painting body and about to put parts together. I try to find a sponge? rubber? under the front fender. I could not find any resources about it. Does anyone know the side of the thickness of rubber? or sponge?? of this fender support? Thanks, Tamo3

Thanks Chas for the info. Sounds like s14(Kouki) has RB71C tranny with 20mm synchro. Zed Head, What you said totally make sense regard to the sticker.

Thanks Zed Head for great information. I didn't find that web site. That's really helpful. I rebuild 71B tranny before, so I know how hard to pull out the bearing :-) I will! Thanks!

Thanks for the people to share knowldge and experience of 71C swap information. http://atlanticz.ca/zclub/techtips/240sxtransmissioninstall/index.html http://zhome.com/ZCMnL/tech/240SX5spd/Transmission2.htm ƒnƒRƒXƒJAZA510‚É!!!@O/HÏ‚ÝLŒ^FS5W71CA2/3wƒR[ƒ“ƒVƒ“ƒNƒ` ƒ~ƒbƒVƒ‡ƒ“‰ÁH ‚·‚퉮Newƒfƒ‚ŽÔ—¼º˜a‚T‚Q”NŽ®@ƒtƒFƒAƒŒƒfƒB‚y@‚r‚R‚P‚y‰ü Start grinding with hand belt sander. It quite easy to grind. Need to grind al least 2.5mm. Got 16mm drill bit @ eBay. Drilling from front side of bellhouse is easiler. done. Forgot to order bearing. Parts number is 32219-E9000 or 32219-E9020

I got 71B 5 speed bellhouse from one of my friends. I decided to move onto 240SX transmission swap into my 280z. First of all, bellhouse comparison. It looks like there are several different 71B bellhouse with a bit different pattern. This is my original 71B 4speed. It's written "L2" This is the 71B 5speed bellhouse I got. It also written as "L2" This is 240SX 71C bellhouse. It written 71B... with some animal? I found some pic in internet that is written 71C for 71C bellhouse.

Thanks Zed Head. Yes, I checked the thread. After replacing u-joint, I'm planning to bring driveshaft to local shop to shorten and balance it. Hi, Chas, Thanks for the info. I didn't know older model of Z use bigger u-joint. I was lucky to find '90 240SX at the junkyard right after I got extra 71B bellhouse. Maybe write up in the different thread about it.

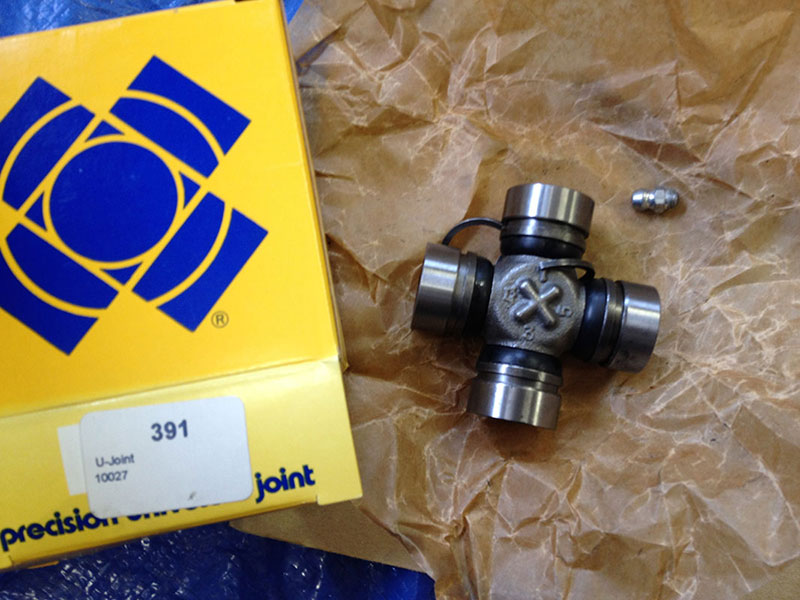

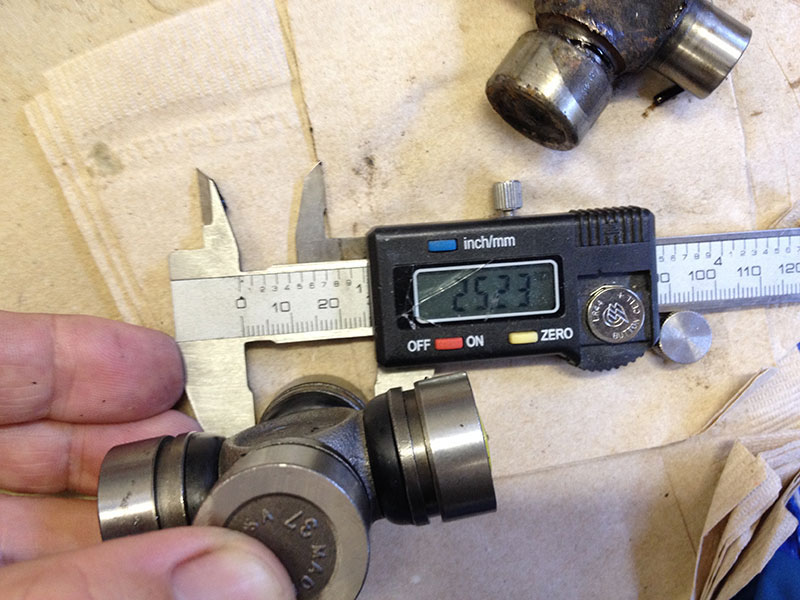

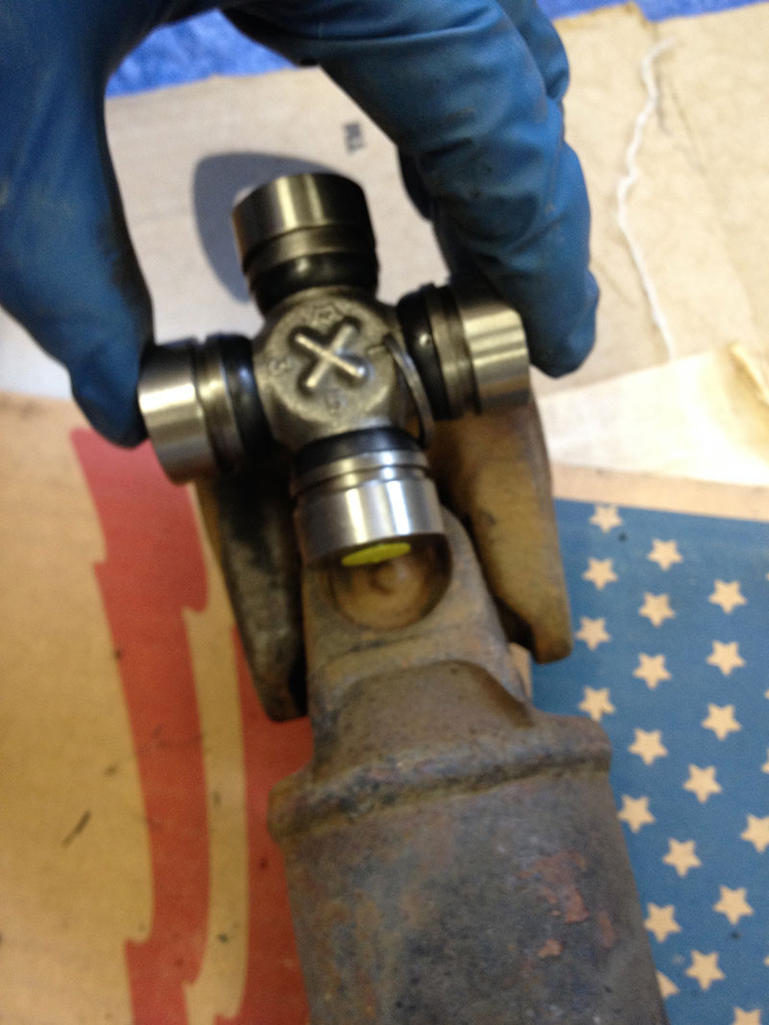

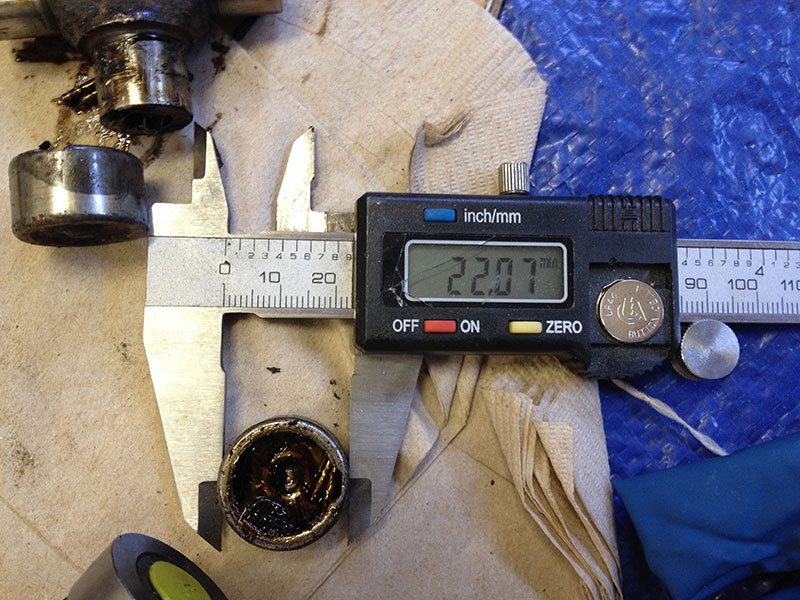

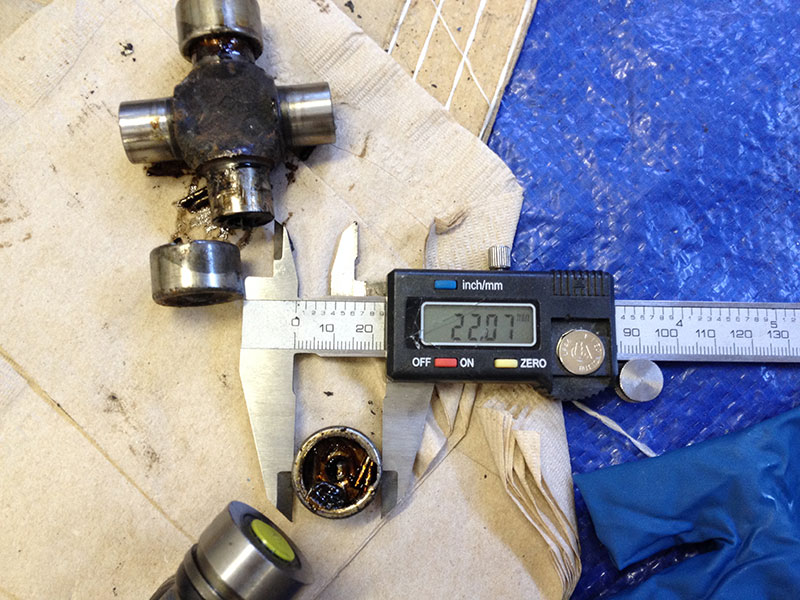

I want to swap my tranny to FS5W71C from '90 240SX. In order to swap tranny, I need to shorten driveshaft(propeller shaft). Before, sending my '76 280z driveshaft to shop, I try to replace 40 year old U-joint. This driveshaft comes with staked u-joint, which is none-replaceable u-joint. I follow Blue's information to order u-joint. http://atlanticz.ca/zclub/techtips/ujoint/index.html I couldn't find spicer, so I got precision 391 instead. It looks like too big to fit... When I measure the diameter, it's 25mm and match with Blue's information. But when I get original u-joint.. it's 22mm When I search more, it looks like rockford is selling u-joint specific to those staked u-joint. The parts number is 430-10 for ours. I'm not sure some of the Z uses replaceable u-joint that listed on http://atlanticz.ca/ Just FYI.

Thanks Blue for your input. I have no clue how it affect if I did not connect. I will try once my car is up on running condition... Still working on body paint...

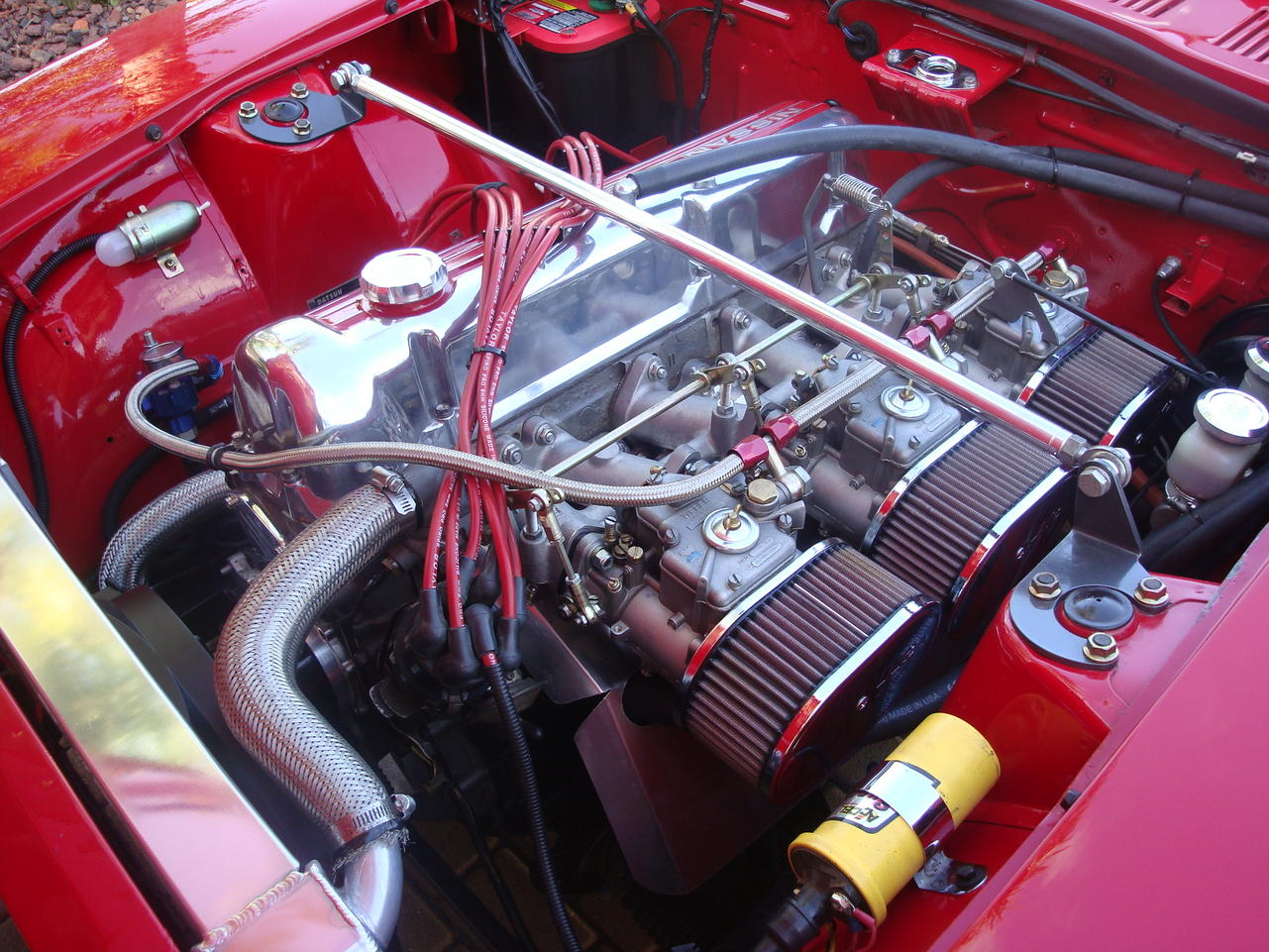

Hi, I'd like to keep factory AC even after swapping fuel injection to triple weber. I could not find any documentation about how to. Does anyone keep factory AC with triple weber with canon intake? Thanks, tamo3

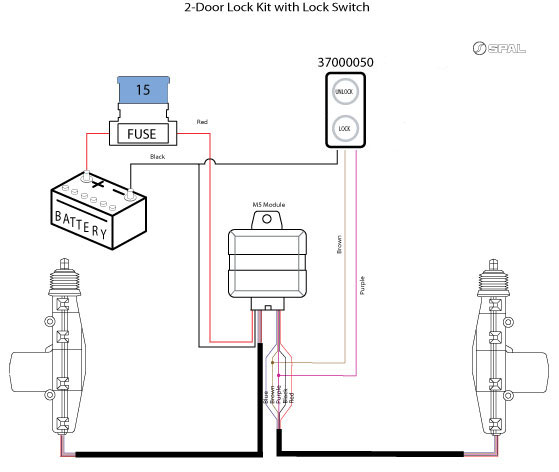

I recently purchased SPAL USA 37000148 Two-Door Power Lock Kit for my 280z. Also I purchase Viper 3105V alarm kit. SPAL 37000148 kit comes with 2 actuators and 5+2 wires harness. Also I purchase the switch. The wiring harness is using 5+2 wires. Since I'm planning to install speaker, power window kit, I would like to reduce the number of the wires. Therefore, I prefer to get rid of original wiring harness and just run 2 wires for the door lock. When I research the12volt.com mentioned I need 2 relays to operate lock/unlock function. I'm not sure whether I need total 4 relays (2 per actuator) or just one set (2 relays) only. Here is what I'm planning to wire actuators, switch, and viper alarm. Could someone give me advice? Thanks in advance. tamo3

Thanks for your advice, Jim. I thought I need to trim top seal since it come down to 1/3 of the side seal area. I will just trim side seal. Thanks, tamo3

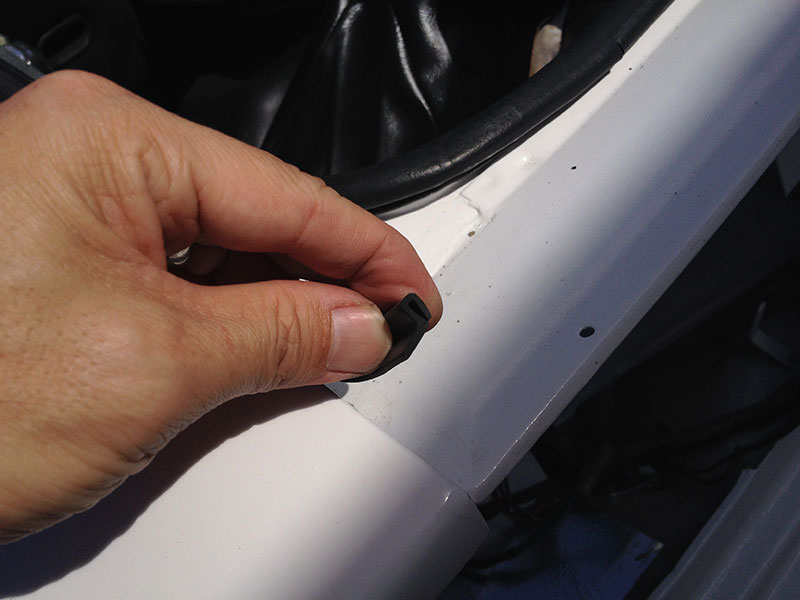

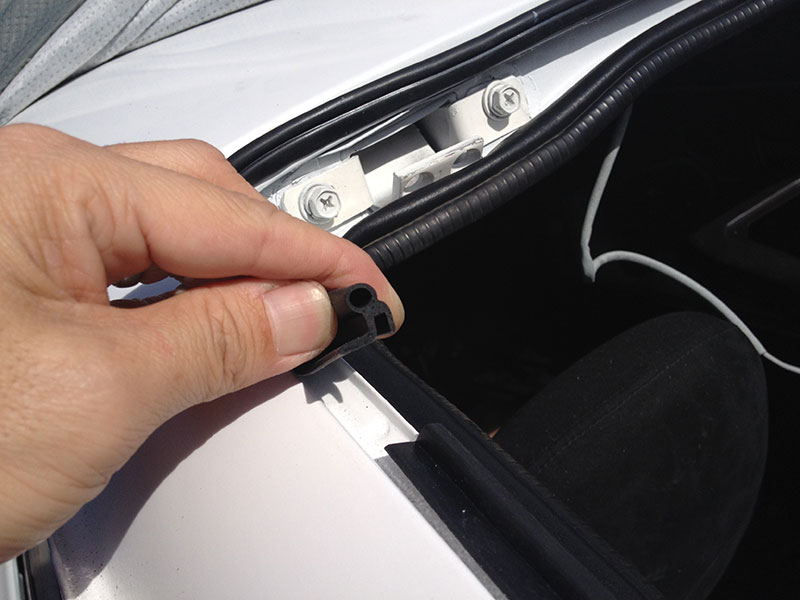

Hi, I'm about to install rear deck lid weatherstrip that I purchased from MSA. There are top part and side parts of the weatherstrips for the lid. I'm wondering the direction of the installation is right or wrong. Also, should I cut the top seal part of the weatherstrip or side seal parts of the weatherstrip to fit the lid? Thanks for your advice in advance. tamo3

any picture around speed meter cable? http://www.classiczcars.com/forums/showthread.php?27599-Identifying-transmission-switches

Mine is '72 240z bumper.

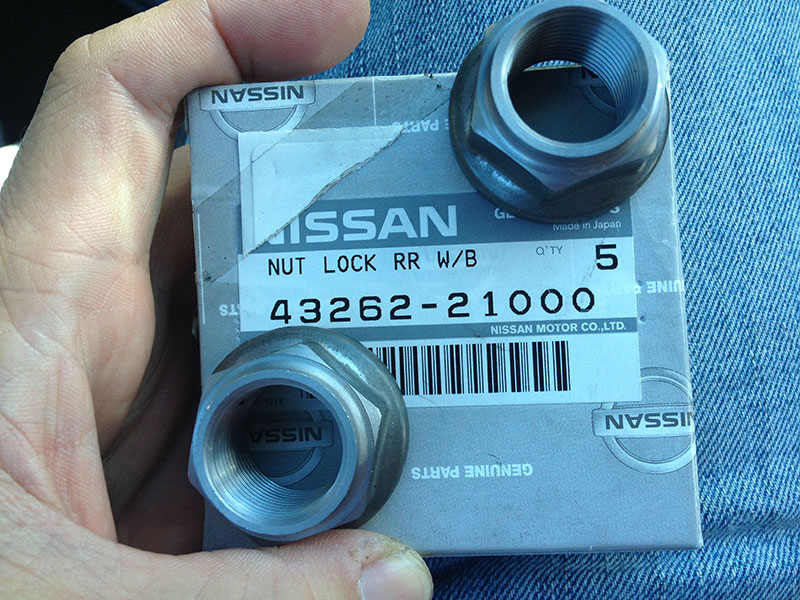

I got nuts from local Nissan dealer.

Sounds good. I hope to finish restoring my Z by this Summer :-)

Looks great!

Is there any chance come up to SF Bay Area?

Thanks for sharing information. I just paint my 240z taillights surrounding panels with Dupli-Color High Performance Wheel Coating – HWP102 $6.99 Rust-Oleum Painter's Touch 2X 12-oz. Flat Matte Clear $3.87 I can't post photo now, it freeze this site. Photo

How about like this? and throttle cable installation. CABLE_INSTALL

RS Watanabe has data. NISSAN 240ZG 114.3-4 Best fitting size Front 15"-8.5J -6 Rear 15"-9.5J -19 Max size Front 16"-8.5J -6 Rear 16"-9J -13 Tire size Front :225/50 Rear 245/45
