Thanks calling me but , I have no idea what this car is . Looks like a hand crafted Silvia inspired two seater . Kats

Hi Carl , I love the story. In that case , did the dealership give some discount for the customer to compensate for displaying in a showroom? I am just curious about it. Now my question is, Nissan did numerous changes for S30 series not on late 1970 but early 1971. Seems it doesn’t relate to American ‘model year’ system . Was the change of S30 series considered normal for Nissan including other Nissan cars, or only for S30 series? I mean our S30 series cars , Nissan changed things when they thought they needed. Mr.Uemura wrote about the test report in US and Canada late 1969 . The test crew listed many things to be improved. I think the changes in early 1971 were originated by the test crew , and voice of customers all over the world , and by test groups in Nissan Japan. One of the issue which was not seemed easy for engineers was the vibration from the rear floor . I believe Nissan might want to fix it sooner and knew how to fix well before mid 1970 but the changes of propeller shaft and differential mounting , also had to make a new bracket (brackets for Z432) for the exhaust system under the floor would have needed more time . Or it could have taken more time to prove ‘no-problem’ of recessed the diff 35mm back still safe when the tail hit and the gas tank pushed forward. The new drive train was not available until late 1971 though. Here is a picture provided from Mr.Miyazaki , he was an engineer and a test crew in Japan . A lot of interesting stories he has , I am keeping in touch with him and listening as much as I can . Kats

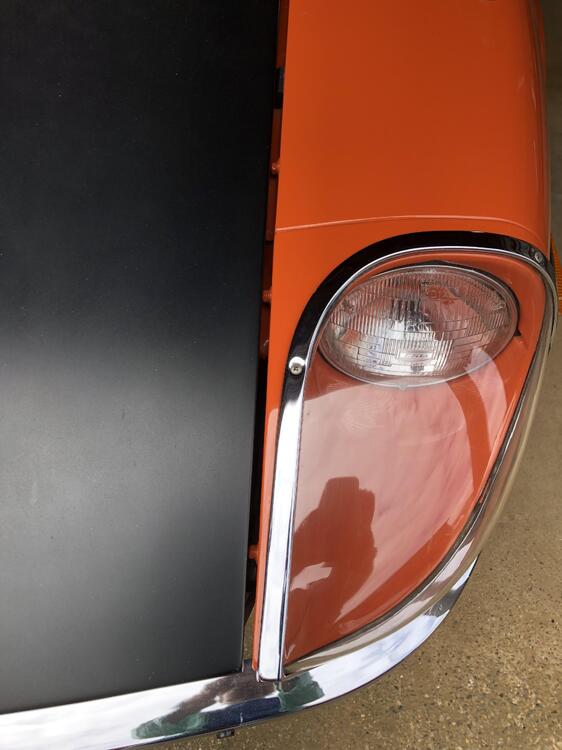

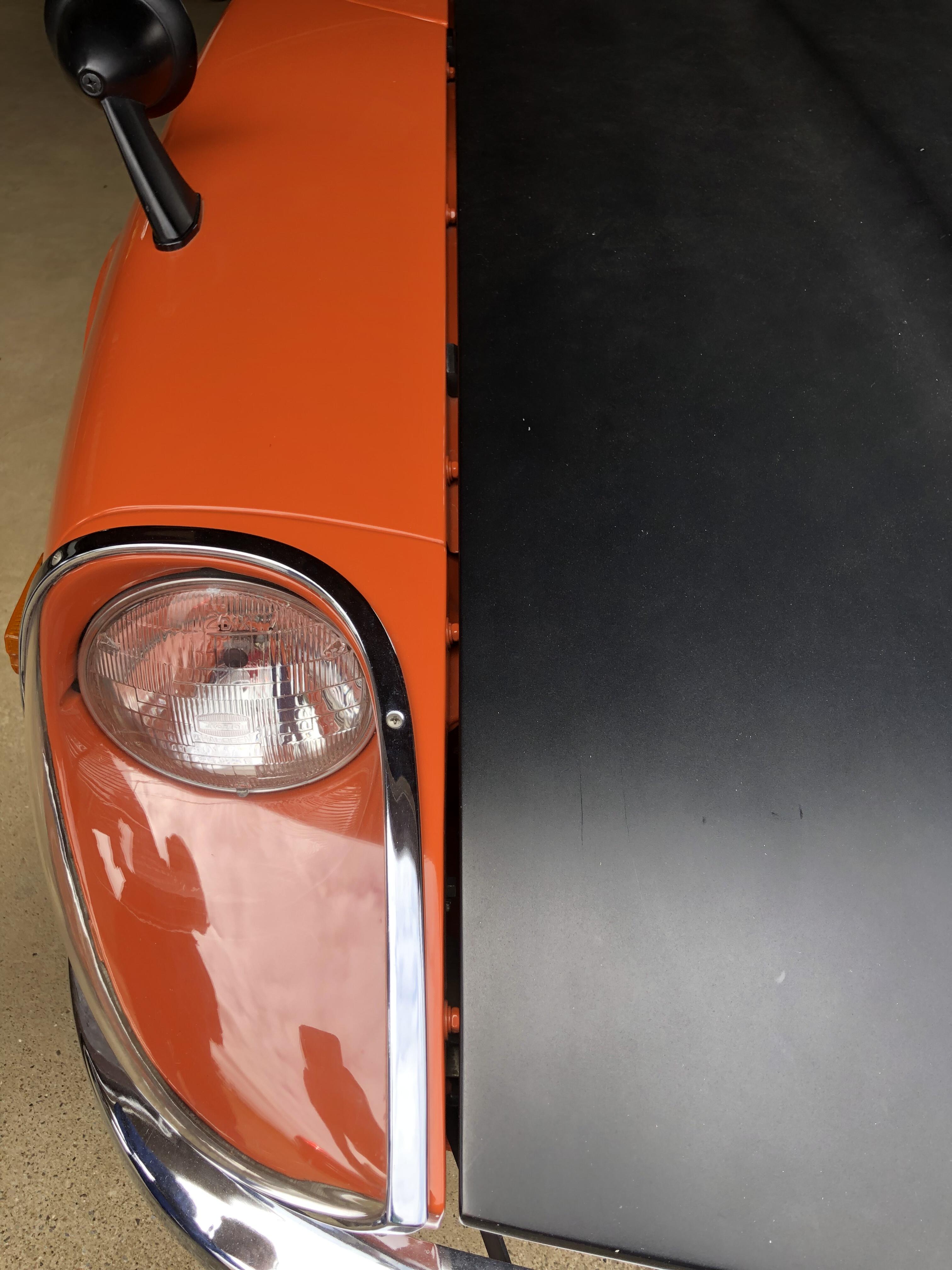

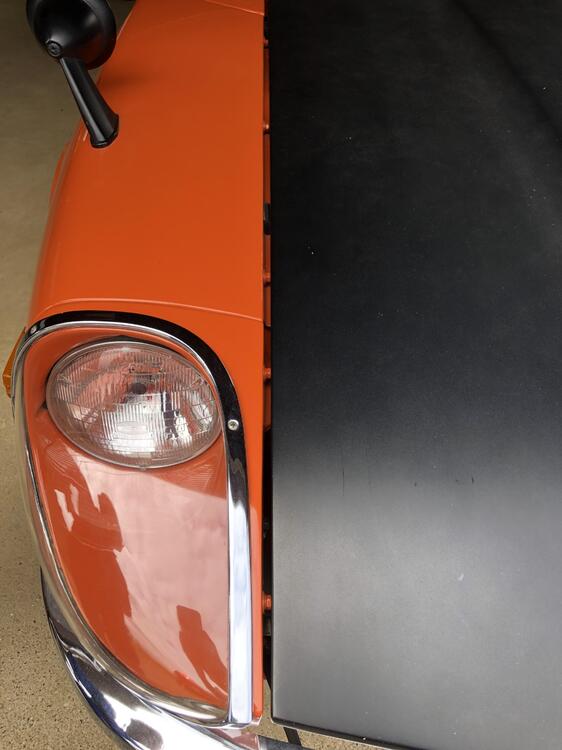

Thanks Alan, I have learned new today . My FRP bonnet is shorter width, I am happy with it now . I am going to paint it with mat light grey just like the tail light exterior panels and G-nose . I think it will match nicely with 901 silver . I want to express my feelings about my Z432 which is oriented from my respect to Z432-R ,as well as to my original Z432 to be luxurious GT .Not going to paint black with orange . Kats

Hi Bart , yes justdashes is my top list . I have heard recently price $2000 , need to wait a half year . Plus shipping from Japan returning from California will surely be painful. Someone wants a PZR look dash , send it to them and ask them not to cut out the side vents and the clock , glove box key cylinder. I want to have it fixed by my hand , it will be fun and yes a lot of money saving . And I want to remain its details as much as possible , every old originals are one and only! Kats

Nice bag Ian , 80’s feelings ! Kats

IMG_6800.MOV I can’t see any markings nor signs which indicate PZR under/inside the dashboard. No drawing on the bracket of the steering post. Probably, PZR was only few at the assembly line , so no need to distinguish from other cars ? Takeuchi san took of the glove box , and put it on the new dashboard. I checked it but I can’t find any white chalk markings. I have been sourcing sports option parts for my Z432. Pistons and other engine parts as well as tachometer, seats , steering wheel , etc. Some of them were hand crafted to replicate using a genuine parts as a donor. Put the parts for track , remove them for daily use . Kats

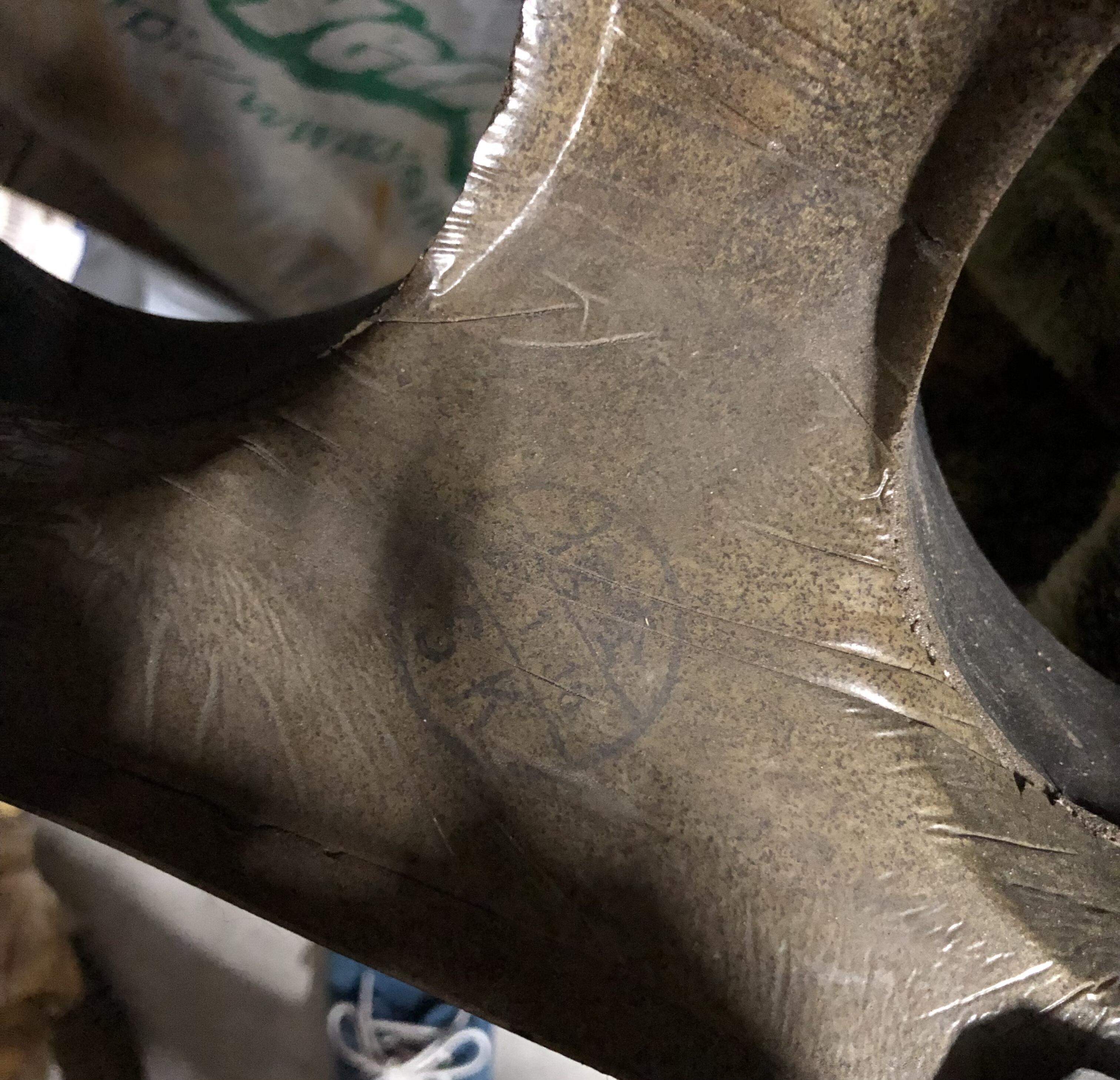

I can see ‘ 45 1 16 ‘ in the stamp which is shown back of between the speed meter and the tachometer. It is 16th January 1970 . Takeuchi san’s Z432-R would have left the factory around March or April 1970 . Wiring harnesses have February and March stamp . So my two US 240Z (HLS30-02146/02156) were almost brothers ! Or Takeuchi san’s car would have left a lot later because of special limited production, might be taken care of a lot more than regular production cars . Kats

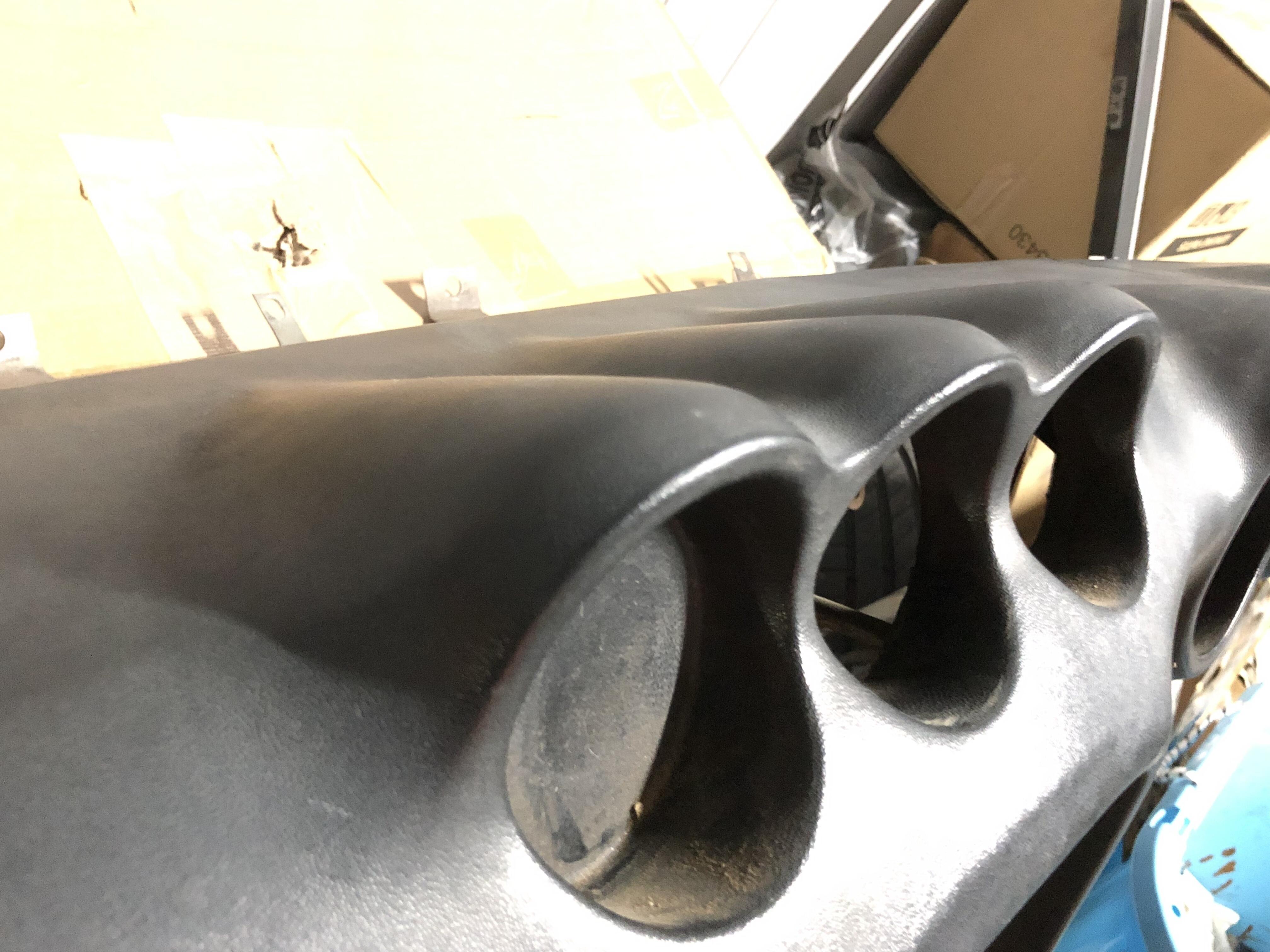

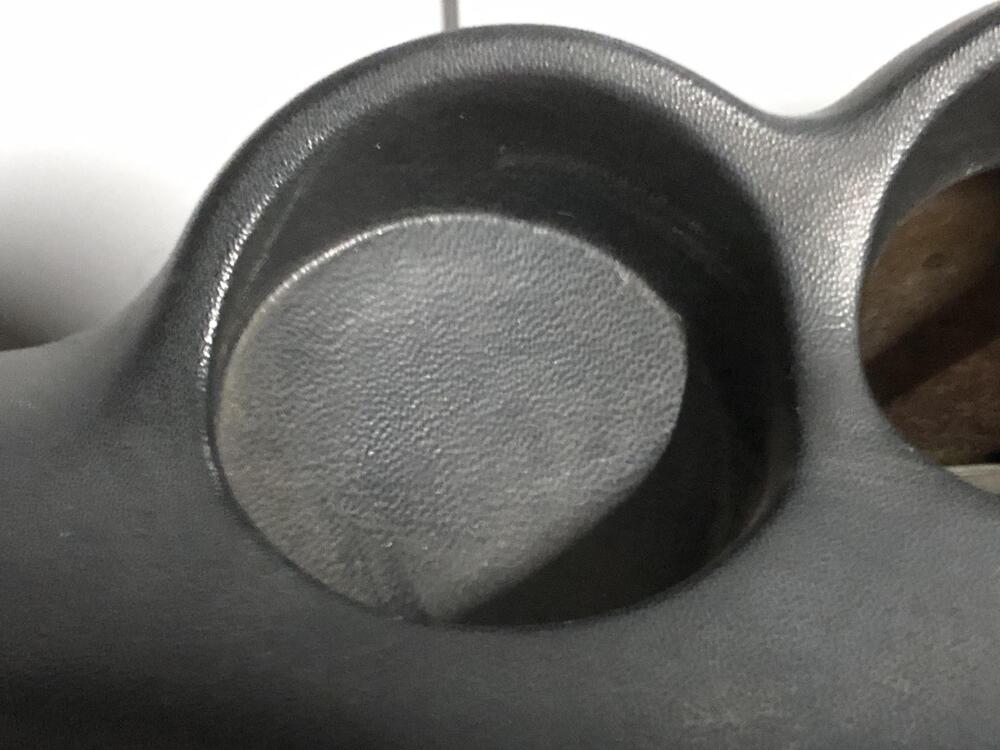

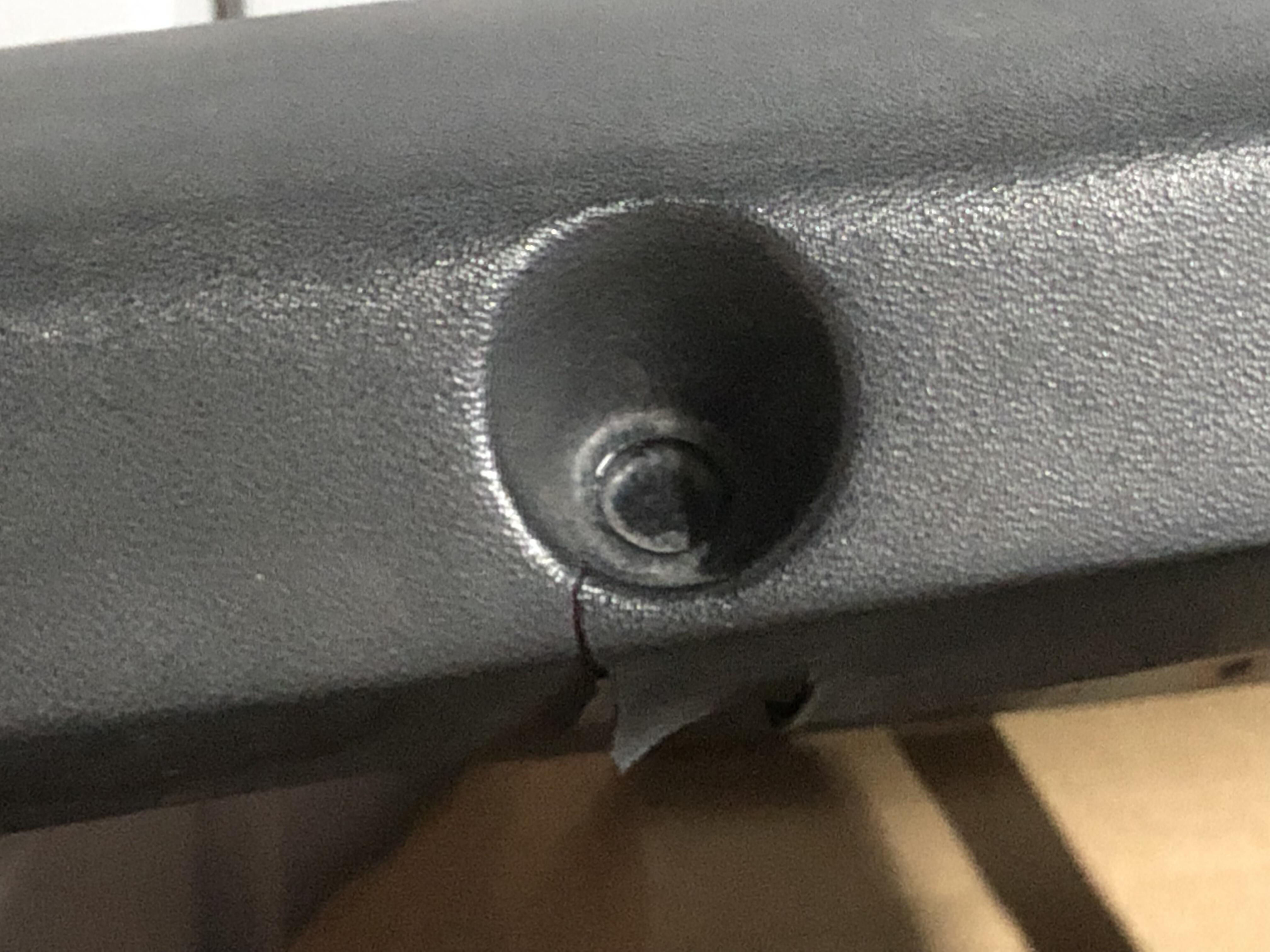

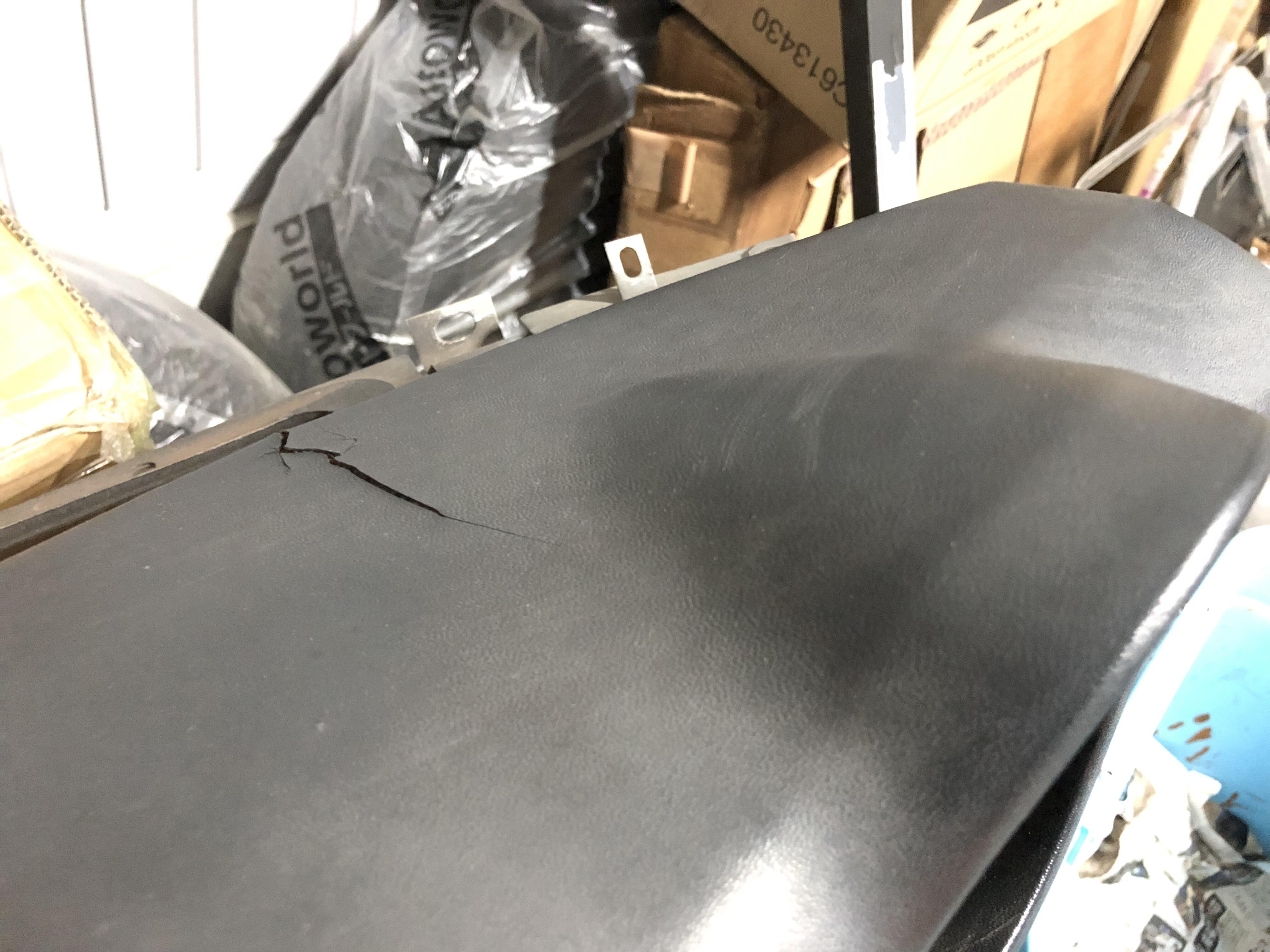

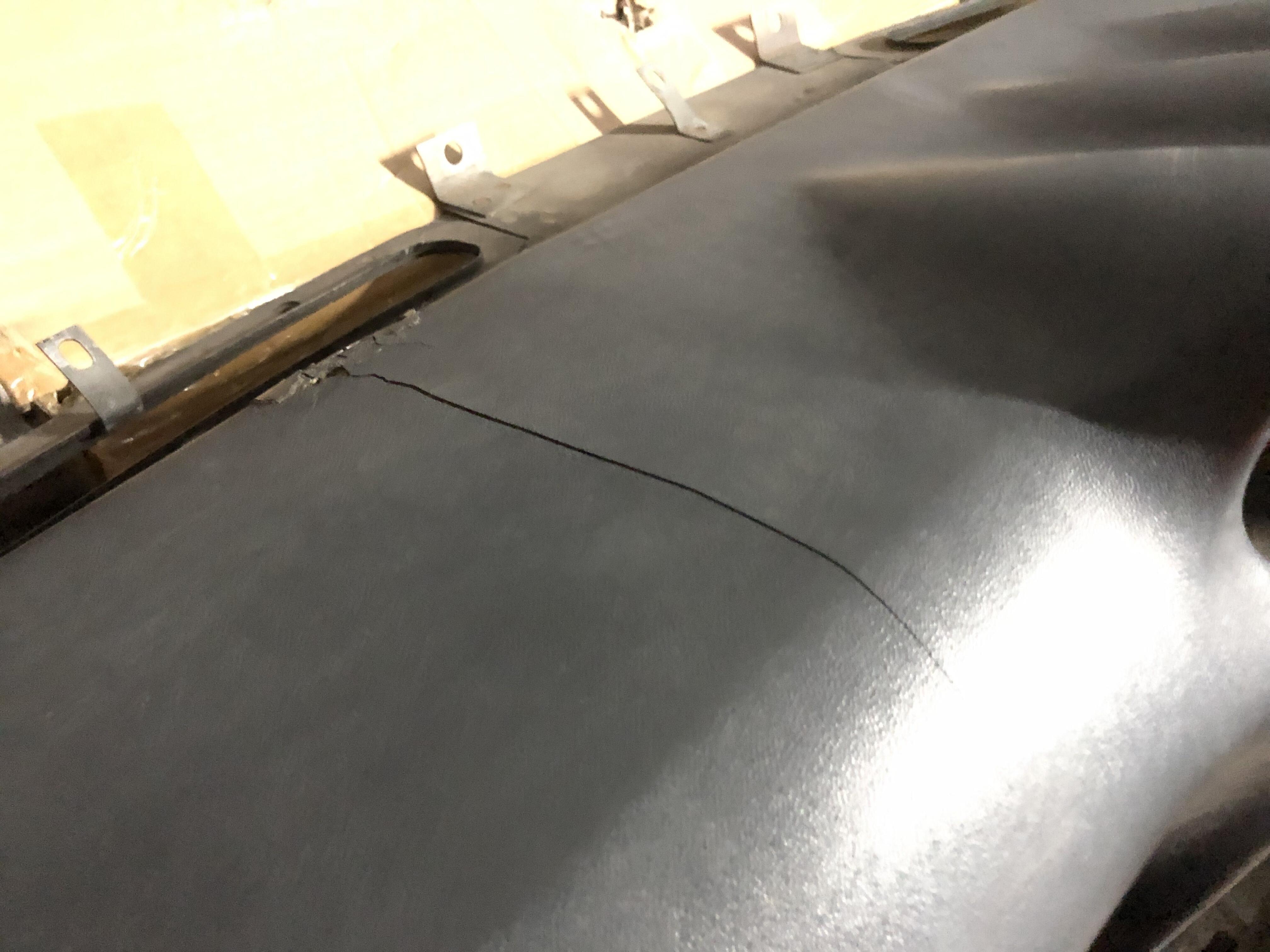

Here is a very interesting dashboard, an original one which has been taken off from a Z432-R . Takeuchi san got new one from local Nissan decades ago ( Nissan had PZR dashboards in their parts center until early year 2000 ) . Takeuchi san said he doesn’t need it , so I have got it .I will repair the two cracks . Or remain as it is for historical exhibitions? Maybe I want to have it clean. Because I will put some Z432-R parts into my Z432 just for fun . I am not aiming ‘wannabe’ car . I would like to have an ultimate both worlds . Luxury GT and Sunday racing . I respect Z432-R , and my Z432 too . Maybe this is for the first time to show the details for everyone here , please enjoy. Kats

Thanks Gavin, HS30 blue on blue is very rare as your observation. How about other color combinations? Green with Tan , white with red , etc . Buy the way , my understanding is up to August 1973 , lime yellow, green metallic and brown metallic are only for export market . Is this applicable for HS30 territory? Grand Prix Maroon is only for Fairlady Z series. Oh , Universal blue ‘903’ was not available for Fairlady Z series . Kats

Thanks Keith, what a fascinating engine! I am so impressed , I have never seen it before. In-line 6 cylinder, 4 litter, very big engine. How many still out there ? Maybe very rare I guess. Kats

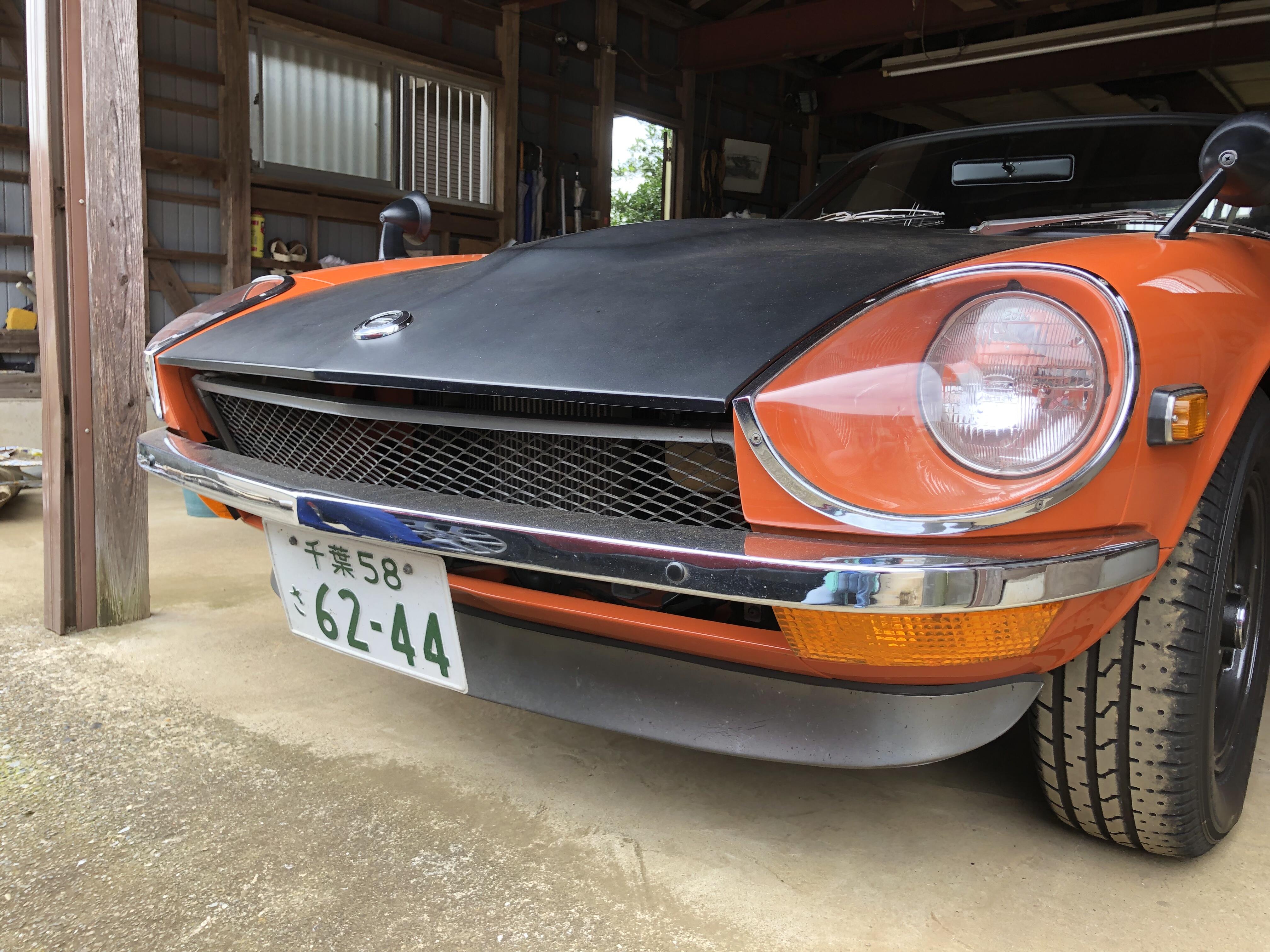

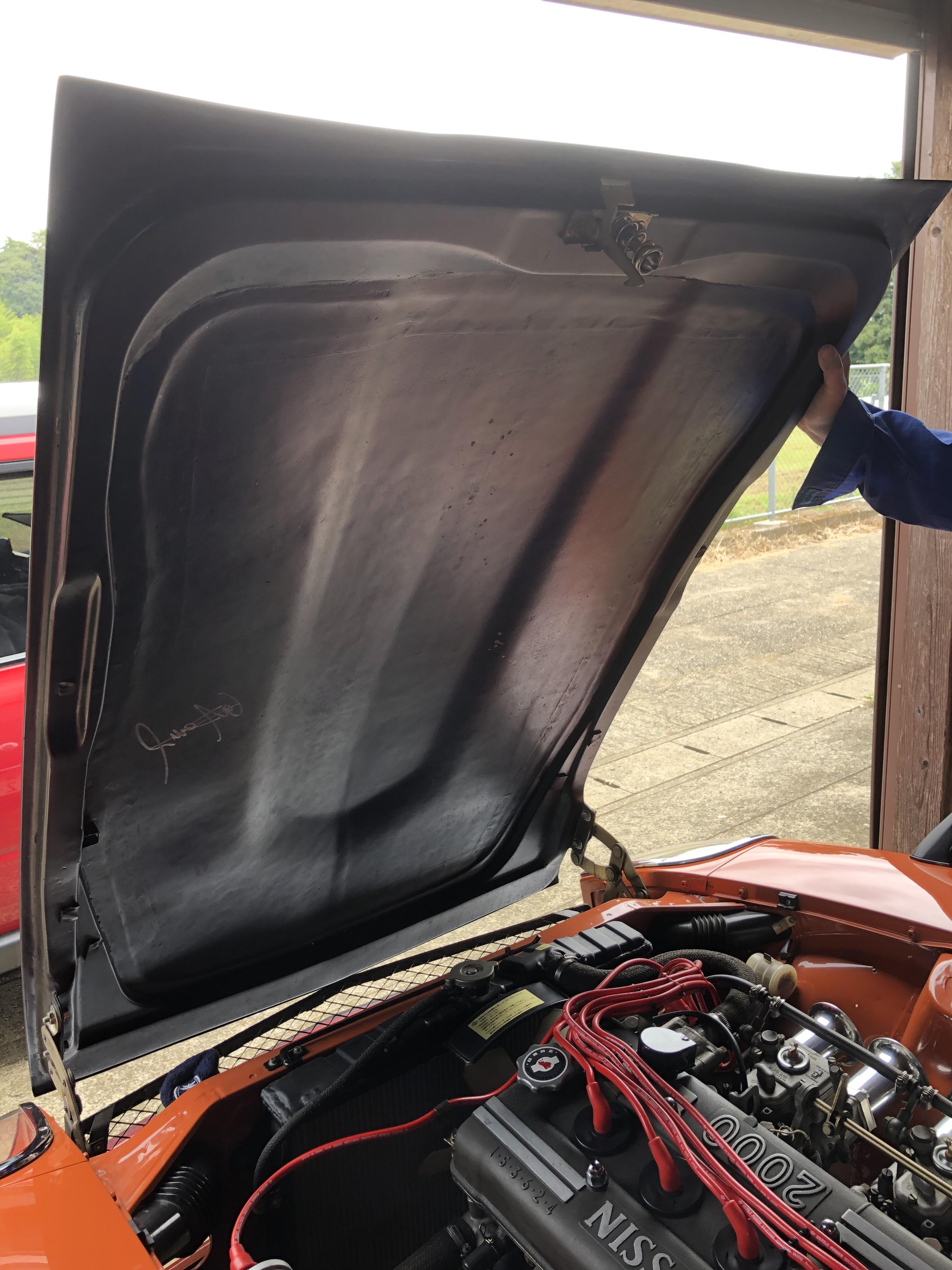

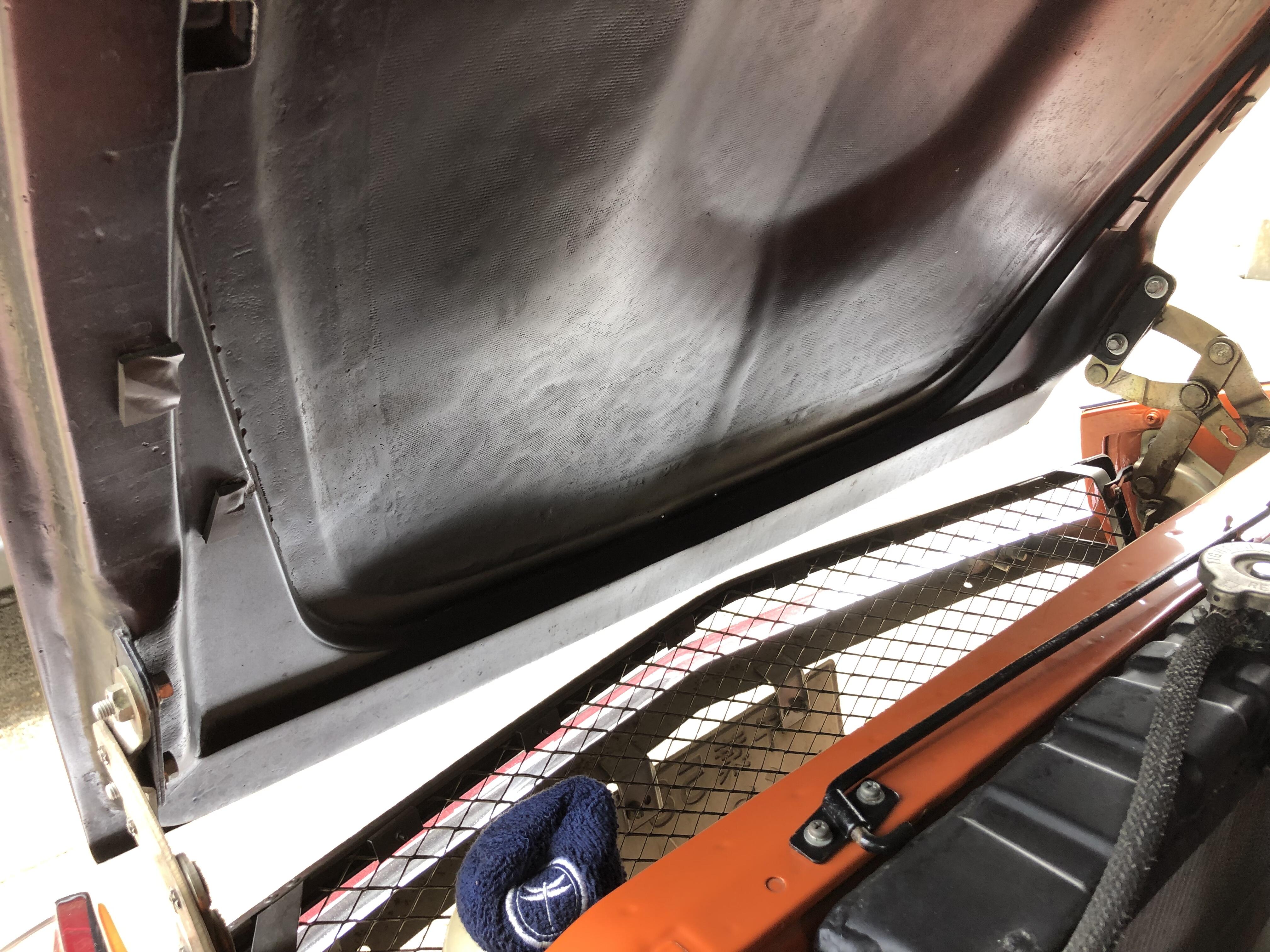

Hi , I visited Takeuchi san and confirmed his Z432-R also has beautiful front center tip. Nissan genuine FRP bonnet has exactly the same beautiful shape but different structures on the back .You will see some aftermarket FRP ones which are available today have very different structures, i.e. they just copied steel original. Probably it was almost impossible to use genuine Z432-R bonnet as a sample ? One thing we noticed , overall width is slightly narrower than steel ones. Shrunk? Or is this a normal genuine one ? Alan can tell us about it, please join. Kats

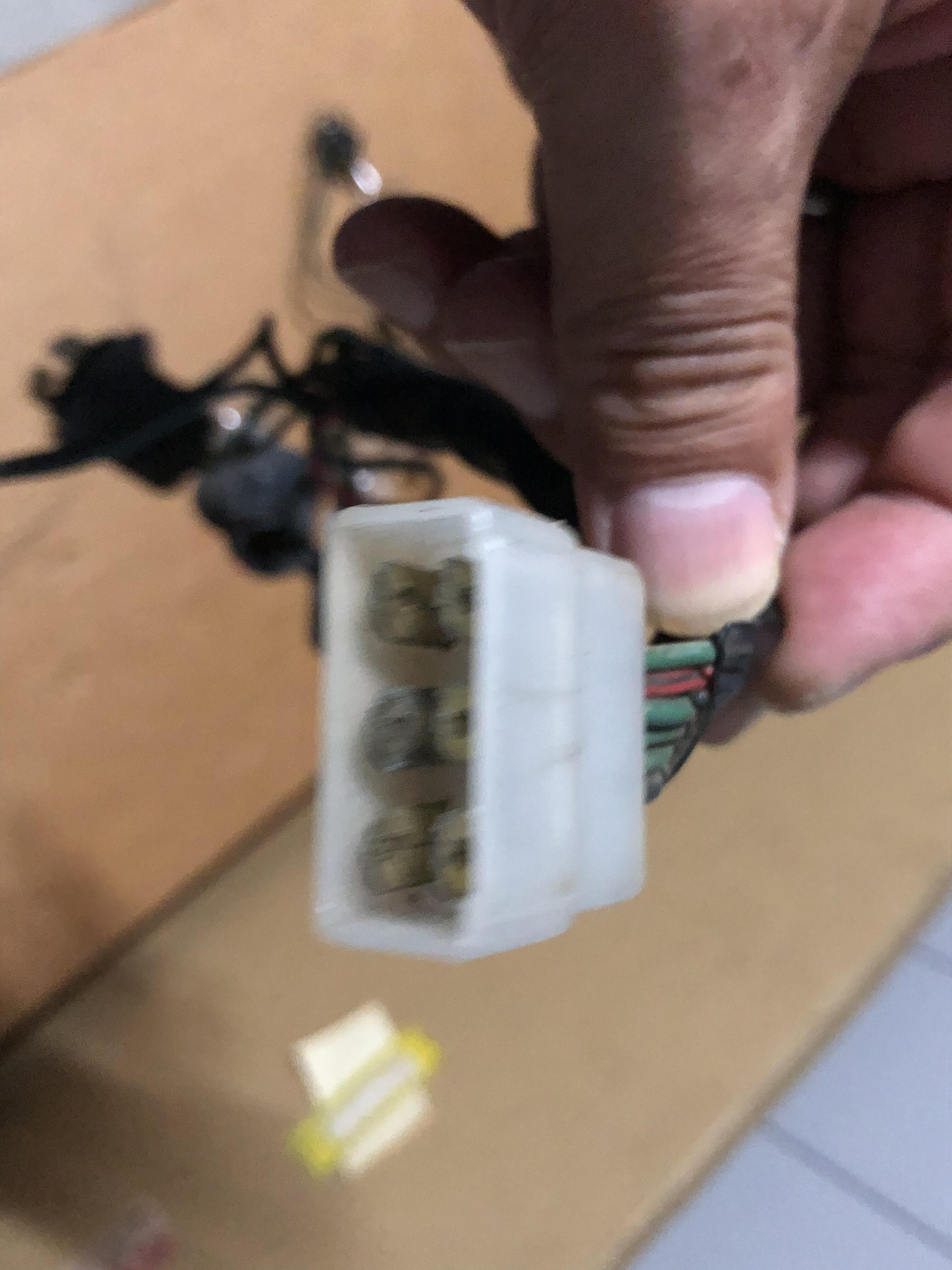

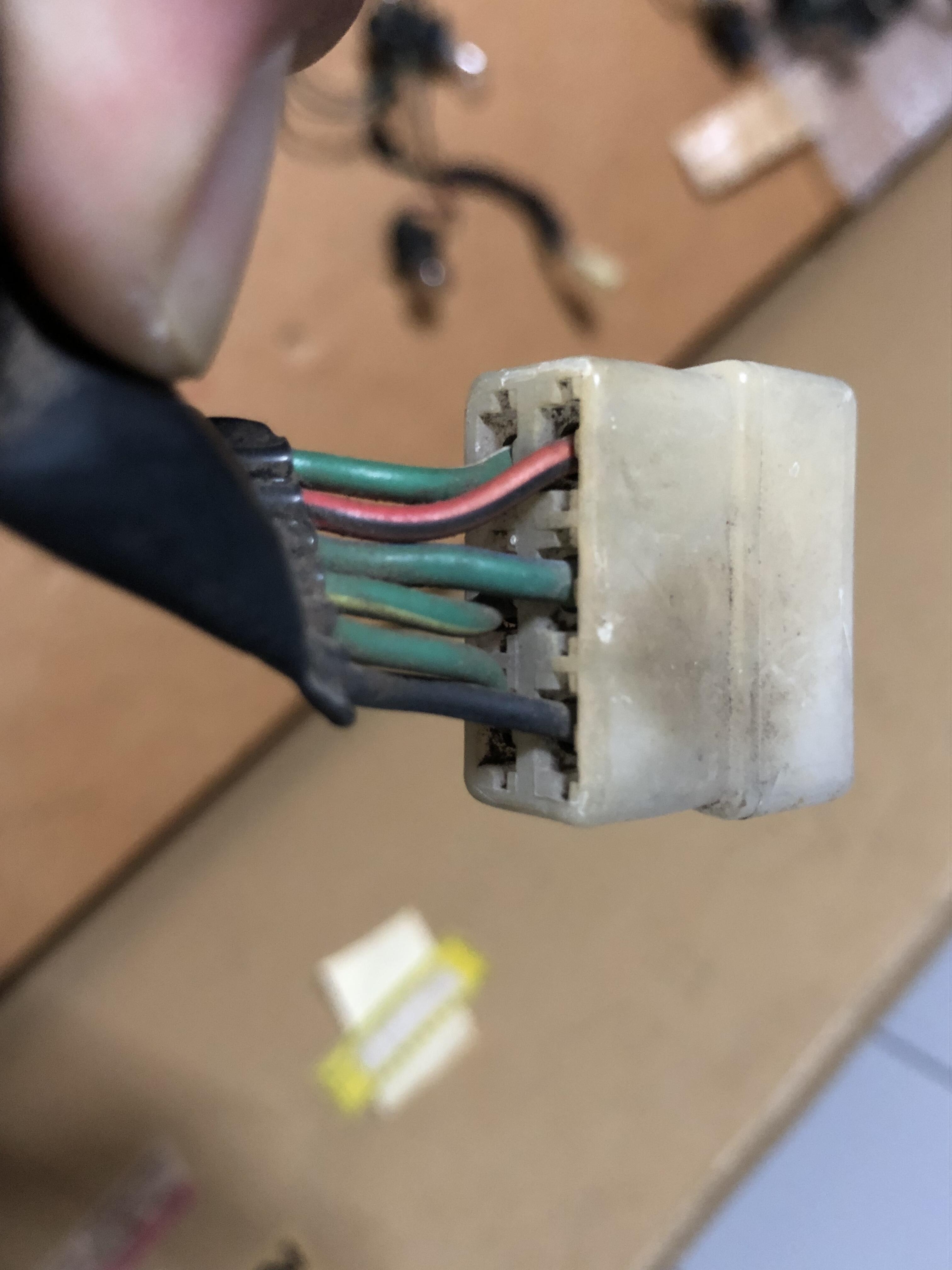

Hi Patcon , here are some Fairlady Z series’s wiring , hope it helps you a bit . Kats

Thanks Namerow, one thing I am worried about is how I can protect these if Nissan says ‘ they are not belonging to you ! Get them back to Nissan ‘ . I will start a new thread for this when I succeed to digitize. Kats

Great exhibition! I am sure your efforts will be rewarded . It is a wonderful thing that people don’t need to visit Nissan gallery in Japan to see a real Works rally car with historic displays. I have two old films , 1958 Australian rally, and 1970 Safari rally. I wish I have them digitalized so I can show you. I am so sorry they are not about 240Z , but may help to understand what Nissan did for international rally. Kats

I really think so too Alan . I have to wait to get like button until tomorrow. Kats

This is the decal of the BAT green 240Z . CanTechZ , I want to know about your 240Z’s fuel tank . Your car doesn’t have a reservoir tank behind the right rear quarter panel , does she ? Also your car doesn’t have breather / return pipes on the main fuel tank ? Kats

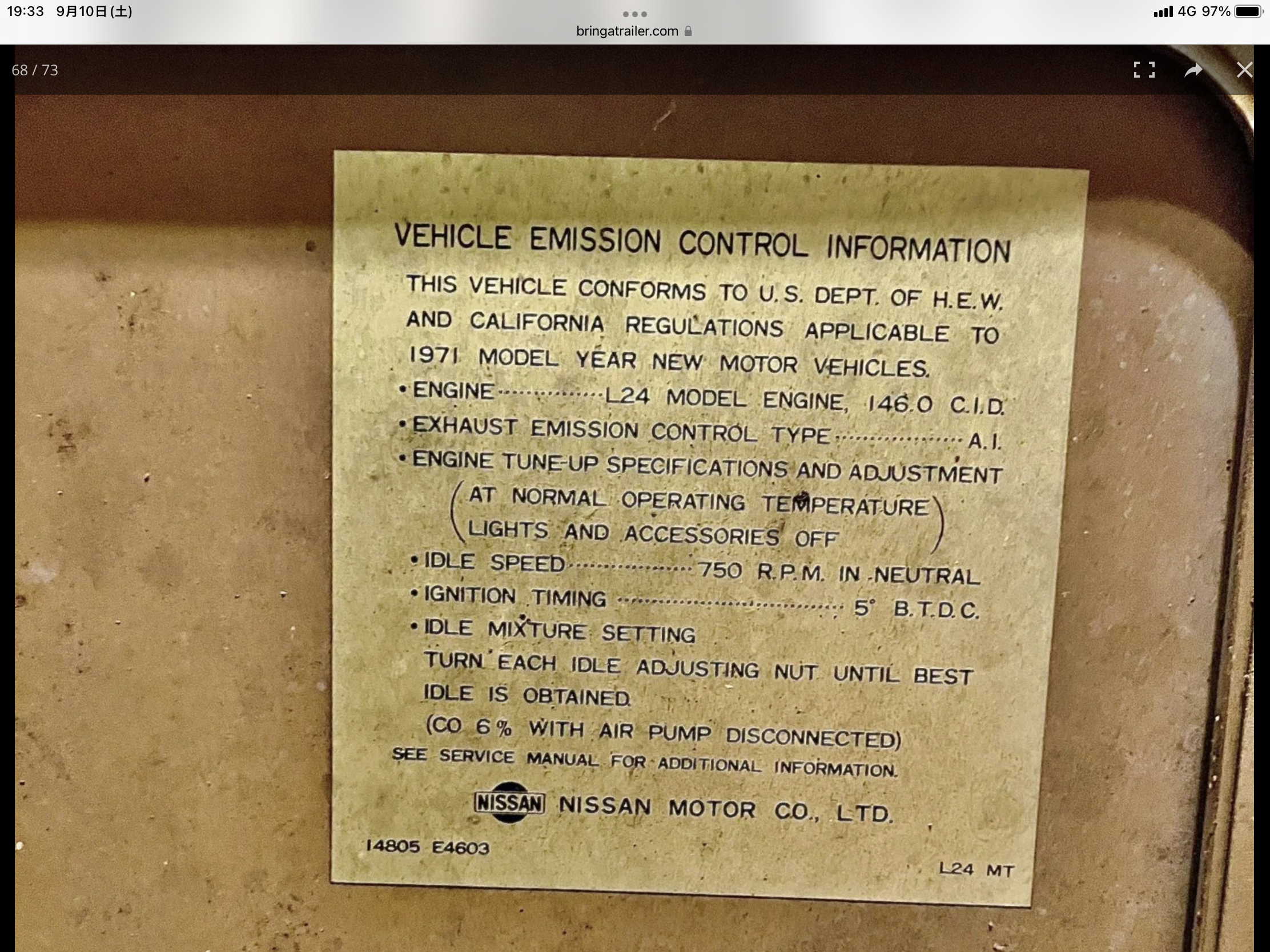

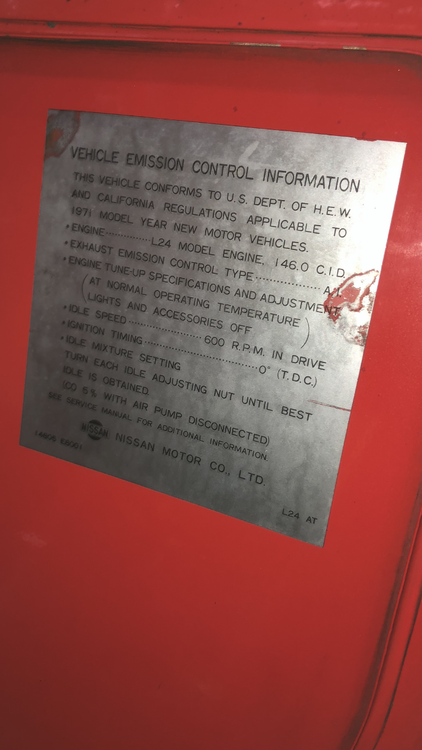

Thanks! Your car is always being a good reference for those maniac topics 😊 The point is , your car doesn’t have the emissions devices nor 1971 model , but your car has the decal which referred ‘71’ and ‘AIR PUMP’ . I have reviewed pictures in my laptop, I found two cars which are dated 5/70 car has already ’71 model’ and ‘ AIR PUMP’ decal just like yours . Both cars are US emissions devices vehicles and one of them is the BAT green 310000 $ car . I am confused now . And I need to amend my words , I can’t say the decal is usable to determine 70 or 71 model .Only thing I am sure it is useable for proving manual transmission or automatic transmission. Please see this picture, 08/71 automatic transmission US 240Z has this decal . It says ‘ California’ and ‘ 1971 model year ‘ . In this case, August is for 1971 model . Why does May 1970 car has 1971 model decal ? Kats

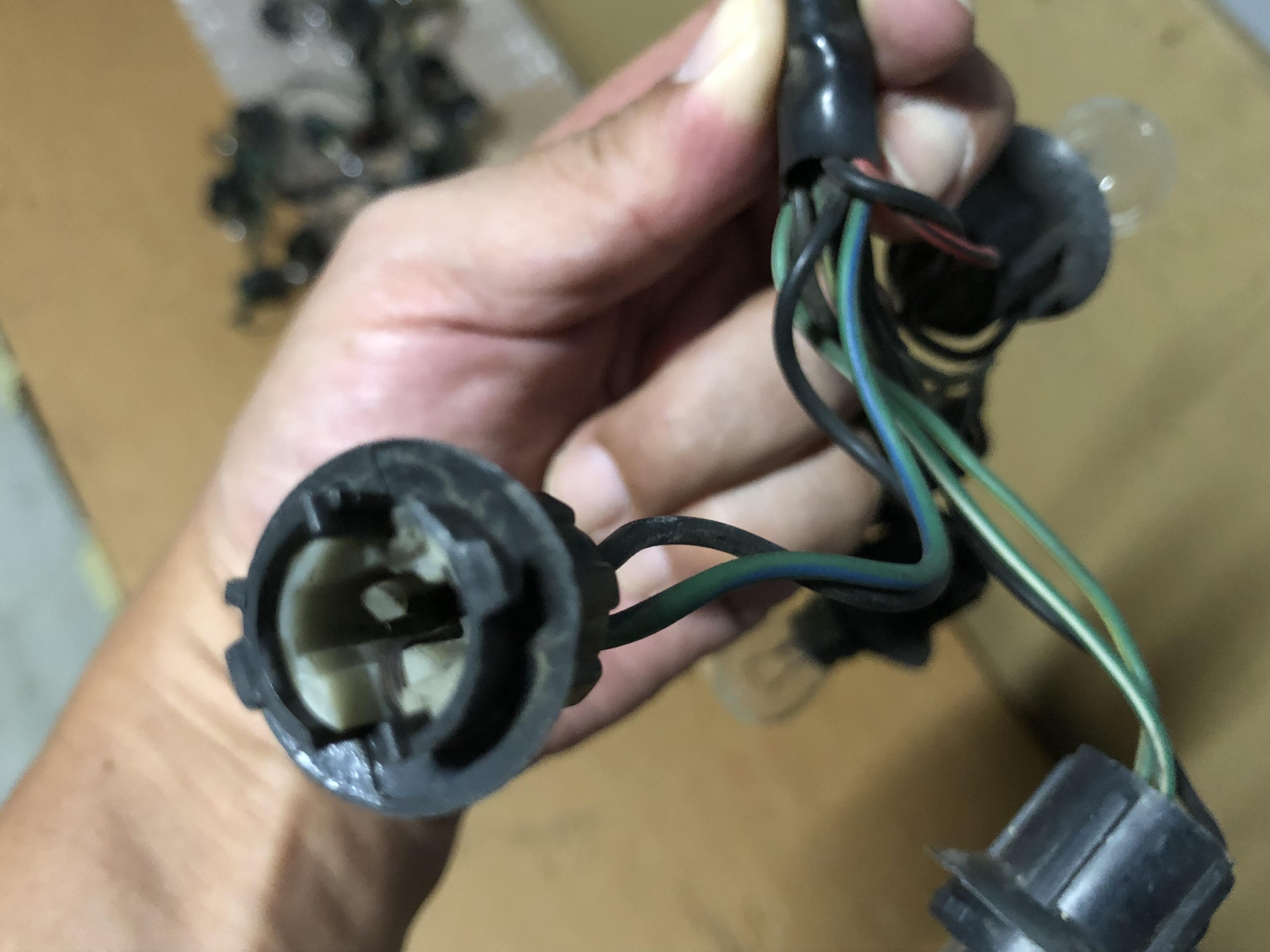

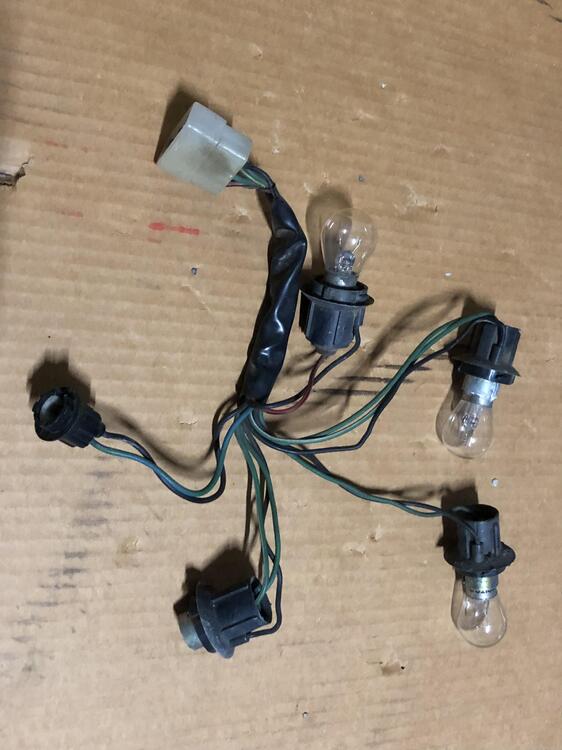

Hi Patcon , I am not good at electrical components nor wiring harnesses , but I would be happy if I could help you a bit for your project. Do you want to see my Fairlady Z tail light assembly? Or if you want to see anything which is related to your project, let me know . It is easy for me to show you , maybe not easy to source Fairlady Z parts but way better than looking for them in the US. Kats

This placard is useful for US and Canada model to determine 70 or 71. And Manual or Automatic transmission. Now I would like to know when Nissan Shatai put this placard on to their 240Z . September? October? November? If we can get enough examples, we will be able to see when . By the way, Japanese people usually say about our cars first- registration month and year . Only enthusiastic people say about build date with chassis number . Kats

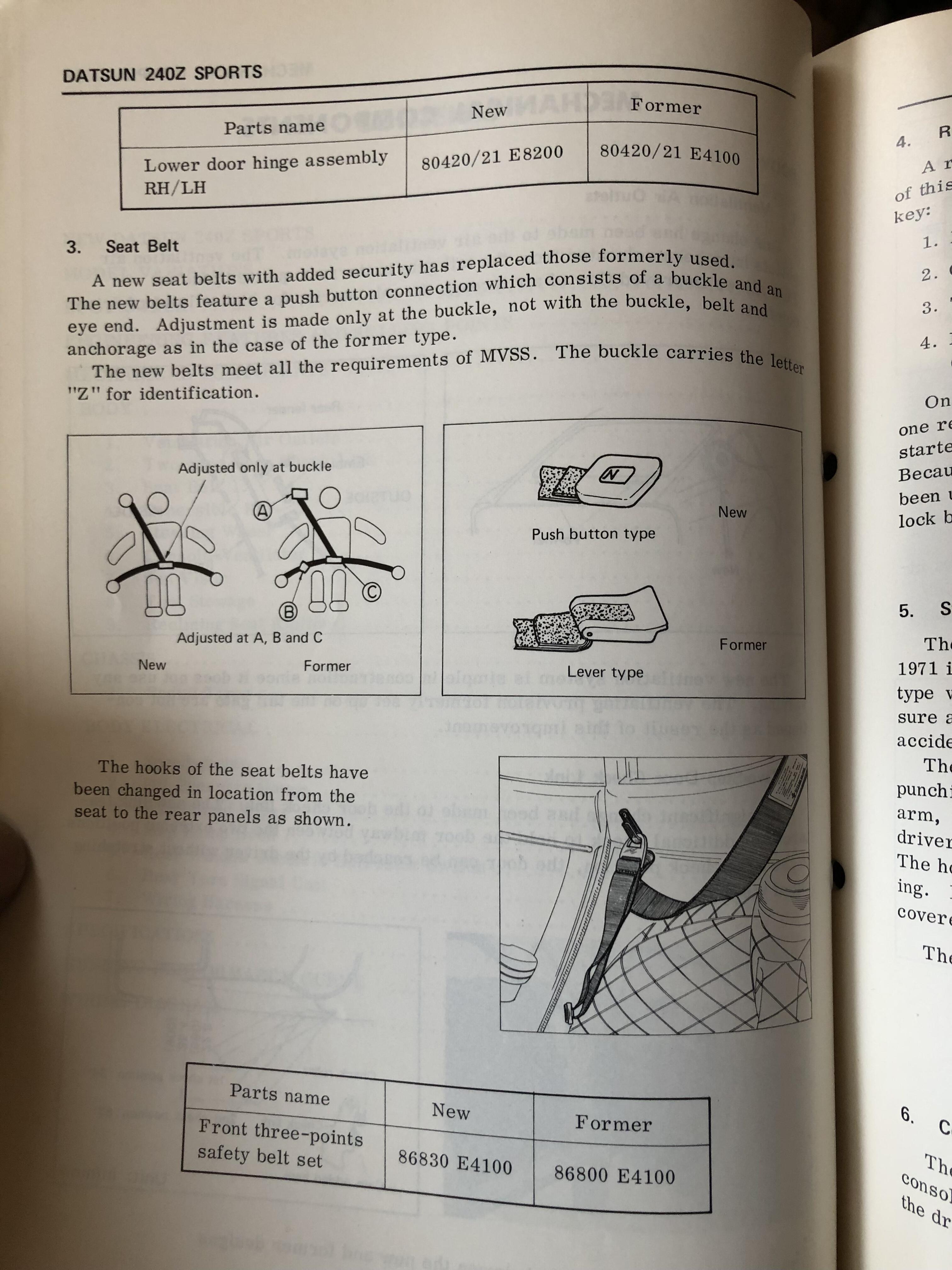

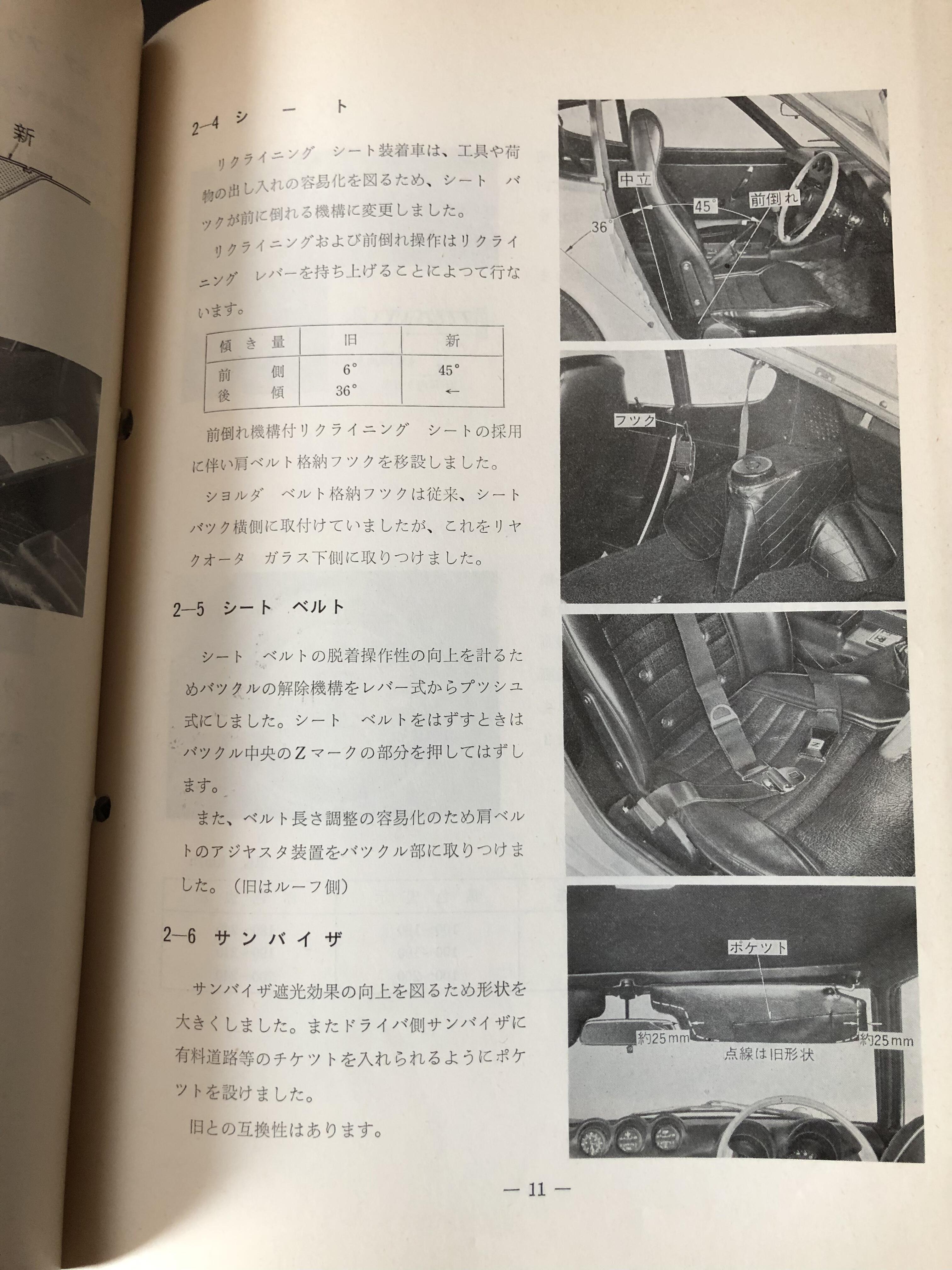

Hi Mark , I do this before someone does. The change was made around in February ( export) or March (Japan) 1971 , there is a service bulletin which is titled’ 1971 late models ‘ introduced a set of new seat belts as well as other numerous changes. It is Interesting to see two books were written in different way , different depth of technical descriptions. Kats

Thanks Patcon , maybe I was gambling for it. I was thinking if I damaged the bonnet, I would have had it fixed with original blue # 903 . The reason why I bought a very rough 240Z (-02146) is sampling an original color #903 . But for now , I am so happy with the bonnet, to repaint back to original #903 will be postponed to someday. Kats

Thanks Keith, you have a Patrol ! Does it have a L24 motor ? I don’t have any knowledge about Nissan cars before S30 cars , but I remember Nissan engineers said bolts and nuts were mixed up with inches and millimeters. For late 1960’s cars like S30, they decided to use only millimeters for convenience. By the way, I have read that Nissan rally cars used less variation of sizes of bolts and nuts to minimize number of tools for fast operations. Chris , I too love hunting tools , wooden handle screw drivers are my favorite one. My recommendation is to get spark plug wrench , that is cool to add your correction. Kats

Here is my tool box , Prince tools are inside in the box . I found one big wrench which has name ダットサン(Datsun) I think it is very old tool , maybe before WW2 ? Kats

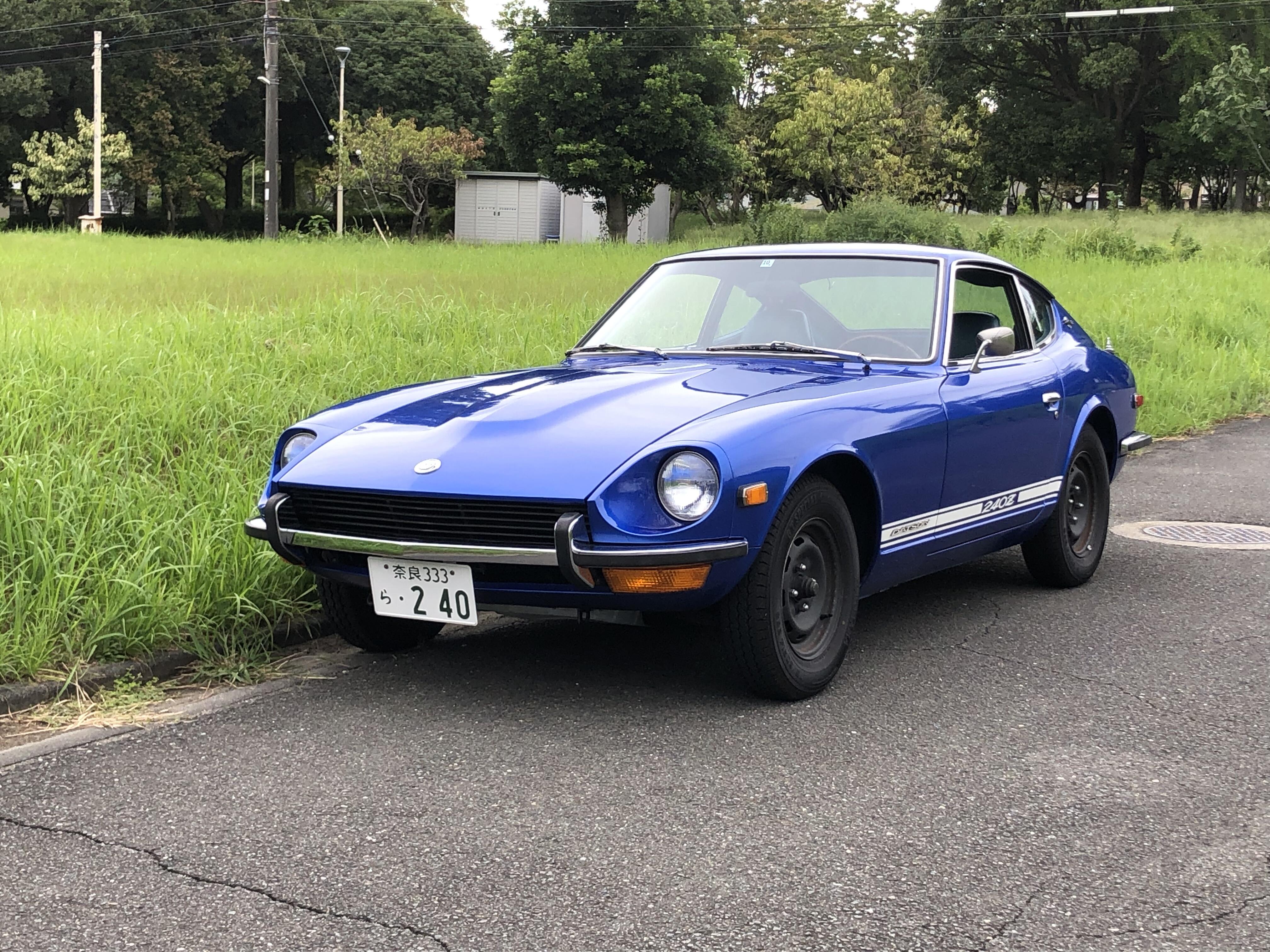

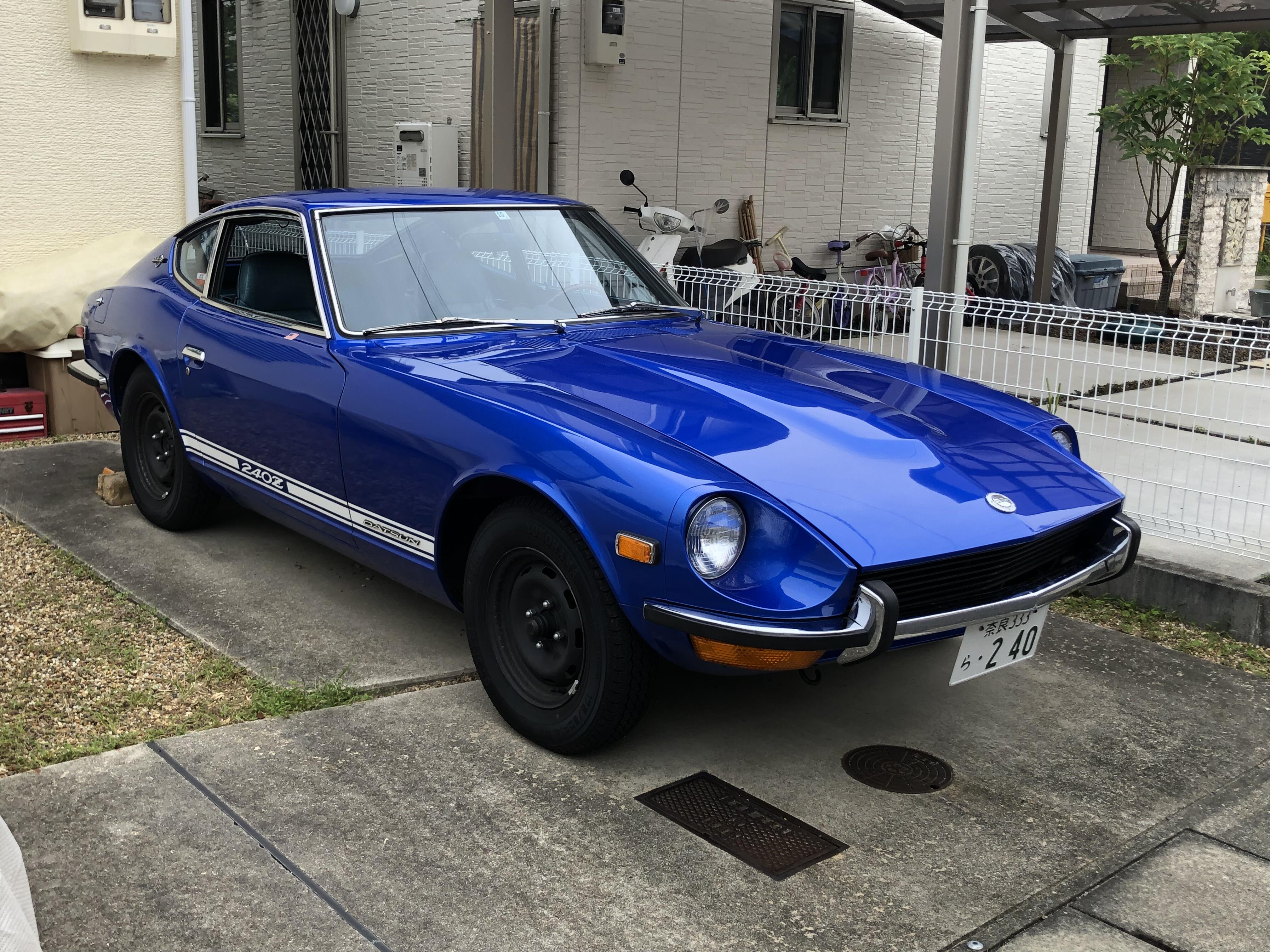

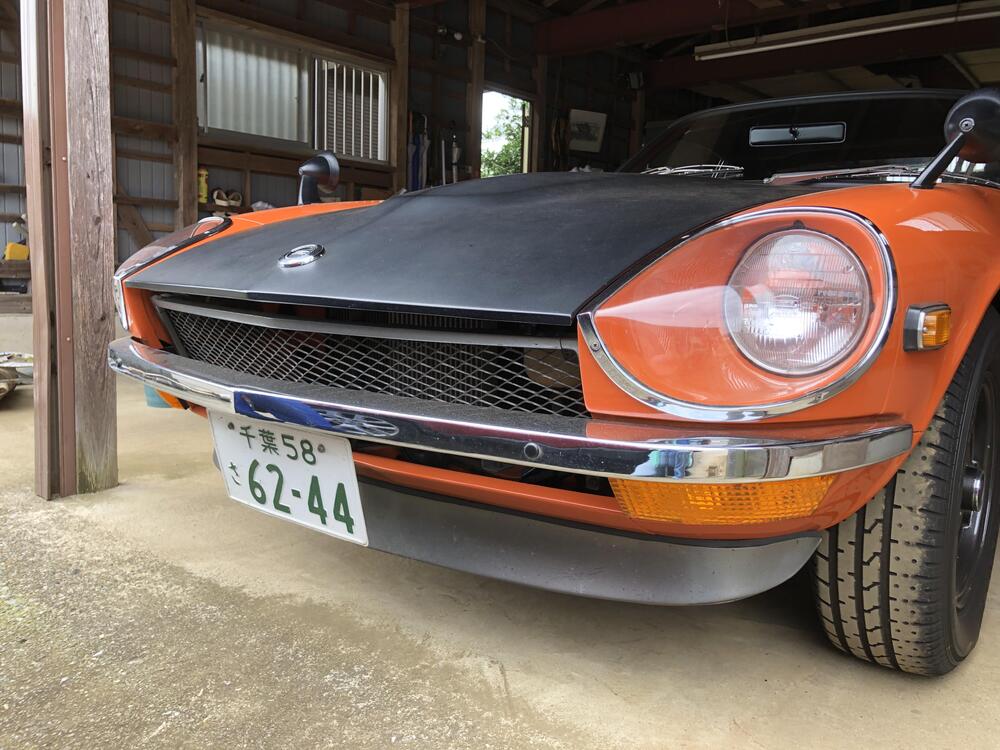

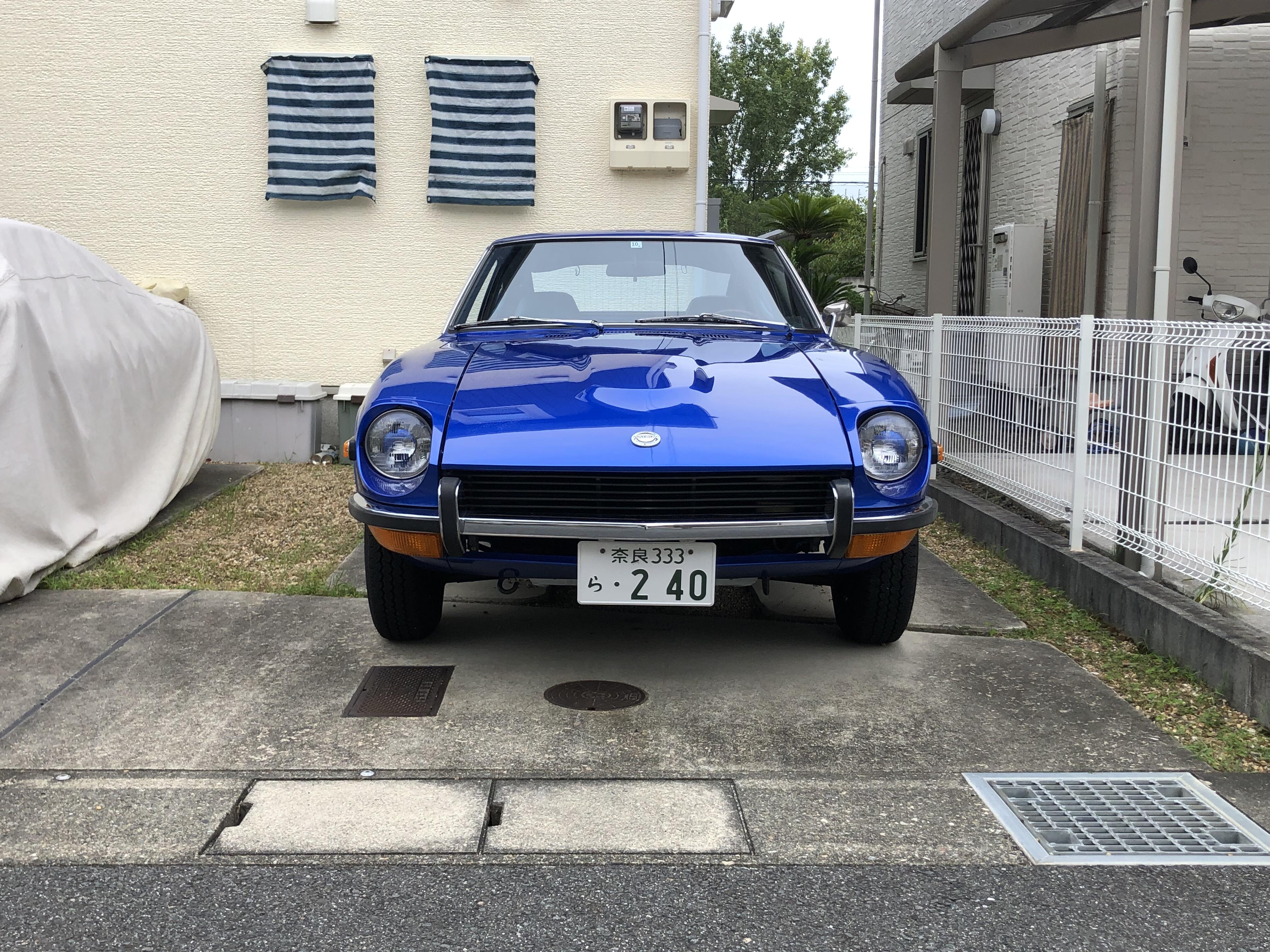

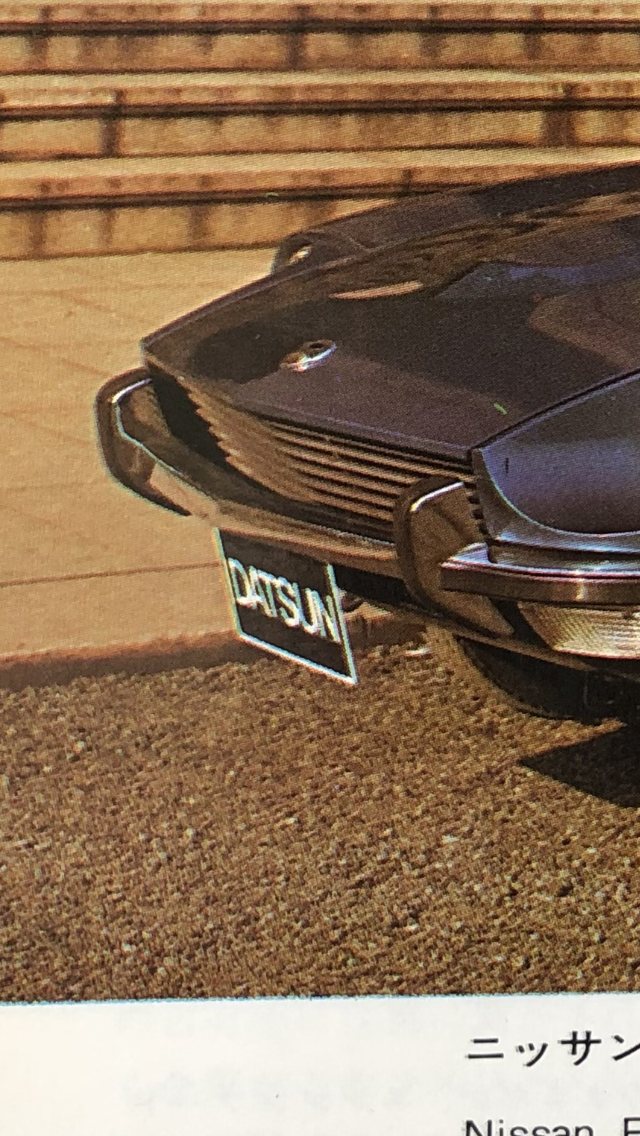

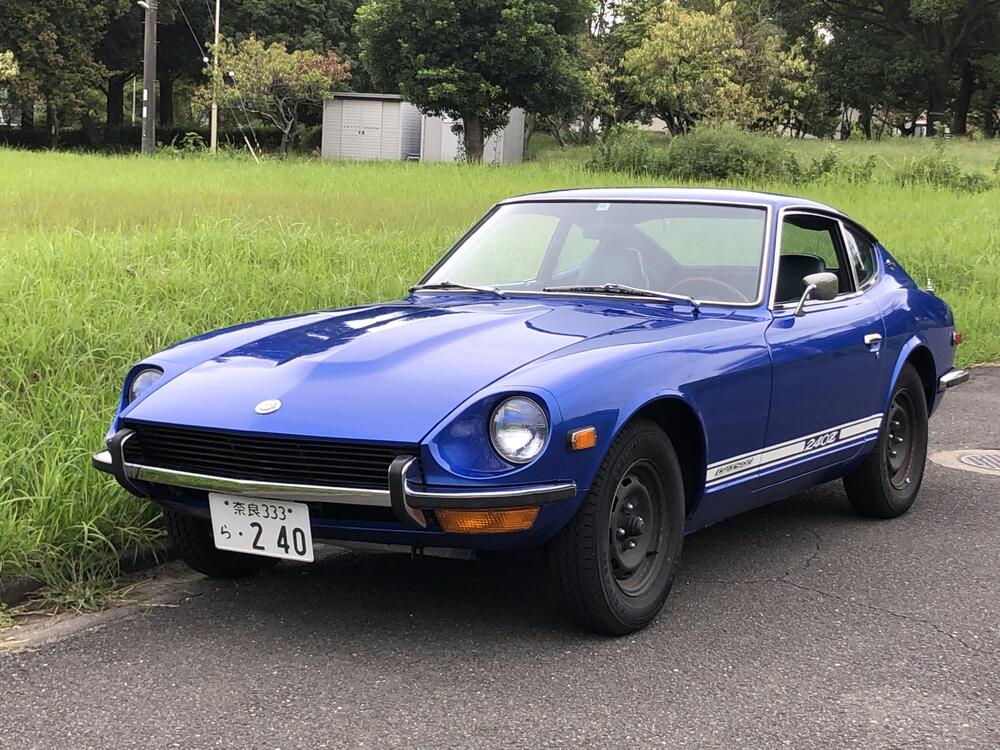

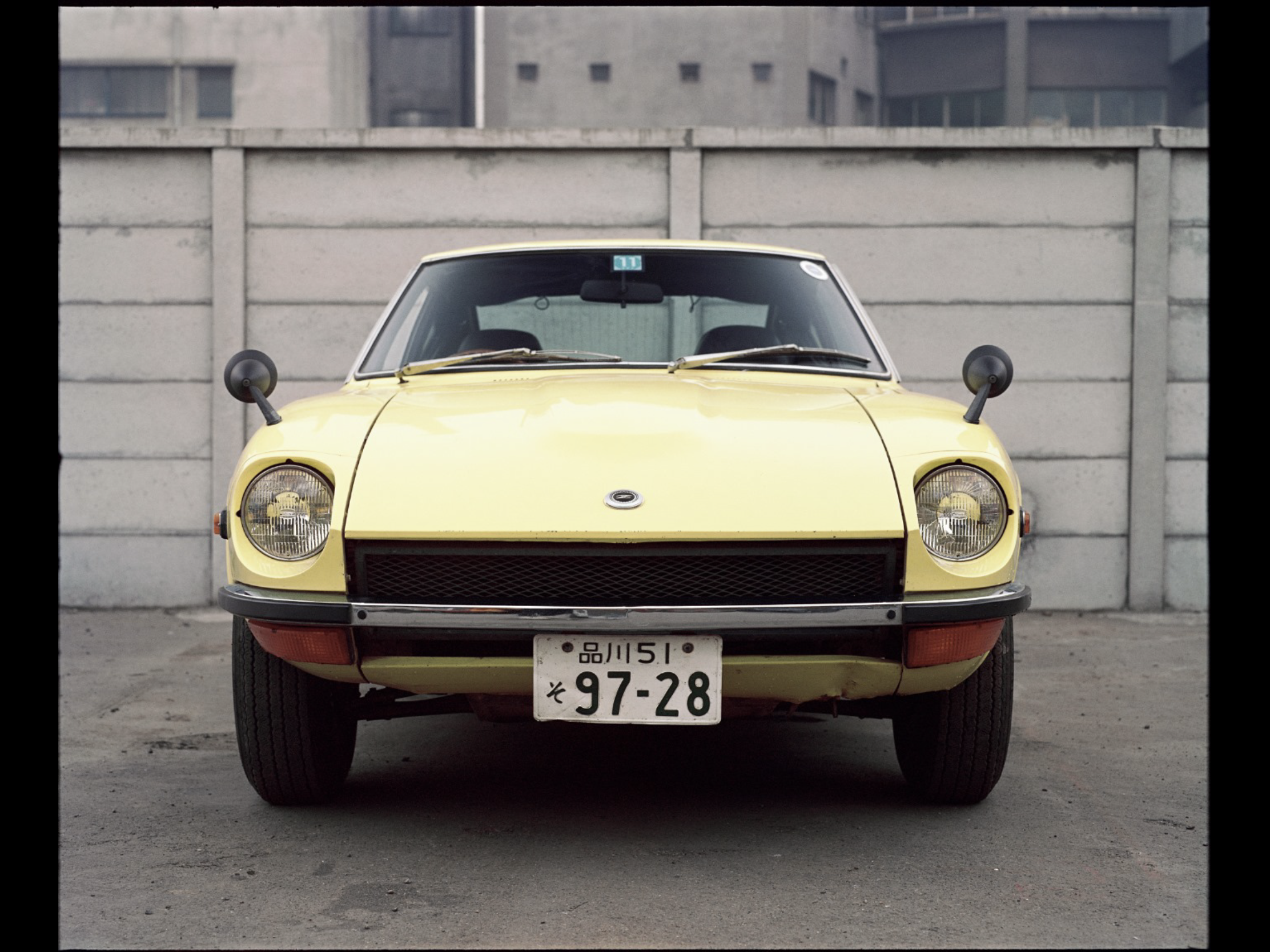

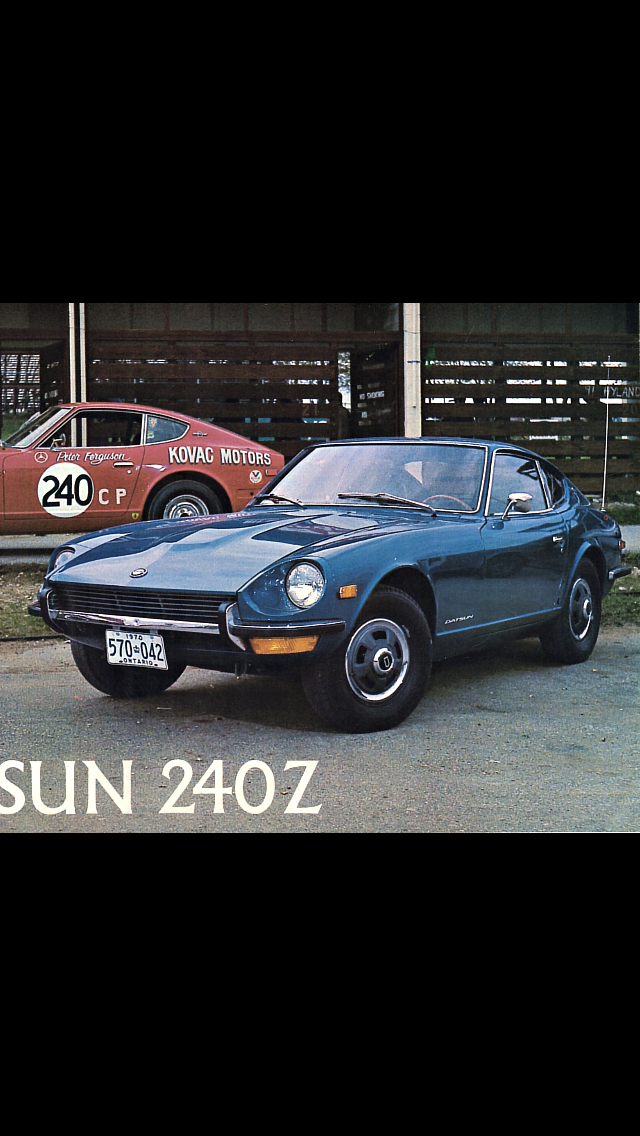

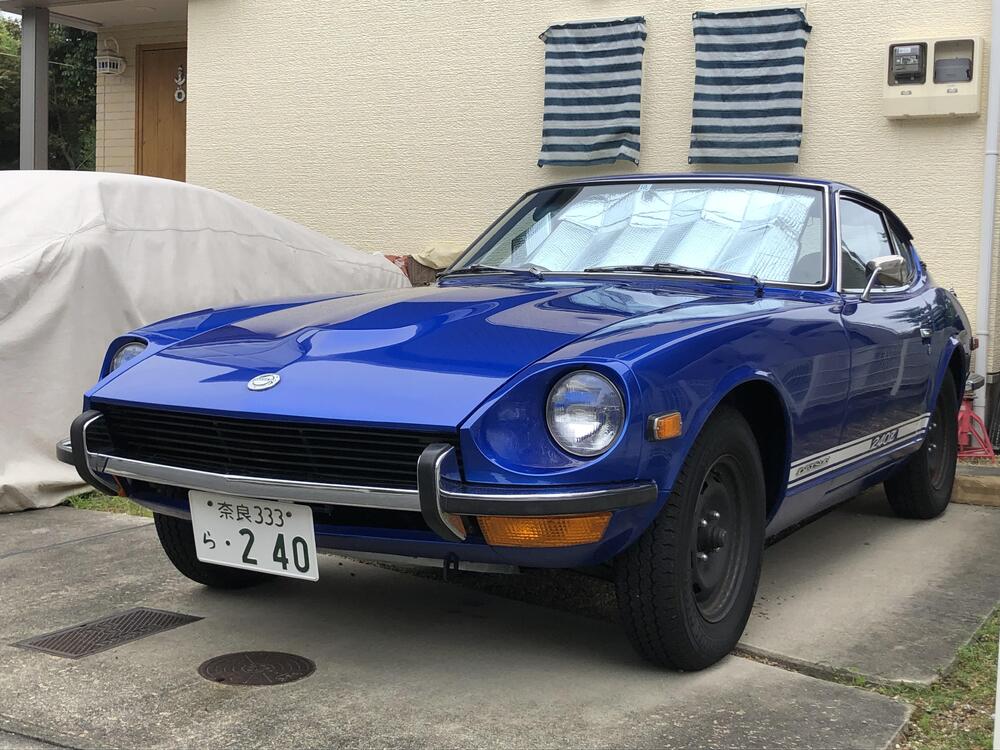

Now my 240Z look like this . I add some old pictures for references. Kats

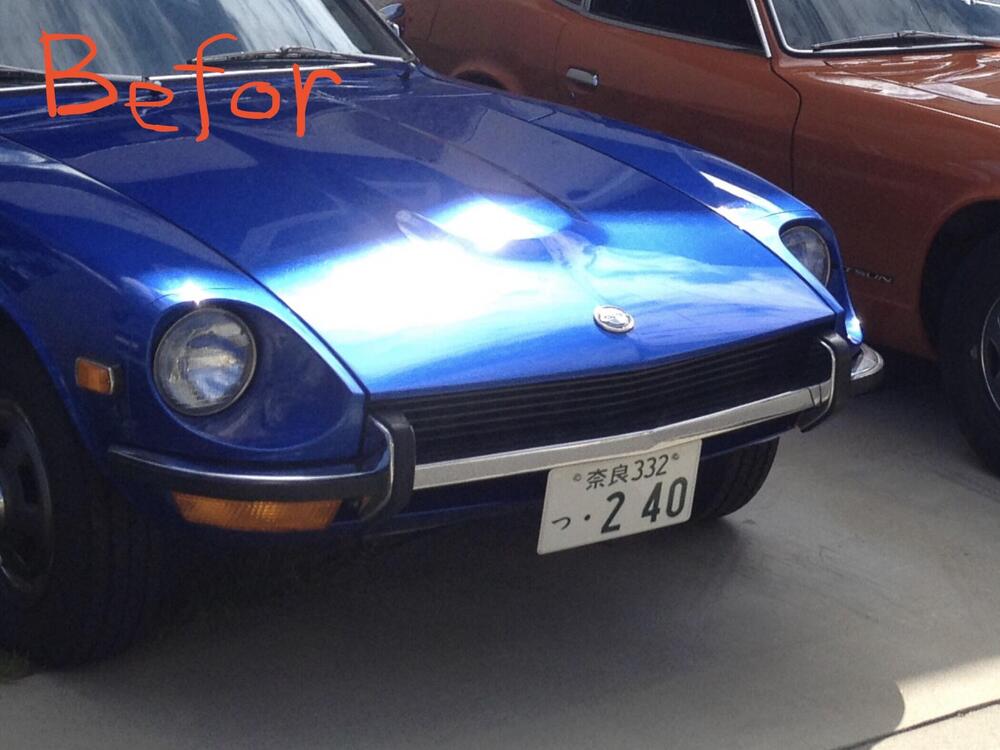

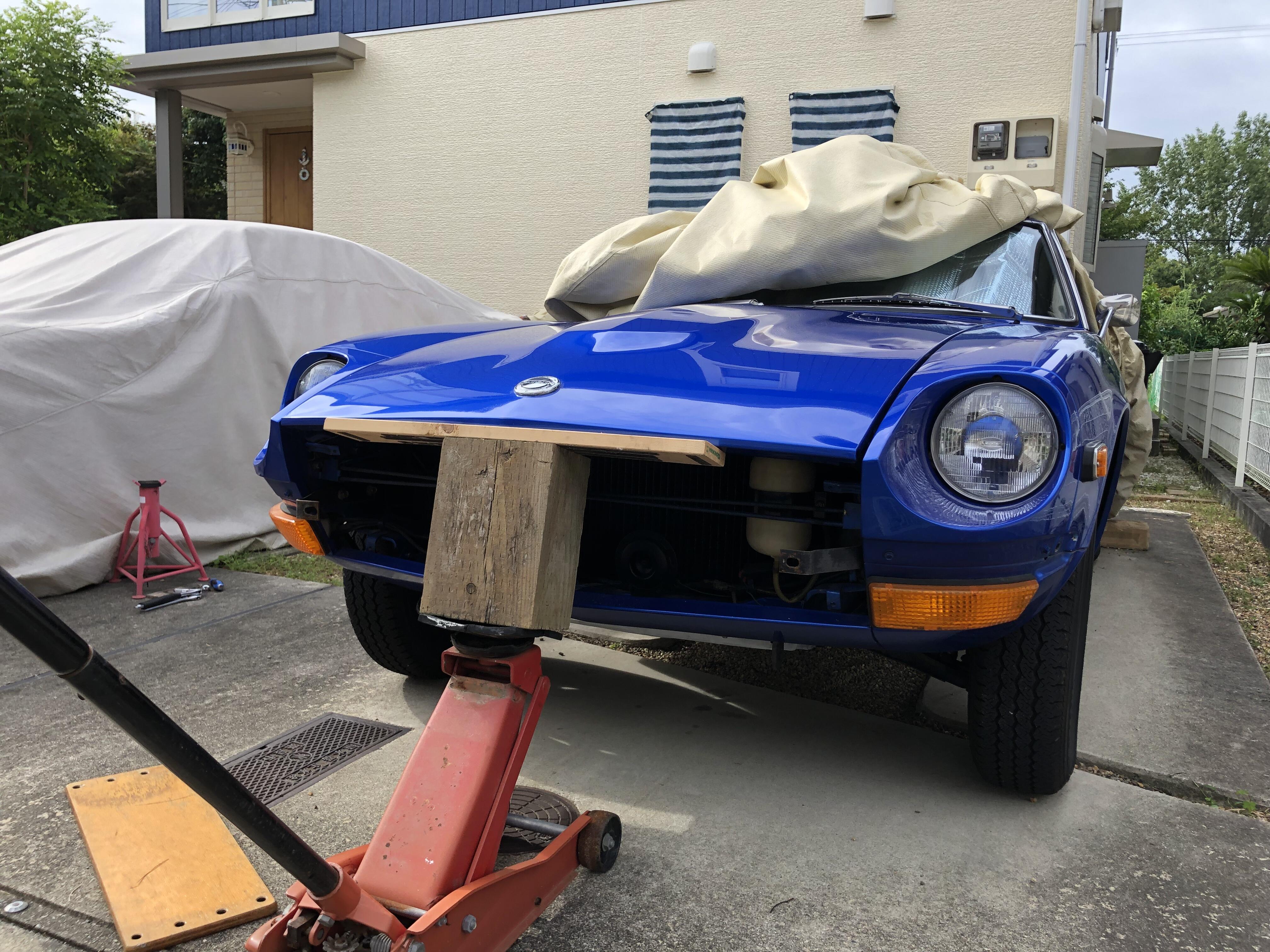

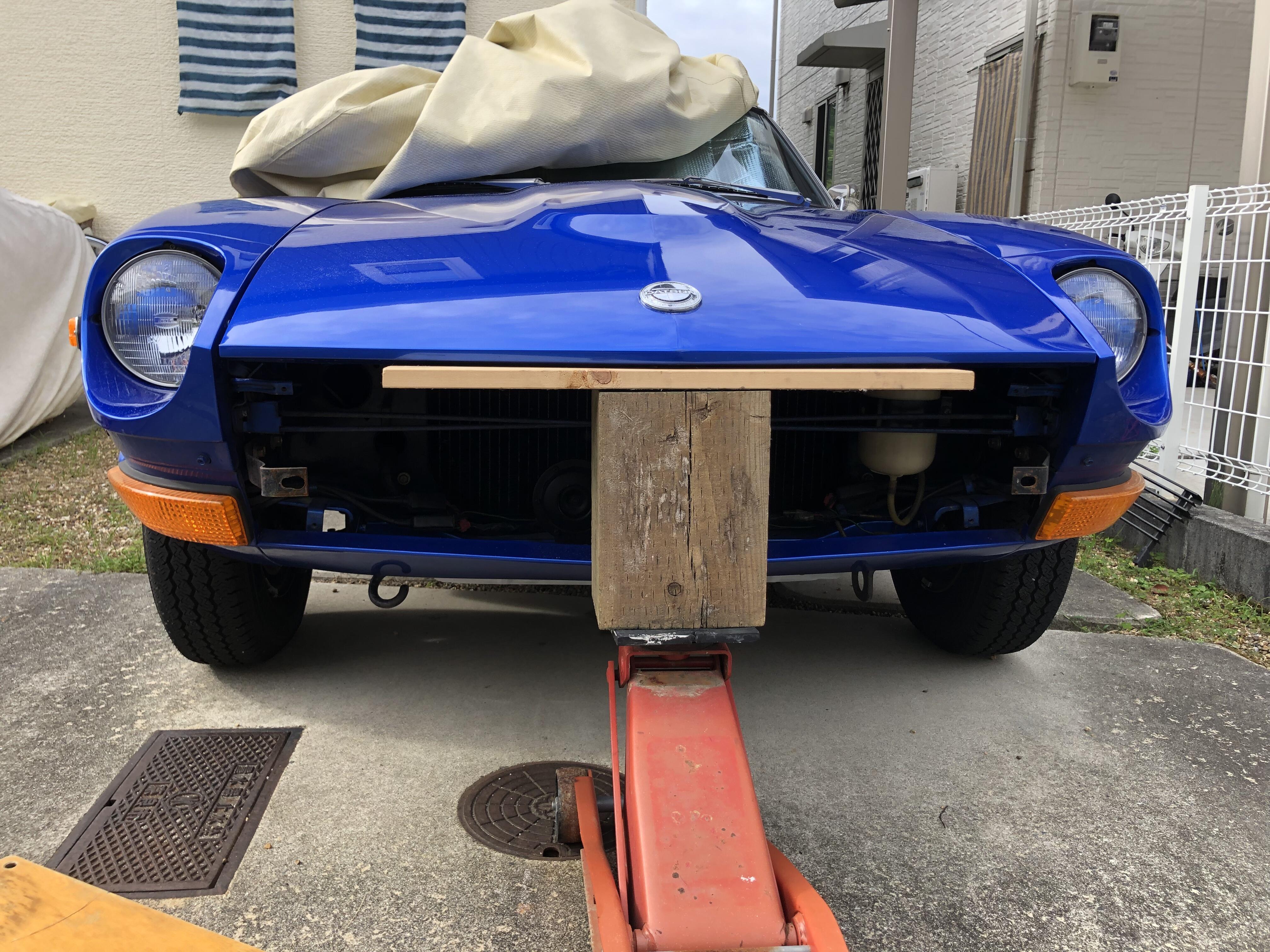

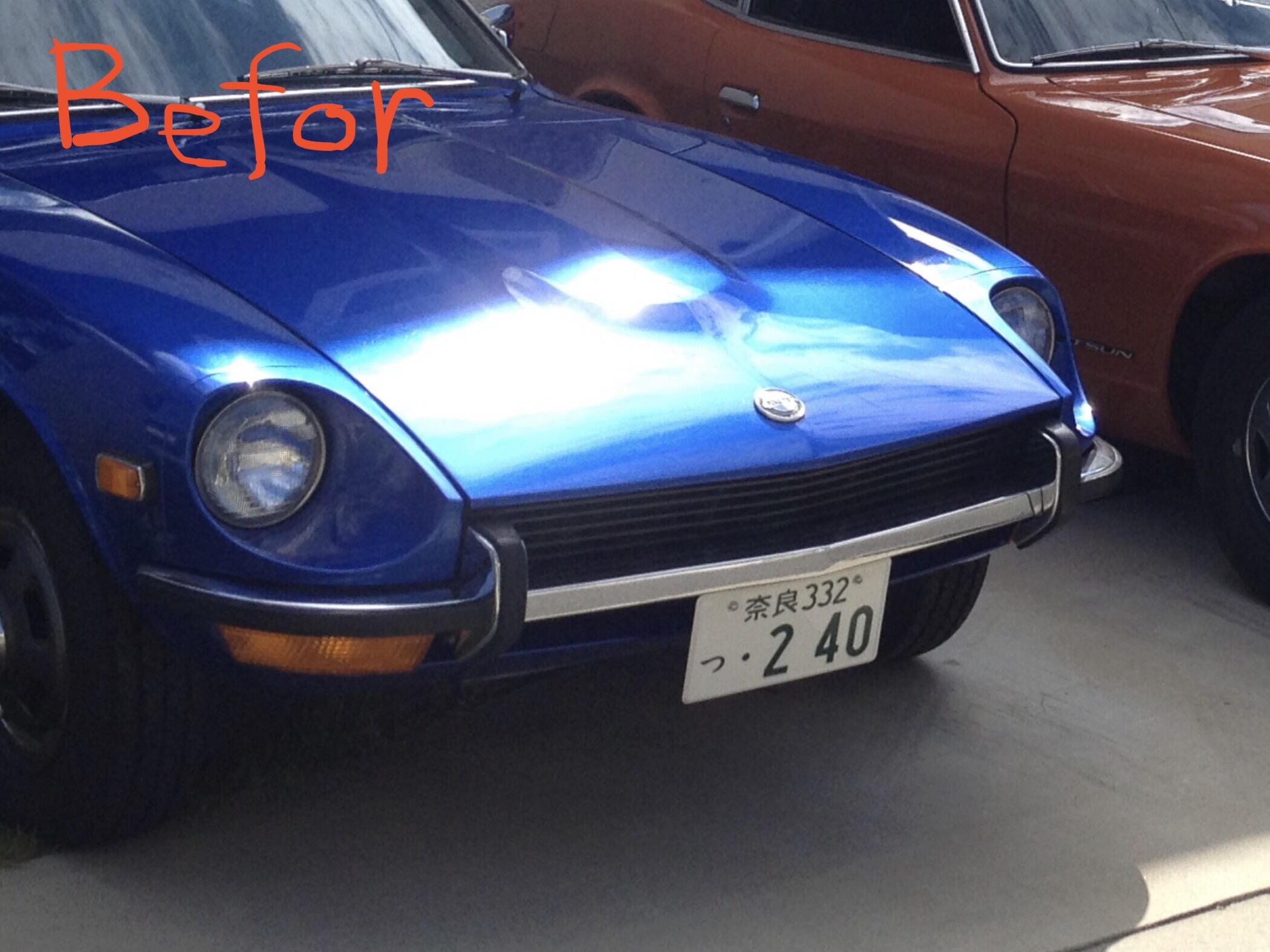

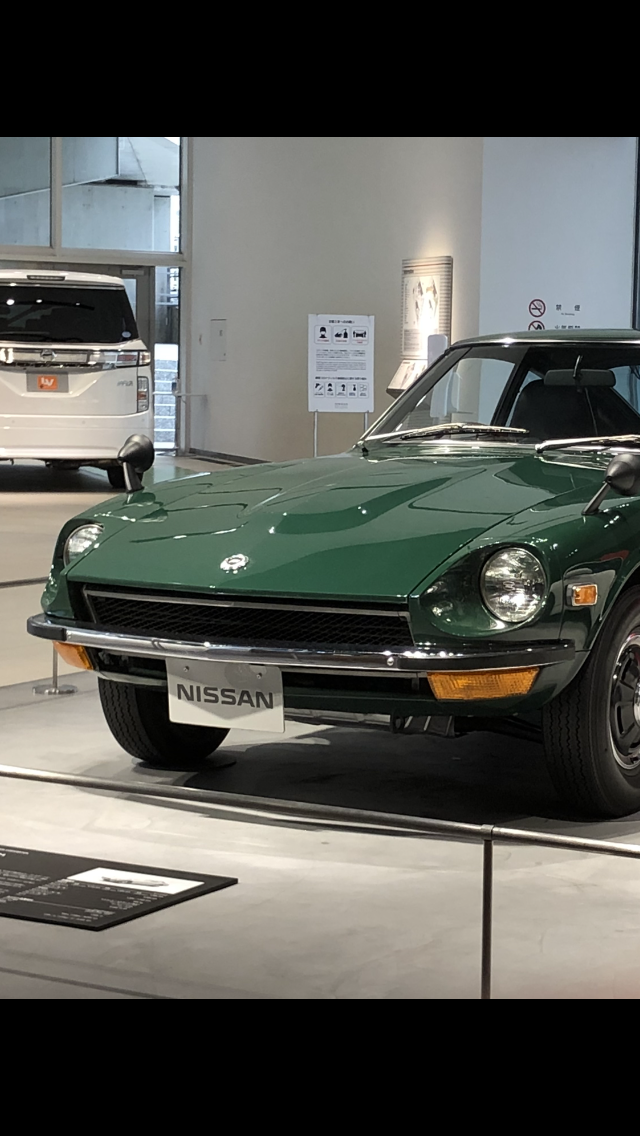

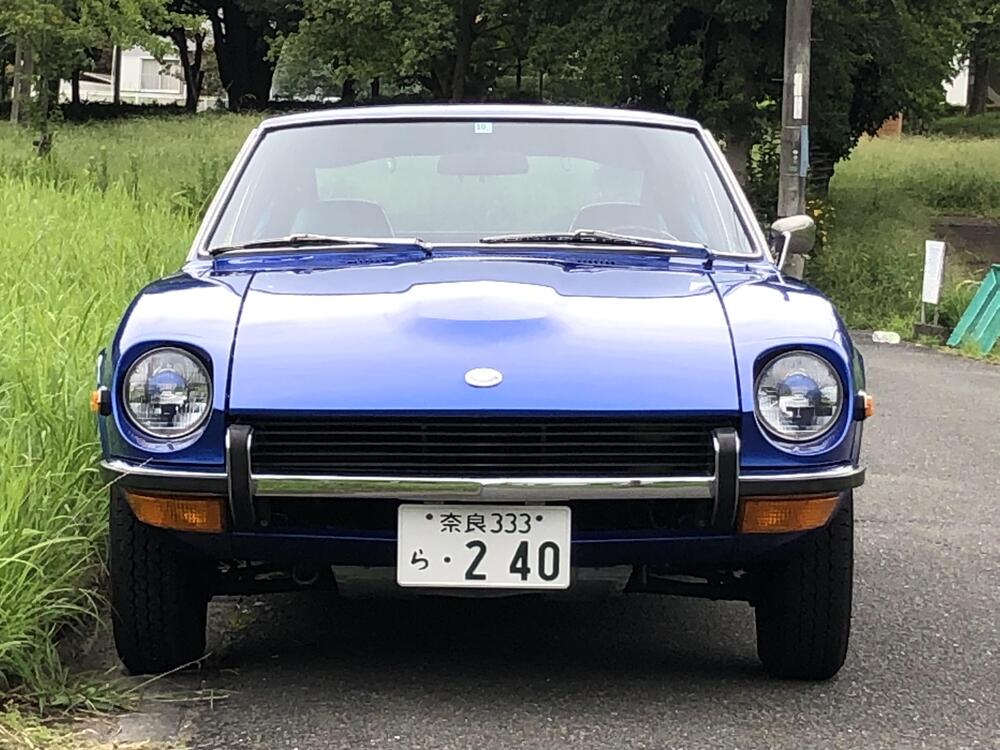

Hi , I have been unhappy with my 240Z’s bonnet. The top center edge was pointing down quite noticeably. I wanted it lifted up as we have seen it in original, un damaged bonnet. All I have seen old pictures show me beautiful, a bit far from the bumper than the both left and right corners. So , I did it by my self . It is a crazy thing , It was abrupt method. I used a jack with wood pieces to push the top center of the bonnet. Gradually and carefully lifted it up , I was so scare when I was doing it . It turned out quite nicely, I must say I am happy with it. I don’t see any crack or bumpy , shrink surface . I will do some bonnet hinges adjustments, also may require some head light case and fender adjustments . Please see the pictures ! Kats
