riceburner

Thanks ,good tips. For the record my 73 240z FSM shows "rear axle bearing lock nut" at 181-239 ft-lb

Is there any change in the fitment process, are the final torque figures the same as 240 or 280zx FSM?

There's this from Australia https://www.viczcar.com/forum/topic/15125-l24-stroker-build/

I would think you'd want around a 70/30 split front/rear? Definitely not ''all four tires contributing to stopping equally''. I think most will find a 50/50 bias very scary!

I believe they used an Australian RB30 crankshaft, 90mm stroke, 90mm bore on a sonic tested L28 block (rare), Honda sized rods due to crank journal sizes, Stuart Wilkins Motorsport big bore headers and also a custom flywheel as the rear of the crankshaft is thinner altering the flywheel clutch position. It's a little over 3.4L.

Hi Sean, these are the dimensions measured roughly, excuse the diagram. Might be suitable as a big bore option for your line of exhausts. Reinhard stopped selling them separately after I got this in 2013. A few Aus guys tried buying them but they would only sell the entire system.

I run 3" mandrel bent all the way to the rear then split it into twin 60mm at the Reinhard muffler. It must get fairly warm, the tips changed colour after the first track day. Not sure what the flow rates are when comparing 3" with twin 60mm.

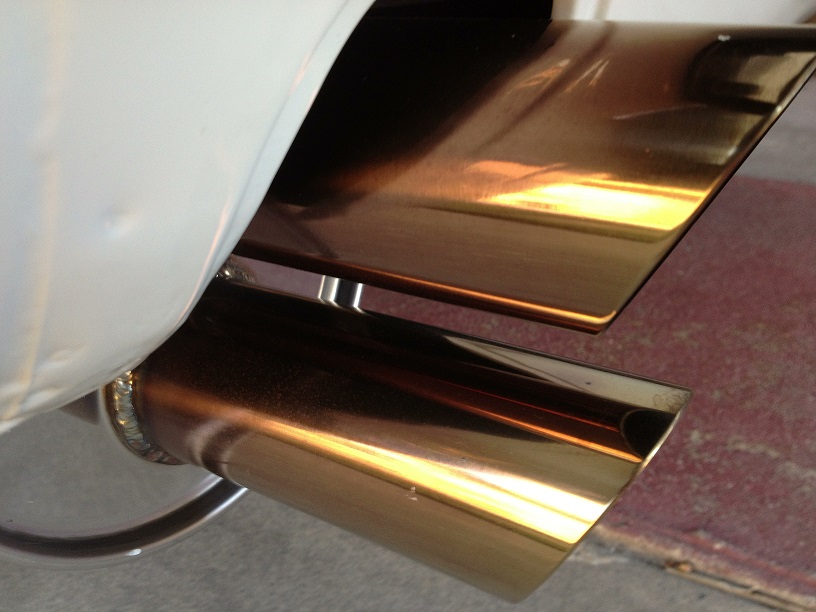

The picture of the red 240z above is the stainless system from Reinhard Japan. It's twin 60mm from the headers all the way through, twin 60mm rear muffler too.

Look foward to the progress. It'll be snappy!

The ebay rods by max speeding, spool etc are all the same. From having used both I can tell you the short ebay L28 rods measured at 615 grams +/- 1.2 grams and were only 130.3mm long. The DSI rods are 139.5mm long, they measured at 500 grams and all were within less than 0.5 grams. In a high spec engine every bit helps, especially with quick revs. Compare the DSI piston/rod combo to the shorter Ebay rods, 690 grams less for the DSI rods alone. Then there's the DSI pistons, a 3.4kg flywheel. Things really start to add up then. I'm not saying the ebay rods are garbage, mine served their purpose without fault but It all comes down to your build spec. From what I can see a lot of the DSI rod & piston offerings look very similar to Kameari. To get back on topic, Diseazd do you know if Eiji sonic tested the block?

Very interested to see what it does also! I have the same bits in bottom end, bit of extra crank work and a worked P90 shaved 2.4mm. The ebay rods are not the same as DSI. There is a big weight difference.

Got my parcel today. Thanks Chas, they look excellent!!!

You'll get voltage drops using the factory harness without a relay, so much you can actually hear the pump speed up and slow down when the indicators come on/off. Ask me how I know, ! Lower voltage means more current draw which may shorten the life of the pump. It'll also alter the flow rate.

I tried the Carter pump, but removed it due to the noise. It's like someone is using a hammer drill on the underside of the car! I switched to a Pierburg many years ago, It's been faultless on road and track. Pierburg roller cell pump, 1.9 litres per minute @ 3 psi running at 13.8 volts 2.0 amps and supports up to 340hp.

Wow, great work Chas. I'd like one of these for my ride, PM sent.

If the belt is slipping but seems tight enough try giving the pulleys a light sand or wire brush. It'll take the shine off the pulley surfaces and give better grip. CRC also make a product called 'belt grip' it's kind of an adhesive spray, can be helpful as a last resort. It can be messy though.

Second pic (maroon Z) looks like an R-factory airbox, I just purchased one of these for my cold air setup. Max airhorn length I measured would be about 70mm with minimal clearance. Re filters. I'd run them dry unless specified otherwise. I ran uni filter socks, I've tried them oiled, then dry and it's messier when they are oiled. The positive was the oil seemed to help keep the dirt more on the outside of the filter, when dry I found more grit imbedded in the foam material and cleaning was taking at lot longer. If you do oil them, do it very lightly. Colinc 'JDM Fairlady' is my ride, it's just an AUS spec November 73 240. Pic was taken at a car show, filters were removed for asthetics, uni filter socks are not nearly as pretty as the ram air filters. It's a shame to hide the stacks under an airbox/filters but that's the trade off I guess.

I ran Keihin CV's from a Honda blackbird for a while, I purchased 2 sets of four and then rearranged them into a set of six. Good solid carbs, they even have knife edged throttle shafts from the factory. I now have six FCR41 flat slide carbs on my car, I couldn't be happier with the way they run and the sound is amazing! Tuning isn't hard providing you have an air fuel meter, I used an innovate LM-2 for on road tuning. Balancing I find easier than trying to do my old triple dellorto's, they stay in tune much longer too. Driveability is fine and that's with an overbored L28, heavily ported P90 and a 76deg works high lift cam.

They are produced in Sydney by a small business, I had one on my car before the G-nose conversion. IIRC it was about $250AUD + post. It was very good quality, so much so I was able to run it on the car in the black gel coat only. The topstage spoiler is different.

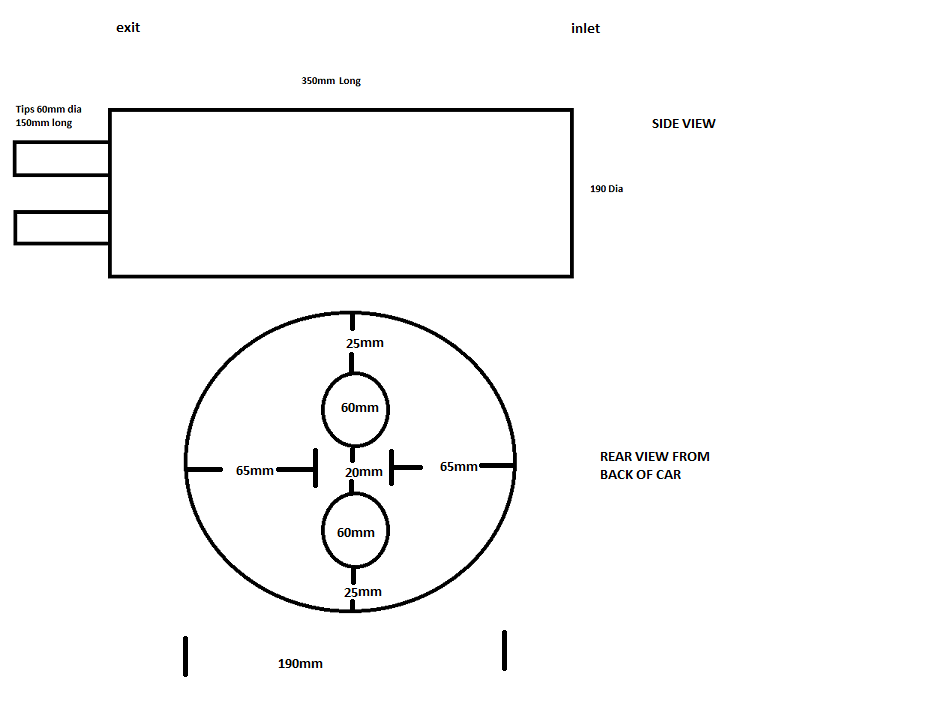

Here's the dimensions of my Twin 60mm stainless can from Reinhard Japan, It is twin 60mm inlet and outlet. Excuse the rough diagram, I had already done this for a fellow member on Auszcar. Hope it helps.

I have Konig rewinds in 16x8 +0 offset, the centre caps don't clip on the front properly.

Tomo, I have stainless extractors which don't give of much heat surprisingly, thre's plenty of ACL heat shielding and louvred inspection flaps to help with the heat. Chase, I Love the Camel GT decal. Always makes me chuckle whenever I see it.

Here's a couple from my car, bit of a JDM theme going on. I like 'Mr Horsepower'

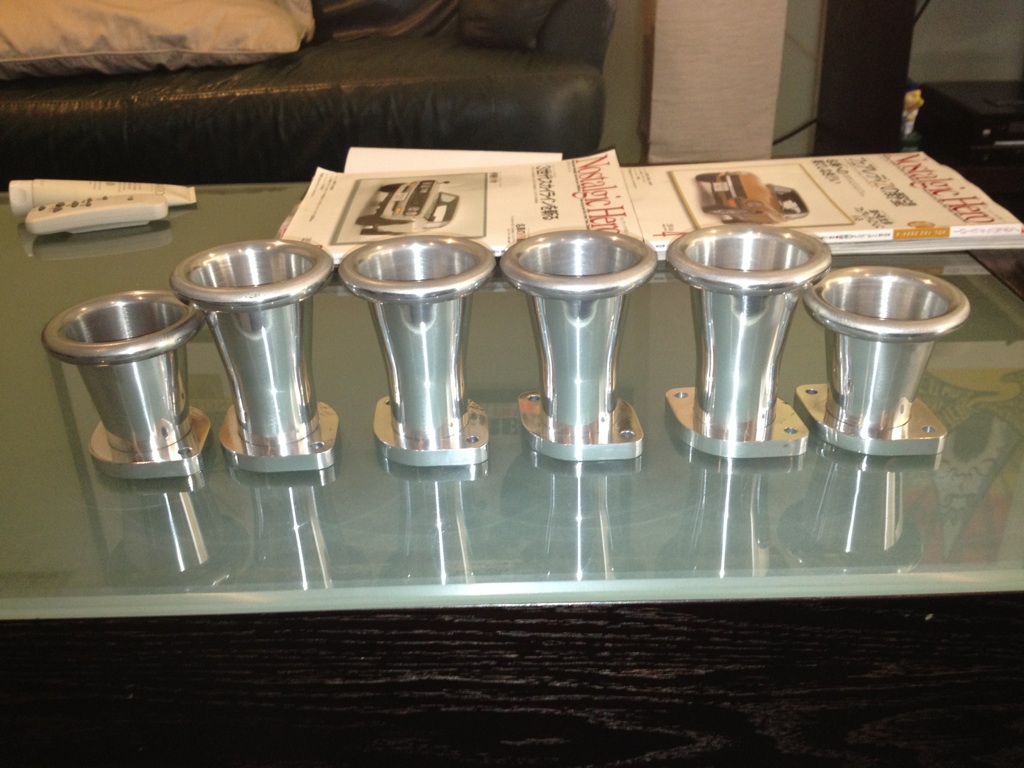

There's also EFI hardware who make these stacks, 105mm long but can be shortened anywhere between 105-60mm. They have a full radius bellmouth and a tapered bore, starting at 79mm o.d. The bases are removable so you can shorten the stacks with no issues. These are their 40mm stacks to suit weber, dellorto, mikuni. Very well priced too. Link Throttle Bodies, EFI Fuel Pumps, EFI Regulators, Wolf 3D Engine Management Systems, EFI Hardware
