Thanx mate, restore the vaccum lines are my next project in this car, because it has none. Like not even one, all are broken with the pass of time.

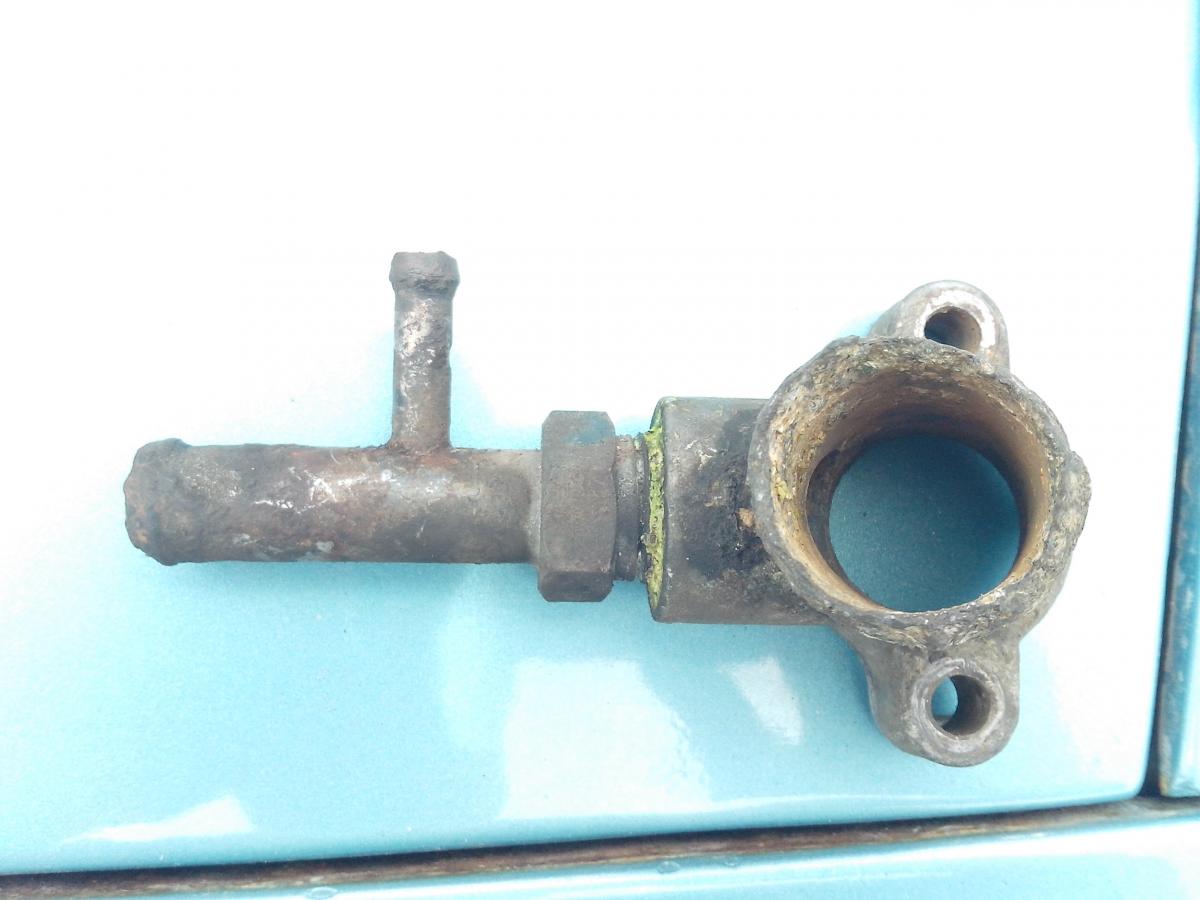

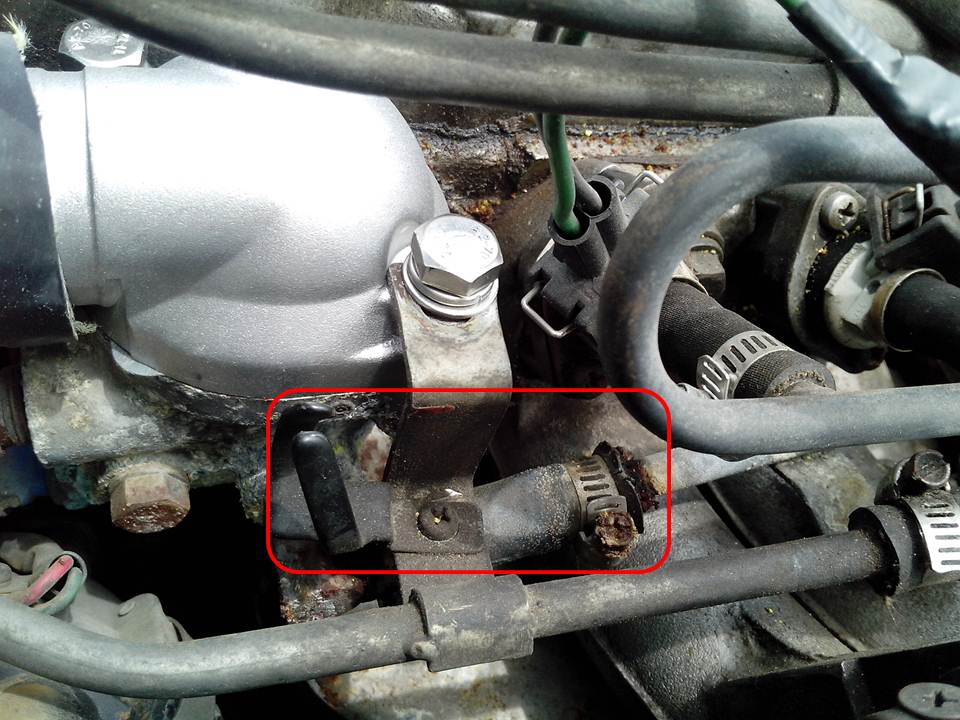

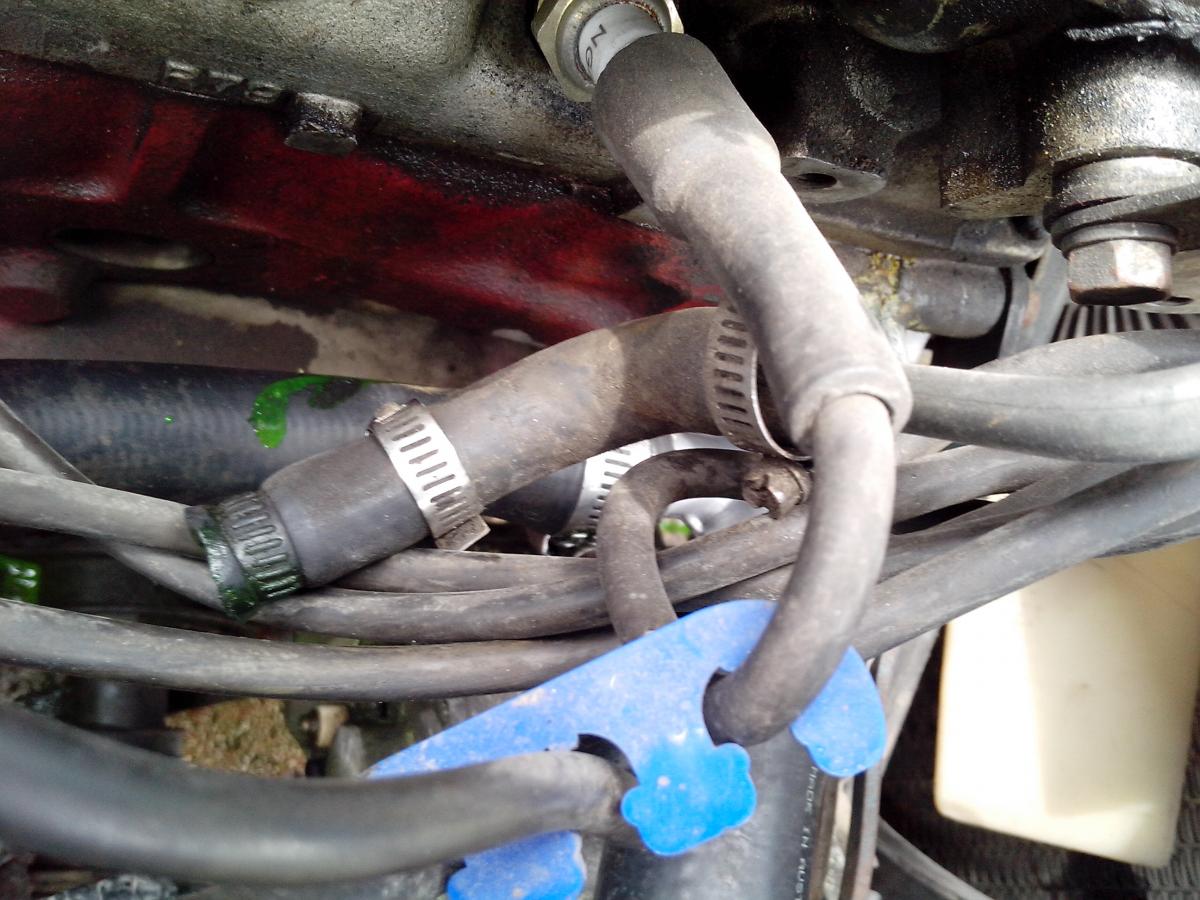

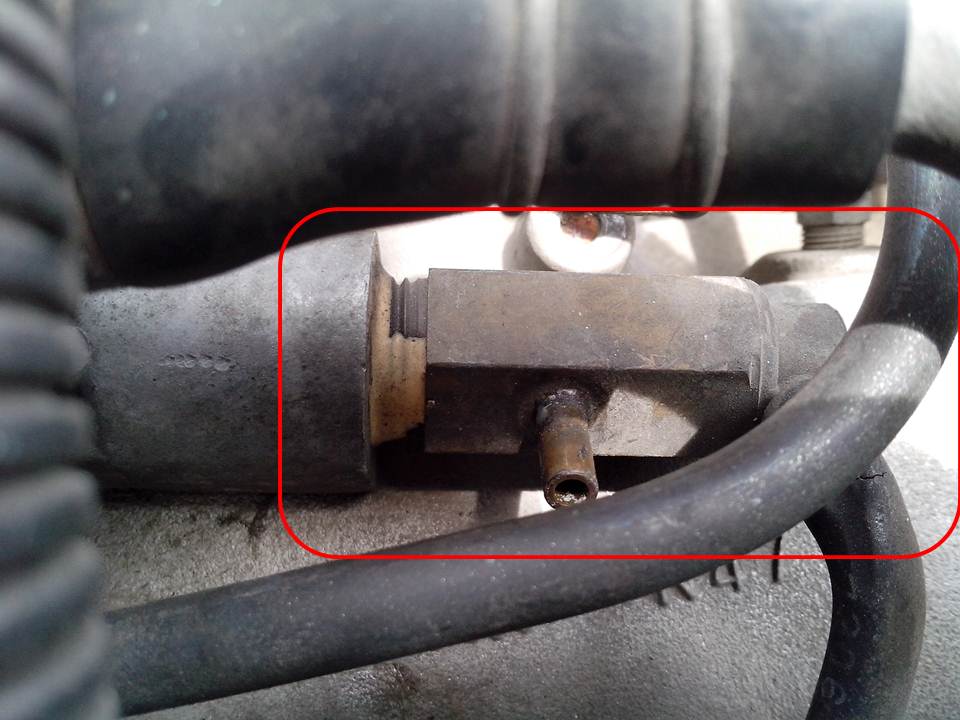

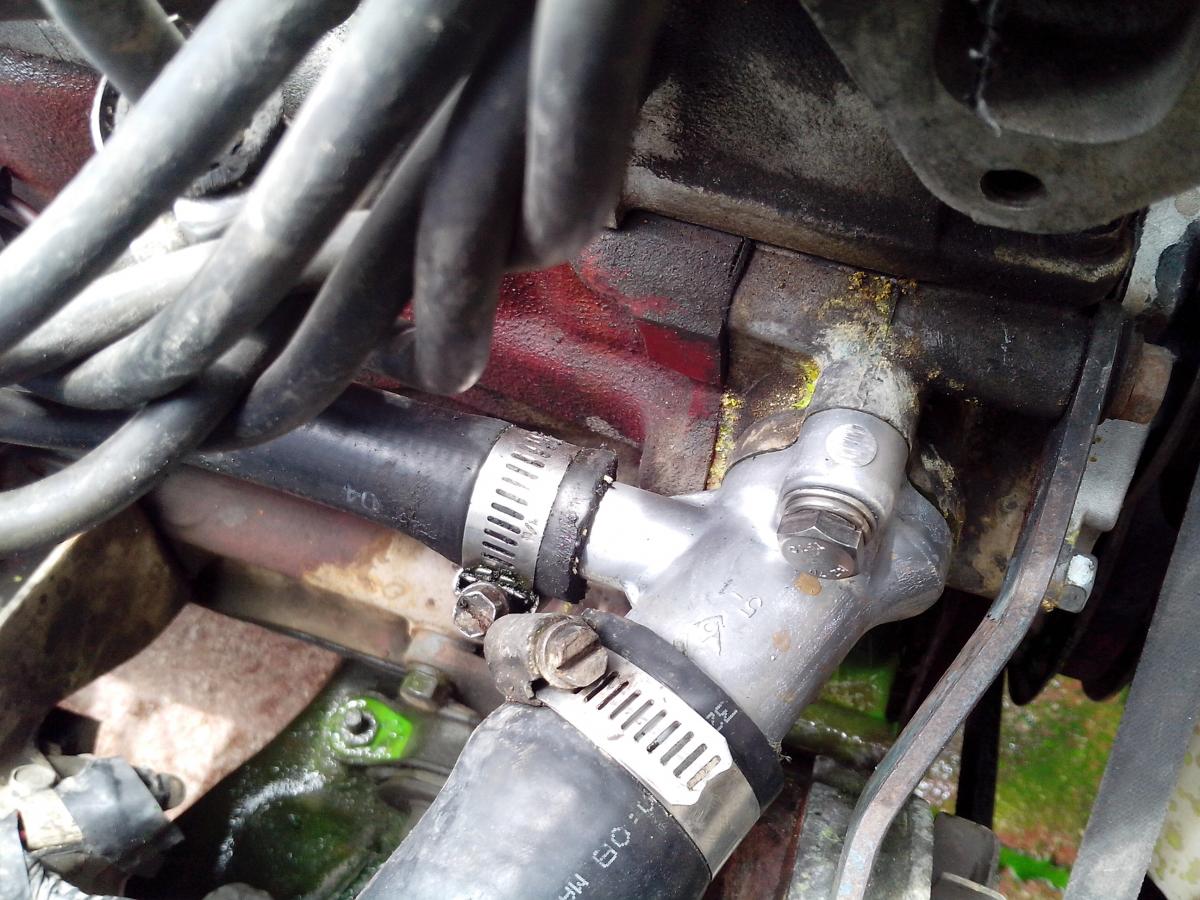

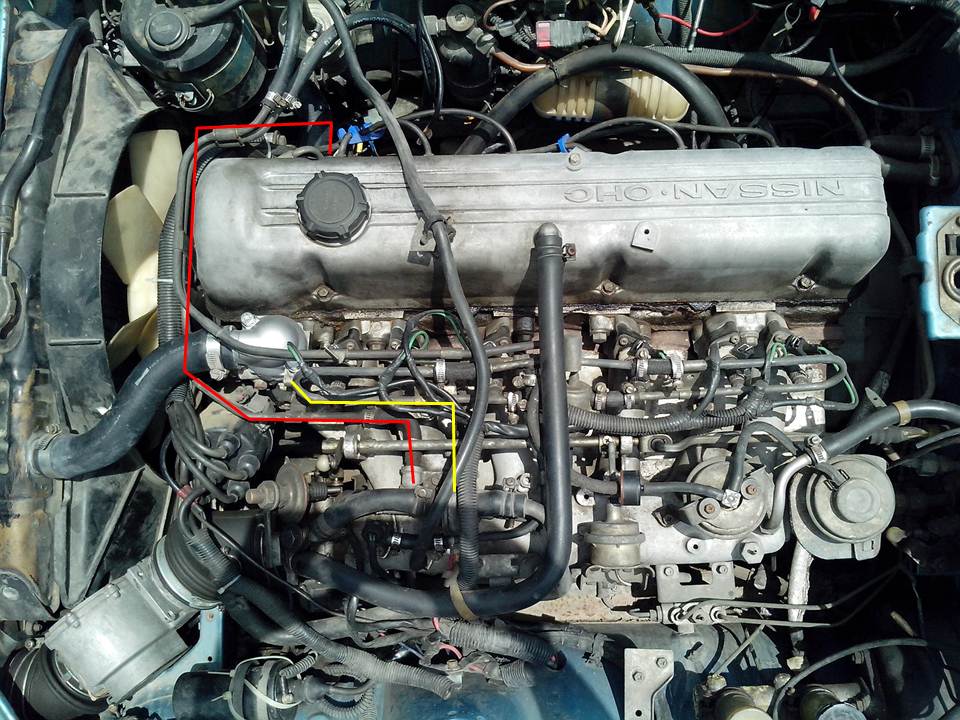

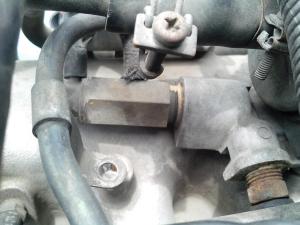

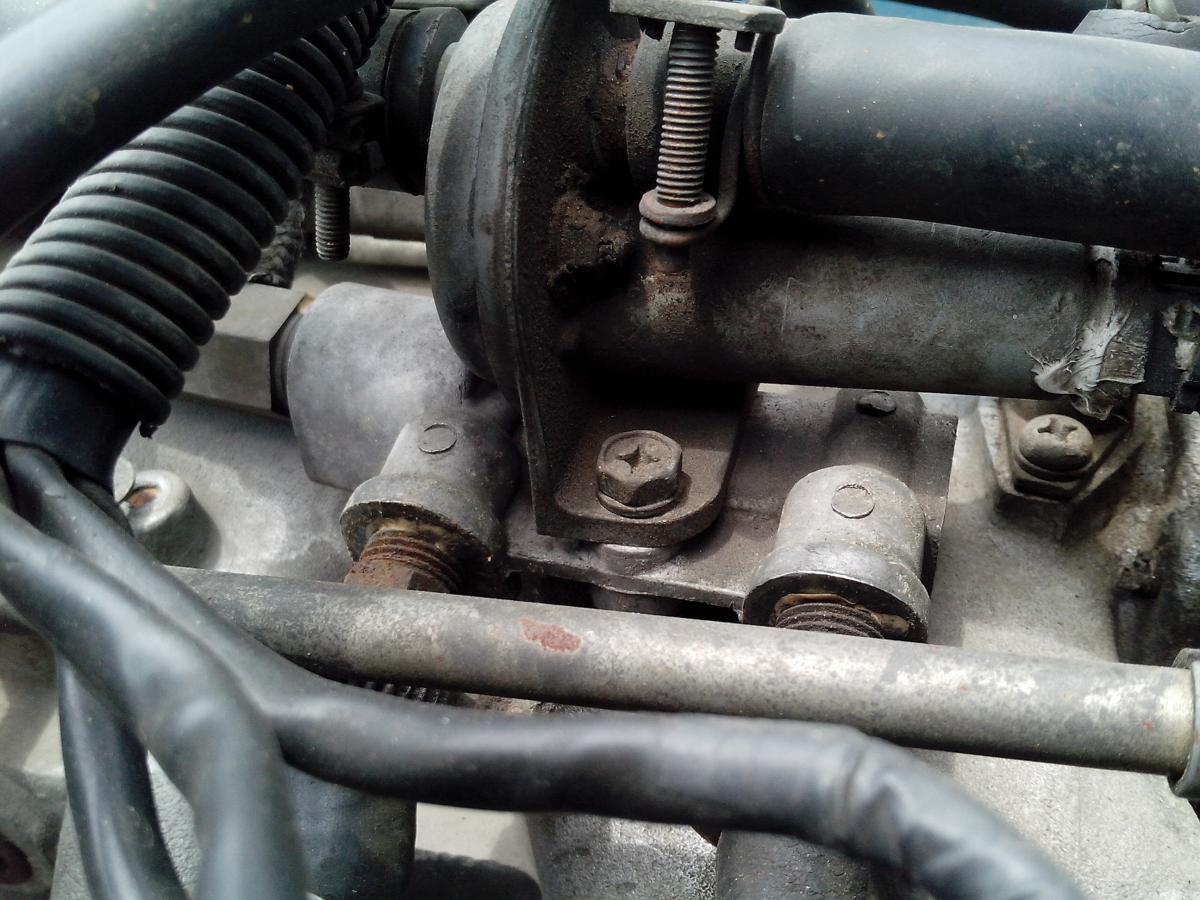

Hi. My name is Arnoldo, I'm from south of Mexico. I own a 1977 280z that will be in a future restauration process (as soon as I have enough cash). Recently I noted a leakage in the coolant tubes on the engine block, and in the one in the thermostat housing, so I purchased new ones to replace those. The problem came when I actually tried to replace them: I found that my car had an extra line that came out of the tube on the front of the block and to a part that sits on the upper side of the intake manifold, that has a lot of what I think are vaccum lines to different parts of the car, and another line to the thermostat housing. I didn't found those in the diagram that comes in the FSM (then again, I'm kinda bad reading diagrams), and I don't know what are those line for. The parts that I bought are for that model in particular, but the tube doesn't have this outlet. As Celia Cruz used to say: "My english is not very good looking"... so a picture is better that a thousand words.

I know that this topic is so very f-ing old... but a tutorial with pictures would be very nice.
